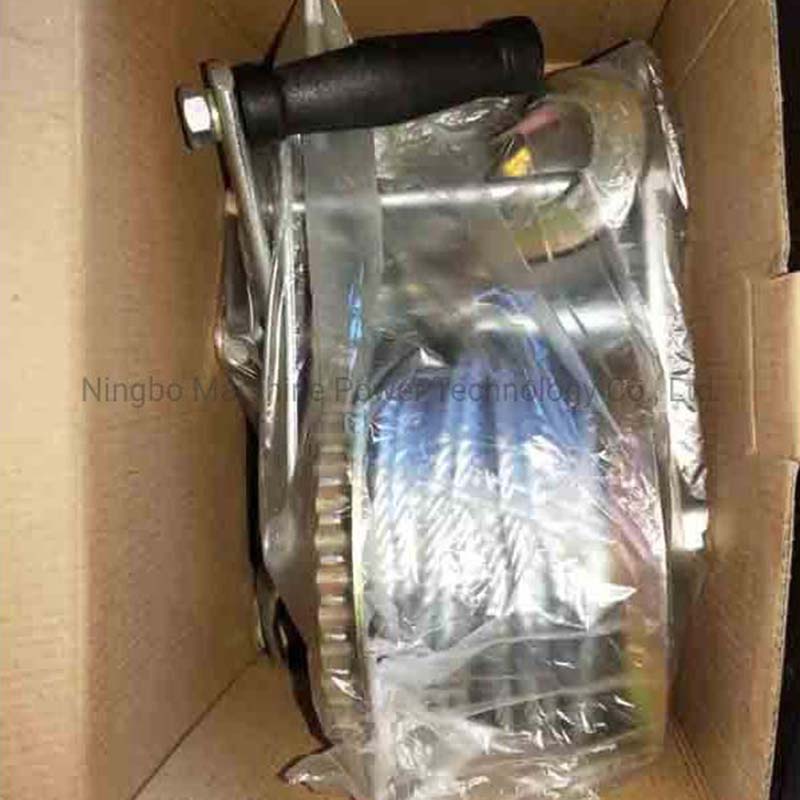

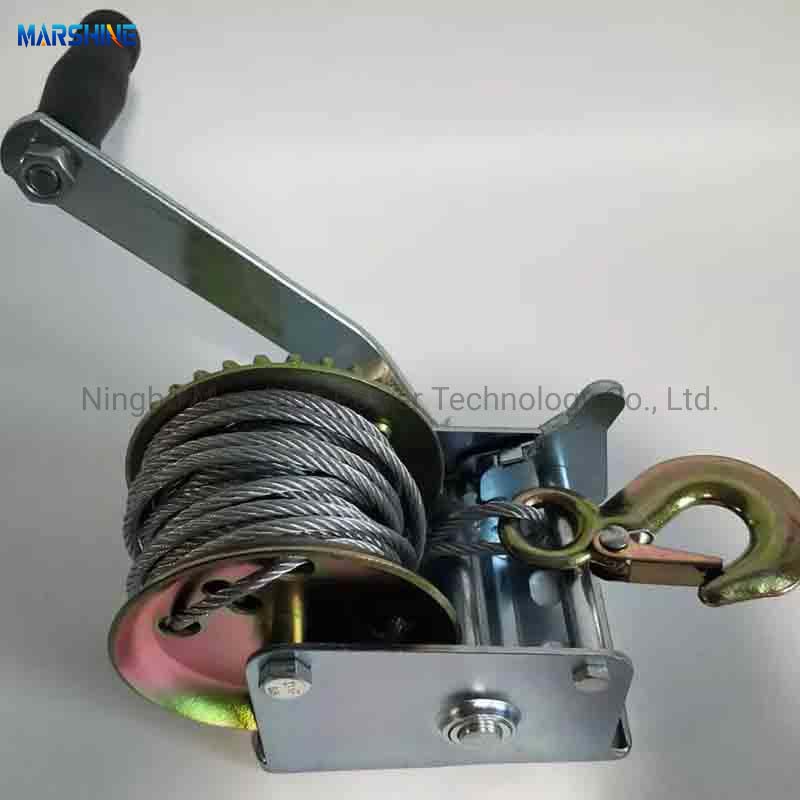

Manual 600-3200lbs Wire Rope Winch

Model:JL600LBS

Being a large-scale company trading for Manual 600-3200lbs Wire Rope Winch with good price from China, MARSHINE can continuously manufacture and supply the international standard products to meeting the customer’s needs, our gasoline powered winch, electric powered winch was great for the construction too. MARSHINE hope we can be the best choice for more customers.

Send Inquiry

Product Description

As a manual tool with automatic brake, MARSHINE Manual 600-3200lbs Wire Rope Winch, it’s mechanical function is to manually pull the cargo by the rotation of the winch drum. The wire rope drum is driven by gears and effectively pulls the cargo by rotating the wire rope or braided belt wound on it. Equipped with an automatic brake device, it automatically opens the brake when the winch drum remains stationary while the wire rope is pulling the cargo to ensure safe operation. This feature enhances safety and reliability during operation.

Product Parameter

Item num	Model	Material Gear thickness	Hook Forge (g)	Surface	Wire rope (7*19)	Gear Ratio	Per box G/ W (kg)	Qty / CTN (PCS)	Per box G/ W (kg)
09211	JL600LBS	Q235, 5mm	140	Galvanizing / Electrophoresis	φ4.0mm*6m	3.1:1	2.5	6	15
09212	JL800LBS	Q235, 5mm	140		φ4.0mm*7m	3.1:1	2.6	6	15.5
09213	JL1000LBS	Q235, 6mm	140		φ4.5mm*8m	4.1:1	3.3	6	20
09214	JL1200LBS	Q235, 6mm	140		φ4.5mm*10m	4.1:1	3.5	6	21
09215	JL1400LBS	Q235, 8mm	160		φ4.5mm*10m	4.1:1	3.6	6	22
09216	JL1600LBS	Q235, 8mm	160		φ4.5mm*10m	4.1:1	3.8	6	23
09217	JL1800LBS	Q235, 8mm	160		Φ5.0mm*8m	4.1:1	4.3	6	26
09218	JL2000LBS	Q235, 8mm	180		Φ5.0mm*10m	4.1:1	4.5	6	27
09219	JL2500LBS	Q235, 8mm	230		Φ5.0mm*10m	4.1:1& 8.1/1	5.7	4	23
09219A	JL3000LBS	Q235, 8mm	230		Φ5.5mm*10m	4.1:1& 8.1/1	6	4	24
09219B	JL3200LBS	Q235, 8mm	230		Φ6.0mm*10m	4.1:1& 8.1/1	6	4	24.5

Product Feature

Employed with a gear system that can provide the mechanical advantage for the easier pulling of the heavy loads with less effort, this MARSHINE Manual 600-3200lbs Wire Rope Winch is a effort-less tool that constructed from the durable alloy steel, can withstand the heavy loads and the harsh conditions. With the ratchets that can allows the user to pause and secure the loads at any point during the pulling process, and been available in various of the load capacities, this tool can help the utility workers to deal with the different tasks according to the construction requires. And its compact yet lightweight design allows the operator to carry about move it from the on side to the another side with less efforts, can reduce the labor costs to improve the construction efficiency. It is able to equipped on the brackets or the hooks, so that to attached to the vehicles, frames, or the other structures with ease.

Product Application

The MARSHINE Manual 600-3200lbs Wire Rope Winch is suitable for towing the vehicles, extracting the stuck cars, or moving the heavy automotive parts, and can assist in loading and unloading the heavy cargo onto the trucks and the trailers, can ensures the safe and efficient handling. It is also helpful in securing the boats to the docks or the mooring points, prevent the movement due to water, or help the crews to tension the cables and rigging equipment. In the mining operations, the manual winch is able to assist in extracting the ore and the other materials from the mine shafts or the quarries. It can assist in lifting and moving the heavy components during the maintenance and repair of the industrial machinery, or be used in the facilities for tasks such as moving the large storage containers, installing the heavy equipment, and performing the structural repairs.
