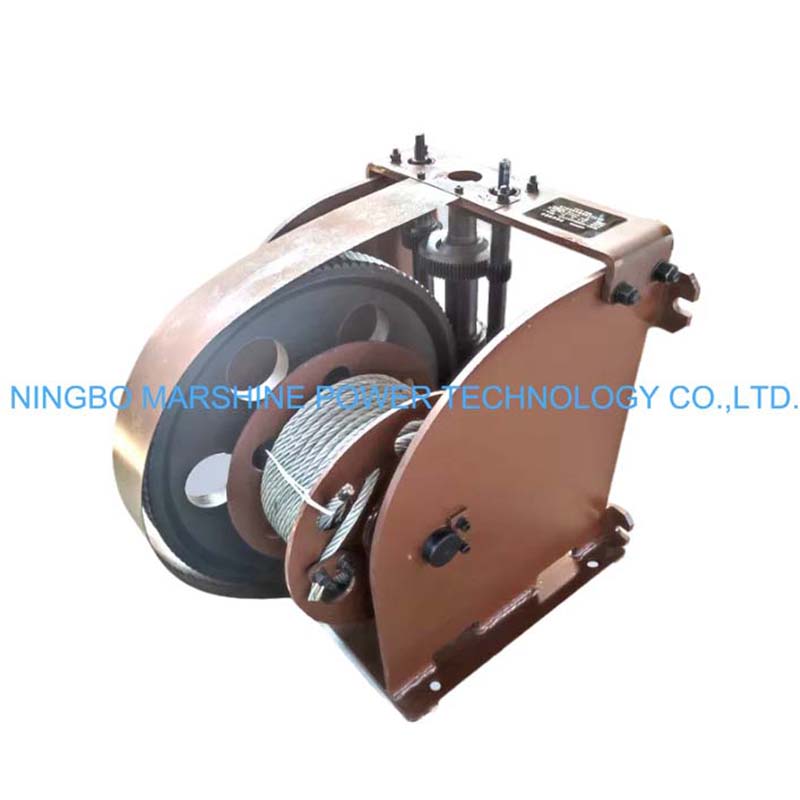

Heavy Duty Brake Manual Operated Winch

Model:MAMW-500

MARSHINE is a Chinese manufacturer that focuses on manufacturing power tools. For many years, we have been providing cost-effective cable pulling tools with competitive prices to linemen and electricians around the world. As a manual heavy-duty winch, this MARSHINE Heavy Duty Brake Manual Operated Winch allows operators to provide the higher cable pulling efficiency with the less manpower, and with its long-term load holding capacity, it can ensures a longer service life.

Send Inquiry

Product Description

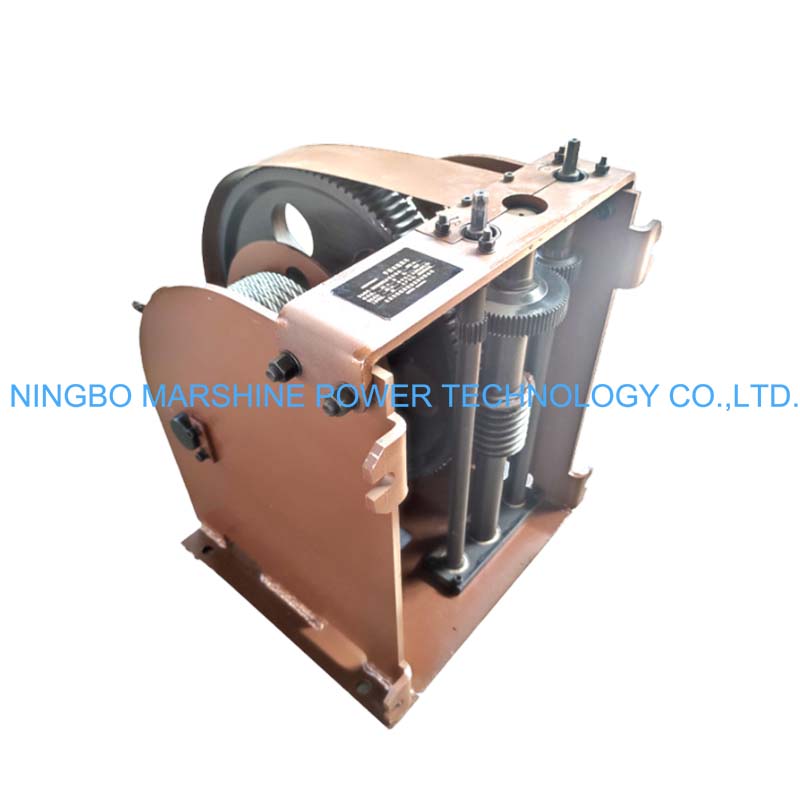

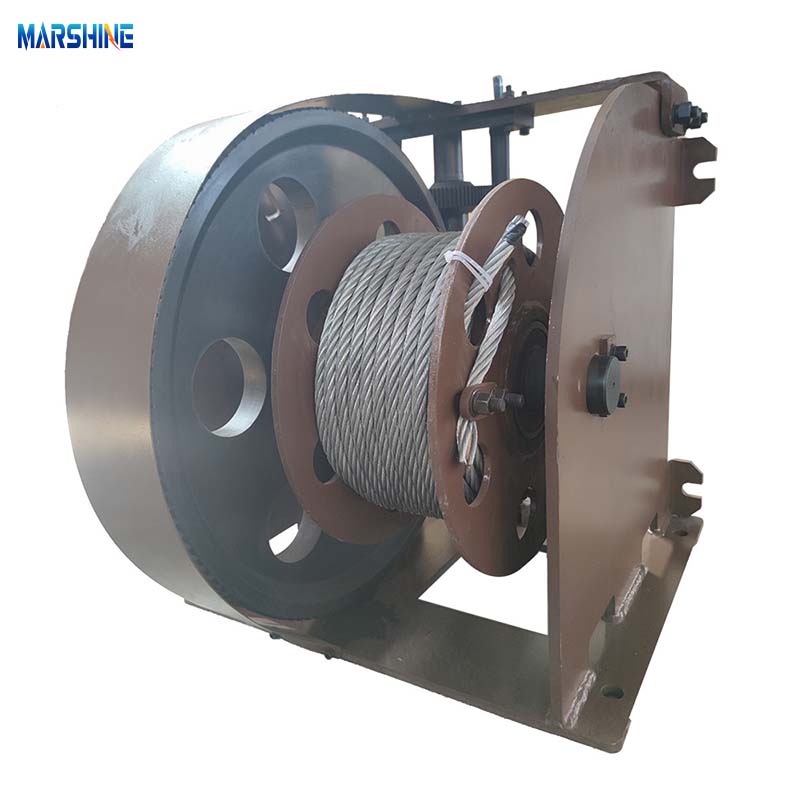

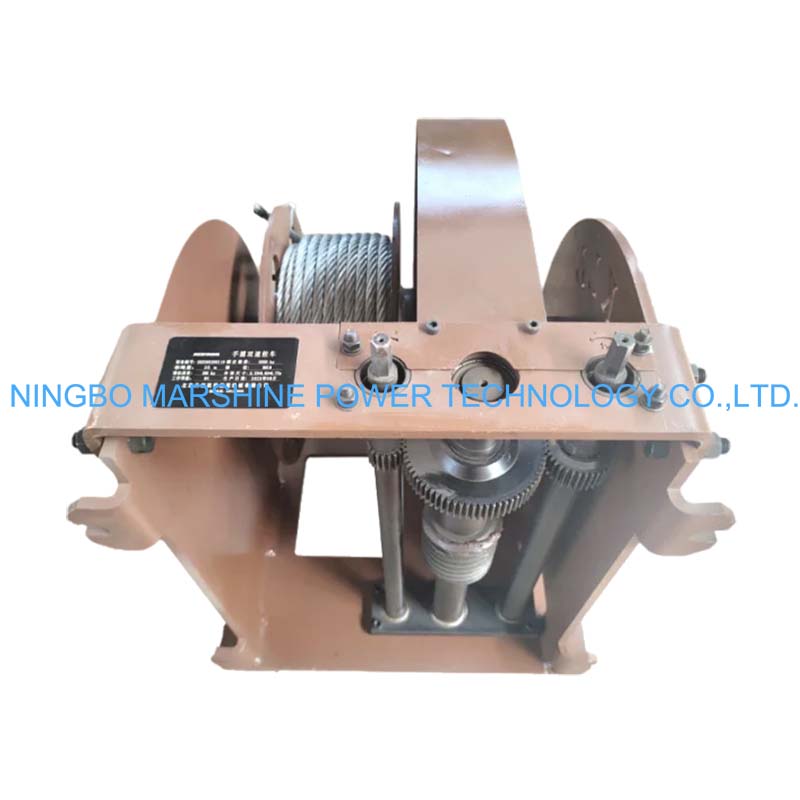

The MARSHINE Heavy Duty Brake Manual Operated Winch is a rugged yet reliable hand-powered lifting and pulling tool that designed for the industrial and field applications. Featuring an integrated mechanical brake system, and with its two transmission devices, coupling drive and turbine drive, it can ensures the secure load control during the operations, even on the inclines or when handling the heavy weights. It can be widely used for the lifting, towing tasks, or positioning loads in the power line constructions.

Product Parameter

Model	Reduction ratio	Maximum lifting weight	Deadweight	Wire rope diameter	Rope capacity on drum
MAMW-500	61:1 and 30.5:1	500kg	13kg	6mm	78m
MAMW-1000	61:1 and 124:1	1000kg	22kg	10mm	64m
MAMW-2000	82:1 and 164:1	2000kg	65kg	12mm	60m
MAMW-3000	100:1 and 200:1	3000kg	100kg	14mm	57m
MAMW-5000	240:1 and 480:1	5000kg	240kg	18mm	38m

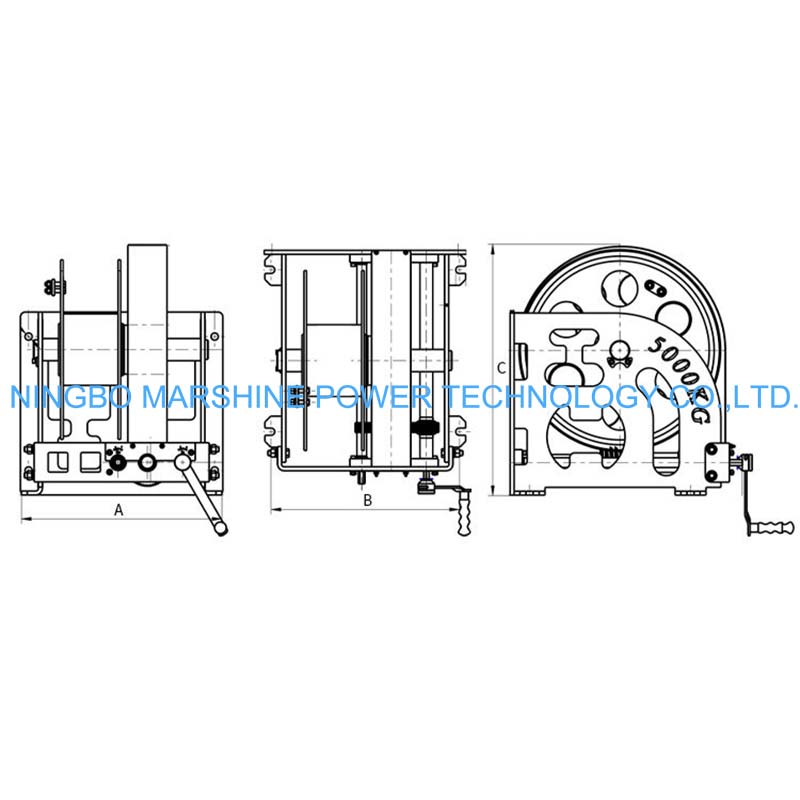

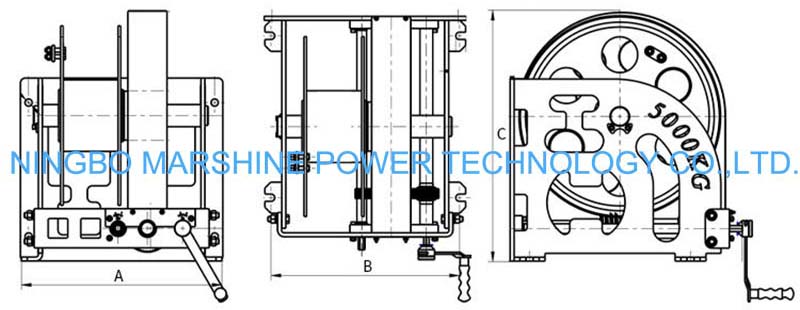

Model	A(length)	B(width)	C(height)
MAMW-500	310	240	205
MAMW-1000	332	281	257
MAMW-2000	426	418	432
MAMW-3000	438	492	525
MAMW-5000	620	714	765

Product Feature

Engineered to handle the heavy-duty tasks with the strong lifting and pulling power, this MARSHINE Heavy Duty Brake Manual Operated Winch is made from the high-strength alloy steel with protective coating for its long service life in the outdoor environments. Equipped with the precision gears and efficient turbine drive mechanism, this winch machine allows the high-efficiency and labor-saving manual operations. With the brake that can engages under the load, it can offering the operator with the enhanced safety and control during the use. Due to its compact yet robust design, it is ideal for the use in areas where powered equipment is not feasible.

Product Application

The MARSHINE Heavy Duty Brake Manual Operated Winch is a powerful winch machine that suitable for pulling the cables or the conductors in the power transmission and distribution line constructions, and can also be used to the utility pole and transformer installations, general industrial lifting and pulling tasks, and the towing or winching operations in the remote construction sites or rugged terrain.

Product Details

As a powerful and dependable cable pulling machine for the manual lifting and pulling in the utility and industrial settings, this MARSHINE Heavy Duty Brake Manual Operated Winch that can delivers the performance and control you need to get the job done well.

Place Of Origin:Ningbo,China.

Leading Time:15-20days.

Certifications:CE,ISO.

Warranty:1year.
