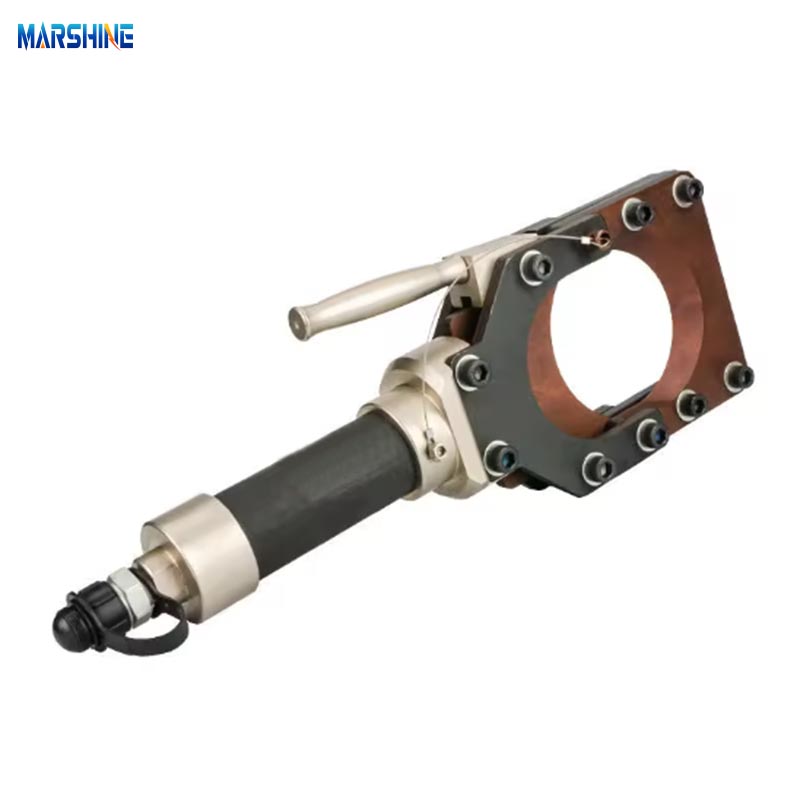

This MARSHINE MACPC Split Type Hydraulic Cable Cutter is a high-performance cable cutting tool that designed to offer the users with the precise yet precise cutting results of the large-diameter power cables. with its split-head design, this cutter allows the easy positioning on the cables while no need to threading the entire length through the tool. And powered by a hydraulic pump, it is able to deliver the high cutting force with the minimal operator effort requires, so that to make it a good choice for the field works.
Product Parameter
| Model | Cutting Force (T) | Cutting Capacity (mm) | Weight (kg) |
| MACPC-50H | 7 | Armoured Cu/Al cable φ50mm | 45 |
| MACPC-75H | 8 | Armoured Cu/Al cable φ75mm | 45 |
| MACPC-85H | 10 | Armoured Cu/Al cable φ85mm | 45 |
| MACPC-95H | 10 | Armoured Cu/Al cable φ95mm | 60 |
| MACPC-100H | 11 | Armoured Cu/Al cable φ100mm | 60 |
| MACPC-132H | 15 | Armoured Cu/Al cable φ132mm | 60 |
| MACPC-160H | 18 | Armoured Cu/Al cable φ160mm | 75 |
Product Feature
Been made from the high-strength steel for the extended service life, and with the split head design to enables the users for the quick yet easy placement on the long or the fixed cables, this MARSHINE MACPC Split Type Hydraulic Cable Cutter with its high cutting force that various from 7 to 18 ton, this cutter is suitable for cutting the large-diameter copper, aluminum, and the armored cables various from 50 to 160mm in diameters. With its hydraulic efficiency, this cutter can delivers the stable cutting yet cleanly result with the minimal manual efforts, and ensures the cable's integrity after every cuts. And with its portable yet versatile design, this cutter is lightweight and compact enough for the workers to transport and handling easily in various of the working environments.
Product Application
The MARSHINE MACPC Split Type Hydraulic Cable Cutter is a compact yet powerful cable cutting tool which is suitable for the electric power cable installation and the maintenance tasks, or the armored cable dismantling operation in construction sites, and can be used to deal with the electrical substation and the transmission line projects, or the utility and the industrial cable cutting operations as well. Meanwhile, this tool can also perform well in the fieldwork in the remote or the confined areas.
Product Details
The MARSHINE MACPC Split Type Hydraulic Cable Cutter that combines the outstanding convenience, excellent cutting power, and the last long durability for the electricians and linemen to deal with the long term power line projects.
Original Place:Zhejiang,China.
Lead Time:12-14days.
Warranty:1year.
Certification:CE,ISO9001.
