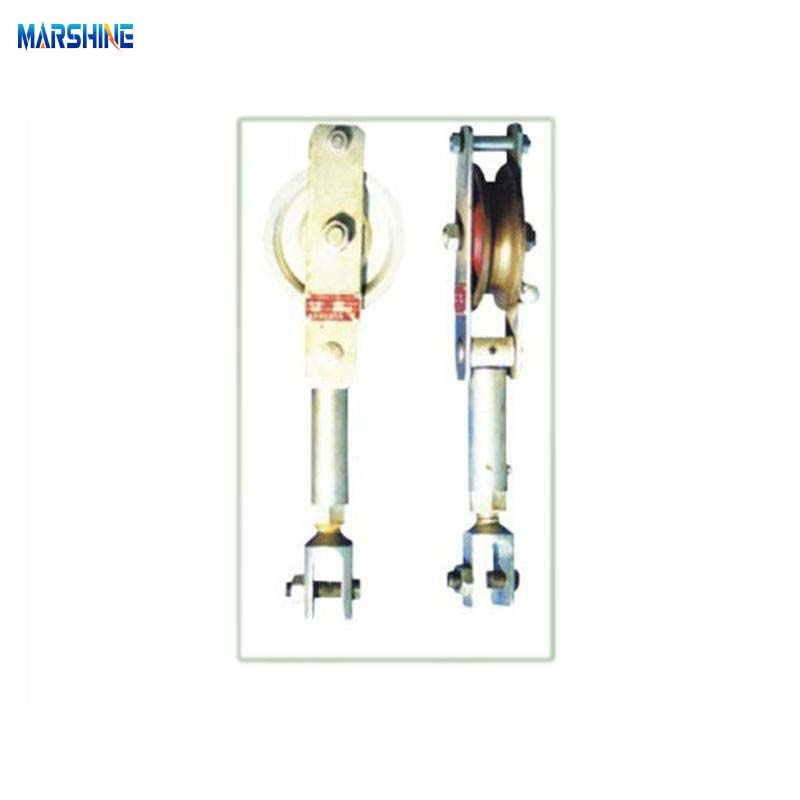

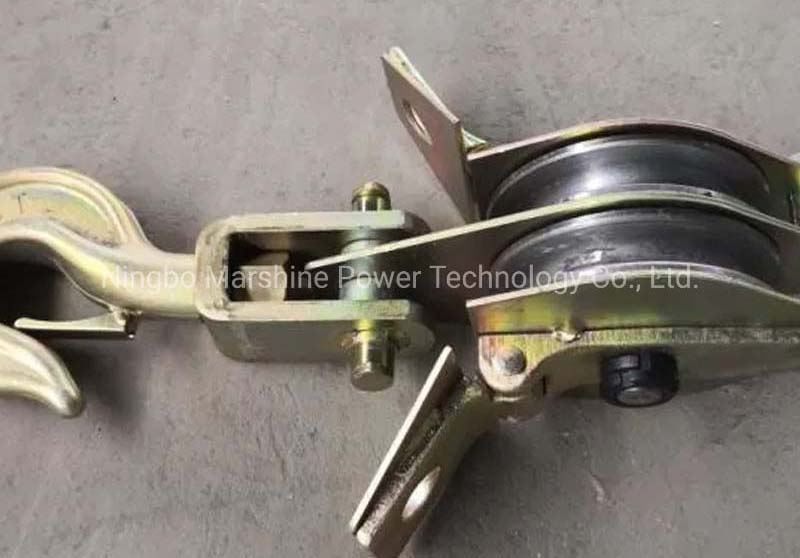

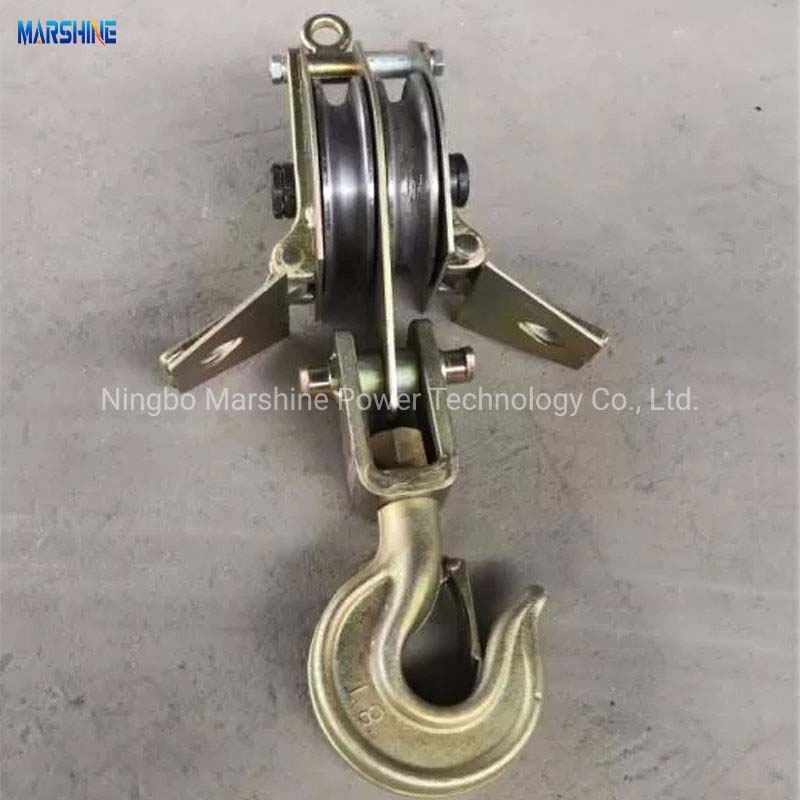

Heavy Duty Cable Pulley Hoist

Model:QH1-1K

MARSHINE, a Chinese company who concentrate on producing durable Heavy Duty Cable Pulley Hoist for decades with quite great price, We adhere to continuous innovation and develop all possibilities of cable pulley hoist and we have made great progress. About the business, our MARSHINE conducts trade with more than 50 countries around the world and established a good relationship with them.

Send Inquiry

Product Description

Constructed from durable alloy steel and featured with the rugged design, our MARSHINE Heavy Duty Cable Pulley Hoist is capable of performing in the harsh construction environments. Where ever you apply this tool with, lifting the heavy machinery, moving the construction materials, or handling the large equipment, it can all delivers the outstanding performance and the reliability. Its advanced pulley system can ensures the smooth operation, and reduce the friction and the wear on cables while maximizing the efficiency.

Product Parameter

Item Number	Model	Number of Sheave	Rated Load (kn)	Sheave Outer Diameter x Sheave Width (mm)	Rope Diameter (mm)	Weight (kg)	Hoisting Point Type
Item Number	Model	Number of Sheave	Rated Load (kn)	Sheave Outer Diameter x Sheave Width (mm)	Rope Diameter (mm)	Weight (kg)	Hoisting Point Type
11181	QH1-1K	1	10	φ100x31	φ7.7	2.8	G	H
11182	QH1-2	2	10	φ80x28	φ6	2.8	G	H
11183	QH1-3	3	10	φ80x27	φ6	4.1	G	H
11191	QH2-1K	1	20	φ120x35	φ9.3	4.2	G	H	B
11192	QH2-2	2	20	φ100x31	φ7.7	4.2	G	H
11193	QH2-3	3	20	φ100x31	φ7.7	6	G	H
11201	QH3-1K	1	30	φ150x39	φ11	7	G	H	B
11202	QH3-2	2	30	φ120x35	φ9.3	5.3	G	H
11203	QH3-3	3	30	φ100x31	φ7.7	6.5	G	H
11211	QH5-1K	1	50	φ166x40	φ13	9.6	G	H	B
11212	QH5-2	2	50	φ150x39	φ11	10.8	G	H
11213	QH5-3	3	50	φ120x35	φ9.3	7.7	G	H
11221	QH8-1K	1	80	φ205x50	φ17	12.5	G	H	B
11222	QH8-2	2	80	φ166x40	φ13	17	G	H
11223	QH8-3	3	80	φ150x39	φ11	17.5	G	H
11231	QH10-1K	1	100	φ246x60	φ18.5	25	G		B
11232	QH10-2	2	100	φ166x40	φ13	18.5		H
11233	QH10-3	3	100	φ150x39	φ11	20		H
11241	QH15-1K	1	150	φ280x65	φ21.5	34			B
11242	QH15-2	2	150	φ205x50	φ17	22		H
11243	QH15-3	3	150	φ166x40	φ13	26		H
11244	QH15-4	4	150	φ150x39	φ11	30		H
11248	QH20-4	4	200	φ205x50	φ17	50		H

Product Feature

Been built with the high-quality alloy steel, our MARSHINE Heavy Duty Cable Pulley Hoist is a reliable tool designed to handle the heavy loads with ease, and can ensures the long-lasting performance even in the harsh environments. Equipped with the precision-engineered pulleys and the bearings, this pulley hoist is able to provide the users with the smooth cable movement while reducing the friction and minimizing the wear on the cables. With its heavy duty capability and the compact design, this tool is easy to transport and can be used in various of the conditions.

Product Application

The MARSHINE Heavy Duty Cable Pulley Hoist is a versatile and powerful lifting tool that can be used for lifting and positioning the heavy construction materials such as the steel beams, concrete panels, and the precast elements, or for installing and maintaining the wind turbines, solar panels, and the other renewable energy systems, and is perfect for stringing and tensioning the overhead power lines and the communication cables. In addition, it is also suitable for assisting in the installation of the utility poles and the transformers.
