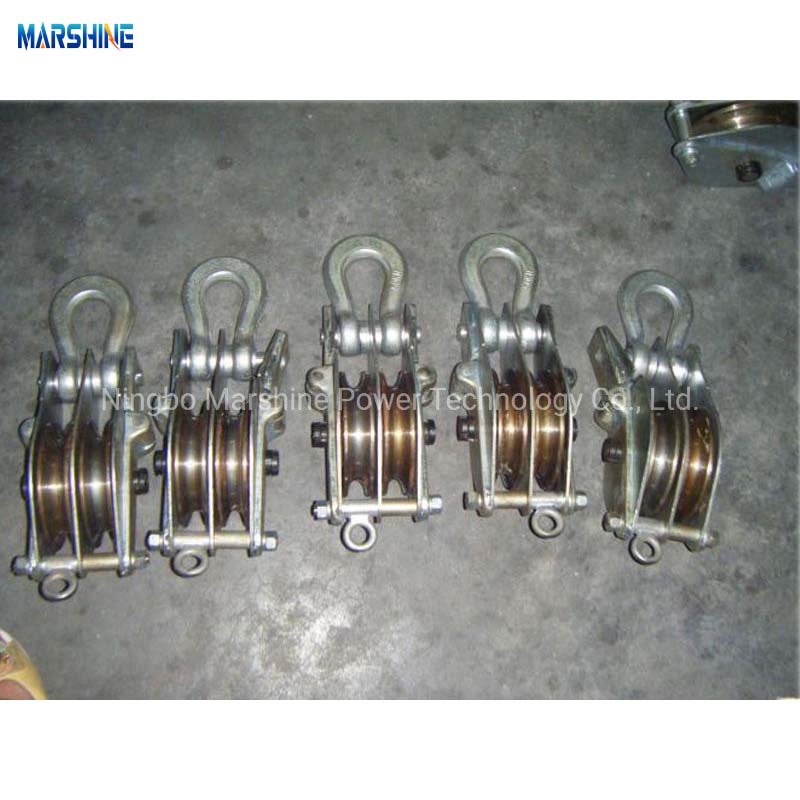

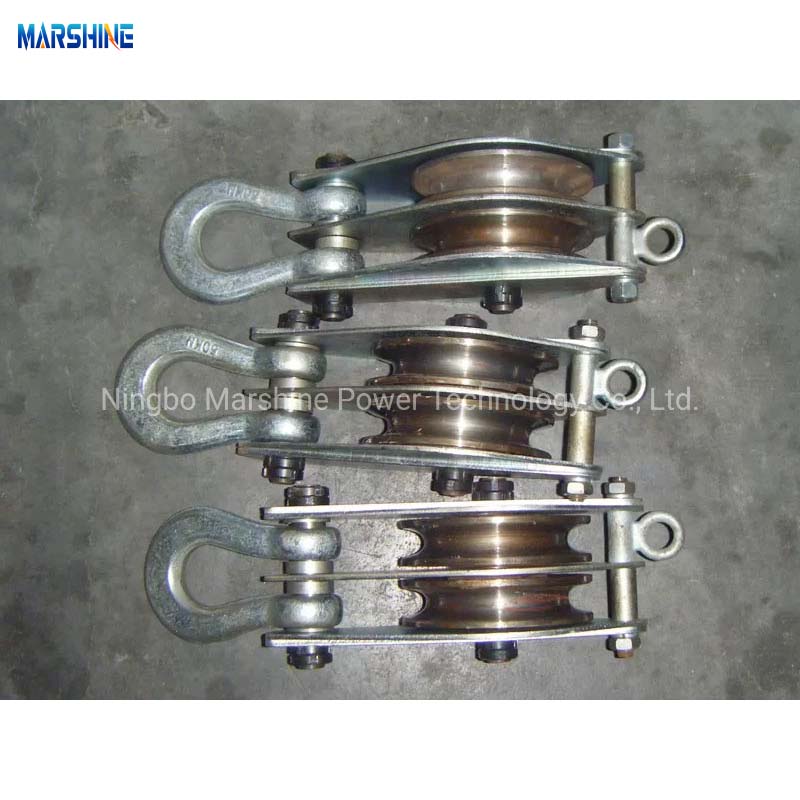

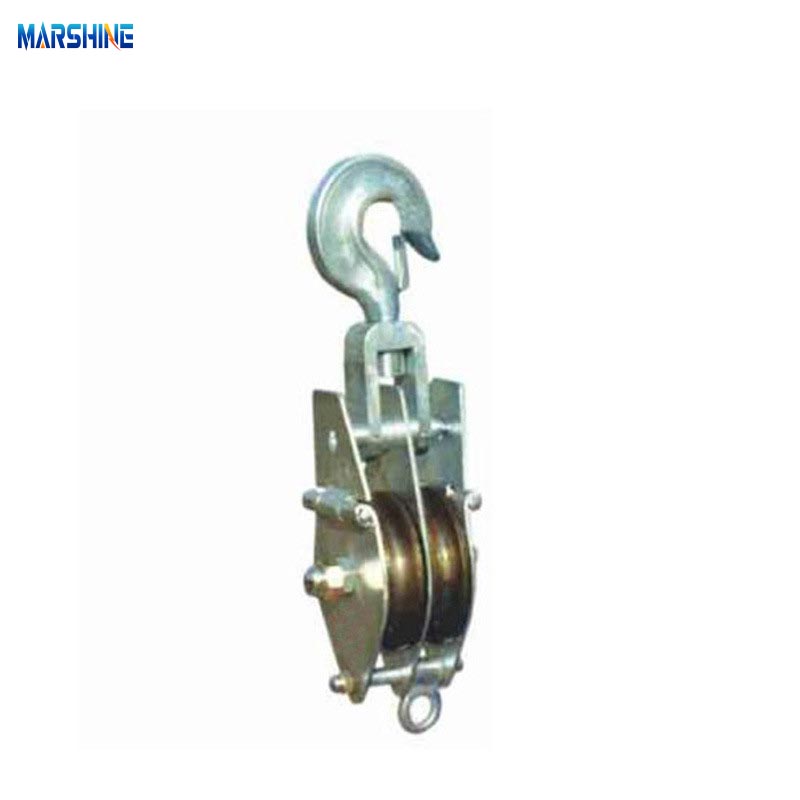

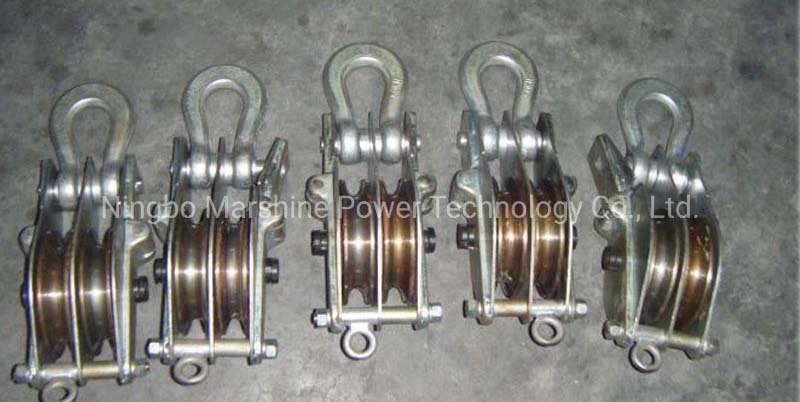

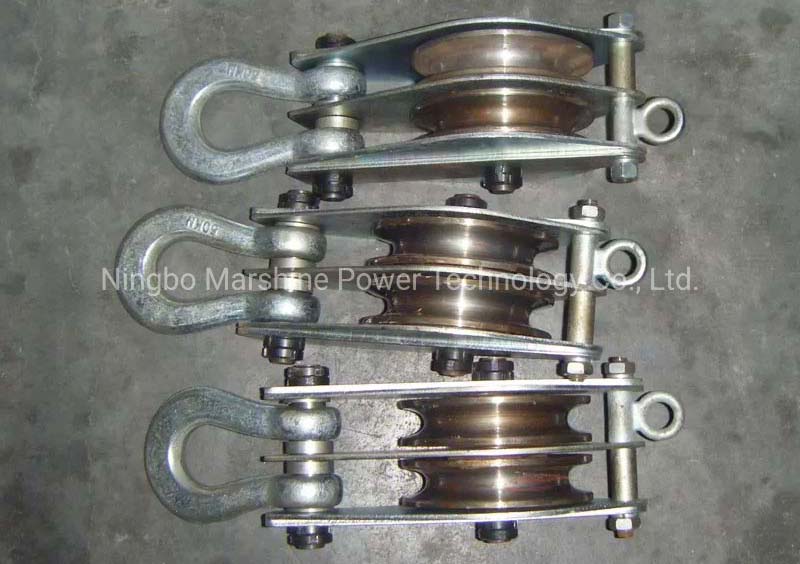

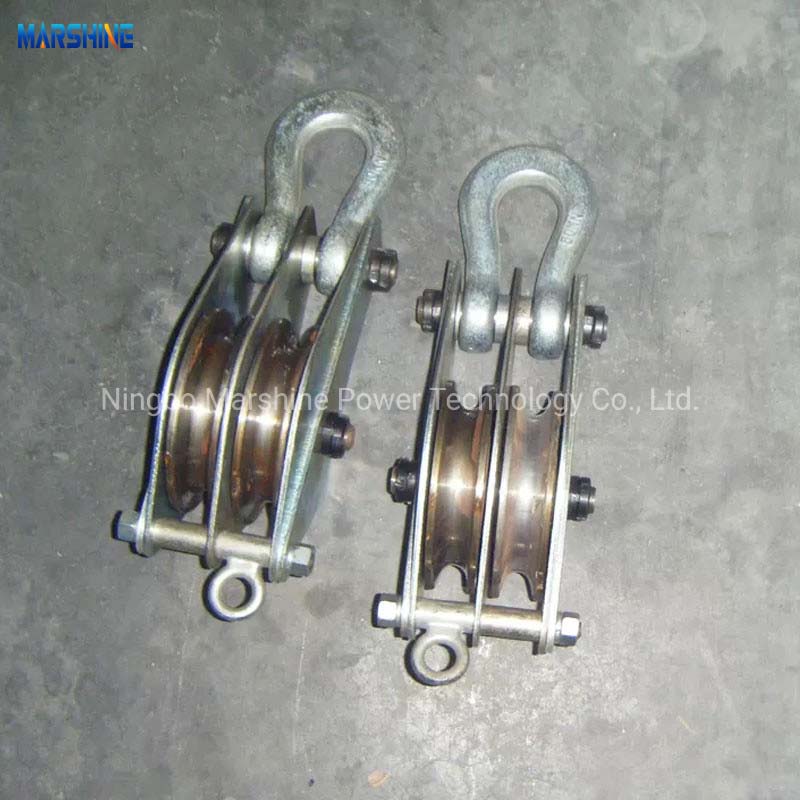

Iron Hoisting Heavy Duty Pulley

Model:QH1-1K

Been built by MARSHINE, a Chinese manufacturer in heavy-duty rigging and lifting equipment and offered to the linemen and utility workers with competitive price,this MARSHINE Iron Hoisting Heavy Duty Pulley is a rugged lifting tool with the high-capacity, which can delivers the reliability, safety, and efficiency in the heavy duty load-bearing applications.

Send Inquiry

Product Description

This MARSHINE Iron Hoisting Heavy Duty Pulley is a rugged yet reliable lifting tool for the heavy loads in cable routing operations. Been made from the cast iron, this pulley is able to offers the high-performance to withstand the harsh construction conditions. Whether it's power line construction, infrastructure development or the general material handling, this pulley can all provides the outstanding strength, stability and safety.

Product Parameter

Item number	Model	Sheave number	Rated load(kn)	Outside diameter*width(mm)	Max. rope diameter	Weight(kg)	Hoist point type
11181	QH1-1K	1	10	Φ100*31	Φ7.7	2.8	G	H
11182	QH1-2	2	10	Φ80*27	Φ6	2.8	G	H
11183	QH1-3	3	10	Φ80*27	Φ6	4.1	G	H
11191	QH2-1K	1	20	Φ120*35	Φ9.3	4.2	G	H	B
11192	QH2-2	2	20	Φ100*31	Φ7.7	4.2	G	H
11193	QH2-3	3	20	Φ100*31	Φ7.7	6	G	H
11201	QH3-1K	1	30	Φ150*39	Φ11	7	G	H	B
11202	QH3-2	2	30	Φ120*35	Φ9.3	5.3	G	H
11203	QH3-3	3	30	Φ100*31	Φ7.7	6.5	G	H
11211	QH5-1K	1	50	Φ166*40	Φ13	9.6	G	H	B
11212	QH5-2	2	50	Φ150*39	Φ11	10.8	G	H
11213	QH5-3	3	50	Φ120*35	Φ9.3	7.7	G	H
11221	QH8-1K	1	80	Φ205*50	Φ17	12.5	G	H	B
11222	QH8-2	2	80	Φ166*40	Φ13	17	G	H
11223	QH8-3	3	80	Φ150*39	Φ11	17.5	G	H
11231	QH10-1K	1	100	Φ246*60	Φ18.5	25	G		B
11232	QH10-2	2	100	Φ166*40	Φ13	18.5		H
11233	QH10-3	3	100	Φ150*39	Φ11	20		H
11241	QH15-1K	1	150	Φ280*65	Φ21.5	34			B
11242	QH15-2	2	150	Φ205*50	Φ17	22		H
11243	QH15-3	3	150	Φ166*40	Φ12	26		H
11244	QH15-4	4	150	Φ150*39	Φ11	30		H
11248	QH20-4	4	200	Φ205*50	Φ17	50

Product Feature

MARSHINE Iron Hoisting Heavy Duty Pulley is made from the cast iron for the superior strength and the wear resistance under heavy-load conditions. The precision-machined sheave can ensures the smooth rope movement with lower wear on the cables. It was finished with the anti-rust paint to protect against the hard work environments. Its reinforced axle and bearings can provide the consistent rotation and long-lasting durability during the repeated use, and been engineered to support large weights, it is ideal for the heavy lifting and tensioning tasks.

Product Application

The MARSHINE Iron Hoisting Heavy Duty Pulley is ideal for lifting the materials and positioning the equipment at building sites and the civil engineering projects. It is commonly used in stringing conductors and hoisting hardware during the tower and line construction, or in the shipyards, factories, and mechanical workshops for moving heavy machinery and materials. It is also perfect for tough environments where heavy-duty rigging tools are essential, and can supports the daily operations in electric utilities, telecom services, and field maintenance.
