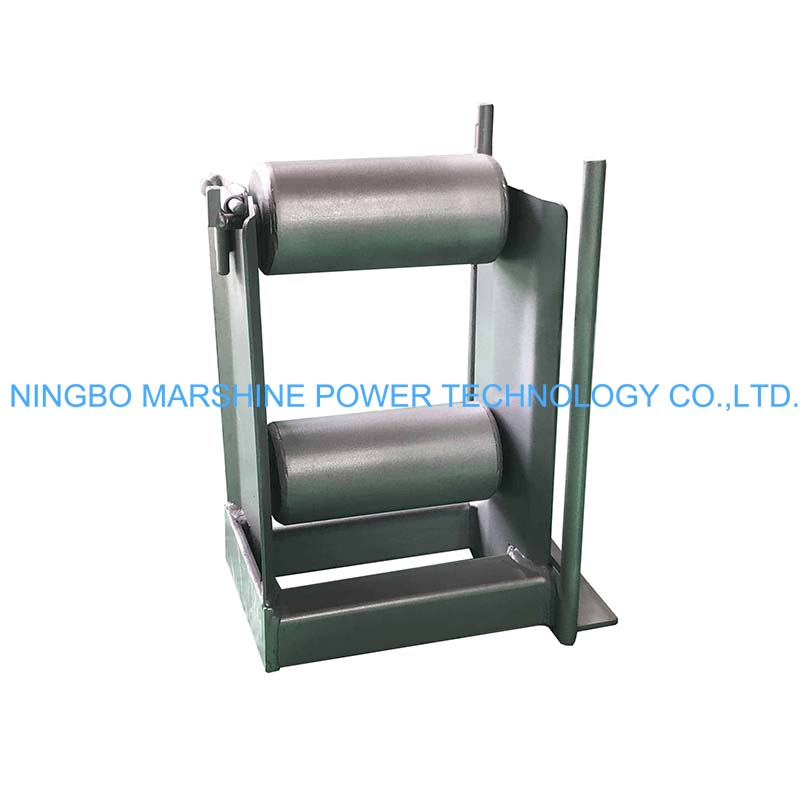

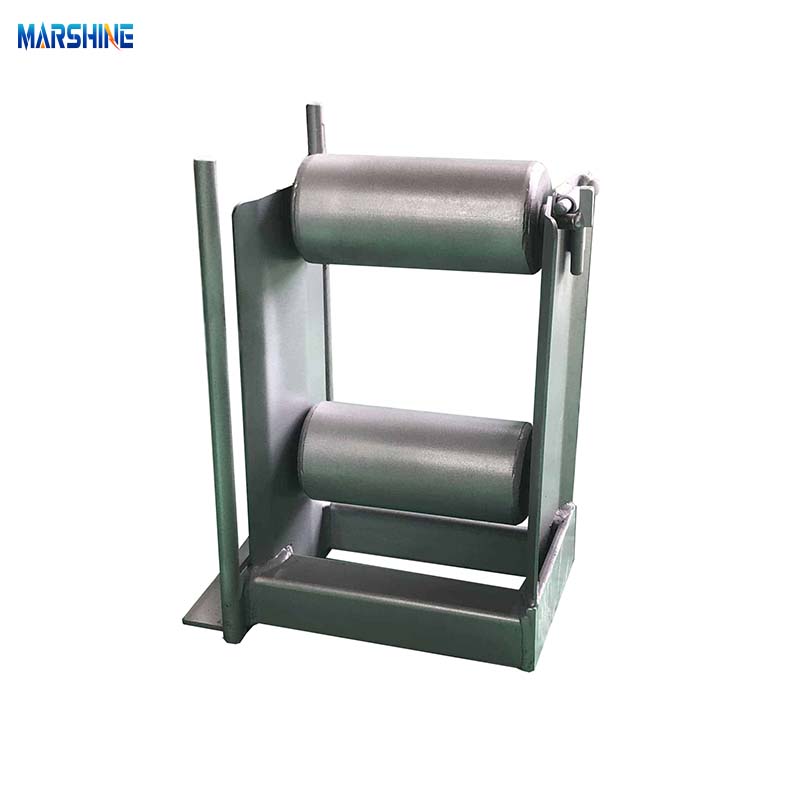

The MARSHINE Heavy Duty Alloy Steel Guide BR-7 Horizontal Corner Roller is constructed from high-strength, powder-coated alloy steel and features two large-diameter (89 mm) rollers that ensure smooth cable guidance and excellent load distribution. Its hinged top roller design allows for quick cable insertion and removal, thereby reducing installation time and enhancing on-site operational efficiency. Suitable for cables up to 130 mm in diameter with a load capacity of 10 kN, the pulley can be used individually or combined with compatible vertical corner pulleys to create a comprehensive cable guidance system for complex routing scenarios.
| Model | BR-7 |
| Applicable Cable | ≤ φ 130 mm |
| Load Capacity | 10 KN |
| Roller Diameter | 89 mm |
| Roller Material | Painted Alloy Steel |
| Frame Material | Painted Alloy Steel |
| Size | 34*35*41 cm |
| Weight | 13 kg |
Specifically designed to guide cables smoothly around horizontal corners, this roller effectively reduces pulling resistance and prevents cable damage during installation.
Both the frame and roller are manufactured from premium alloy steel, offering superior structural rigidity and impact resistance to ensure a long service life in demanding construction environments.
The upper roller opens quickly for easy cable loading and unloading, enhancing installation efficiency and simplifying cable positioning adjustments during the laying process.
The roller assembly features built-in oil-impregnated bushings that ensure smooth rotation and low friction, while minimizing maintenance requirements throughout the product's lifespan.
The MARSHINE heavy-duty corner roller has a rated load capacity of 1 ton, making it suitable for handling heavy power cables, communication cables, and industrial utility cables.
Designed for cables with diameters up to Ø130 mm, this roller is widely applicable to installation projects involving medium- to large-diameter cables.
A durable painted coating protects the alloy steel components against corrosion, scratches, and harsh outdoor conditions, ensuring reliable long-term performance.

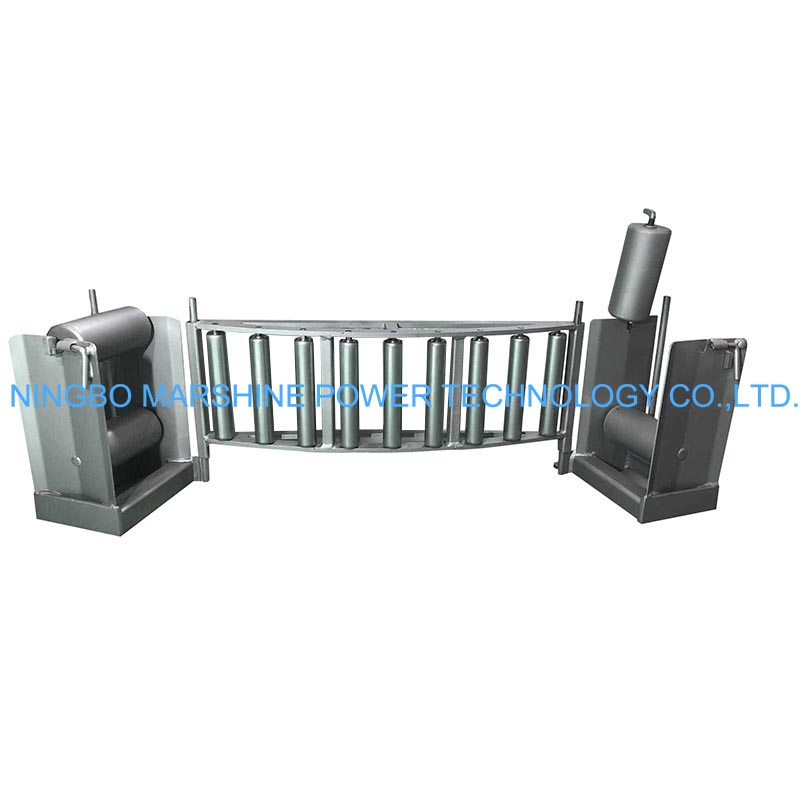

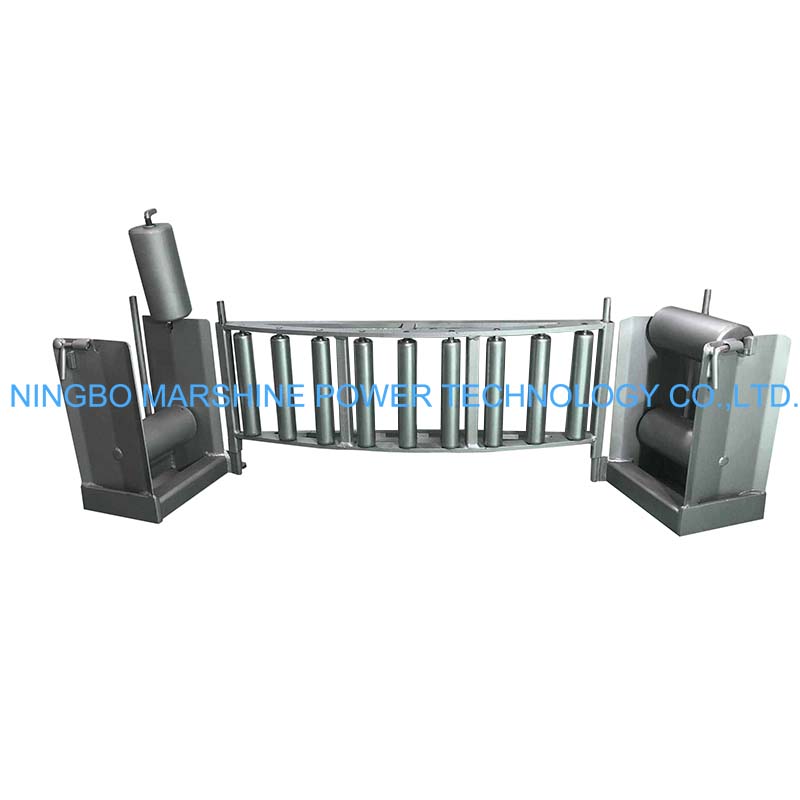

The BR-7 can be combined with compatible units to form a complete corner guidance assembly, accommodating complex cable routing paths around corners.
The MARSHINE BR-7 alloy steel corner roller is ideal for guiding heavy cables around horizontal corners—scenarios where maintaining the correct bending radius and minimizing pulling friction are critical. It can be used individually for simple directional changes or connected with other compatible corner rollers to create a continuous cable guidance system for complex installation routes.
Brand:MARSHINE.
Condition:New.
Lead Time:3 weeks after seller received the payment.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T 100% in advance.
MOQ:50pcs.
