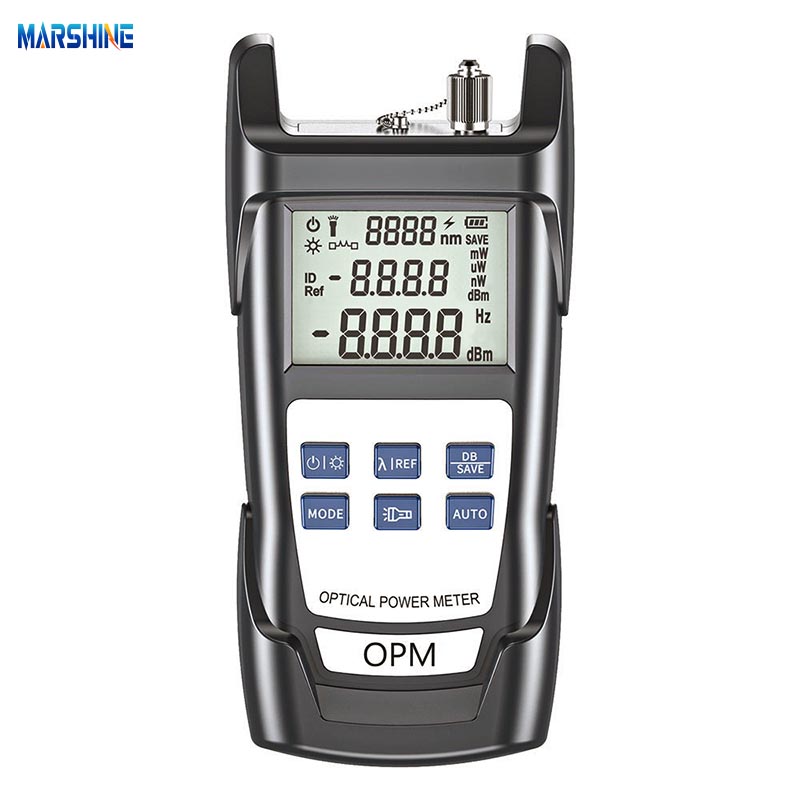

Our MARSHINE Fiber Optical Troubleshoot Tool Power Meter OPM Tester (OPM Tester) is a high-performance testing equipment which is applicable for measuring power level of optical signal in fiber optic system. It offers trustworthy and precise results, which can be effectively utilized by technicians in their verification of signal strength, fault isolation, and performance assessment of fiber systems. Small size and simple operation make it suitable for field work, network engineers, maintenance staff in telecommunication, data center, and CATV system environments.
| Model | MAR-OT10 |
| Measuring Range | -70~+10dBm |
| Detector Type | InGaAS |
| Wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625/1650 |
| Wavelength Range | 800-1700nm |

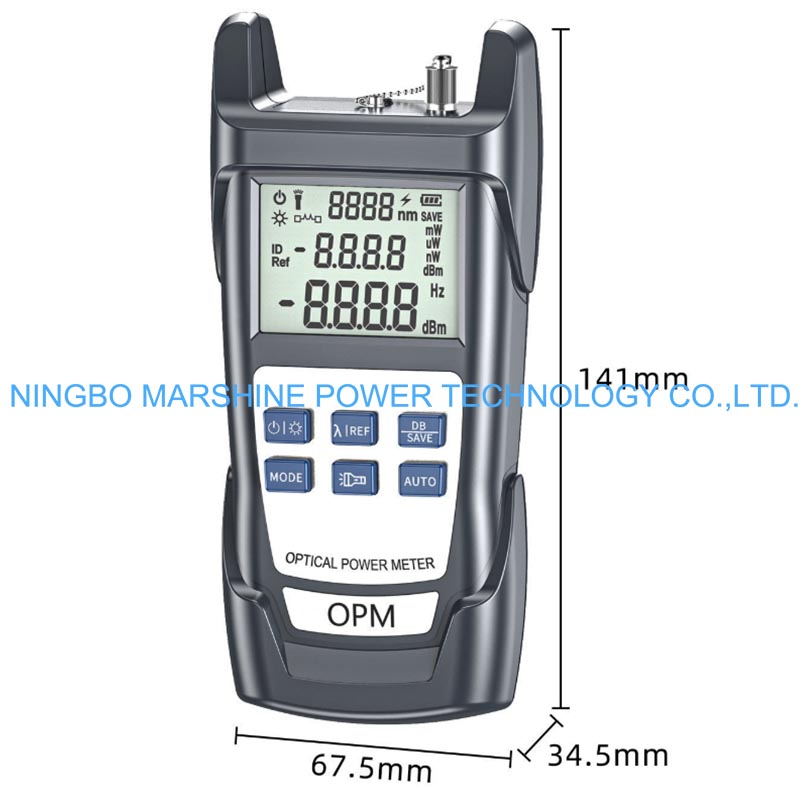

| Dimension(with packing) | 158*78*38mm |
| Weight(with packing) | 0.129kg |
| Resolution | 0.01dBm |
| Working Temperature (°C) | -10~+60°C |
| Storage temperature (°C) | -25~+70°C |
Accurate Power Measurement
Optical power levels are measured with high accuracy, providing certainty on signal strength and link quality to the technicians.
Broad Wavelength Support

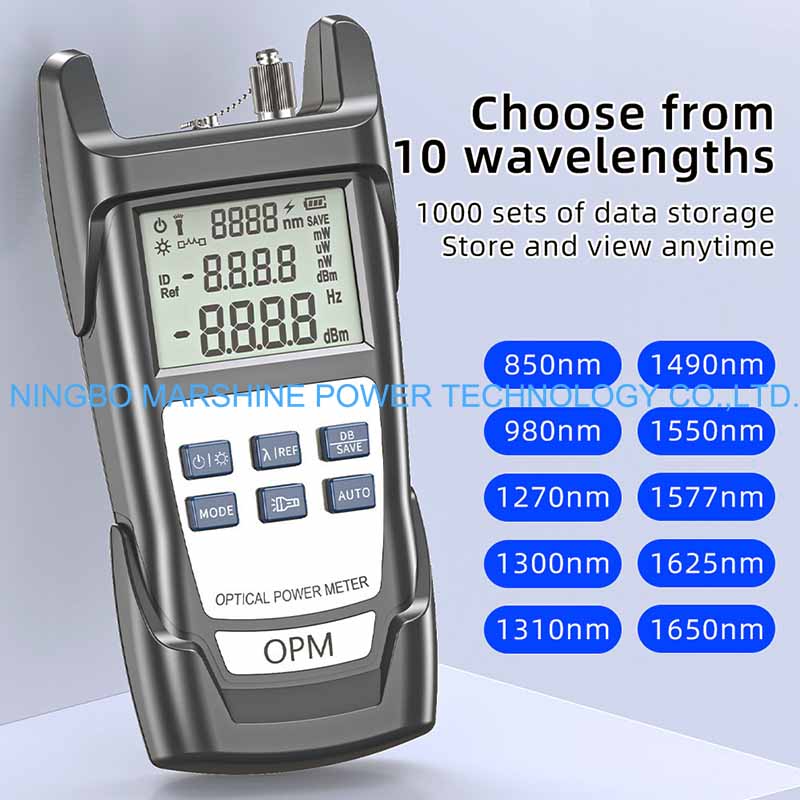

The MARSHINE Fiber Optical Troubleshoot Tool Power Meter OPM Tester can be used for testing at all of the standard optical wavelengths of fiber network (e.g. 850nm, 1310nm, 1490nm, and 1550nm), applicable to both multi-mode and single-mode.
Digital Display
The plain LCD screen show real-time power in normal units (dBm / mW) which makes users quickly getting result.
Lightweight and Portable
Small size and sturdy design best suit for field testing, you can put it in your toolbox or pocket.
Intuitive Interface
Easy-to-use controls and straightforward menus enable users to rapidly initiate measurements with no steep learning curve.
Battery Powered
Operates on batteries for use in the field without the need for AC power.
Rugged Design
High performance and durable, rugged design for field use.
The MARSHINE Fiber Optical Troubleshoot Tool Power Meter OPM Tester is popular among users in:
Checking optical levels of signals in long-haul, metro, and FTTH links.
To make sure the signal power was adequate for high-speed fiber links in enterprise networks.
Measuring signal strength for cable TV and broadband fiber runs.
Identifying power loss, bad connectors, or fiber degradation for network restoration.
Troubleshooting fiber link performance in the install handoff or SLA compliance.
Brand:MARSHINE.
Condition:New.
Lead Time:25days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:10pcs.
