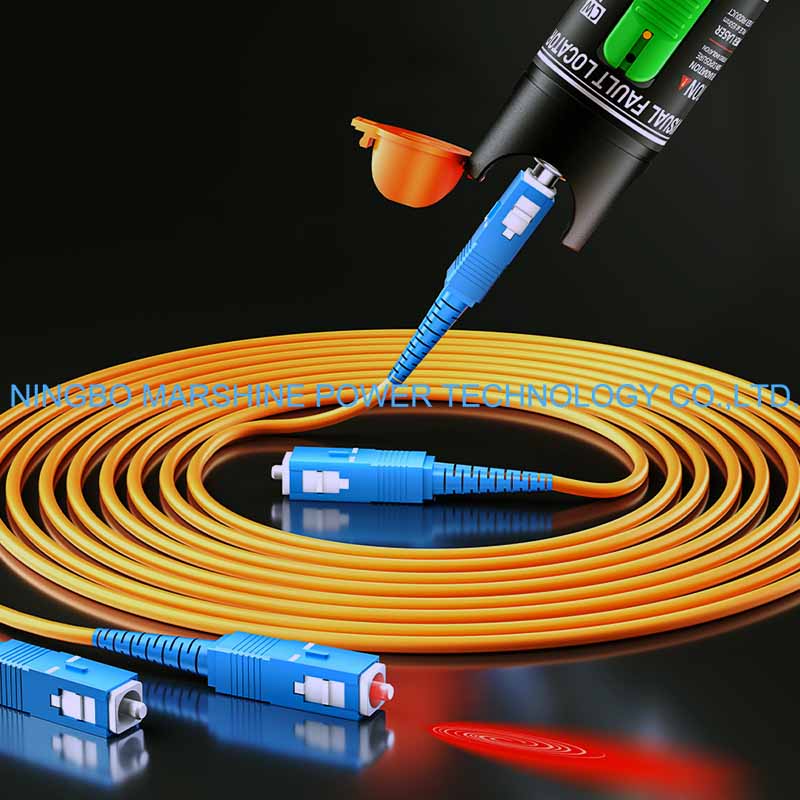

This MARSHINE Fiber Optical Visual Fault Locator is a handheld, pen-shaped diagnostic instrument for fast, easy to use fiber optic fault finding. It shines a bright visible red laser down the fiber core, so breaks, bends, bad connectors, or other discontinuities are immediately visible to the naked eye. This device is the right choice for on site technicians and network installers who require fast check of fiber continuity and integrity without sophisticated devices owing to its small size and easy to use design.
Product Parameter
| Model | MAR-VF-01 |
| Product Name | Visual fault locator |
| Output wavelength | 650nm |
| Common Interface | 2.5mm(FC/SC/ST) |
| Use temperature | -10 ℃To +60 ℃ |
| Storage temperature | -20 ℃ To +70 ℃ |
| Battery requires | Battery size 5*2 |
| Dimension | 19.8*7.3*3.4 CM |
| Product weight | 0.15 KG |
| Weight without battery | 0.12 KG |

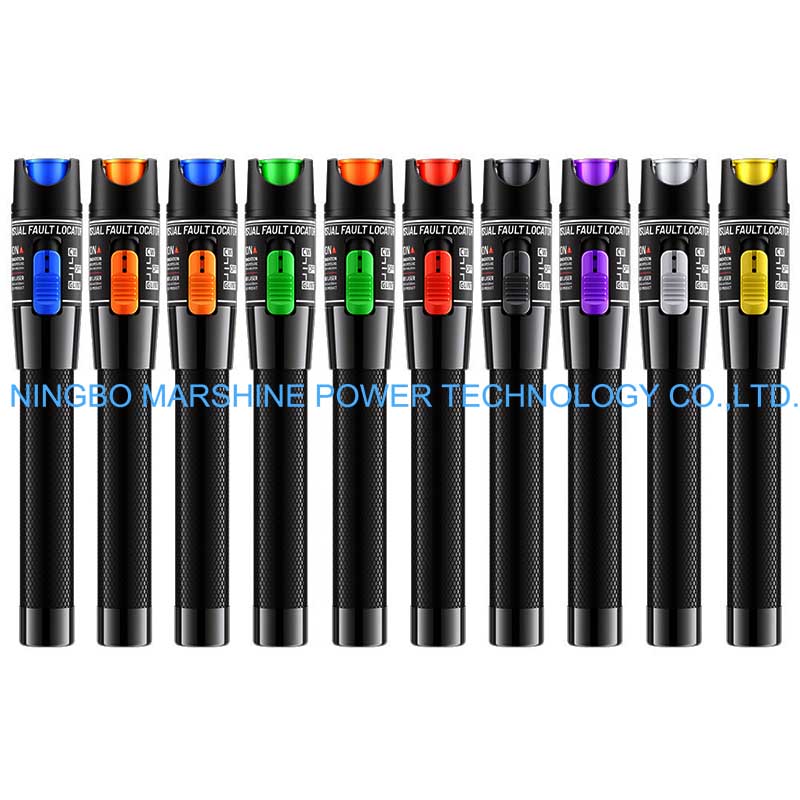

| Output power | 5mW/10mW/15mW/20mW/30mW/50mW/60mW/70mW/80mW/100mW |

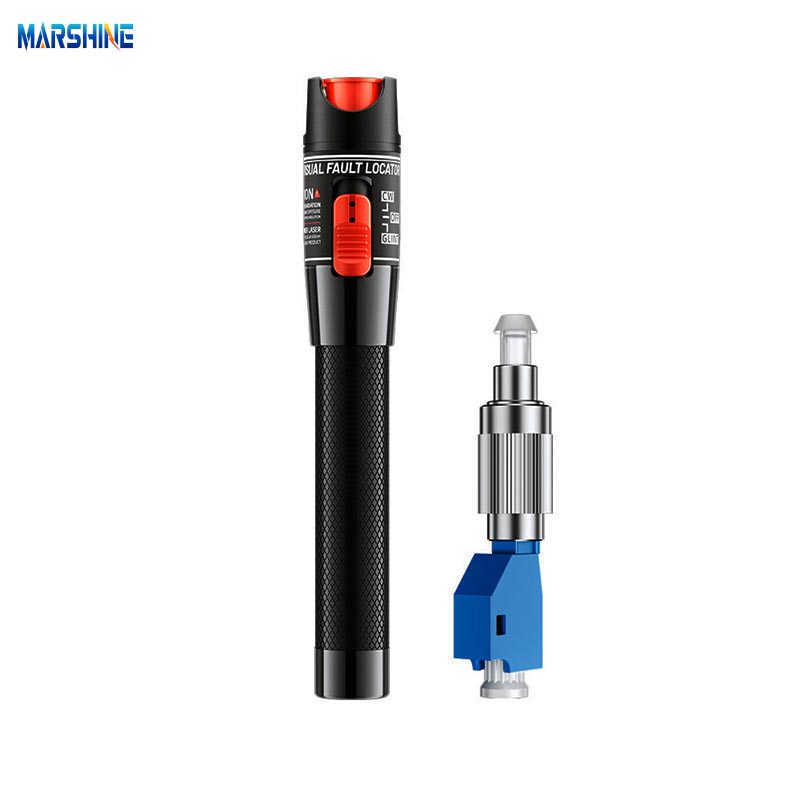

| Accessory | FC Male to LC Female Connector*1 |
Bright Visible Red Light Source
Output a visible red laser (~650nm wavelength), which allows a fault to be located very quickly over single mode and multi mode fibers.

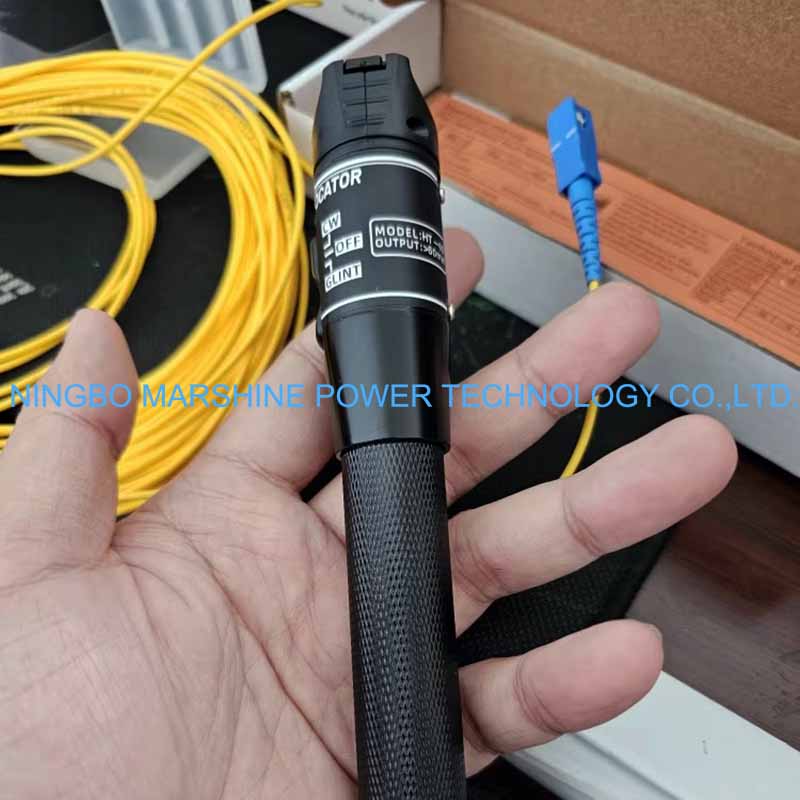

Portable Pen-Style Design
Lightweight and compact size, ideal for taking with you in a tool bag or pocket for field use.

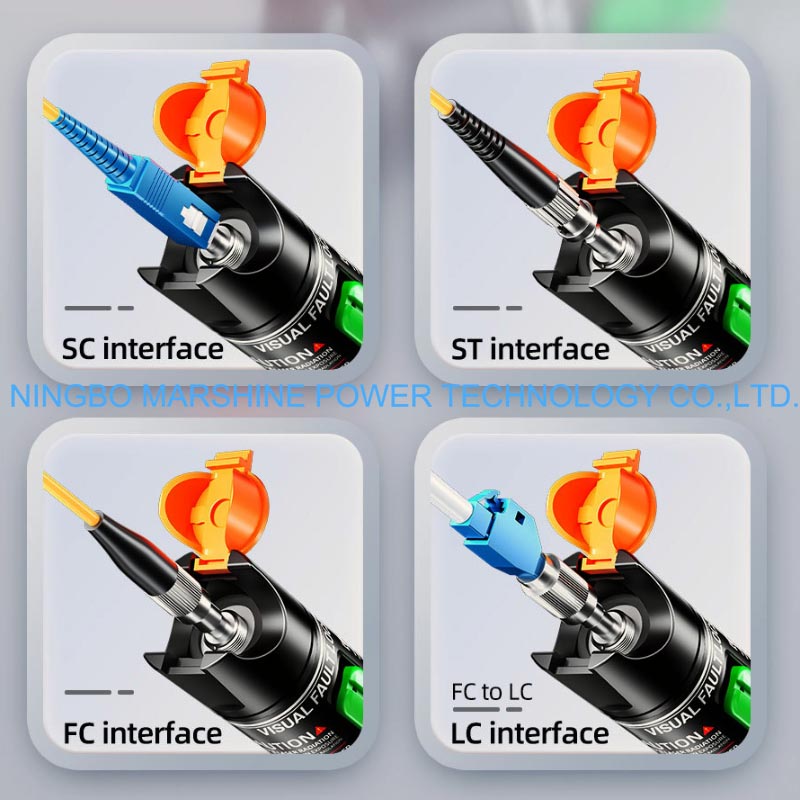

Universal Connector Compatibility
Connects to standard fiber connectors such as SC, FC, ST with a 2.5 mm port, and also supports adapter for LC type.

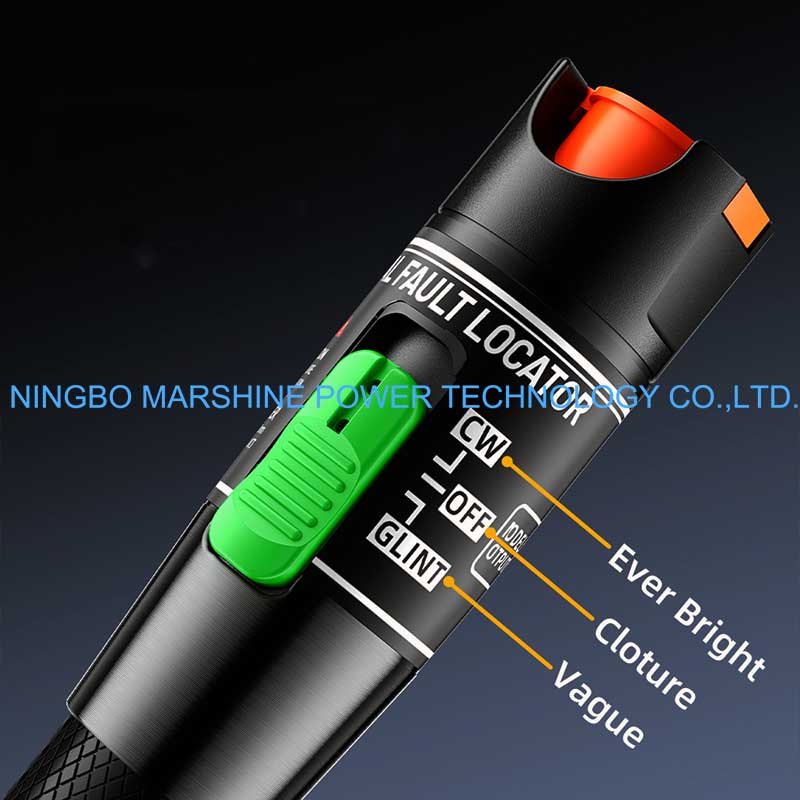

Continuous & Pulsed Modes
Numerous models offers the constant and pulsed light modes for greater visibility under various illumination conditions.
Battery Powered
Runs on standard batteries (e.g. AA/AAA), makes this MARSHINE Fiber Optical Visual Fault Locator suitable for long service life and easy replacement for long time field service.
Rugged Design
Compact and rugged enough to withstand daily applications in telco, data center, and utility environments while providing ergonomic handling.
Our MARSHINE Fiber Optical Visual Fault Locator is suitable for you to deal with the daily maintenance and testing on fiber optic in such areas as:
Fiber Continuity Testing
To quickly check whether a fiber run is continuous from end to end.
Finding Breaks, Bends, and Faults
Detecting points of discontinuity, severe bends, or breaks in fibers that result in signal attenuation.
Connector & Splice Inspection
Detecting badly seated or damaged connectors and faulty splices.
Network Installation & Commissioning
To trace fiber routes and verify cable runs during installation.
Maintenance and Troubleshooting
To troubleshoot fiber related problems when networks are not performing or have failed.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:50pcs.
