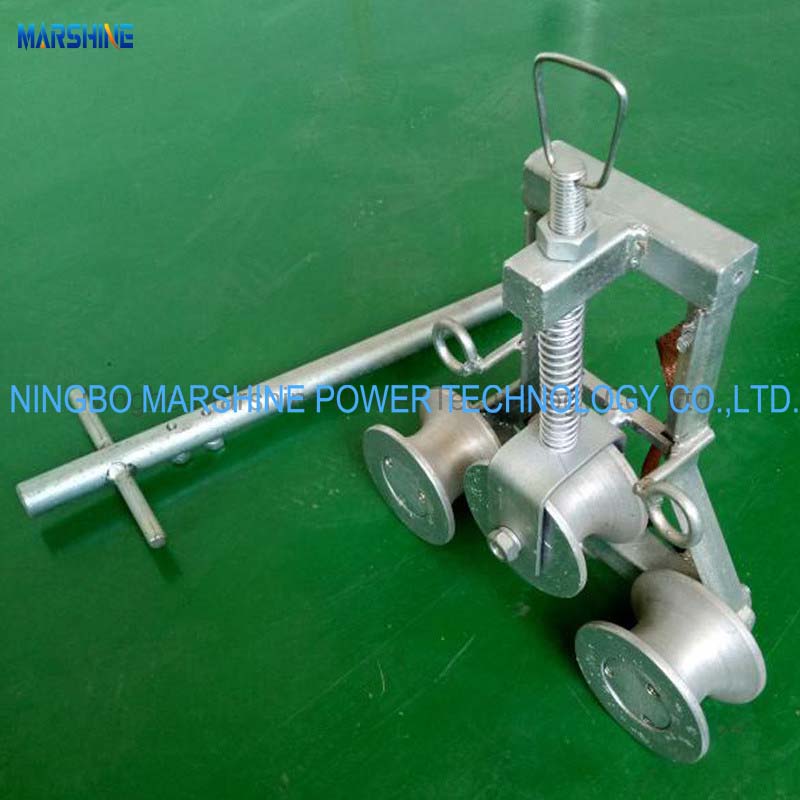

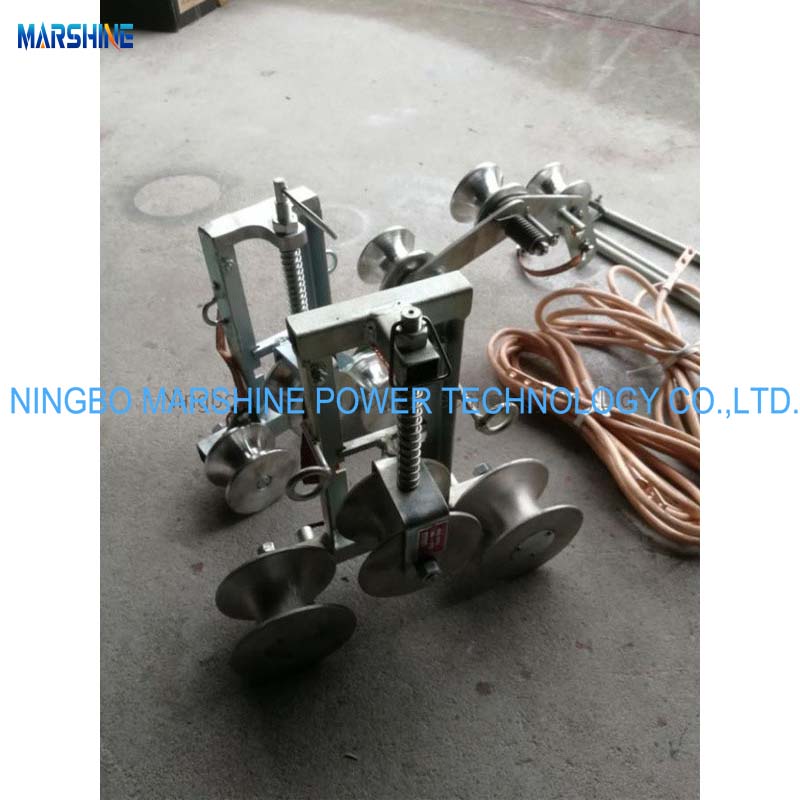

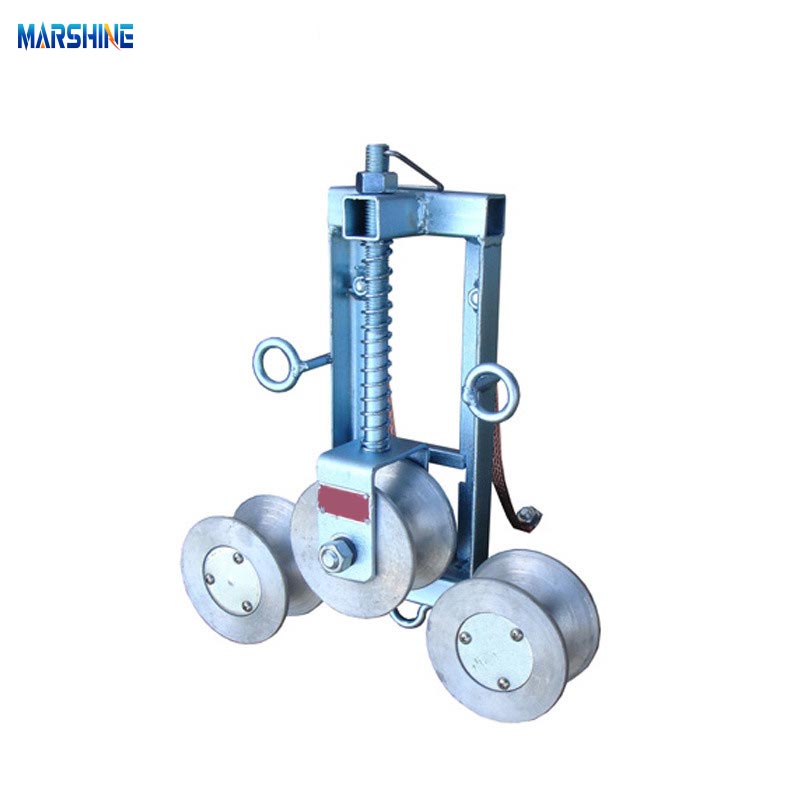

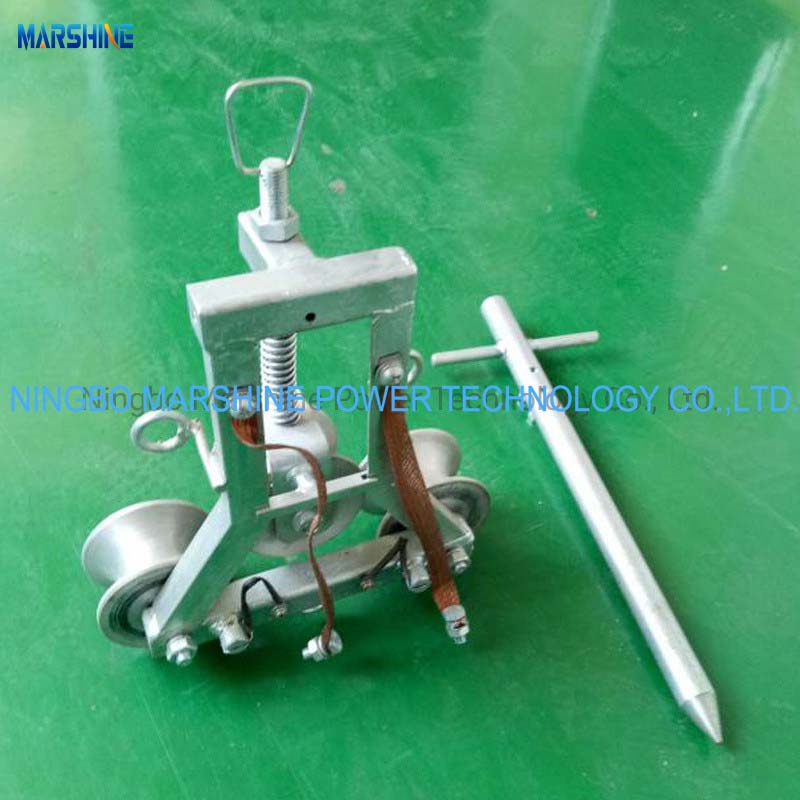

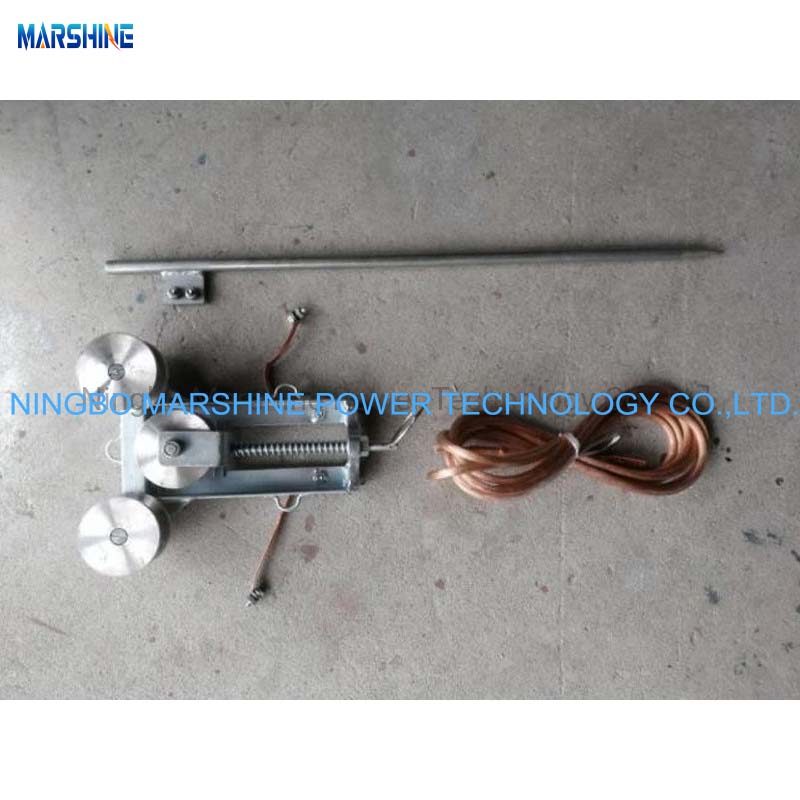

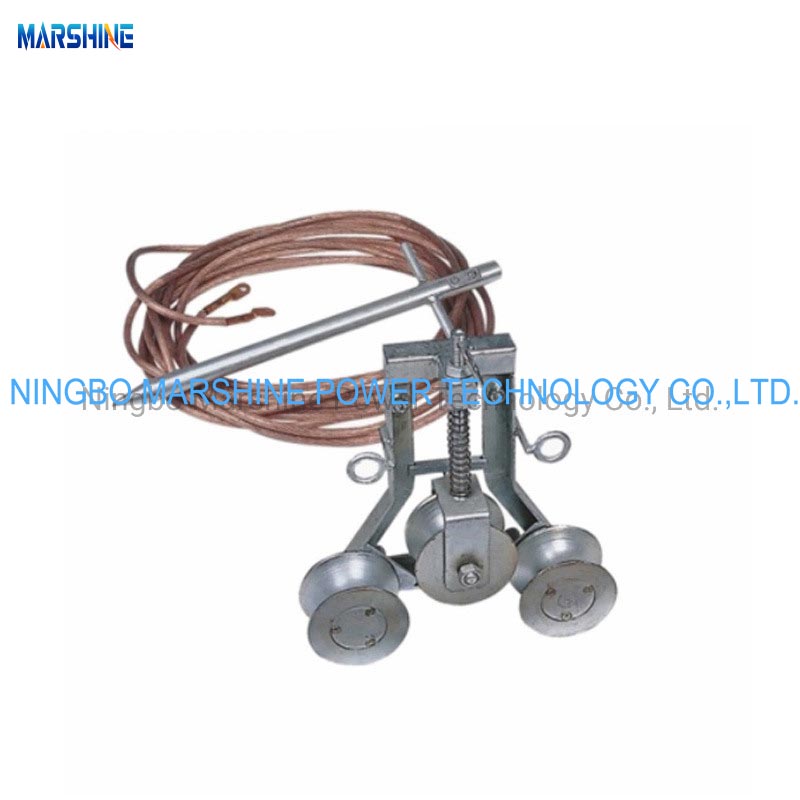

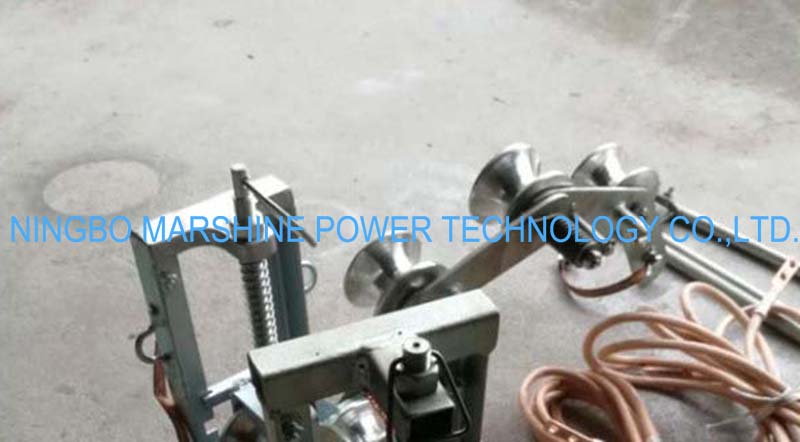

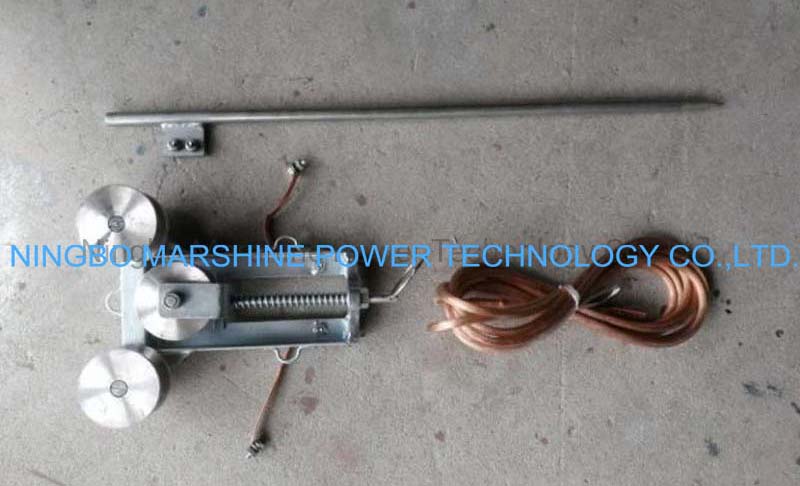

The MARSHINE Conductor Grounding Wire Rope Pulley is a specialized cable installation tool designed to ensure the safe and efficient conductor stringing operations while maintaining the reliable electrical grounding, is ideal for the use in the power line construction and maintenance. This pulley facilitates the smooth passage of wire rope or conductors across the suspension points, while its integrated grounding feature can helps to protect the workers and the equipment from the potential electrical hazards.
Product Parameter
| Item number | Model | Root diameter of sheave | Max. cable diameter | Material of sheave | Applicable cable | Weight (kg) |
| 12101 | SJL-100 | φ46 | Φ38 | Cast aluminium | Conductor | 3.5 |
| 12101A | SJL48-100 | φ56 | Φ48 | 4.5 | ||
| 12102 | SJT100 | φ46 | Φ38 | Cast steel | Steel wire rope, earth wire | 5.7 |
Product Feature
MARSHINE Conductor Grounding Wire Rope Pulley is made of high-strength cast aluminum or cast steel, it ensures durability and wear resistance under heavy loads. Its integrated grounding mechanism can provide the continuous grounding for the conductors, can help to safely discharge any residual or induced voltage, so that to protect the workers, conductors, and other equipment. The surface of this tool is treated with the protective coating to prevent the rust and corrosion. Been equipped with the precision bearings, this tool can reduce the friction on the layer of the conductors, ensures the smooth rotation, and effectively protect the cables and itself.
Product Application
MARSHINE Conductor Grounding Wire Rope Pulley can provide the additional safety by preventing the static buildup or accidental energization. It can be used to provide the mechanical support and grounding during the conductor installation tasks. It is also suitable for routine inspections, repair work and emergency response applications, or the installation of communication cables that requires temporary grounding. Meanwhile, it can be used on the high and medium voltage lines to improve the safety and efficiency.
Product Details
MARSHINE Conductor Grounding Wire Rope Pulley can meets the demands of modern utility work while ensuring the maximum protection for the personnel and equipment.
Original Country:China.
Leading Time:14-20days.
Certifications:ISO.
Warranty:1year.
