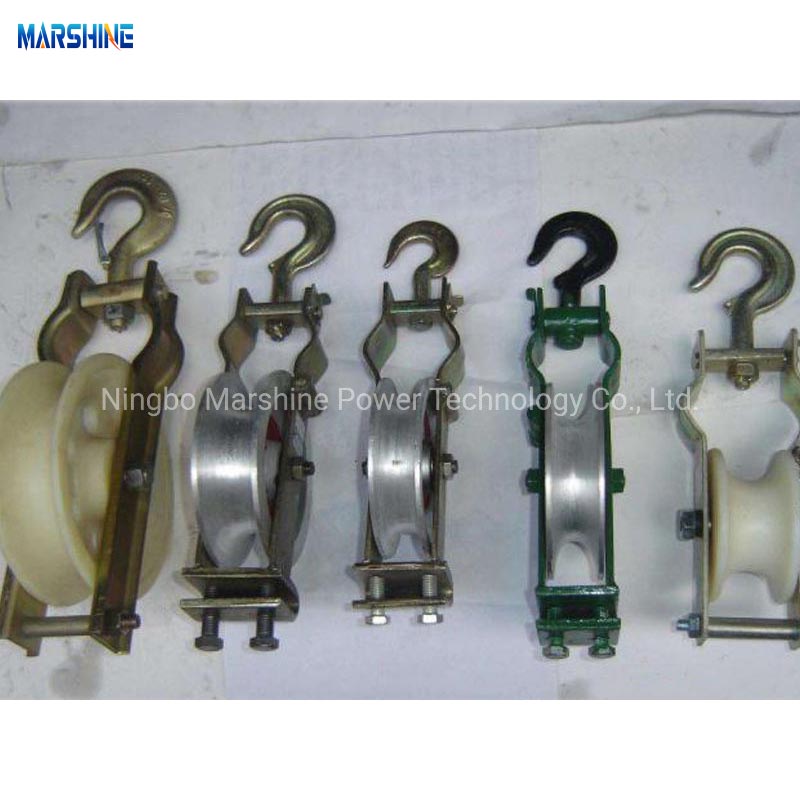

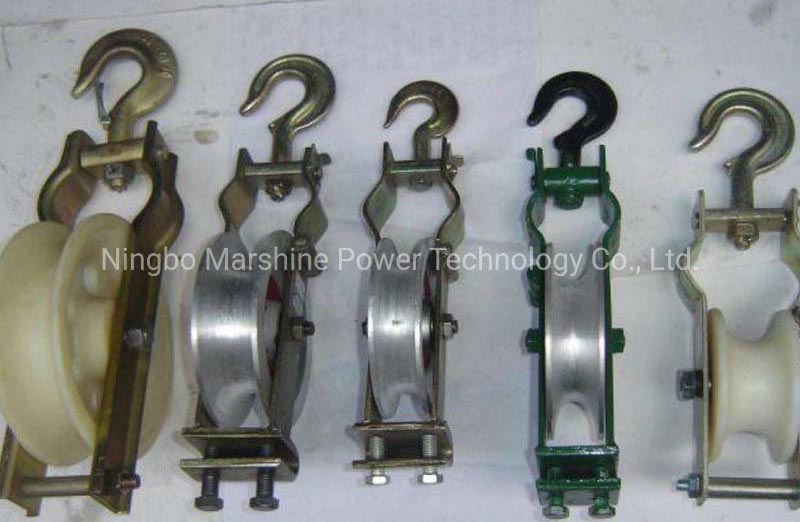

Single Sheave Wire Rope Pulley
Built with a single rotating sheave, this MARSHINE Single Sheave Wire Rope Pulley can provides smooth rope movement while minimizing friction and wear. As a durable and efficient cable-handling tool designed for guiding and supporting wire ropes during lifting, pulling, and stringing operations. Whether used in power line construction, hoisting tasks, or industrial rigging, this pulley offers reliable performance in a compact, easy-to-use design.
1.Product Parameter
| Item number | Model | Diameter | Sheave width | Suitable conductor | Rated load(KN) | Weight(kg) | Remark |
| 10171 | SHD-120x30 | 120 | 30 | ACSR 25~70 | 5 | 1.5 | Aluminum sheave |
| 10172 | SHD-160x40 | 160 | 40 | ACSR 95~120 | 10 | 2.5 | |
| 10173 | SHD-200x40 | 200 | 40 | ACSR 150~240 | 15 | 4 | |
| 10174 | SHD-200x60 | 200 | 60 | ACSR 150~240 | 15 | 4.6 | |
| 10175 | SHD-250x40 | 250 | 40 | ACSR 150~240 | 20 | 4.6 | |
| 10176 | SHD-250x60 | 250 | 60 | ACSR 300~400 | 20 | 6 | |
| 10177 | SHD-270x60 | 270 | 60 | ACSR 300~400 | 20 | 7 | |
| 10178 | SHD-320x60 | 320 | 60 | ACSR 300~400 | 20 | 9.5 | |
| 10179 | SHD-400x80 | 400 | 80 | ACSR 400~500 | 20 | 15 | |

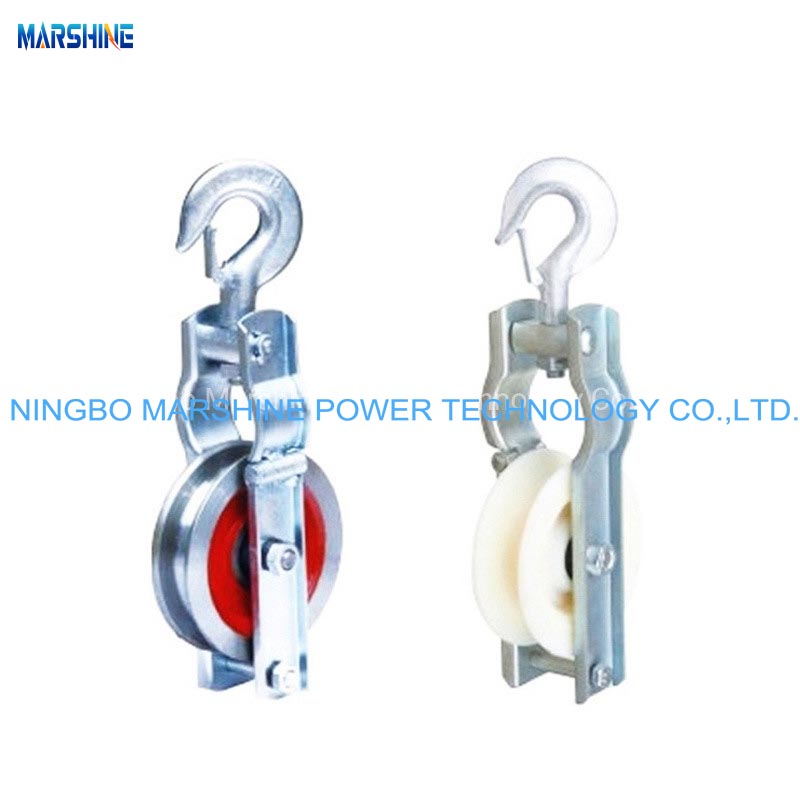

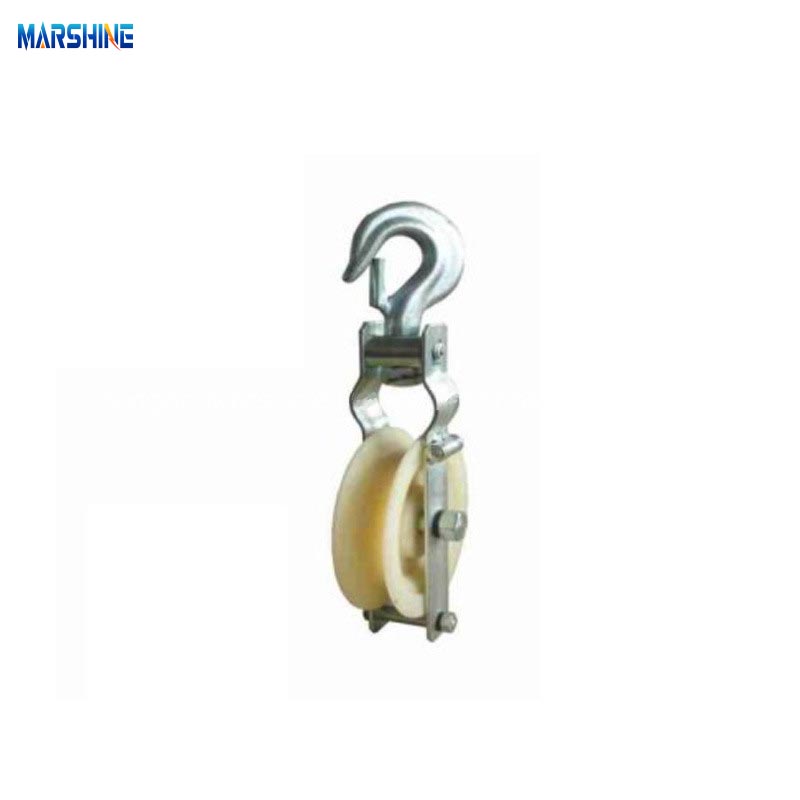

| 10191 | SHDN-120x30 | 120 | 30 | ACSR 25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160x40 | 160 | 40 | ACSR 95~120 | 10 | 2.5 | |
| 10193 | SHDN-200x40 | 200 | 40 | ACSR 150~240 | 15 | 3.6 | |
| 10194 | SHDN-200x60 | 200 | 60 | ACSR 150~240 | 15 | 4 | |
| 10195 | SHDN-250x40 | 250 | 40 | ACSR 150~240 | 20 | 4 | |
| 10196 | SHDN-250x60 | 250 | 60 | ACSR 300~400 | 20 | 4.5 | |
| 10197 | SHDN-270x60 | 270 | 60 | ACSR 300~400 | 20 | 5.6 | |
| 10198 | SHDN-320x60 | 320 | 60 | ACSR 300~400 | 20 | 6.7 | |
| 10199 | SHDN-400x80 | 400 | 80 | ACSR 400~500 | 20 | 13 |
2.Product Feature
High-strength construction: This MARSHINE Single Sheave Wire Rope Pulley is made of heavy-duty steel or aluminum alloy, ensuring long-term durability and withstanding harsh environments.
Precision-machined pulley: Single pulley design, smooth rotation, low resistance, protects the wire rope from wear or deformation.
Corrosion-resistant finish: Galvanized or powder-coated to withstand outdoor conditions and extend service life.
Integrated bearing system: Equipped with sealed bearings, less friction and greater load-bearing capacity.
Compact and lightweight: The simple streamlined design makes it easy to transport, install and use on site.

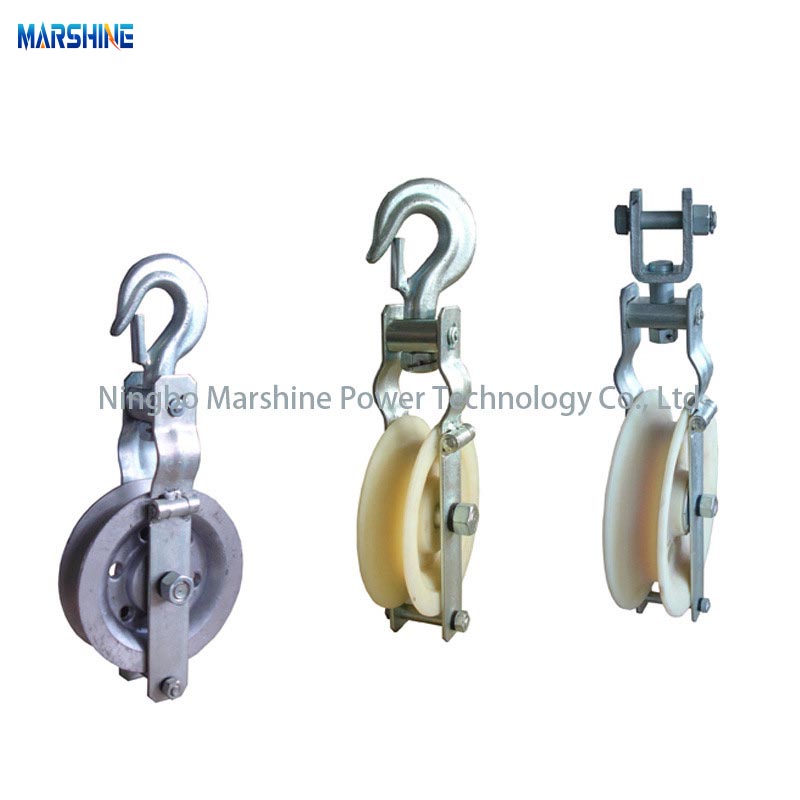

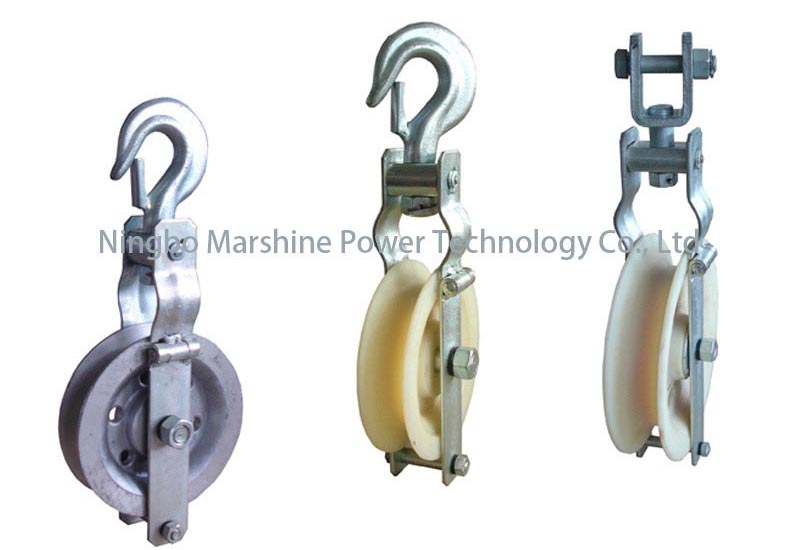

Safety lock or hook options: A variety of connection methods are available, such as safety hooks, shackles or eyebolts to meet different rigging needs.
3.Product Application
Overhead Line Construction: Suitable for guiding wire rope or conductors during stringing and tensioning operations.
Material Handling: Commonly used in cranes, winches and hoists for lifting and lowering heavy objects.
Industrial Rigging: The MARSHINE Single Sheave Wire Rope Pulley is suitable for a variety of rigging applications in shipyards, factories and construction sites.
Rescue and Security Operations: Can be used in pulley systems to achieve controlled lifting or lowering in emergency rescue scenarios.
Telecommunications and Utilities Maintenance: Assists in the installation and support of cables in power and communication line projects.
4.Product Details
The MARSHINE Single Sheave Wire Rope Pulley is a versatile, reliable, and efficient tool for handling wire ropes in various construction, utility, and industrial applications. Here are the details about this pulley:
Trusted Quality: Our products are known for rugged construction, dependable performance, and industry-proven reliability.
Professional Design: Developed with field input from industry professionals to ensure practical functionality and ease of use.
Efficiency: Simplifies setup with a lightweight, single-sheave design, reducing labor time by 25% compared to multi-sheave systems.
Durability: Corrosion-resistant materials and sealed bearings ensure minimal maintenance and long-term reliability.
Cost-Effectiveness: Eliminates complexity, making it ideal for applications where simplicity and reliability are paramount.
