As a high-performance lifting tool that designed to provide the outstanding strength, durability, and the efficiency in a wide range of the industrial and the construction applications, this MARSHINE Aluminum Wire Rope Pulley Block is crafted from the premium-grade aluminum alloy, and combines the lightweight construction with the superior load-bearing capacity, it is suitable for the material handling, lifting operations, and cable management tasks.

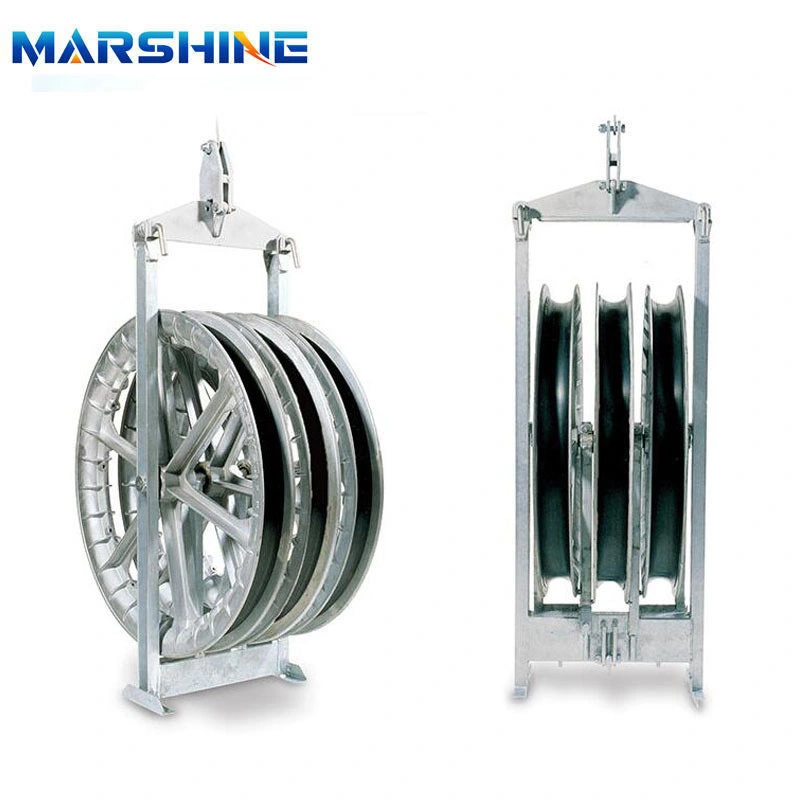

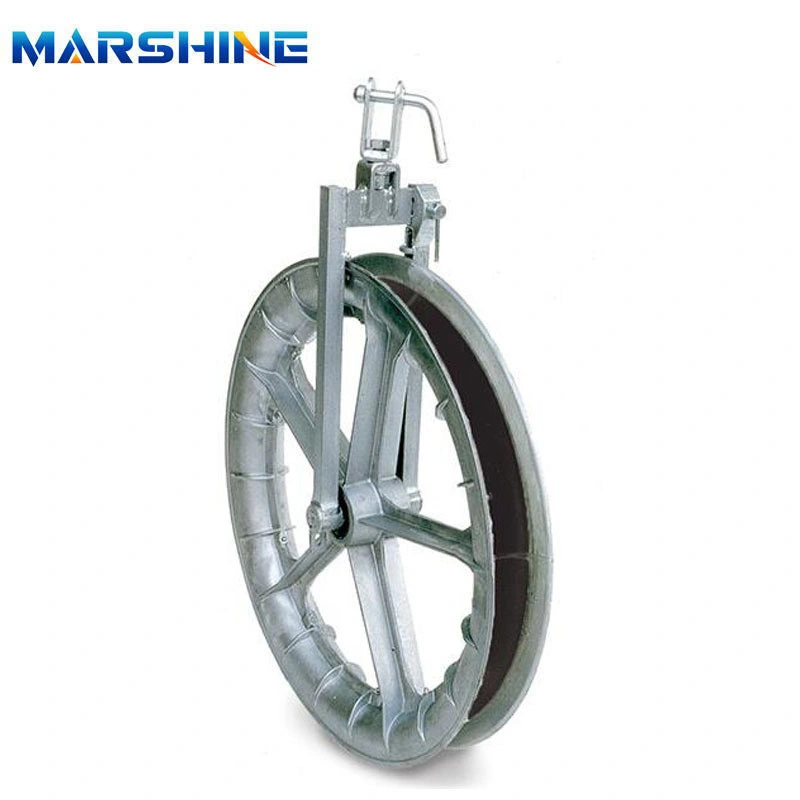

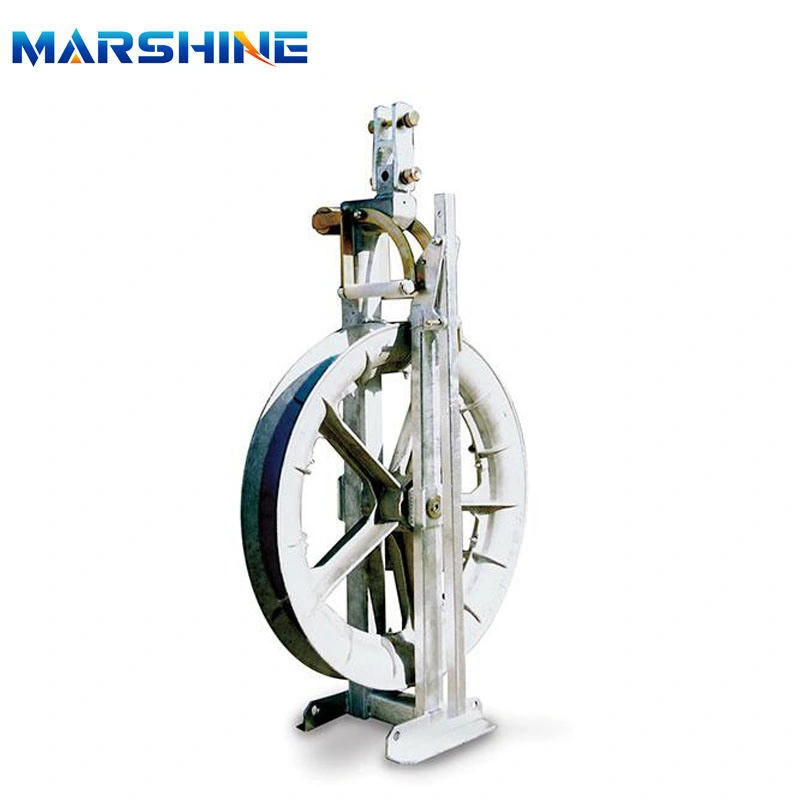

The blocks can be supplied with the three types of connections: fixed (B and B1), swivel-type (C and C1) or with a hook supplied with safety lock (D and D1).
Product Parameter

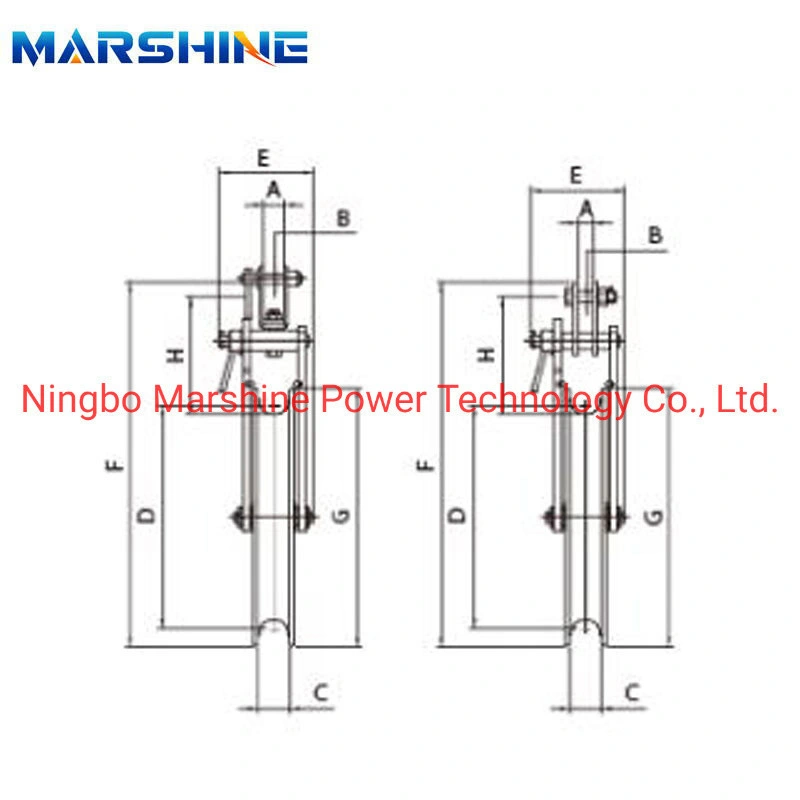

| Model | Type of Connection | Dimensions (inches(mm)) | Breaking Load(lbf(kn)) | Mass (lbs(kg)) | |||||||
| A | B | C | D | E | F | G | H | ||||
| 005 | C1 | 1 (26) | 5/8 (16) |
1 31/32 (50) |
10 (250) |
6 (145) |
19 (482) |
13 (330) |
7 (175) |
17985 (80) |
15 (7) |
| 010 | D1 | 31/32 (25) | 3/4 (19) |
1 31/32 (50) |
10 (250) |
6 (145) |
19 (482) |
13 (330) |
7 (175) |
17985 (80) |
15 (7) |
| 020 | B1 | 1 (26) | 11/16 (18) |
2 1/8 (54) |
14 (350) |
6 (145) |
23 (595) |
17 (440) |
8 (200) |
15737 (70) |
24 (11) |
| 030 | C1 | 1 3/8 (35) | 11/16 (18) |
2 1/8 (54) |
14 (350) |
6 (145) |
25 (640) |
17 (440) |
9 (225) |
15737 (70) |
26 (12) |
| 040 | D1 | 1 1/4 (31) | 1 3/16 (30) |
2 1/8 (54) |
14 (350) |
6 (145) |
25 (640) |
17 (440) |
9 (225) |
15737 (70) |
26 (12) |
| 080 | B | 1 (26) | 25/32 (20) |
2 11/16 (68) |
26 (650) |
7 (186) |
39 (996) |
31 (775) |
10 (260) |
22481 (100) | 62 (28) |
| 085 | C | 1 9/16 (40) | 25/32 (20) |
2 11/16 (68) |
26 (650) |
7 (186) |
41 (1052) |
31 (775) |
12 (315) |
22481 (100) | 64 (29) |
| 095 | D | 1 1/4 (32) | 1 9/32 (33) |
2 11/16 (68) |
26 (650) |
7 (186) |
43 (1087) |
31 (775) |
13 (330) |
22481 (100) | 66 (30) |
| 105 | B | 1 (26) | 25/32 (20) |
3 3/4 (95) |
26 (650) |
9 (218) |
40 (1010) |
31 (775) |
11 (275) |
26977 (120) | 71 (32) |
| 110 | C | 1 9/16 (40) | 25/32 (20) |
3 3/4 (95) |
26 (650) |
9 (218) |
42 (1062) |
31 (775) |
13 (330) |
26977 (120) | 73 (33) |
| 120 | D | 1 1/4 (32) | 1 9/32 (33) |
3 3/4 (95) |
26 (650) |
9 (218) |
43 (1097) |
31 (775) |
14 (345) |
26977 (120) | 75 (34) |
| 130 | B | 1 (26) | 25/32 (20) |
2 11/16 (68) |
32 (800) |
7 (186) |
43 (1097) |
35 (880) |
10 (260) |
26977 (120) | 71 (32) |
| 135 | C | 1 9/16 (40) | 25/32 (20) |
2 11/16 (68) |
32 (800) |
7 (186) |
46 (1157) |
35 (880) |
12 (315) |
26977 (120) | 73 (33) |
| 145 | D | 1 1/4 (32) | 1 9/32 (33) |
2 11/16 (68) |
32 (800) |
7 (186) |
47 (1192) |
35 (880) |
13 (330) |
26977 (120) | 75 (34) |
| 155 | B | 1 (26) | 25/32 (20) |
3 3/4 (95) |
32 (800) |
9 (218) |
44 (1125) |
35 (880) |
11 (275) |
26977 (120) | 84 (38) |
| 165 | C | 1 9/16 (40) | 25/32 (20) |
3 3/4 (95) |
32 (800) |
9 (218) |
47 (1192) |
35 (880) |
13 (330) |
26977 (120) | 86 (39) |
| 175 | D | 1 1/4 (32) | 1 9/32 (33) |
3 3/4 (95) |
32 (800) |
9 (218) |
48 (1215) |
35 (880) |
14 (345) |
26977 (120) | 88 (40) |
| 180 | B | 1 (26) | 25/32 (20) |
3 3/4 (95) |
39 (1000) |
9 (218) |
53 (1335) |
43 (1100) |
11 (275) |
26977 (120) | 108 (49) |
| 185 | C | 1 9/16 (40) | 25/32 (20) |
3 3/4 (95) |
39 (1000) |
9 (218) |
55 (1387) |
43 (1100) |
13 (330) |
26977 (120) | 110 (50) |
| 190 | D | 1 1/4 (32) | 1 9/32 (33) |
3 3/4 (95) |
39 (1000) |
9 (218) |
56 (1422) |
43 (1100) |
14 (345) |
26977 (120) | 112 (51) |
Product Feature

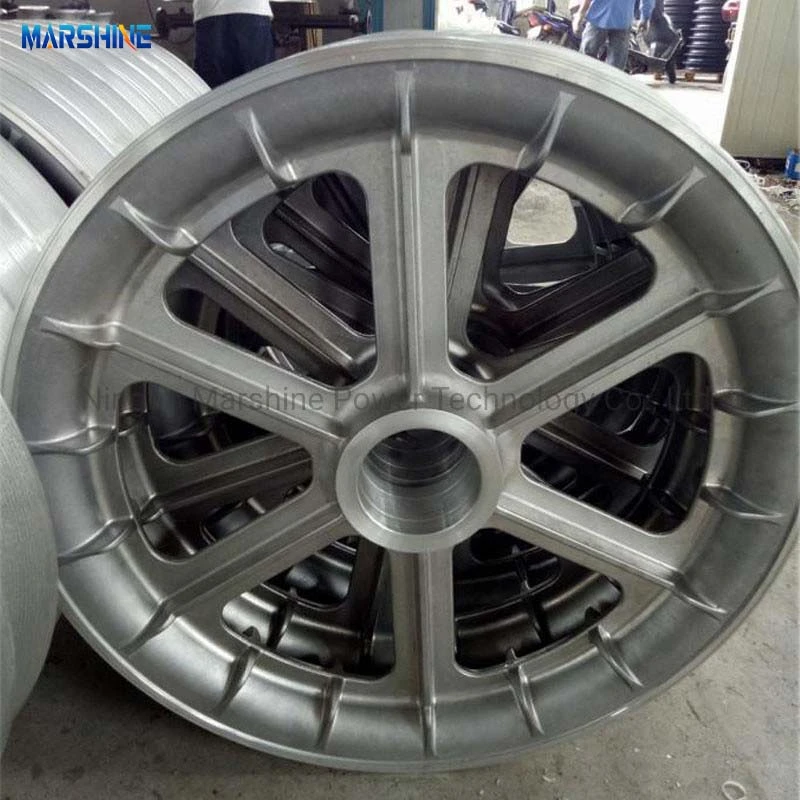

Been made from the high-strength aluminum alloy, this MARSHINE aluminum pulley block is lightweight enough for easy handling and transporting, while the durability and load-bearing capacity can be ensured. Its aluminum construction can provides the excellent resistance to the rust and the corrosion, making it suitable for the use in the harsh construction environments. Been equipped with the precision-engineered sheave, this aluminum block is able to ensures the smooth and efficient wire rope movement, and reduce the friction while minimizing the wear on the ropes.
Product Application
The MARSHINE Aluminum Wire Rope Pulley Block is suitable for lifting and moving the heavy materials such as the steel beams, concrete panels, and the construction equipment, or for rigging, lifting, and tensioning tasks in the shipyards and docks, and is also perfect for stringing and tensioning the overhead power lines and the communication cables in the utility and power constructions. Meanwhile, it can also be used in the rescue missions for lifting and pulling the heavy objects or individuals.
Product Details
The details about the MARSHINE Aluminum Wire Rope Pulley Block.
Warranty:1year.
Sheave: Aluminum Or Nylon.
Origin:China.
Type: Aerial Cable Stringing Block.
Certification:CE.
Feature: Anti-Static.
Leading Time:15-20days.
Breaking Load Lbf (Kn): 80-120.
