As an efficient yet robust cable stringing block that specially designed to guide and support the cables during the installation tasks along the ladders and the conduits, our MARSHINE 54mm Cable Grooves Wire Stringing Wheel ST159 Cable Ladder Cleat with cable ladder cleat is engineered to operate smoothly with maximum cable protection.
It can ensures the minimal friction and wear due to its smooth nylon sheaves, and with the durable alloy steel frame, the ST159 cable pulley can deliver the outstanding performance and durability in the outdoor working environments.

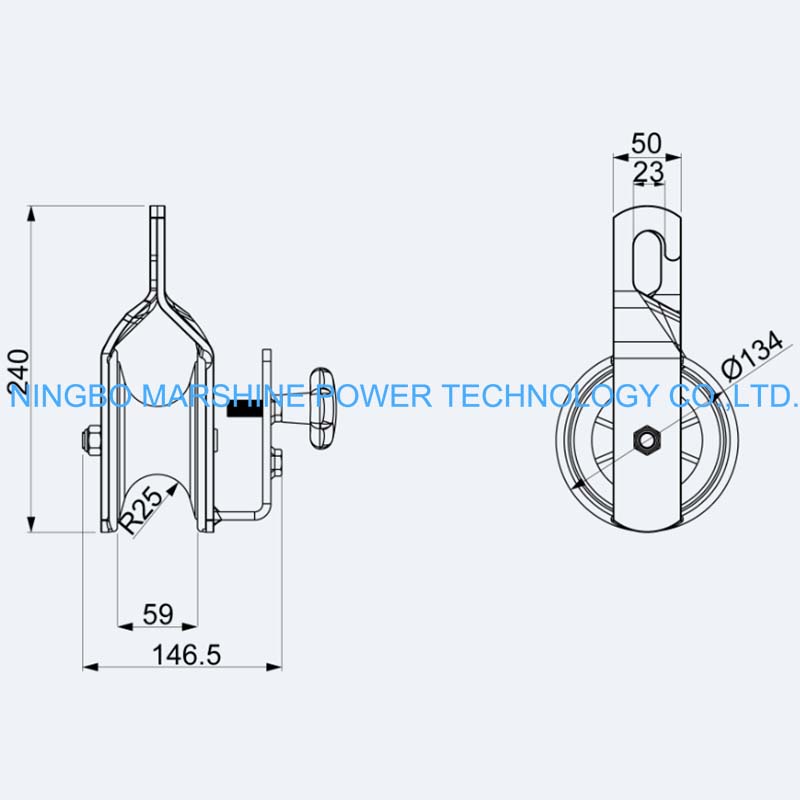

| Model | ST159 |
| Breaking load | 6KN |
| Length | 240mm |
| Width | 134mm |
| Height | 146.5mm |
| Weight | 1.95kg |
| ETIM class | EC003007 |
| Sheave material | nylon |
| Frame material | alloy steel |
| Finish | galvanizing |
| Type | hook |
Durable alloy steel construction can provide the last long durability.
54mm cable groove can optimizes the size for guiding the cables securely, so that to offer the added safety.

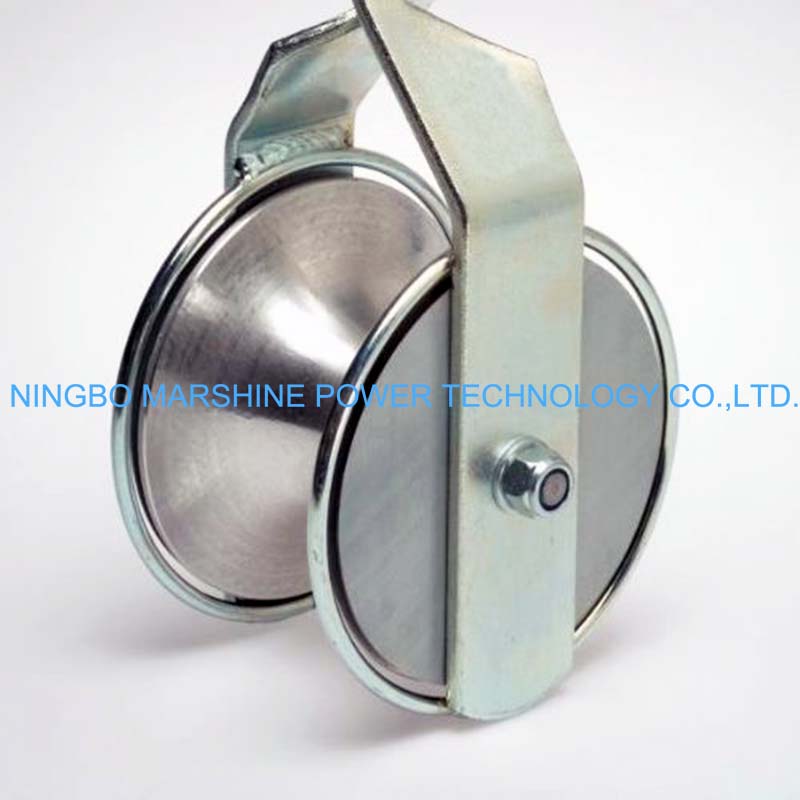

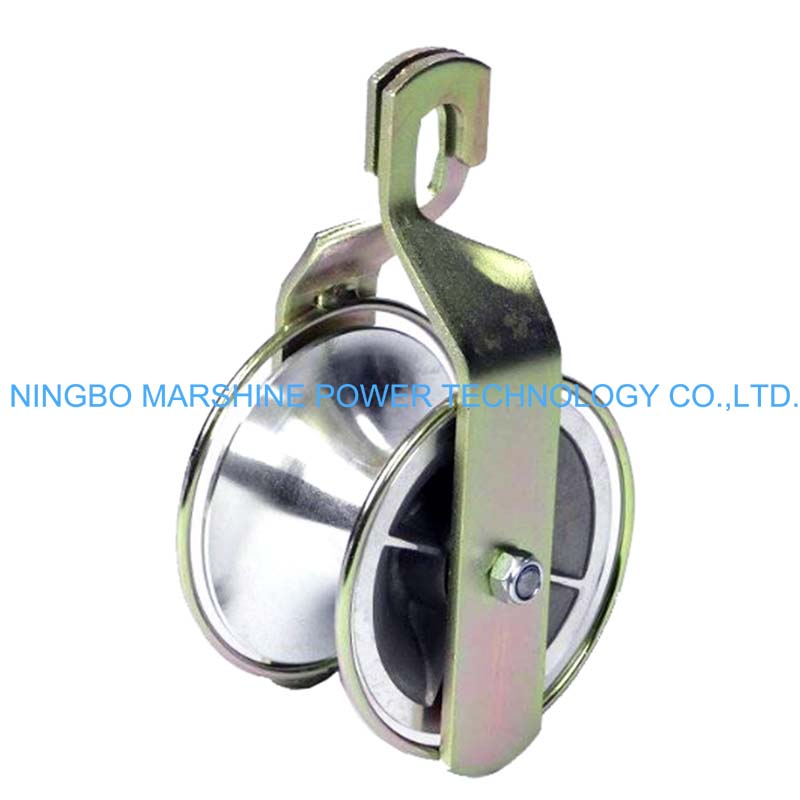

Smooth nearing nylon rollers (can be replaced by alloy steel or aluminum alloy) can ensures effortless cable movement.
Cable ladder cleat mounting structure for easy attachment.
Corrosion resistant galvanized surface offer the good resistance to corrosion.
Compact yet portable design allows this MARSHINE 54mm Cable Grooves Wire Stringing Wheel ST159 Cable Ladder Cleat for quick setup and transport.
The MARSHINE 54mm Cable Grooves Wire Stringing Wheel ST159 Cable Ladder Cleat is suitable for installing and maintaining the electrical cables on the poles and towers.
Guiding cables through the ladders or ducts with precision.
Laying optical fiber and communication cables.
Can be used to handle the cables in plants, substations, and infrastructure projects.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:50pcs.
