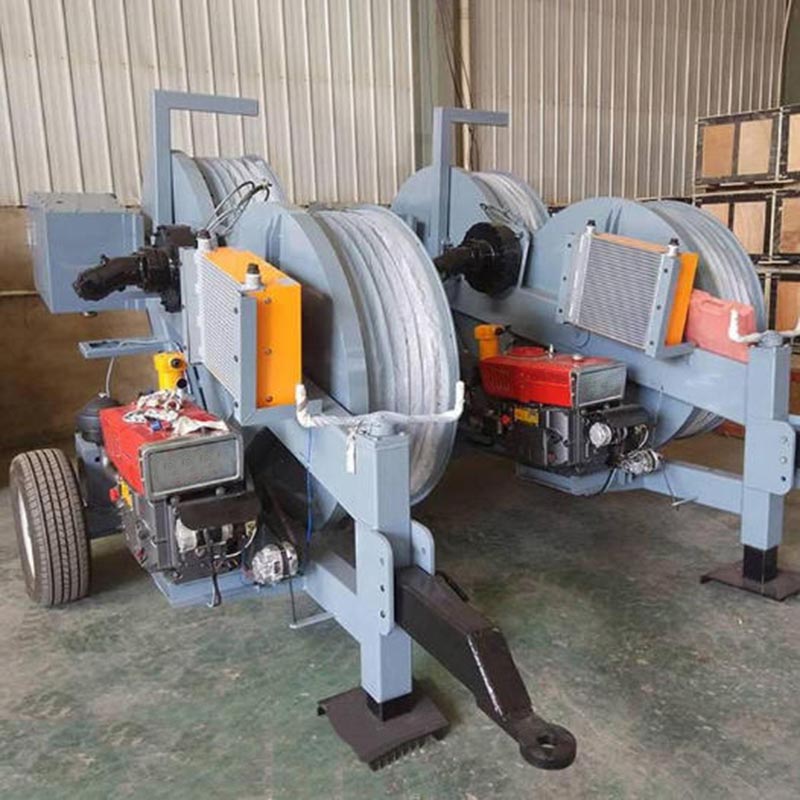

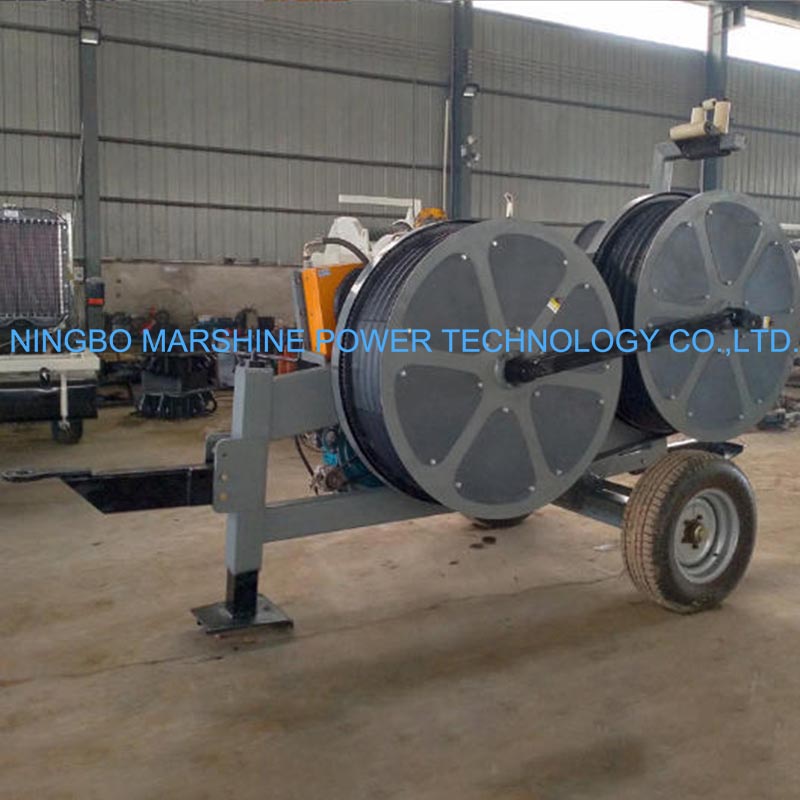

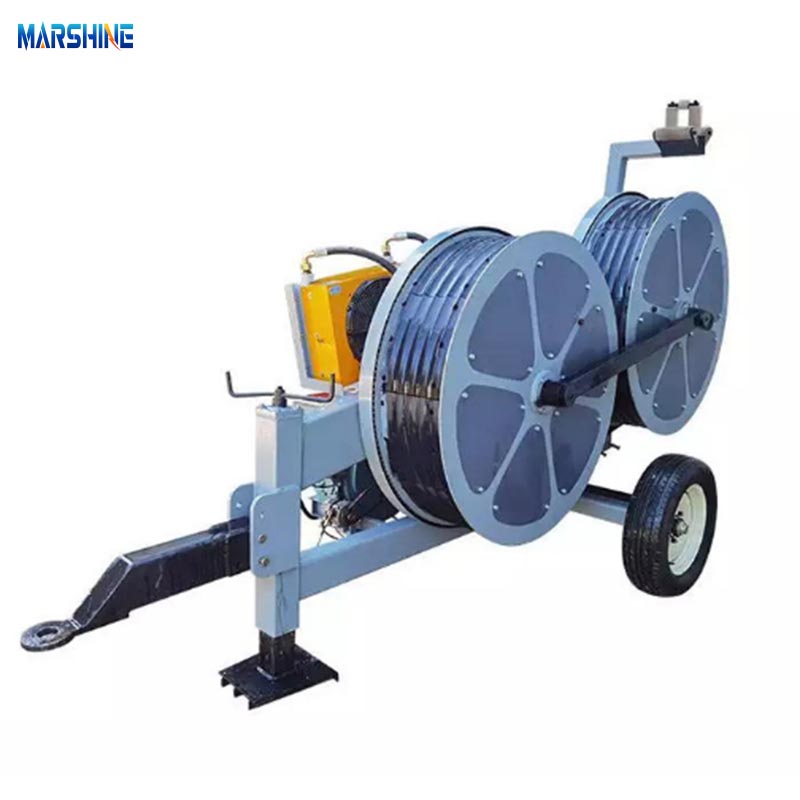

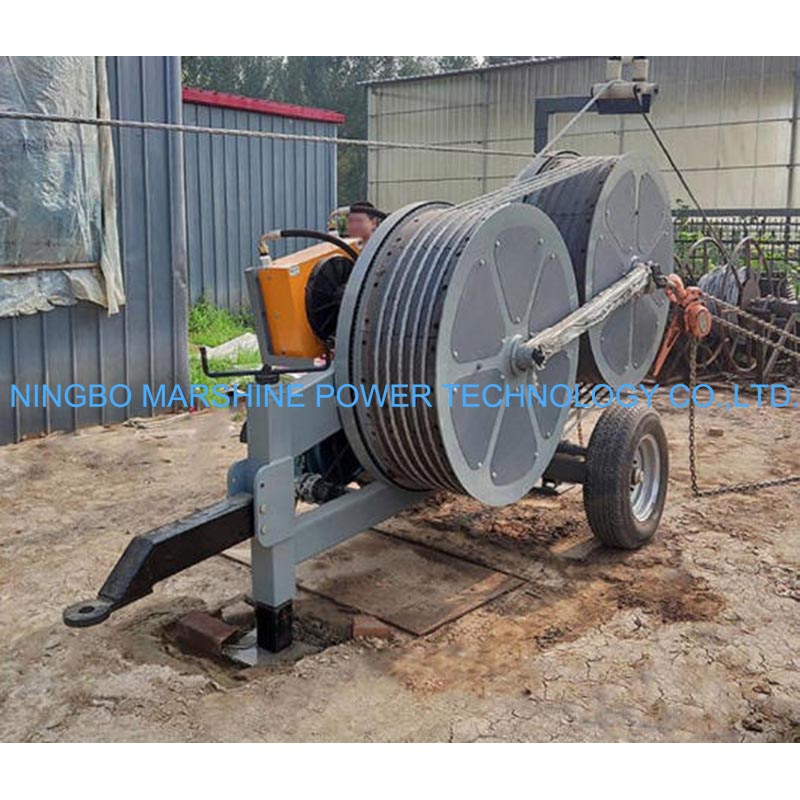

2.5T Heavy Duty Tensile Hydraulic Cable Puller

Model:MAHP-25

MARSHINE is a Chinese company with many years of industry experience of manufacturing the electric power tools. We are aiming to provide our global customers with the high performance yet reliable hydraulic cable pullers. And this MARSHINE 2.5T Heavy Duty Tensile Hydraulic Cable Puller machine is a efficient machine which was designed to offer the users with the exceptional load bearing capacity, can ensures the smooth and efficient operation when dealing with the heavy duty cable pulling operations.

Send Inquiry

Product Description

The MARSHINE 2.5T Heavy Duty Tensile Hydraulic Cable Puller is created for the high intensity cable pulling tasks. It has the exceptional load bearing capacity, is able to ensure the smooth and efficient cable pulling performance when handling the heavy-duty cables. With its powerful 2.5 ton output, this machine is able to deliver the stable cable pulling performance, and with its durable structure can make it become a good partner for the tough pulling requires to pull the heavy cables.This hydraulic cable pulling machine operates with the precision and efficiency, can effectively streamline the workflows while enhancing the productivity in cable handling operations.

Product Parameter

Model	MAHP-25
Max Tension (KN)	35
Continuous Tension (KN)	25
Min Tension (KN)	1
Max Recovery Force (KN)	20
Max Pay off Speed (m/min)	80
Tension Wheel Bottom Diameter (mm)	Φ1200
Number of Tension Wheel Grooves	5
Max Cable Diameter (mm)	Φ32
Engine (Matching)	Diesel
Engine Model	188
Power	13HP
Speed (rpm)	1800
Weight (kg)	1450
Overall Dimensions (m)	3.4×1.4×2.25

Product Feature

As the best equipment which was capable of efficiently handling the heavy duty cables no more than 1200mm in diameters, the MARSHINE 2.5T Heavy Duty Tensile Hydraulic Cable Puller can boasts a max tension of 35KN and followed with the 25KN continuous tension.This machine has 80 m/min max pay off speed, which can boosts the team’s construction efficiency and slash the project timelines. The durable yet smooth 5 grooves of this machine enables the cables to move stable yet consistent, and can prevent the cable wears. For the construction or the power grid works, this machine can be a reliable partner to deal with the long-term heavy-duty cable pulling operations, and is able to meet the tough demands with the consistent results.

Product Application

This MARSHINE 2.5T Heavy Duty Tensile Hydraulic Cable Puller can works well in the large power grid construction projects, whether for laying the new cables across the vast areas or to connect the grid segments. The urban substation upgrades and maintenance operations were also benefits from this machine, especially the tasks in the tight spaces where requires for the cable handling. If you are in Industrial plants, trust us, you can rely on this machine for the internal wiring setup, or the other equipment cable installation operations.
