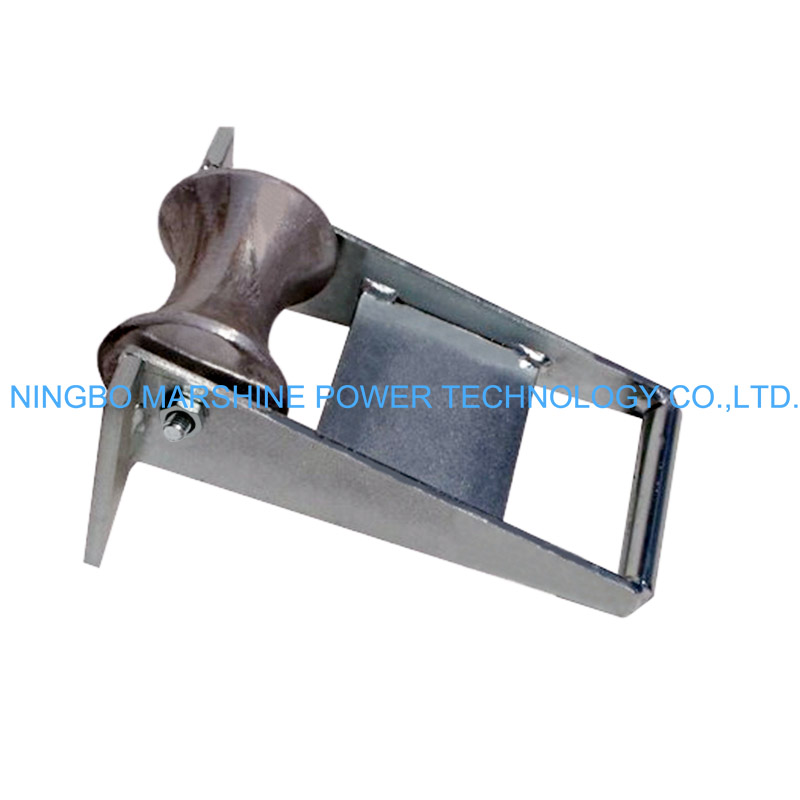

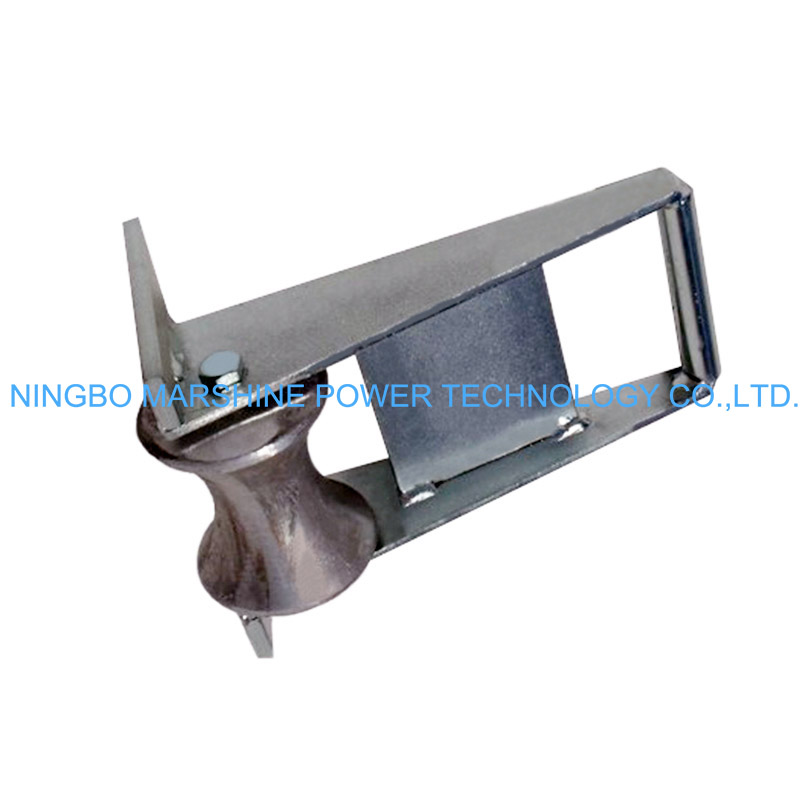

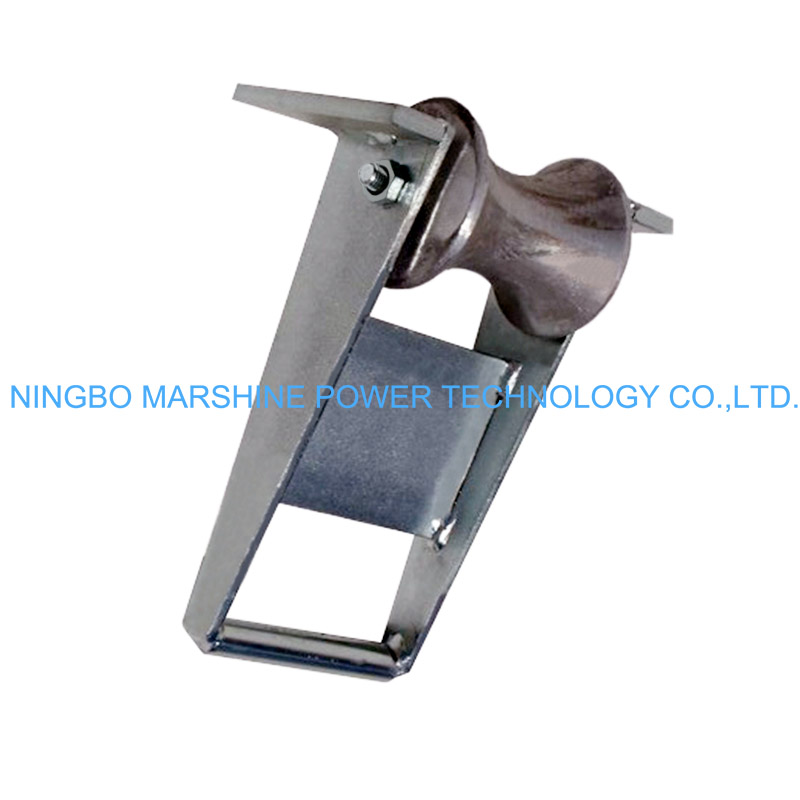

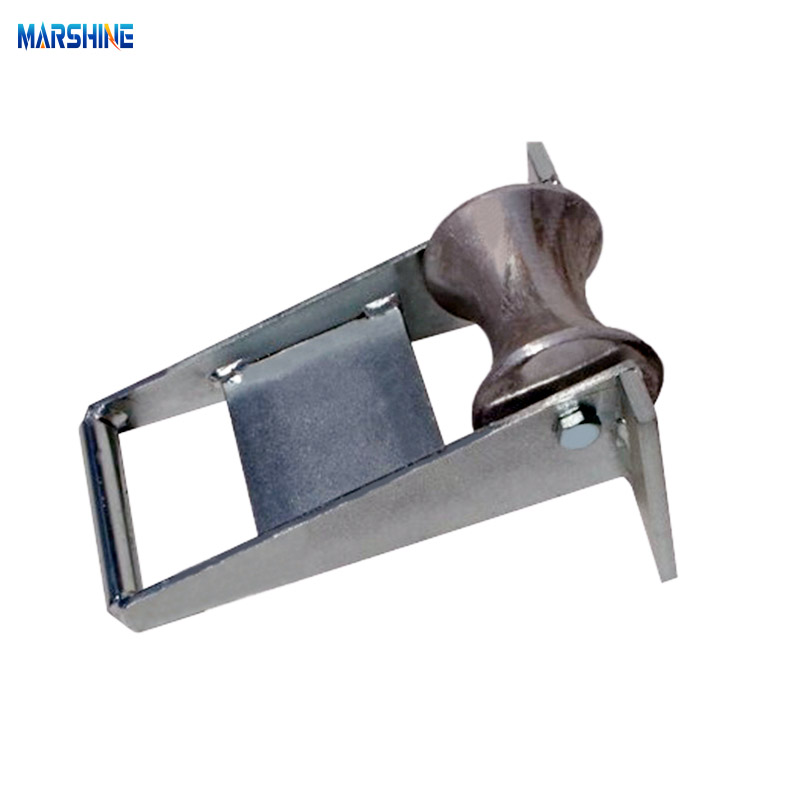

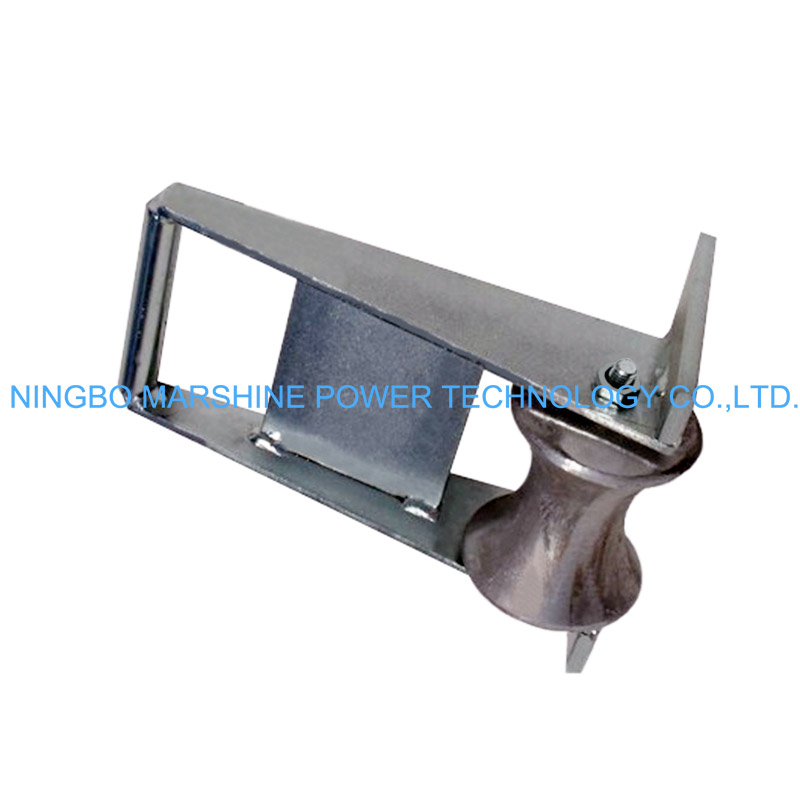

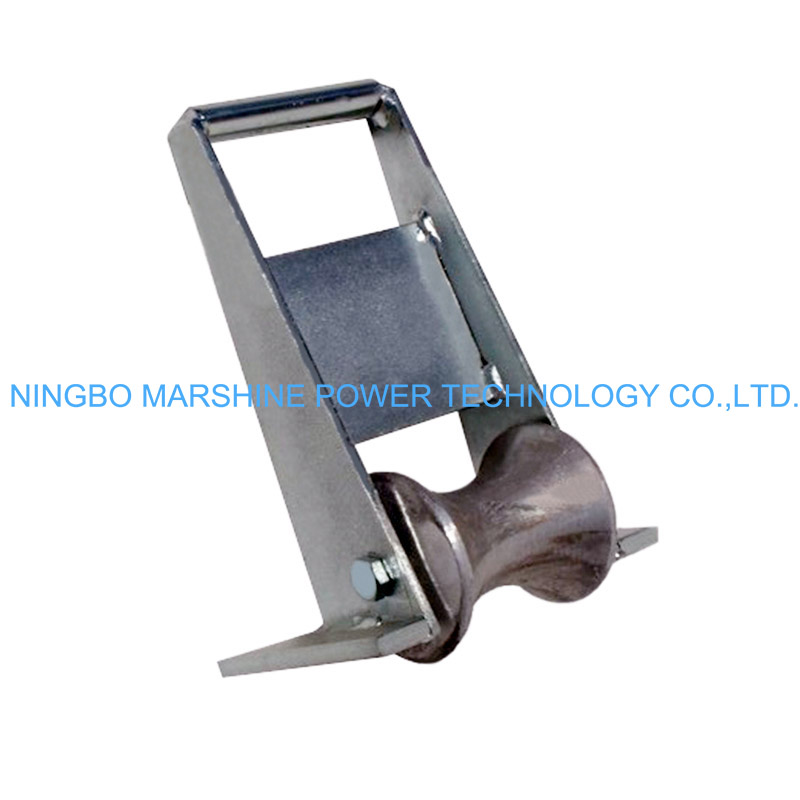

Zinc Plated Bevel Angle Rope Guiding Roller

Model:MARRR-3

Been one of our Chinese electric power line tool supplier who owns 20 years ample experience to provide world wide users with reliable yet last long cable installation tools to deal the underground cable mounting works, MARSHINE can be your trustworthy partner. This Zinc Plated Bevel Angle Rope Guiding Roller from MARSHINE is a efficient yet compact rope guide roller from underground cable installation works, can protect cables from abrasion during the manhole or joint boxes.

Send Inquiry

Product Description

The MARSHINE MARRR-3 Zinc Plated Bevel Angle Rope Guiding Roller is a robust and effective rope guide roller for underground cable laying works, power transmission projects, and the utility construction industry. With heavy-duty alloy steel frame and precision roller design, this guide roller is used to guide draw and cable pulling ropes on through manholes, joint boxes ducts or trenches systems. The bevel angle construction provides the easiest and most comfortable rope movement during the pulling cable, and is perfect for harsh cable pulling conditions that require solid rope control and protection.

Product Parameter

Model	MARRR-3
Applicable Cable	≤100 mm
Load Capacity	5 KN
Roller Size	Φ90 mm
Roller Material	Aluminum Alloy
Frame Material	Zinc Plated Alloy Steel
Dimension	260112130 mm
Weight	4 kg

Product Feature

Heavy-Duty Alloy Steel Construction

Rigid alloy steel body building, the good nature of structure strength, durability and a long life were experienced in the severe environment at construction site.

Bevel Angle Rope Guiding Design

The bevel angle rollers allow a displacement-free and rope-friendly guidance also in the bending around corners and directional changes, consequently the rope and the operational surface layer are less worn during cable pulling activities.

Aluminium Roller Assembly

The MARSHINE MARRR-3 Zinc Plated Bevel Angle Rope Guiding Roller comes with a precision aluminium roller which enables rope movement smoothly with minimum friction and without any type of damage to the surface of the rope.

Manhole and Joint Box Application

Purpose for the safe guidance of draw ropes and cabling ropes in manhole accesses, joint boxes and underground duct accesses.

Zinc-Plated Protective Frame

Carry a zinc plated, rust-resistant cover over the outdoor environment and the rust and roll unit.

Secure Positioning Lugs

With built-in locating lugs for speedy and snug fitting in manholes and joint boxes, cable insertion is safe and reliable when you are working on it for cable installation.

Smooth Rope Protection

Contributes to abrasion, friction, and mechanical stress of the pulling and cabling ropes, which in turn prolongs the service life of the rope and can increase the efficiency of the installation. Compact and Portable Design

The hollow shell curves are light and not bulky construction make it easy to carry, install and use on the construction site and in the room of underground cable laying Installation.
