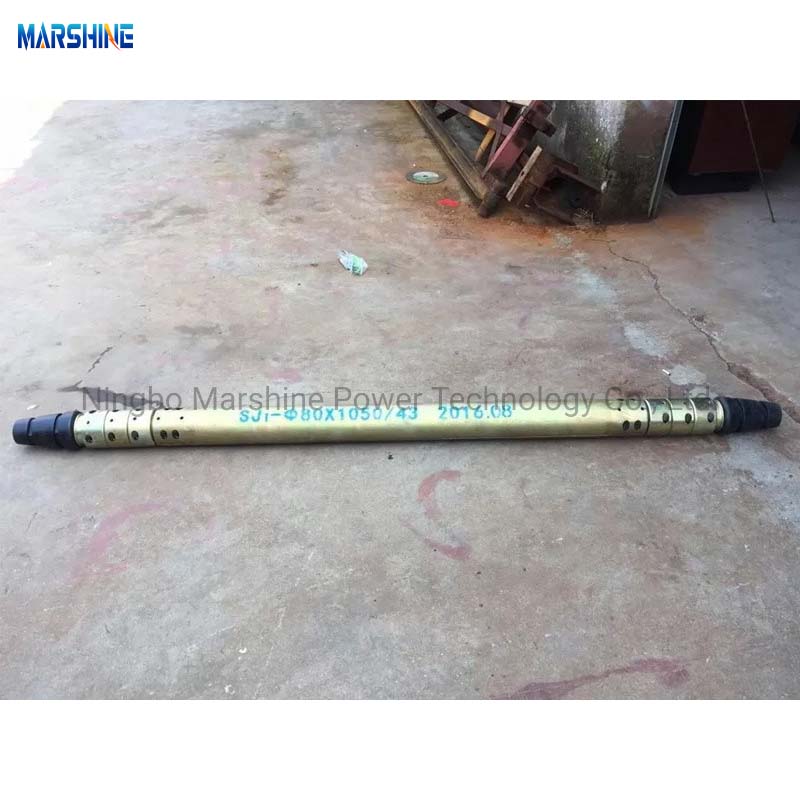

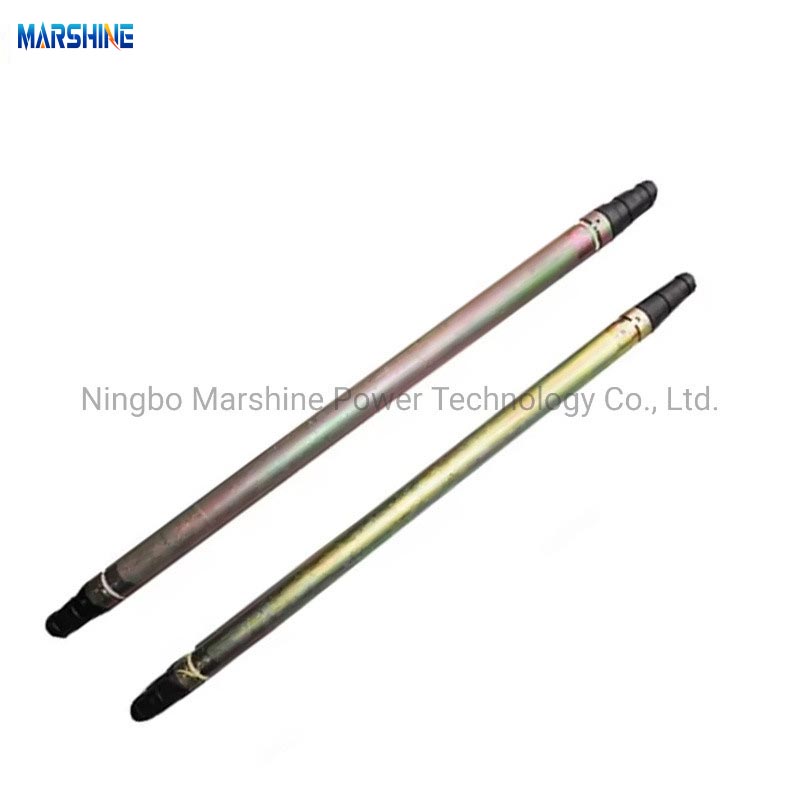

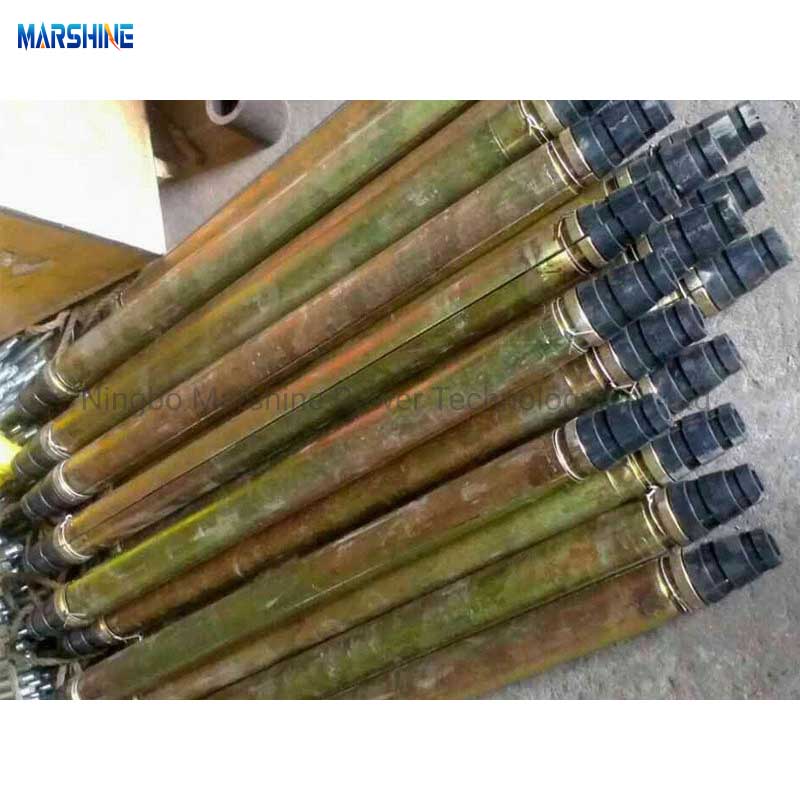

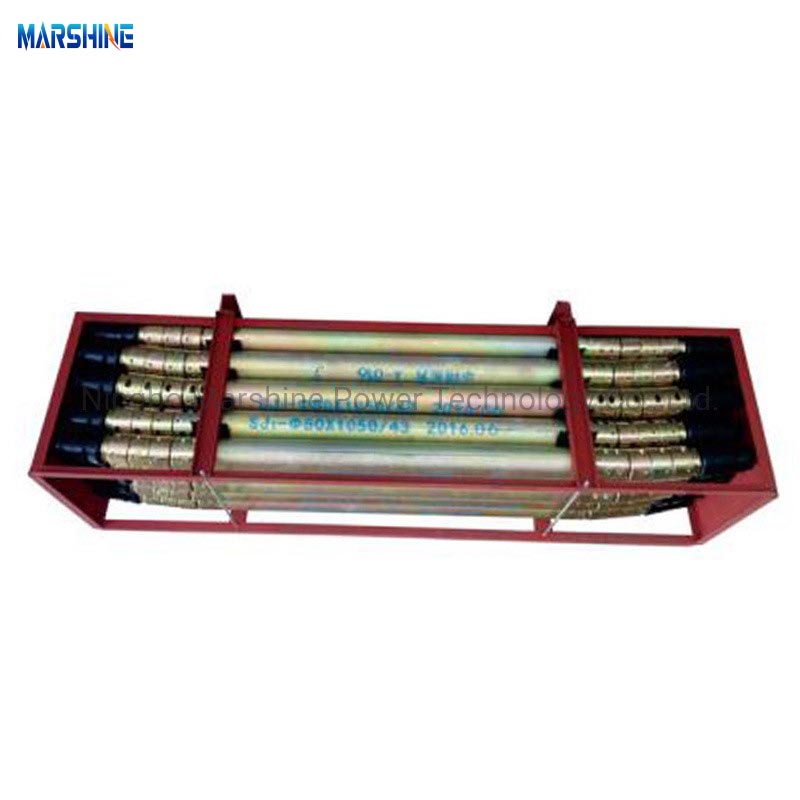

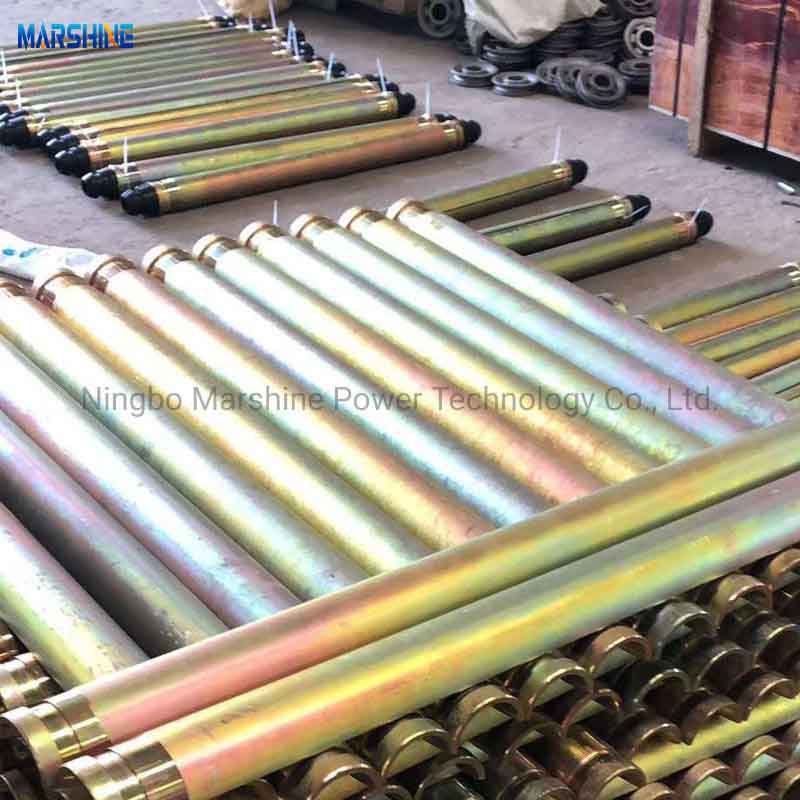

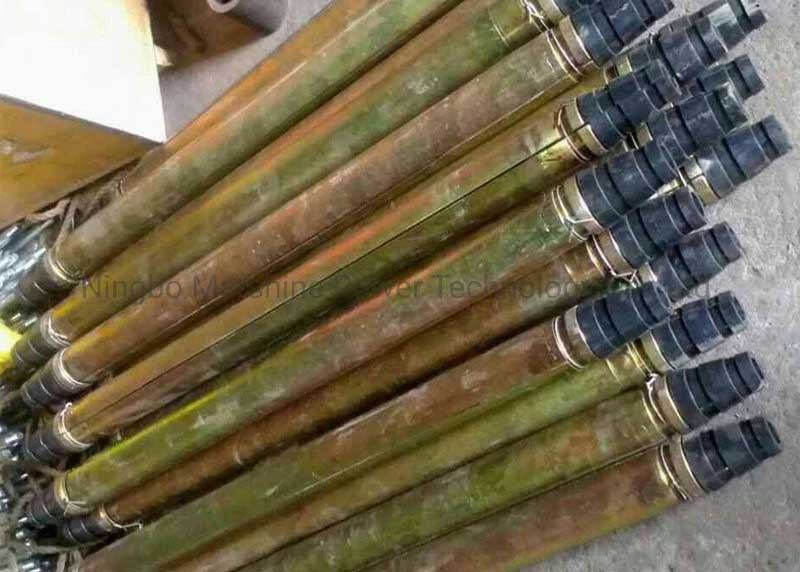

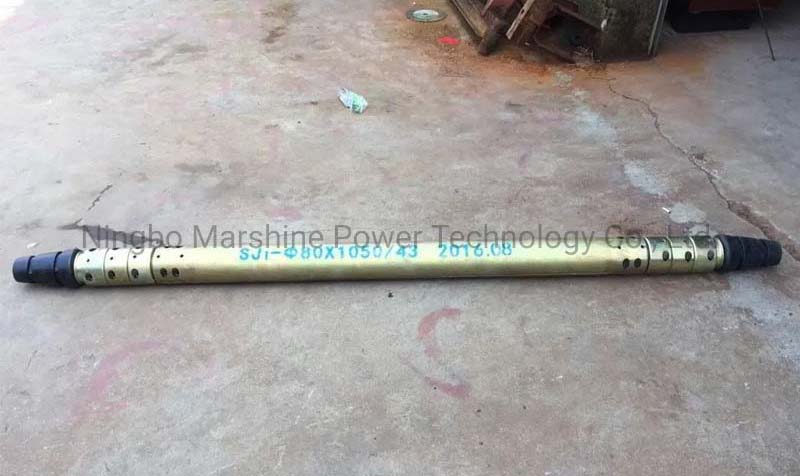

Splicing Sleeve Protector (ACSR)

Model:J240B
MARSHINE Splicing Sleeve Protector (ACSR) is specially designed by Chinese large scale company MARSHINE to safeguard spliced joints of Aluminum Conductor Steel-Reinforced (ACSR) cables during stringing, tensioning, or installation operations, we offer this tool with an affordable price. Constructed from high-strength materials, this sleeve protector prevents mechanical damage and minimizes bending or abrasion at the splice point, ensuring the integrity and performance of the conductor connection.

Designed for utility professionals and grid operators, this advanced MARSHINE Splicing Sleeve Protector (ACSR) is able to ensures long-term performance of ACSR conductors by shielding splices from moisture, corrosion, and physical damage, while maintaining optimal electrical conductivity. It is engineered to safeguard splices against environmental degradation, mechanical stress, and electrical failure in the demanding environment of overhead power transmission.


Product Parameter

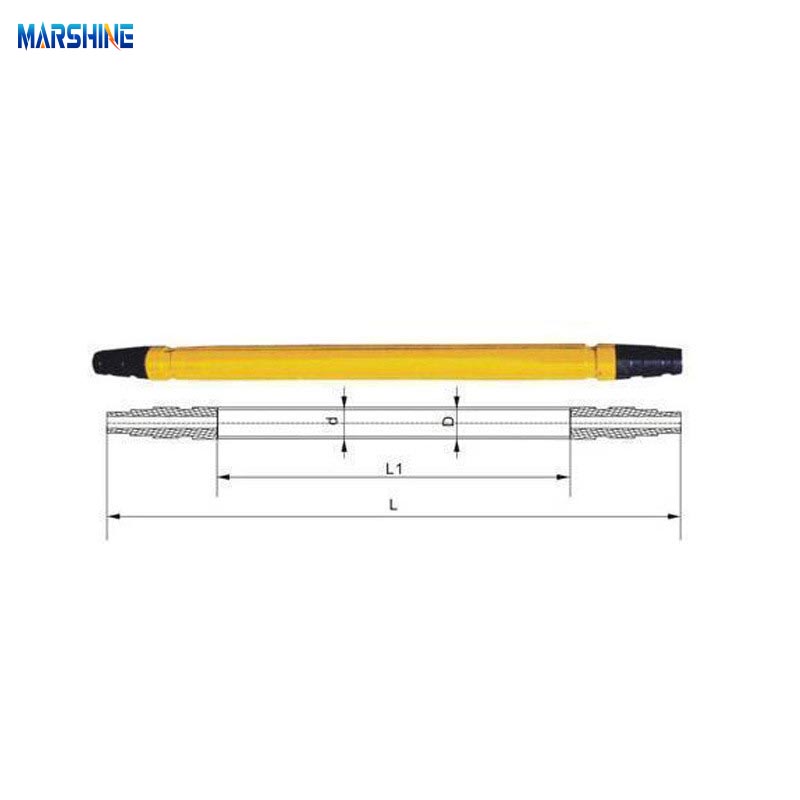

Item number Model Main size(mm) Applicable conductor
D L d L1
17201 J240B Φ45 850 Φ38 530 ACSR240/55
17202 J300B Φ51 940 Φ43 600 ACSR300/50
17203 J400B Φ57 995 Φ47 655 ACSR400/50
17204 J500B Φ68 1080 Φ56 740 ACSR500/65
17205 J630B Φ83 1180 Φ63 800 ACSR630/55
17206 J720B Φ83 1196 Φ63 816 ACSR720/50
17207 J900B Φ89 1180 Φ73 800 ACSR900/75
17208 J1000B Φ95 1400 Φ75 1020 ACSR1000/80

Product Feature

The MARSHINE Splicing Sleeve Protector (ACSR) is designed to withstand high tensile loads and mechanical stress during cable operation. It is suitable for various sizes of ACSR conductors and compatible with standard splicing sleeves. Been made of galvanized or stainless steel, this sleeve can offers excellent corrosion and abrasion resistance. It is lightweight and can install without complicated tools or procedures quickly. Can effectively protects the splicing sleeve from damage caused by pulleys, rollers or drag forces.

Product Application

This durable MARSHINE Splicing Sleeve Protector (ACSR) is ideal for protecting ACSR splice sleeves during conductor erection operations in installation, repair and maintenance of overhead lines. And can also ensure that splice conductors pass safely through the stringing pulley and tensioning equipment, reduce conductor wear at splice points during transmission line construction.

Product Details

The MARSHINE Splicing Sleeve Protector (ACSR) is an essential tool for protecting conductor splices in overhead power line construction, which can helps to ensure a smooth, damage-free installation process.


Original Country: China.


Leading Time: 7days(1-200pcs).


Certification: CE, ISO.


Brand: MARSHINE.
