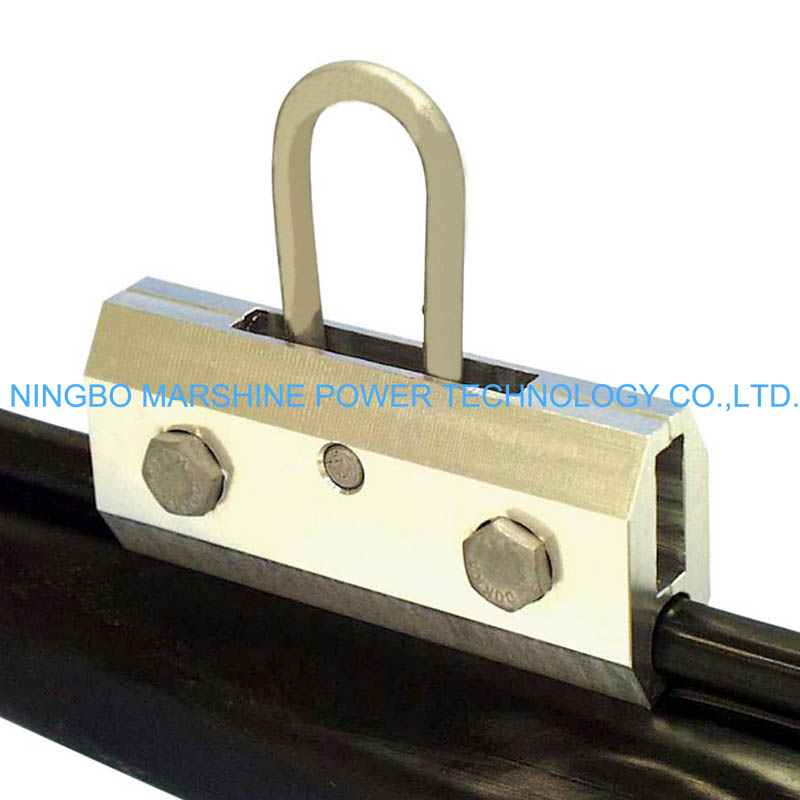

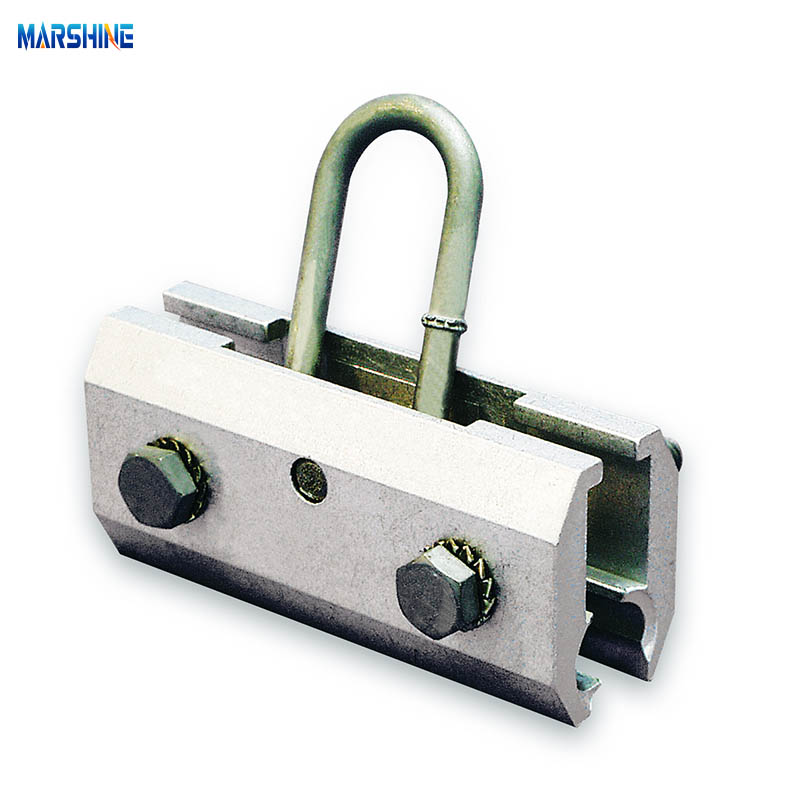

SO220 Cast Steel Suspension Clamp

Model:SO220

As a Chinese large-scale electric powerline construction equipment and tool manufacturing and trading company, our MARSHINE insists on producing the suspension tools for the power cables and transmission lines. For 20 years, we have been offering such cable supporting tools like this MARSHINE SO220 Cast Steel Suspension Clamp for the global electricians and linemen at the competitive price. Our purpose is to create a more sustainable future.

Send Inquiry

Product Description

As a heavy-duty cast steel cable supporting solution for the power cables and fiber optic cables, this MARSHINE SO220 Cast Steel Suspension Clamp which suitable for the Axclight-H and Exclight-H cables on overhead lines can be your reliable partner during the construction works. Been engineered with both the reliability and the higher strength, this clamp can secure the messenger wire suspension under a variety of the load conditions. Due to its durable construction, this clamp can make it ideal for the long term installations where the safety and the mechanical integrity are critical.

Product Parameter

Model	SO220
SMFL	22 KN
Tightening torque	20 N.m
Messenger diameter	10.5-11.5mm
Bolt	M8

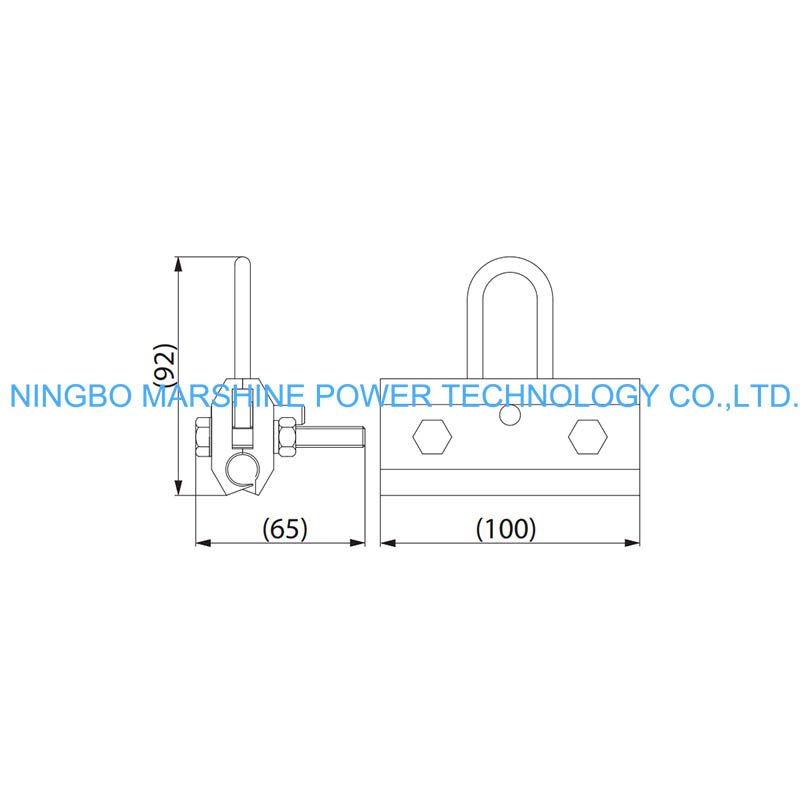

Length	100mm
Width	65 mm
Height	92 mm
Weight	0.5kg
Material	Cast steel
ETIM Class	EC003516

Product Feature

Built for use with the Axclight-H and Exclight-H cables, this MARSHINE SO220 Cast Steel Suspension Clamp can ensures the better compatibility and reliability for messenger wires.

With an 22KN SMFL, so that to delivers the strong mechanical resilience.

Supports messenger diameters from 10.5mm to 11.5mm, makes it suitable for a defined set of conductor systems.

Can be used in the straight-line suspension tasks and the angled poles that up to 30°, can offers more flexibility.

With 20 N.m torque to grip the messenger properly and securely.

Crafted from high-strength cast steel, this clamp can offers the excellent durability and the resistance to the environmental stress.

Only weighs 0.5kg, so that to make it easy to transport and install.

Product Application

Our MARSHINE SO220 Cast Steel Suspension Clamp is designed for the systems that uses the Axclight-H or Exclight-H cables where a messenger wire is needed for the mechanical support.

Ideal for the locations where the structural integrity and the mechanical strength are critical, such as the utility power liens in the challenging environments.

Perfect for replacing or upgrading the existing suspension components to match the tough standards while enhancing the system resilience.
