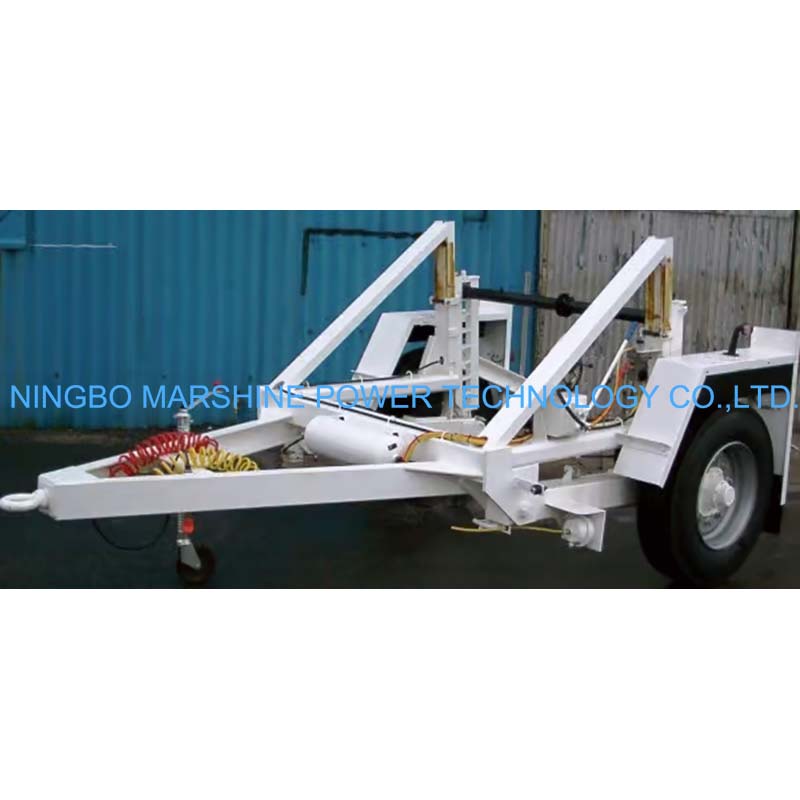

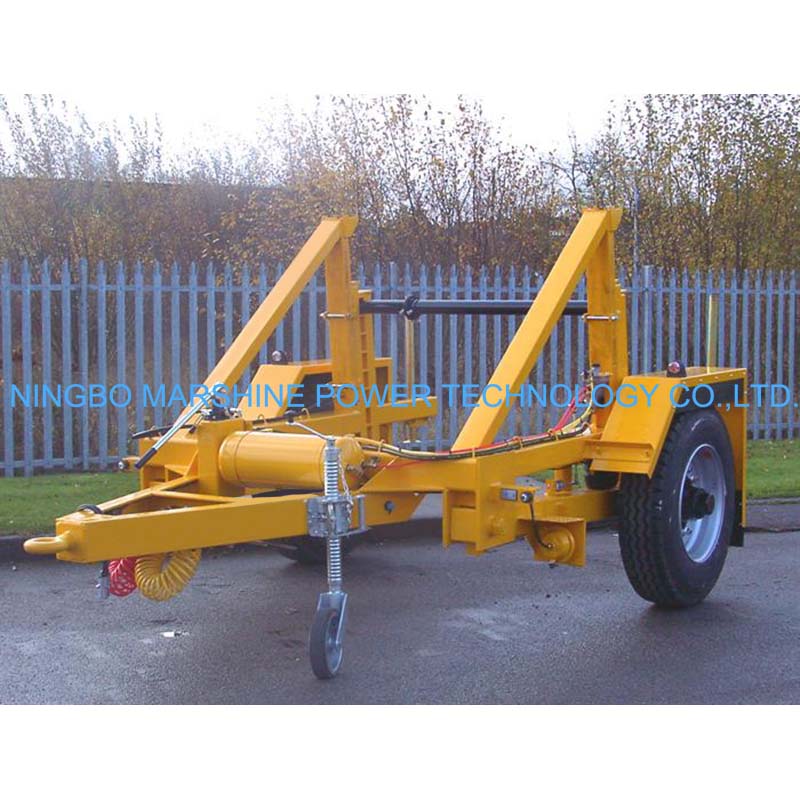

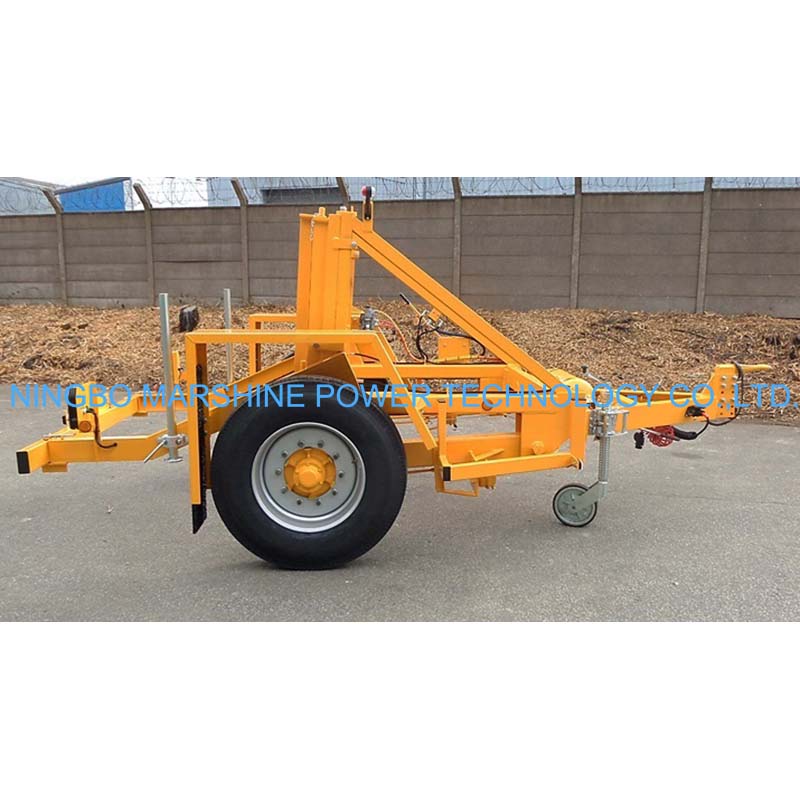

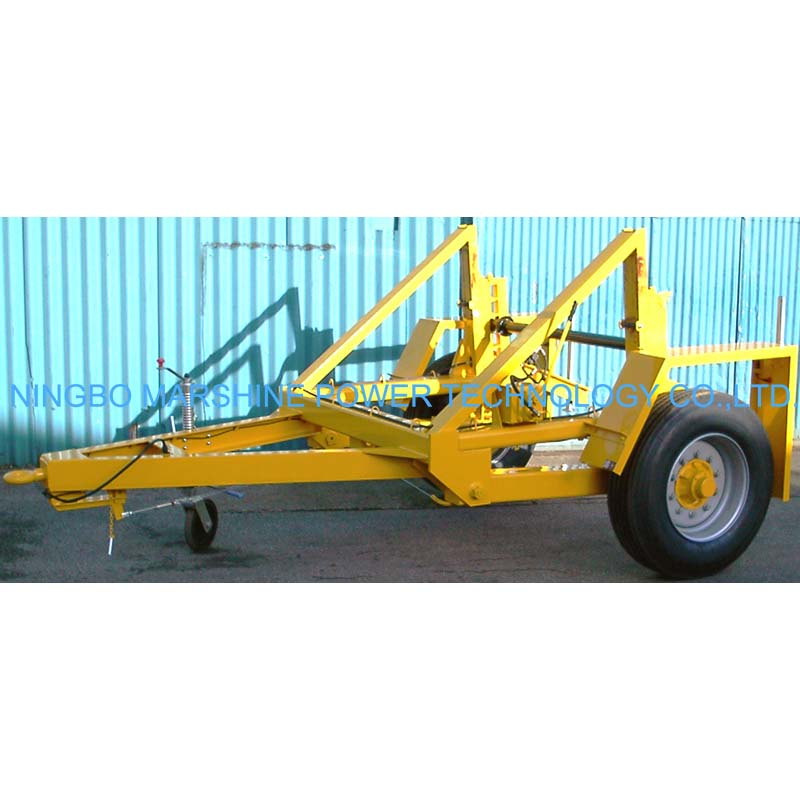

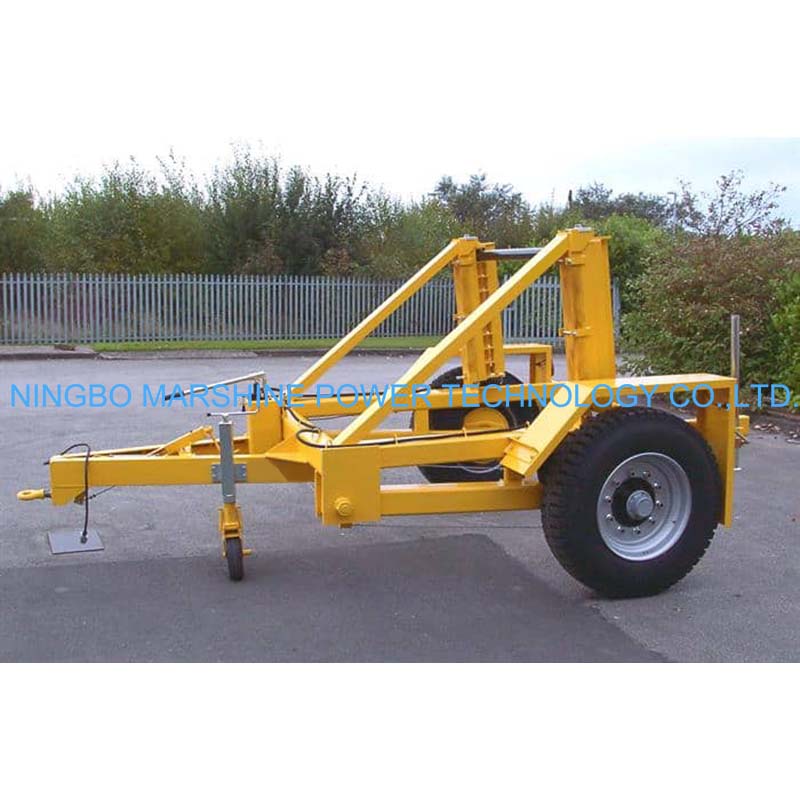

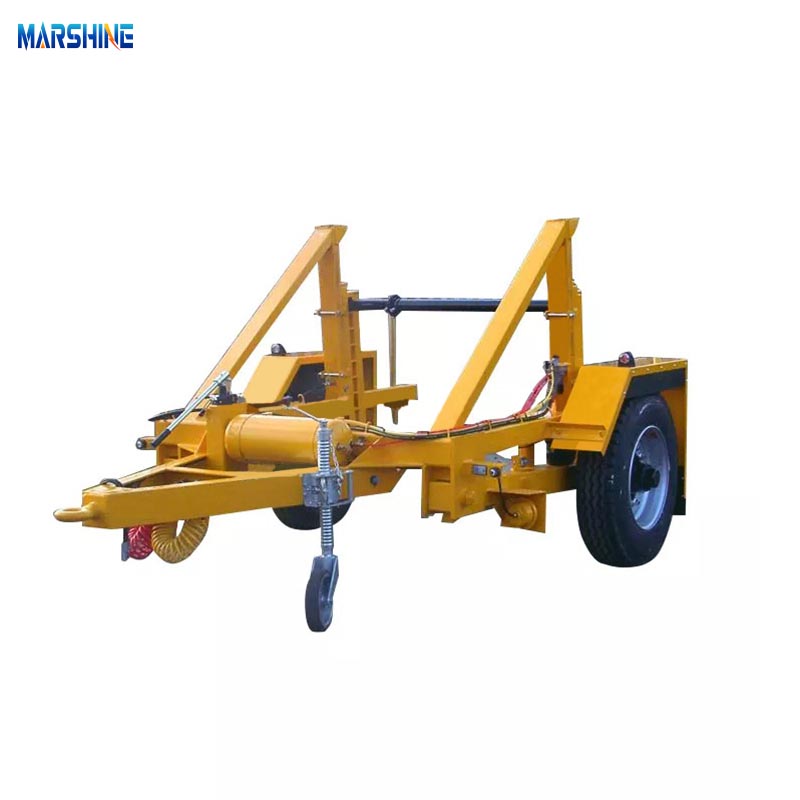

The MARSHINE Single Axle Hydraulic Support MAR-CD-130 Cable Drum Trailer is a rugged cable reel trailer designed for utility and infrastructure work to move, lift, and lay large cable drums. Building upon proven trailer concepts, including the SEB CD130 series, the model features a reinforced single-axle chassis with a high-capacity hydraulic support system, allowing the handling of large-sized cable reels while retaining exceptional towing stability. Made for professional cable installation businesses, it offers consistent performance, safe drum handling and effortless cable unreeling in both on road, and off road terrain.
| Model | MAR-CD-130 |
| Axle Type | Single Axle |
| Load Capacity | 5350 kg |
| Gross Weight | 6650 kg |
| Max. Applicable Drum width | 1470 mm |
| Applicable Drum Diameter | 1360-2860 mm |
| Spindle Diameter | 76 mm |
| Tow Eye/Coupling Height | 40DIN/685 |
| Trailer Width | 2550 mm |
| Towing Speed | 100 km/h |
| Tires | 11.00x22.5 |
| Brake System | 2 Line Air/Mech c/w ABS |
High-Capacity Hydraulic Support System
It features a thruster-type hydraulic system to ensures safe and fast action of heavy cable drums.
Heavy-Duty Single Axle Construction
Delivers high load bearing capacity yet still enables easy maneuverability for transport and job site use.
Large Payload Capacity
This MARSHINE Single Axle Hydraulic Support MAR-CD-130 Cable Drum Trailer is capable of processing large scale cable drums at maximum in 5350kgs in high voltage power transmission and industrial cable projects.
Broad Drum Compatibility
Enables a wide range of drum diameters and widths to be used, resulting in two cable reel standards.
Mechanical Drum Lock
During transportation and payout the drum is securely locked and operation is thus secured and compensated.
Integrated Overrun Braking System
Added towing security with dependable brakes in transit.
Heavy Duty Steel Chassis Construction
The frame is made from powder coated heavy duty steel suitable for most outdoor applications and will provide years of reliable service.
Smooth Cable Unreeling Action
Controlled and uniform payout of cable in reel package reduces cable stress and tangling during installation.
The MARSHINE Single Axle Hydraulic Support MAR-CD-130 Cable Drum Trailer is popular in:
Carrying and unrolling large cable drums.
Facilitates long-distance cable laying in utility transmission and distribution work.
Helping in the laying of large communication cable reels.
Make ready for substations, wind farms, solar plants, and heavy industrial facilities.
Facilitating the safe handling and replacement of hefty cable systems.
Tunnel, railway, airport, and city utility cable laying projects.
Brand:MARSHINE.
Condition:New.
Lead Time:2 Months.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
