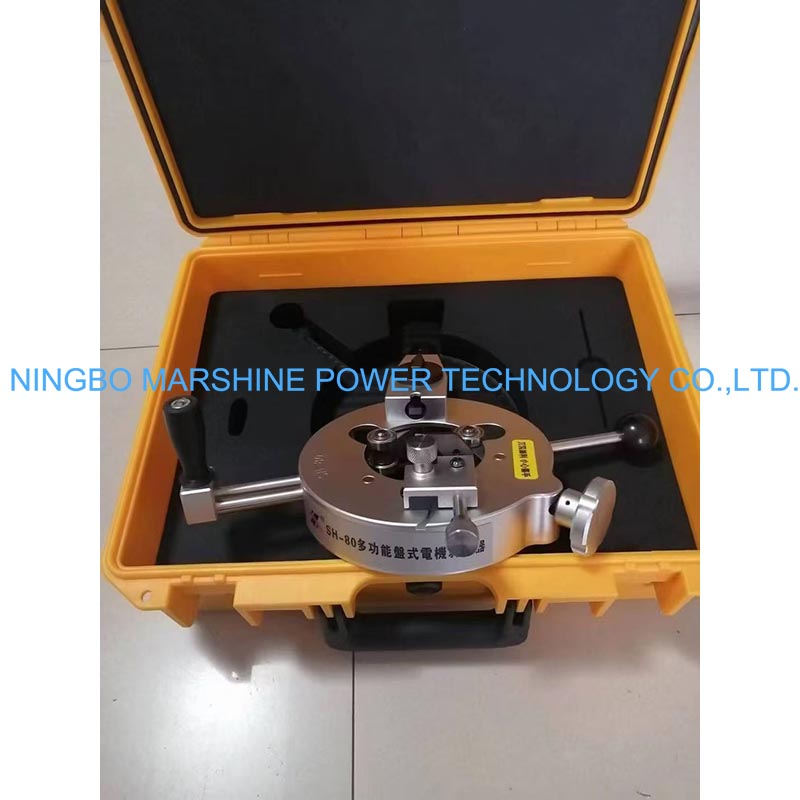

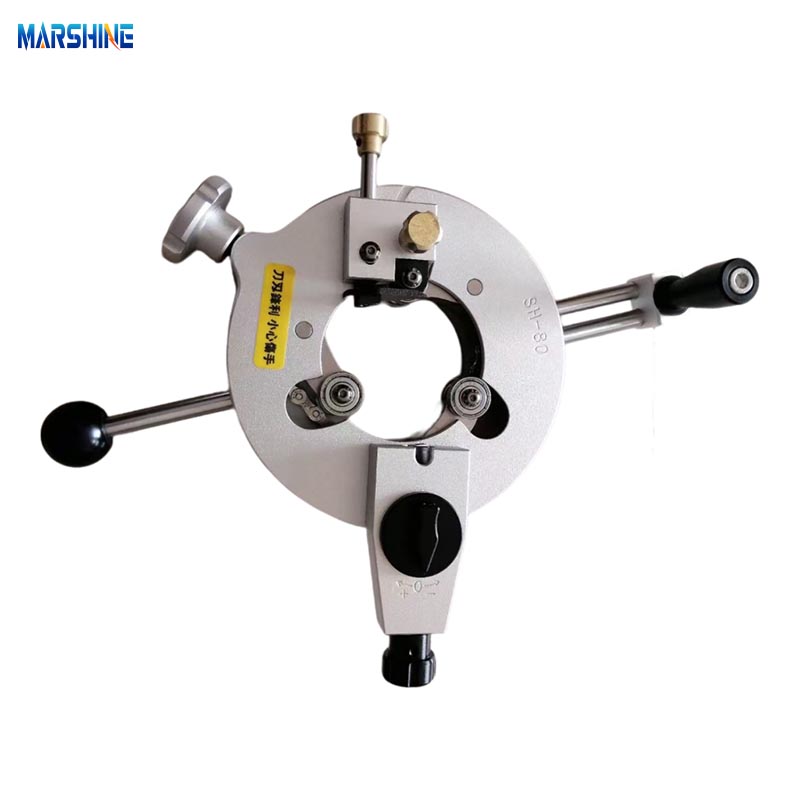

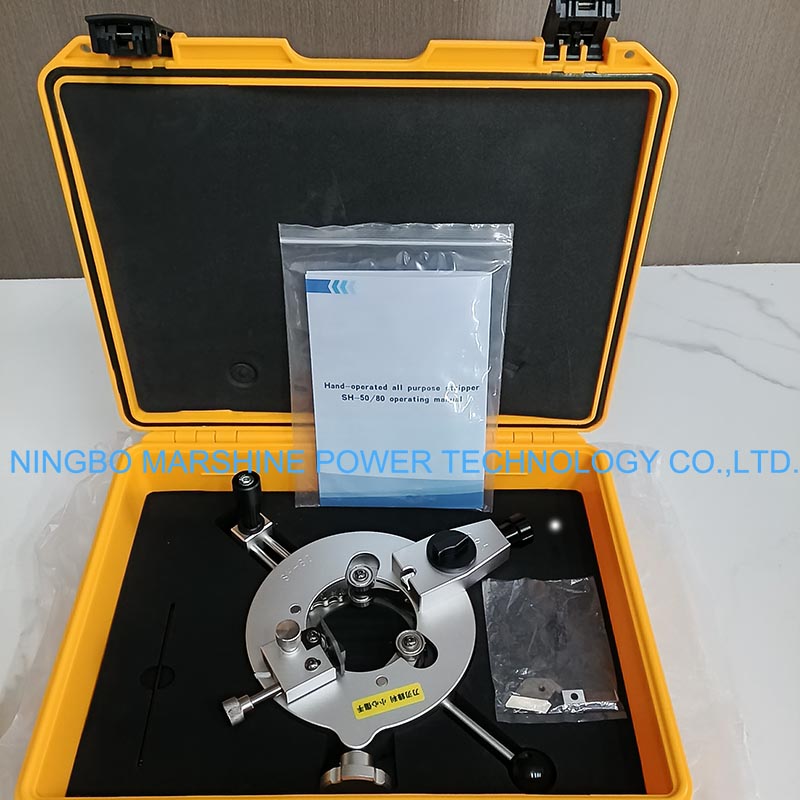

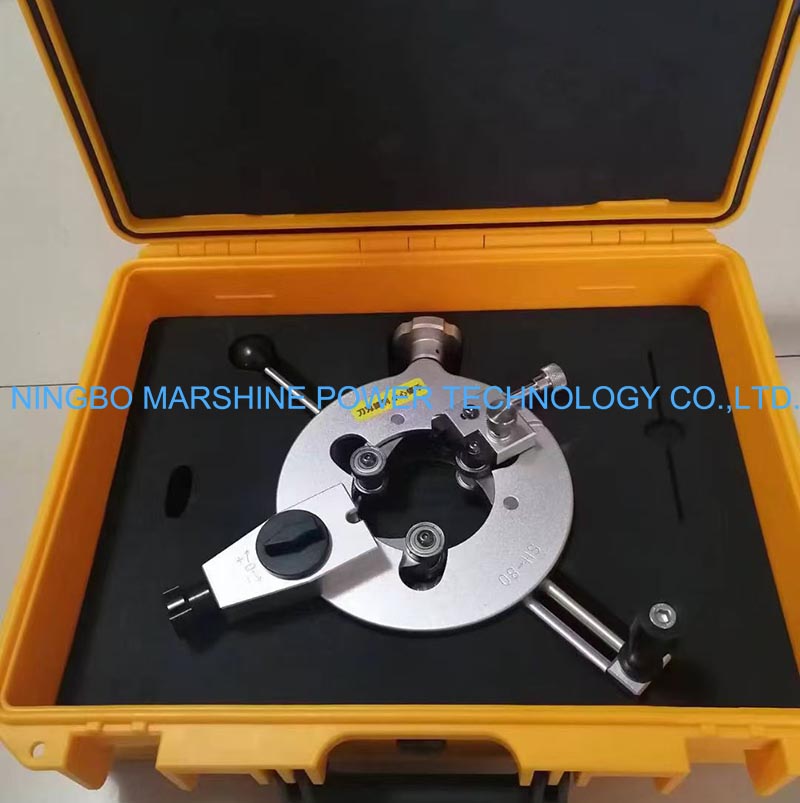

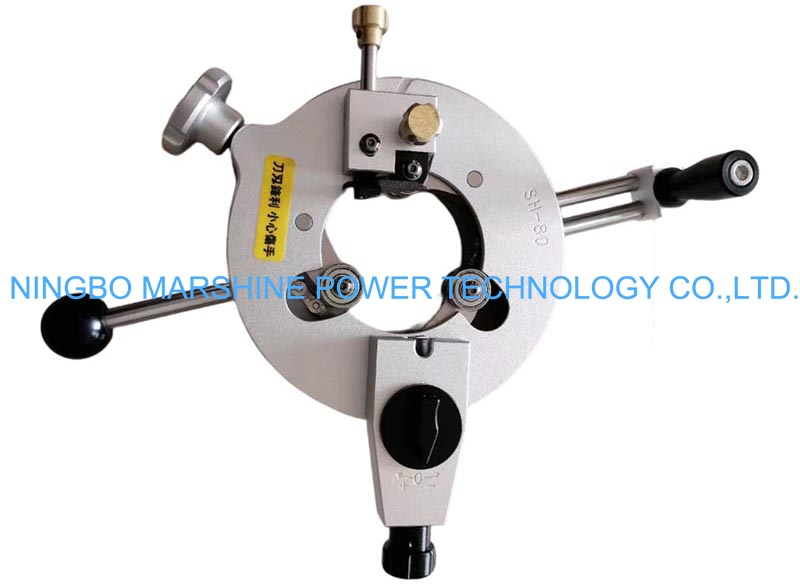

The MARSHINE SH-80 Multifunctional Manual Cable Stripper is to strip the cable diameter 40mm to 80mm. Its maximum stripping depth is 1.5mm in the semiconductor layer, and the stripping length in the outer semiconductor layer can be up to 50 mm, which can allow it for effective termination preparation. The depth of the cut on the main insulation can be set from 0 to 20 mm depending on the type of sheath of the cable. The size of the tool is roughly 345*435*165mm, which is compact and easy to hold moving field.
Product Parameter
| Model | SH-80 |
| Application Range(mm) | 40-80 |
| Max. Stripping Depth(mm) | 1.5 |
| Main Insulation Depth(mm) | 20 |
| Min. Semiconductor layer Length(mm) | 50 |
| Main Materials | Aluminum |
| Net Weight(KG) | 2.5 |
| Gross Weight(KG) | 5 |
| Dimension(mm) | 345*435*165 |
Product Feature
Stripping range of the SH-80 can working with several types of conductors, which are standard for power transmission and distribution. A stripping depth of the MARSHINE SH-80 Multifunctional Manual Cable Stripper is 1.5 mm maximizes, which can keep the accuracy of the semi-conductive shielding removal without the conductor being cut. Processing length up to 50 mm length of the semi-conductive layer, which significantly speeds up the preparation of the large diameter cables. The insulation cutting depth is adjustable, so that can cut through different thicknesses of insulation.
Product Application
This wire stripper is perfect for high-voltage transmission line work, removing the semiconductor layer and the main insulation quickly and neatly. It can also be used in substations or switch gear manufacturer for preparing the large core cables to the terminal block or connector. The MARSHINE SH-80 Multifunctional Manual Cable Stripper is designed for power company linemen working 10kV to 220kV conductor termination.
Product Details
The MARSHINE SH-80 Multifunctional Manual Cable Stripper is also indispensable in factory prepare-assembled lines where accuracy and repeatability in stripping cable insulation are required.
Original Place: Ningbo,China.
Lead Time: 10-14days.
Warranty: 1years.
Certification: ISO9001.
Applicable semiconductor: 10kV, 20kV, and 35kV.
Advantages: Firmly secures to the cable, usable in -10°C environment.
Driven Type: Manual.
Application: Telecom Cable Installation.
Surface Treatment: Hot DIP Galvanized.
