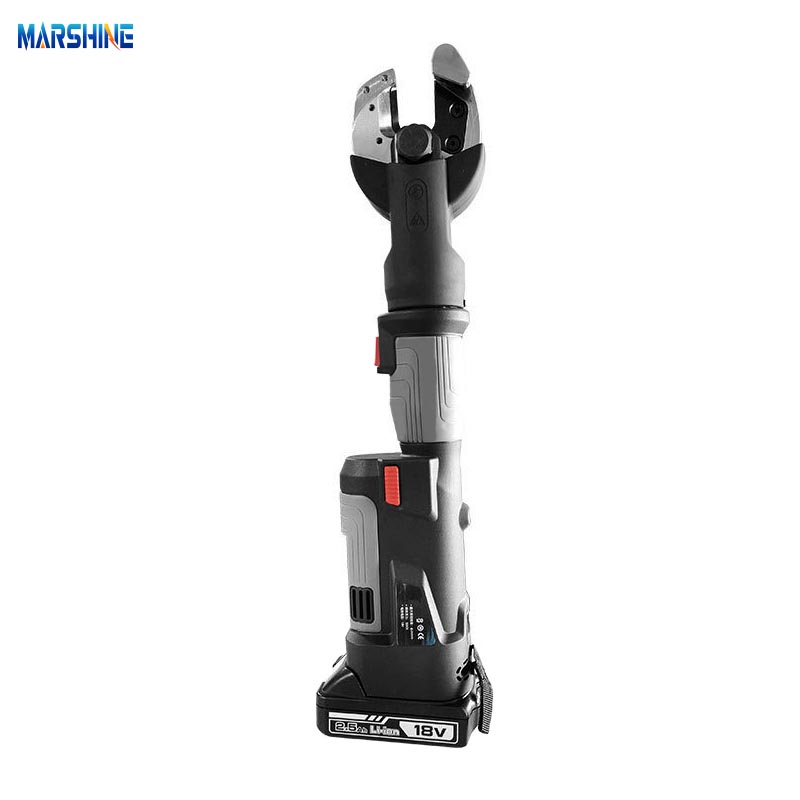

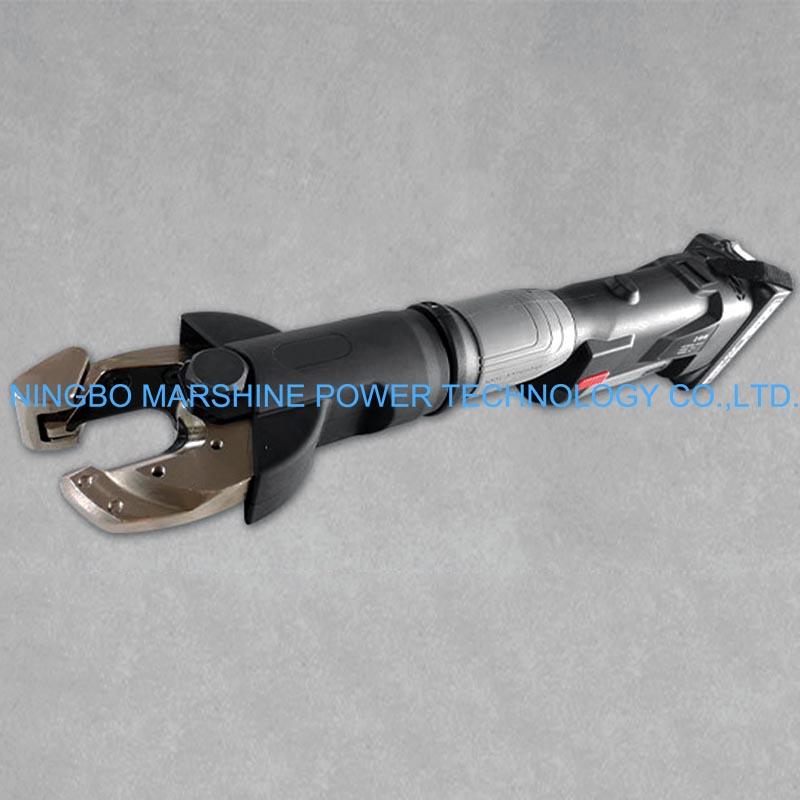

Our MARSHINE PZ-26C Electric Hydraulic Wire Cutter is a professional electrical cutter for high-speed, effective and clean cut of wires in electric and power installation works. It is powered by a high-performance lithium battery and a hydraulic drive system, which can provide strong cutting force with the portability and easy operation. Its small size and ergonomic design allows the technician to use the cutter with a single hand, making it suitable for field work, passing overhead lines or working in small enclosed spaces. The PZ-26C is able to delivers dependable cutting of copper, aluminum and armoured cable helping you work smarter and safer on cable installation jobs.
| Model | PZ-26C |
| Max.Output | 50KN |
| Strokes | 26mm |
| Cutting Range | ≤φ26mm |
| Dimensions | 491mm×118mm×75mm |
| Weight | 4.5Kg（With18V 2.0Ah Li-Battery） |
| Oil Capacity | Approx 60ml |
| Hydraulic Oil Type | S2V HV15（Shell Tellus S2V HV15) |
| Working Temperature | -10～40℃ |
| Battery | DC 18V ≥1.5AhLithium Battery |
| Charge Power | AC 100V～ 240V 50～60Hz |
Battery Powered Hydraulic System
Built-in 18V lithium battery with hydraulic system that offers a powerful and stable cutting force with less manual work.
Strong cutting capacity
It can cut cables no more than about Ø26 mm of copper, aluminium, and armored cable.
High Cutting Force

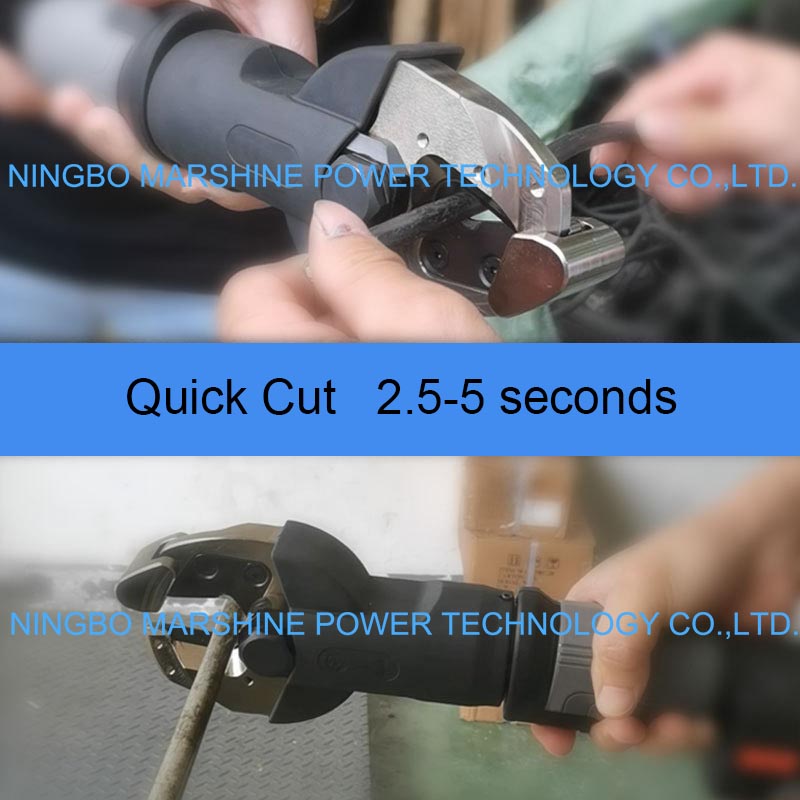

Can produce up to 50 KN hydraulic pressure with 26 mm stroke. High efficiency head can offer up to 8 cuts/min for cutting high tensile strength cables and up to 11 cuts/min for cutting SMS armoured cables.
Premium Cutting Blade
Our PZ-26C Electric Hydraulic Wire Cutter’s blades are made of solid carbide which is wear resistant and can be used to cut a wide range of hard materials such as ACSR conductors, steel strands, wire ropes etc.
Self-Retracting Mechanism
The hydraulic ram itself after every cutting stroke automatically improves operational efficiency and comfort.

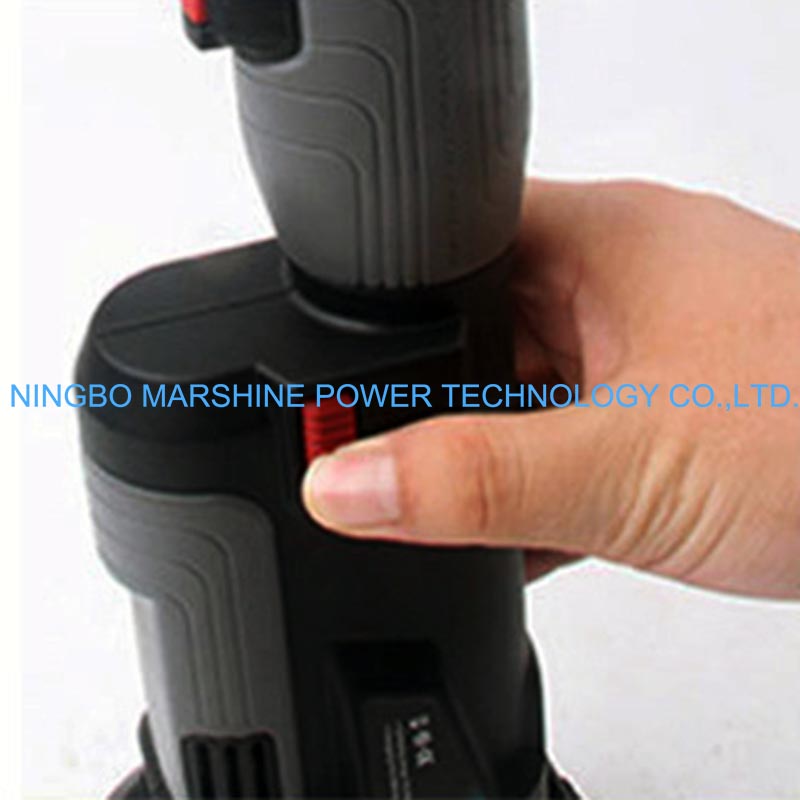

Portable yet Ergonomic Design
The lightweight body and comfortable handle make it easy to operate with one hand and keep the fatigue of the user in the long time work.

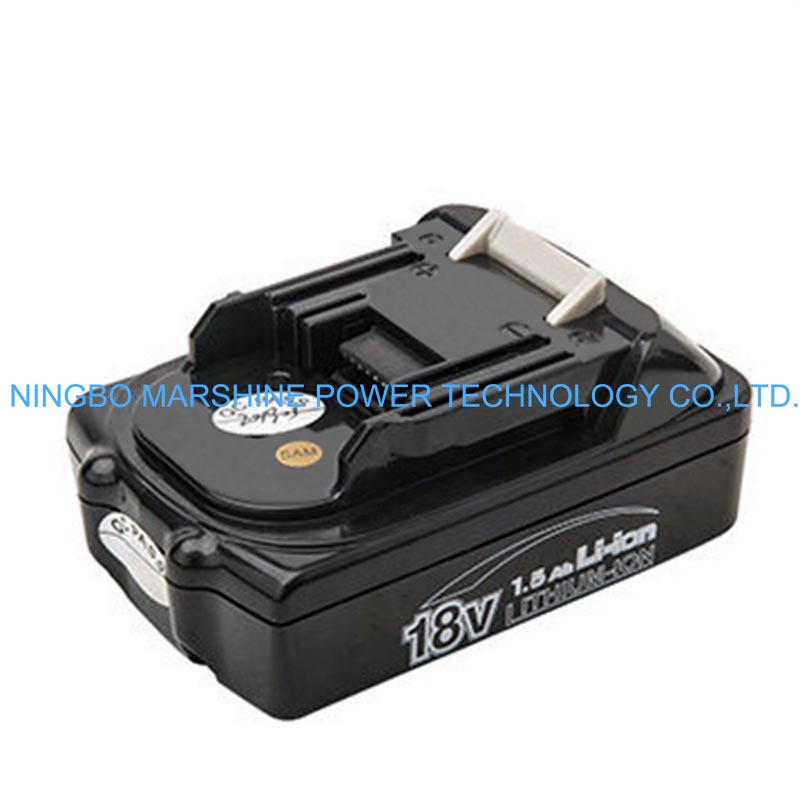

Long lasting battery
One full charge for more than 180 cut operations and up to 50 wire stripping operations in field work.
Battery indicator & Intelligent control
The integrated display/indicator features allow you to view battery status, working cycles and maintenance reminders up to conveniently monitoring.
The MARSHINE PZ-26C Electric Hydraulic Wire Cutter is applicable for various fields such as:
Power electricity construction:
Suitable for cutting copper and aluminum cables.
Telecommunication network installation where cables must be cut quickly and accurately.
Deal with the rail and infrastructure sector those who want the dependable, easy to use cable preparing tools.
Industrial electrical maintenance and repair work in factories and plants.
For electricians and technicians laying cable and doing transmission line work.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:50pcs.
