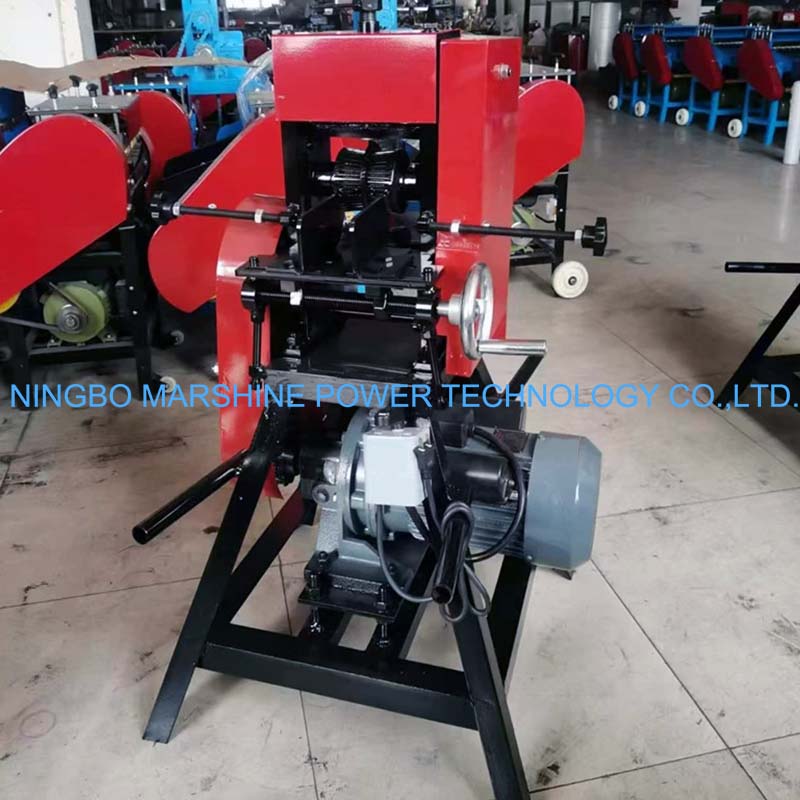

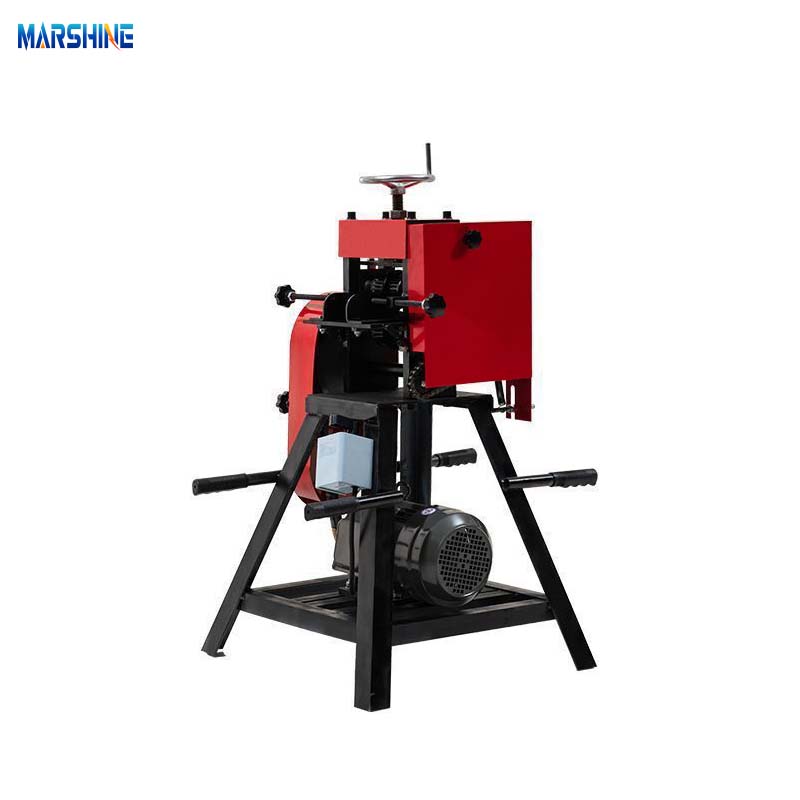

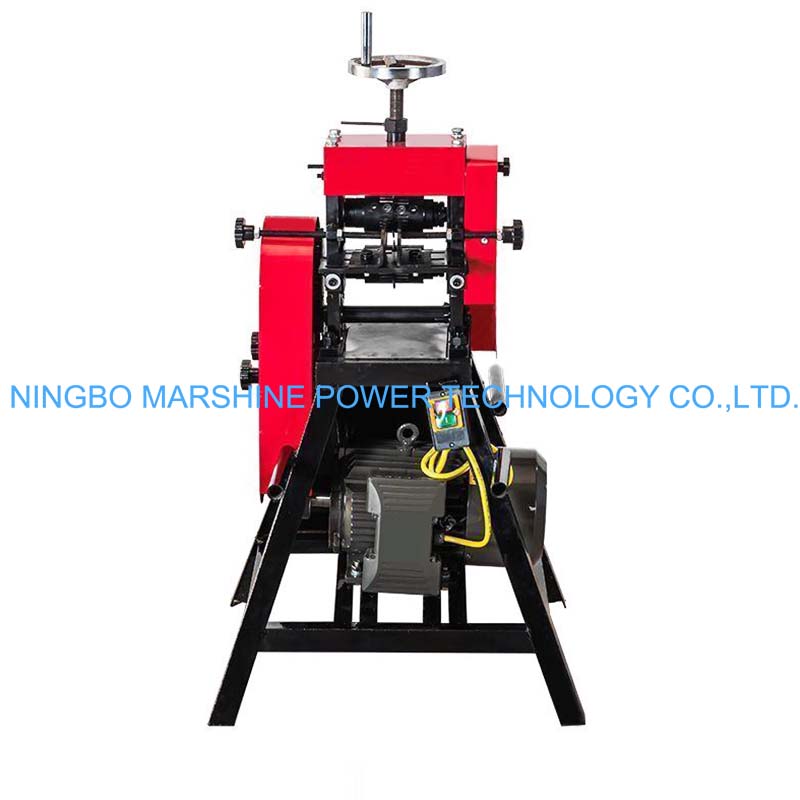

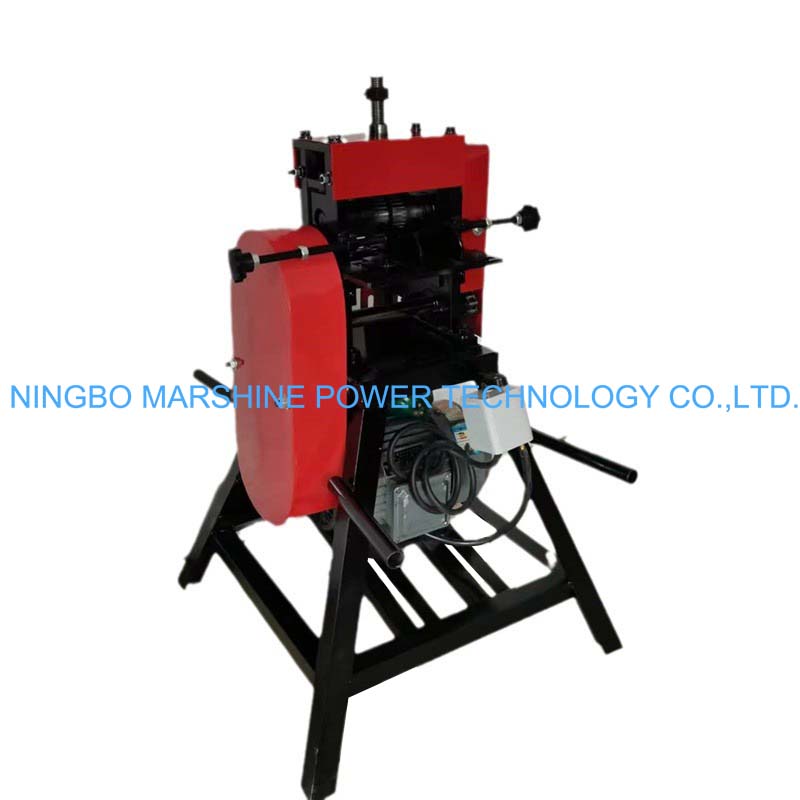

This MARSHINE Model 70 Motor Powered Electric Cable Stripping Machine is a robust yet efficient cable stripping machine that engineered for the heavy-duty industrial cable preparation works. Been equipped with a powerful 3kw electric motor and a rugged drive mechanism, this machine can provides the accurate stripping of medium to large diameter cables with higher speed. Its reliable design and the high throughput makes it a reliable partner for cable manufacturing facilities, the process workshops, and the electrical contractors where the consistent results and minimal manual efforts is required.
| Model | MAR-CSM70 |
| Wire Stripping Diameter | 10-70mm |
| Wire Stripping Capacity | 1000kg |
| Power | 3kw (Geared Motor) |
| Voltage | 220V/380V |
| Motor Speed | 1440 rpm |
| Drive Structure | Large chain + chain + gear |
| Blades | 2 |
| Dimensions | 680*530*900mm |
| Weight | 90 kg |
Wide Stripping Range
Capable of stripping cable diameters from 10 to 70 mm, our MARSHINE Model 70 Motor Powered Electric Cable Stripping Machine can accommodating a broad spectrum of single and multi-core cables.
High Stripping Capacity
Able to deal up to 1000 kg of cable throughput, can supports the high-volume processing demands.
Powerful Electric Motor
Equipped with a 3kW motor to deliver strong and stable performance at 1440 rpm, so that to ensure the smooth and continuous operation.
Flexible Voltage Options
With 220 V or 380 V electrical systems to choose, can suits the different workshop environments.
Dual Drive Structure
Been utilized with the large chain + chain + gear drive mechanism that enhances torque transmission and operational reliability.

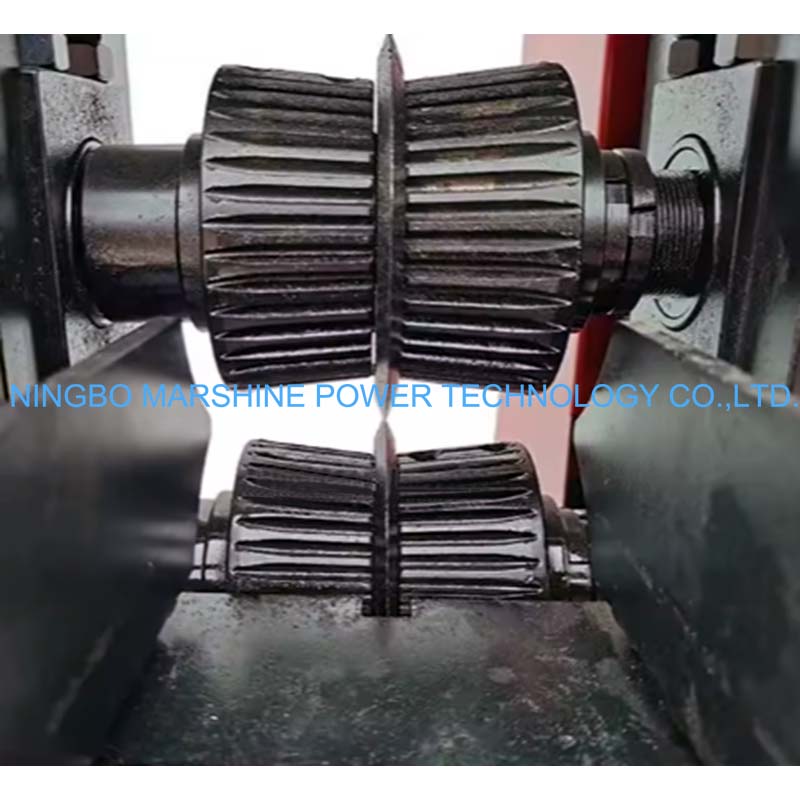

Precision Blades
Includes two tough yet last long manganese steel blades for accurate and clean cable layer stripping across the entire strip diameter range.
Compact & Durable Build
With 680*530*900 mm dimensions and a weight of approximately 90 kg, strike a balance between workspace efficiency and machine stability.
The MARSHINE Model 70 Motor Powered Electric Cable Stripping Machine are suitable for stripping cables insulation for connector installation, termination, or other further processing works.
This machine is also ideal for handling the outer layer from power, control, and communication cables during the assembly tasks.
Can be used to handle the preparation works for long runs of cables in the telecoms and the industrial system operations with higher efficiency.
Meanwhile, this stripping machine is perfect for high-volume cable handling works as well.
Place Of Origin:Ningbo,China.
Lead Time:7-12days.
Warranty:1year.
Certification:ISO9001.
Condition:New.
