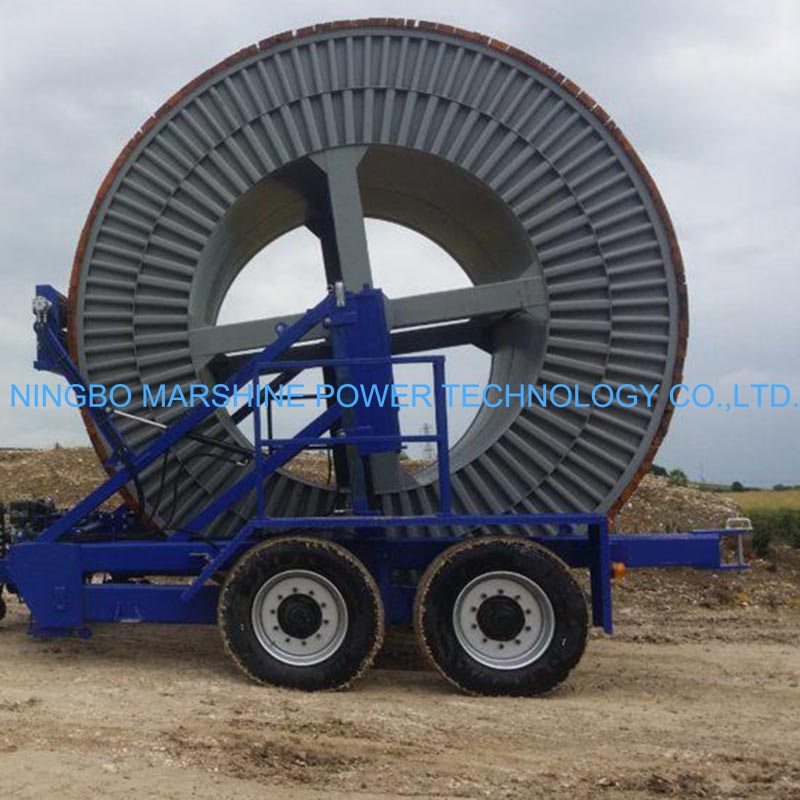

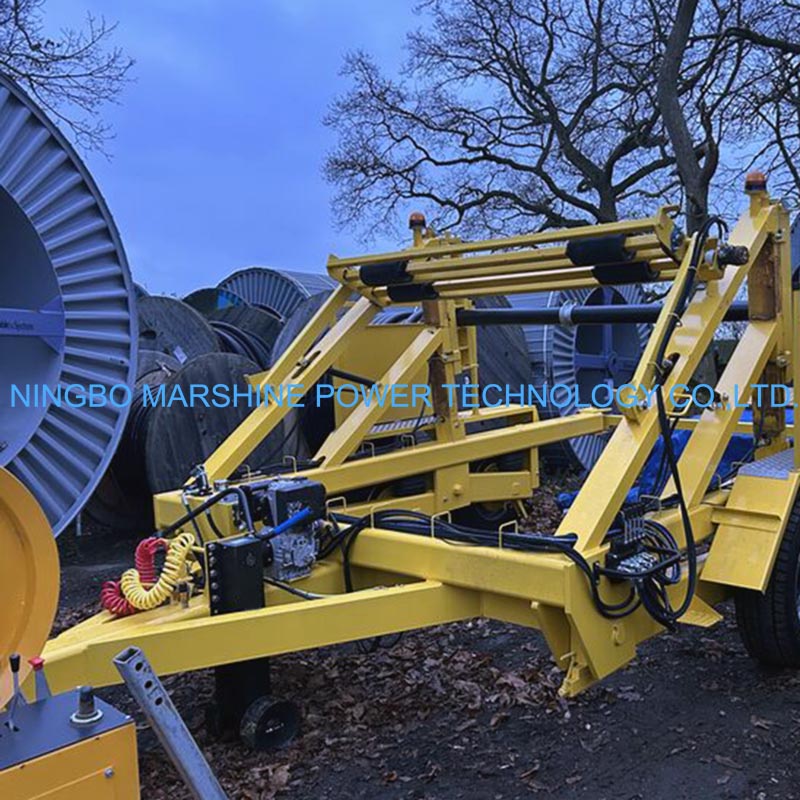

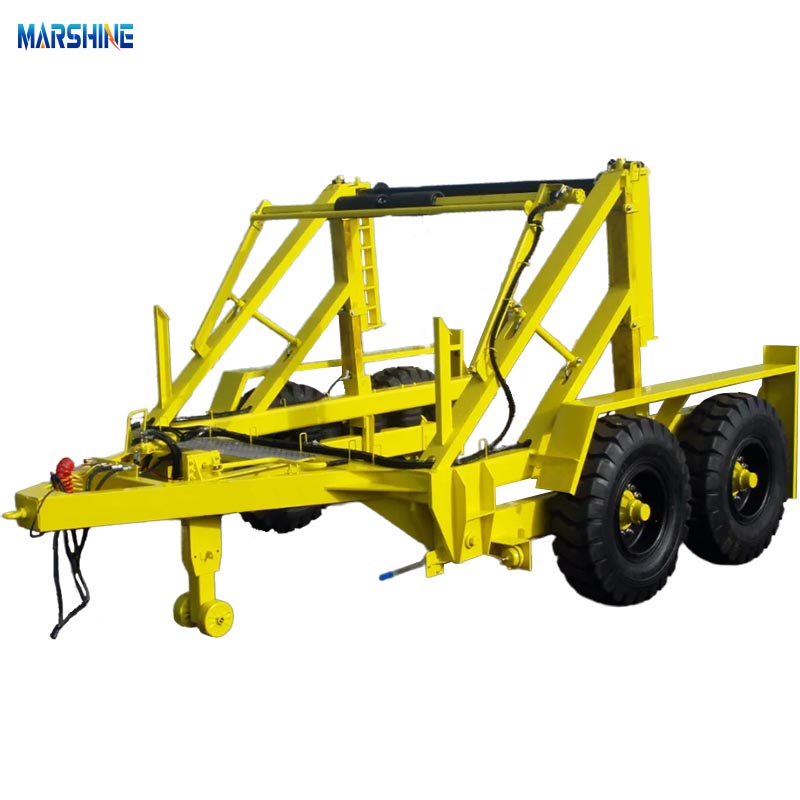

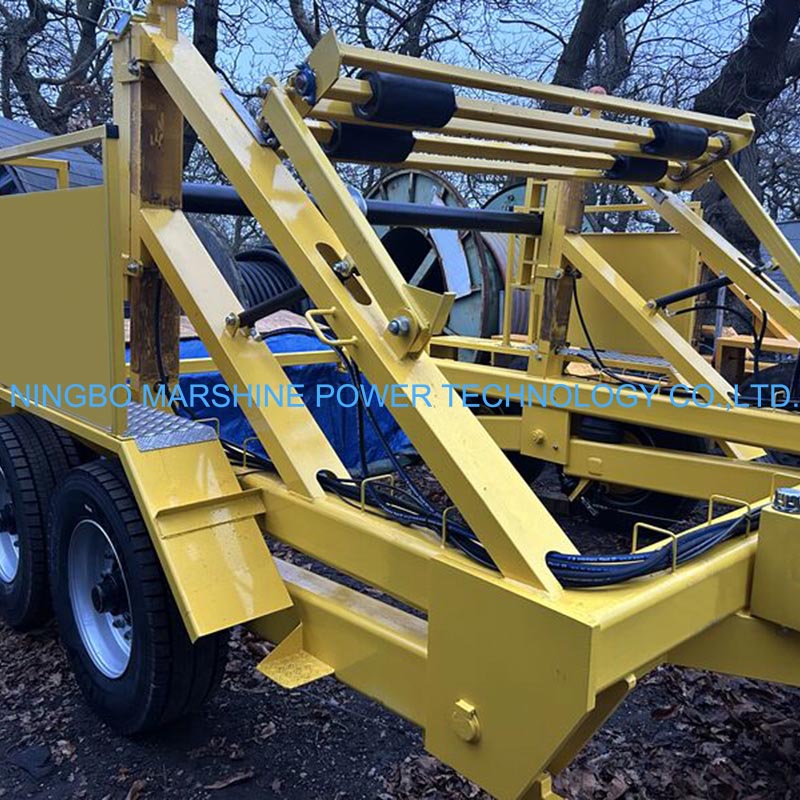

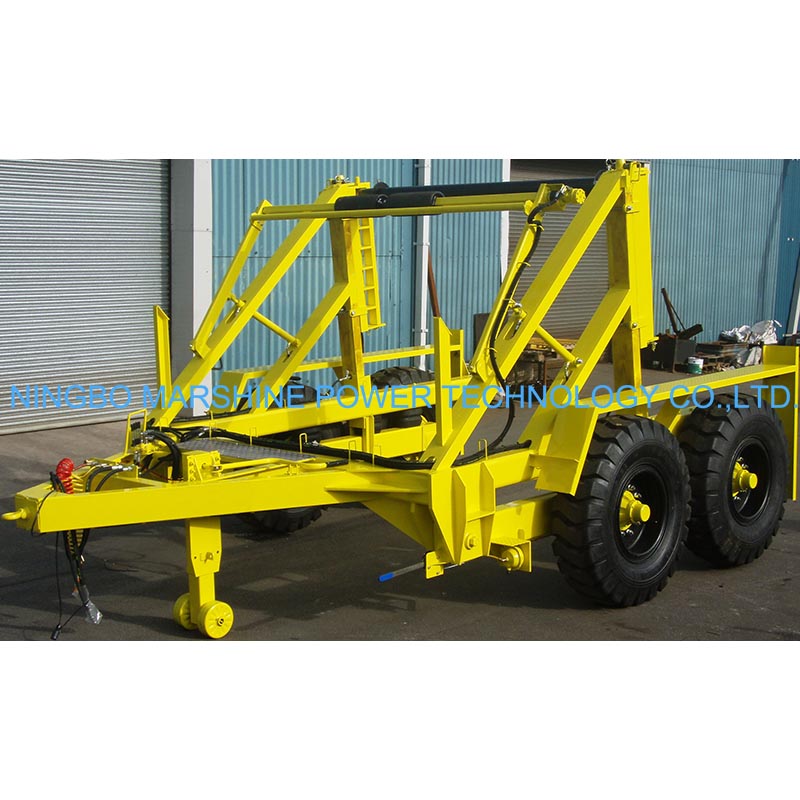

MAR-CD-700 Cable Drum Trailer Twin Axle

Model:MAR-CD-700

The MARSHINE is a large scale Chinese cable drum transporting and installing solution supplier who have been providing global electricians and linemen with reliable yet efficient cable drum trailer for 20 years. This MARSHINE MAR-CD-700 Cable Drum Trailer Twin Axle is one of our powerful hydraulic drum trailer with twin axle design, can handle cable drums at maximum in 30 tons.

Send Inquiry

Product Description

The MARSHINE MAR-CD-700 Cable Drum Trailer Twin Axle is an industrial strength cable handling and hauling equipment that can be adapted for use with auto-flow drums for power transmission, utility, telecom, and infrastructure construction works. Manufactured with a reinforced twin axle chassis and sophisticated hydraulic drum lifting system, this trailer ensures exceptional stability, navigability and working performance on the most challenging off-road environments. For the extreme large LV, MV, HV and EHV cable reels, the MARCD-700 offers a large payload and a very secure drum support for large size cable laying instruments. Its hydraulic support greatly reduces manual labor and increases safety and productivity on construction site.

Product Parameter

Model	MAR-CD-700
Axle Type	Double Axle
Load Capacity	30000 kg
Gross Weight	35000 kg
Max. Applicable Drum width	2400 mm
Applicable Drum Diameter	2700-4800 mm
Spindle Diameter	152 mm
Tow Eye/Coupling Height	76/1100
Trailer Width	3820 mm
Towing Speed	10 km/h
Tires	14.00x24
Brake System	2 Line Air

Product Feature

Heavy-Duty Twin Axle Design

The reinforced tandem axle structure provides superior load distribution, improved towing stability, and reliable performance when transporting oversized cable drums across rugged terrain.

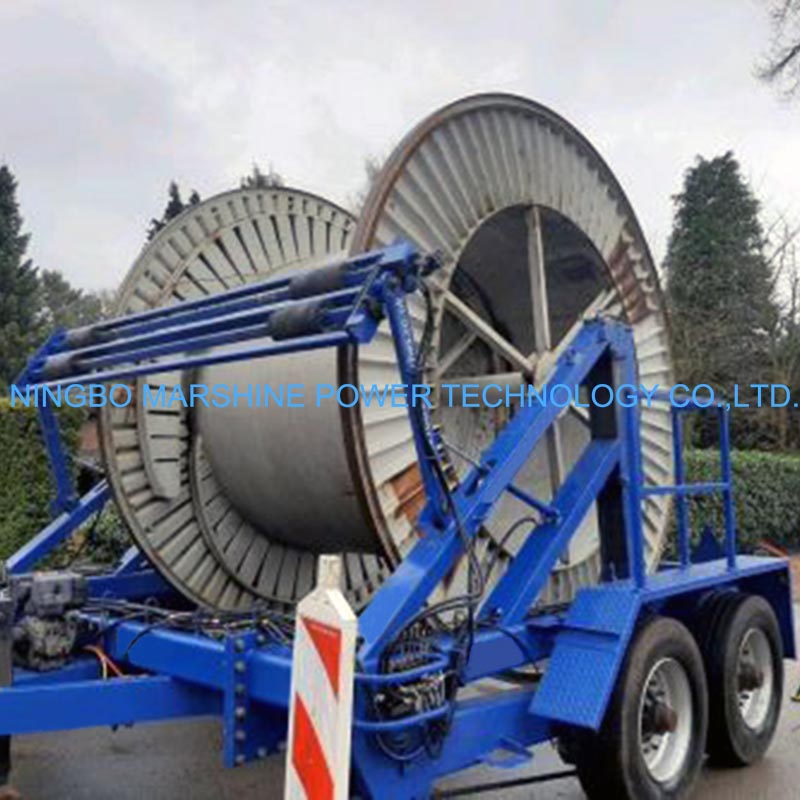

Hydraulic Drum Support & Lifting System

Equipped with a hydraulic operated drum lifting facility for efficient loading, unloading, and positioning of heavy cable reels, the MARSHINE MAR-CD-700 Cable Drum Trailer Twin Axle can reducing labor intensity and increasing work efficiency.

30 Ton Payload Capacity

Engineered to handle cable drums with an approximate payload capacity of 30,000 kg, making it suitable for large-scale utility and infrastructure cable installation projects.

Large Drum Compatibility

Suitable for cable drums with diameters ranging from 2700 mm to 4800 mm and maximum drum widths up to 2400 mm, enabling flexible handling of oversized cable reels.

Heavy-Duty Spindle System

Features a robust 152 mm spindle diameter to provide stable support and smooth rotation during cable unreeling operations.

2 Line Air Brake System

Integrated with a reliable 2 line air braking system to ensure safe transportation and stable towing performance under heavy loads.

Off-Road Construction Capability

Specifically designed for off-road applications and demanding construction environments, making it ideal for power utility and industrial cable laying projects.
