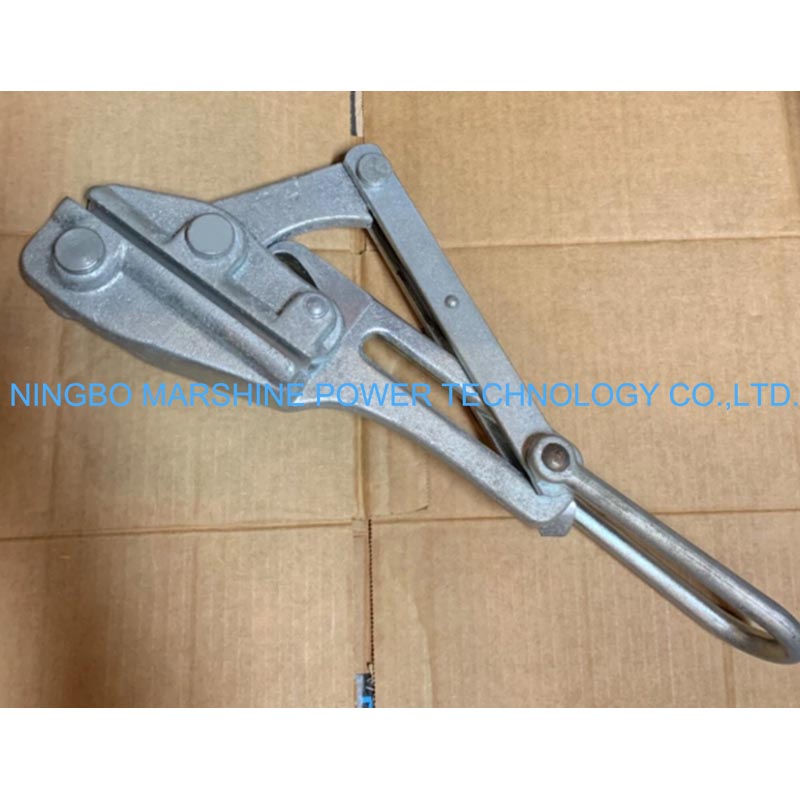

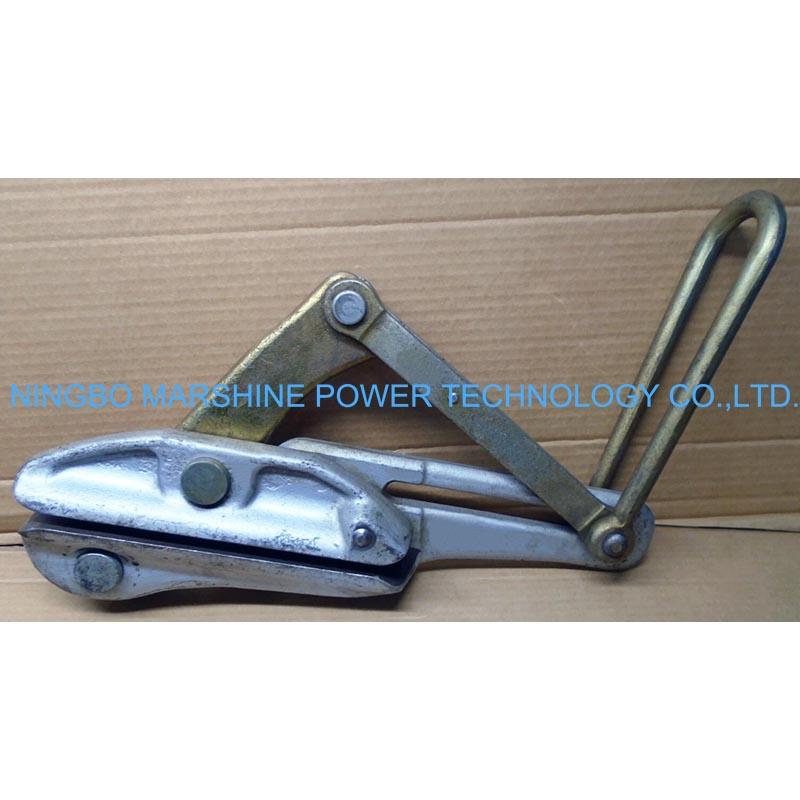

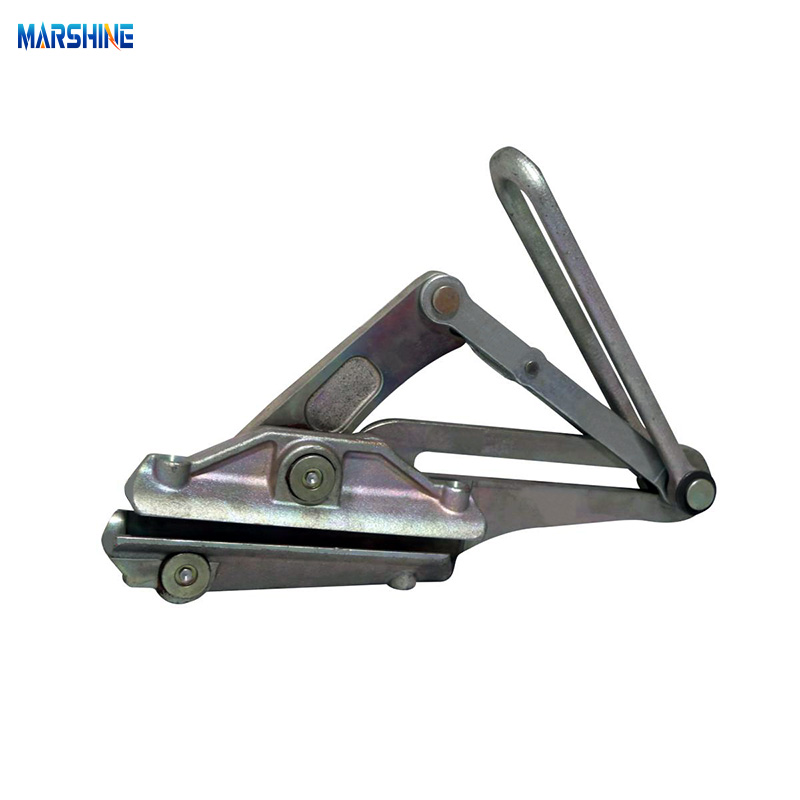

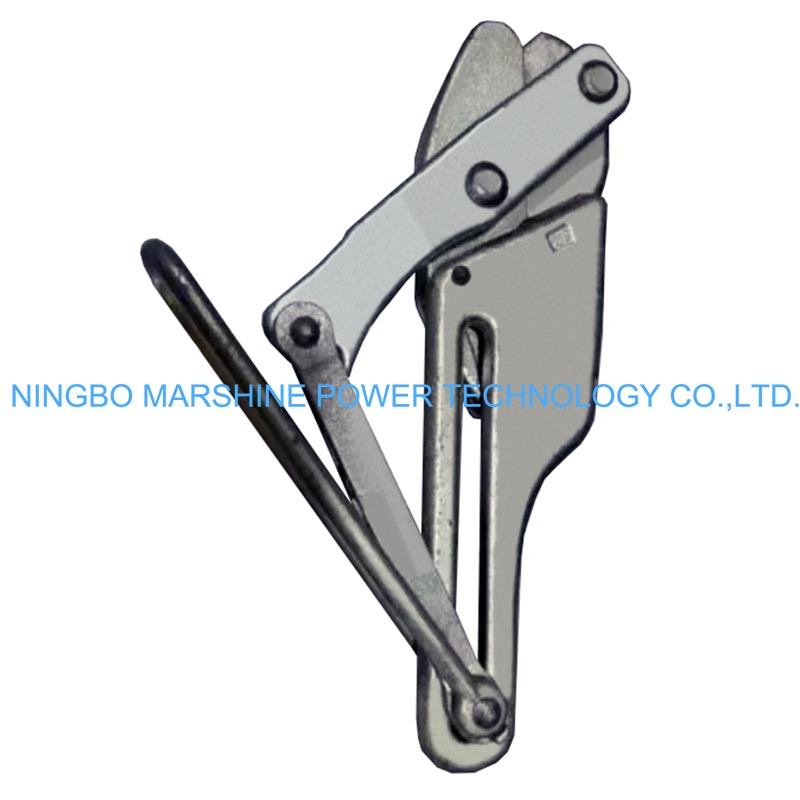

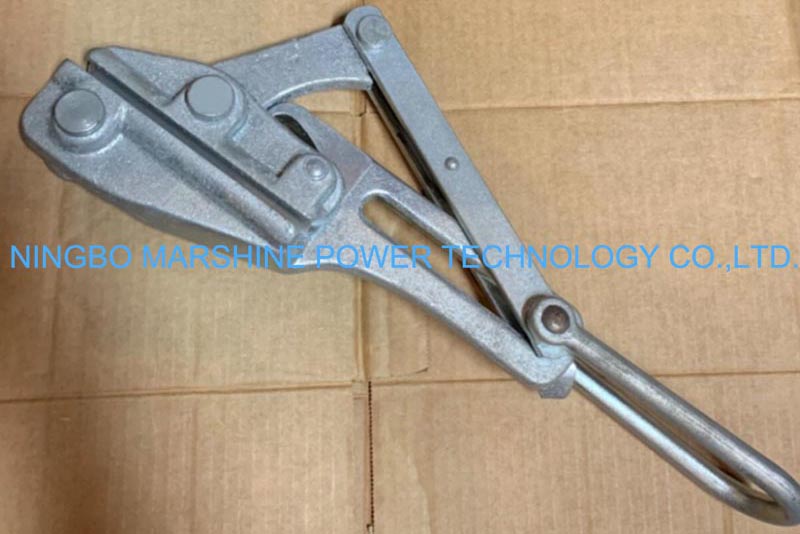

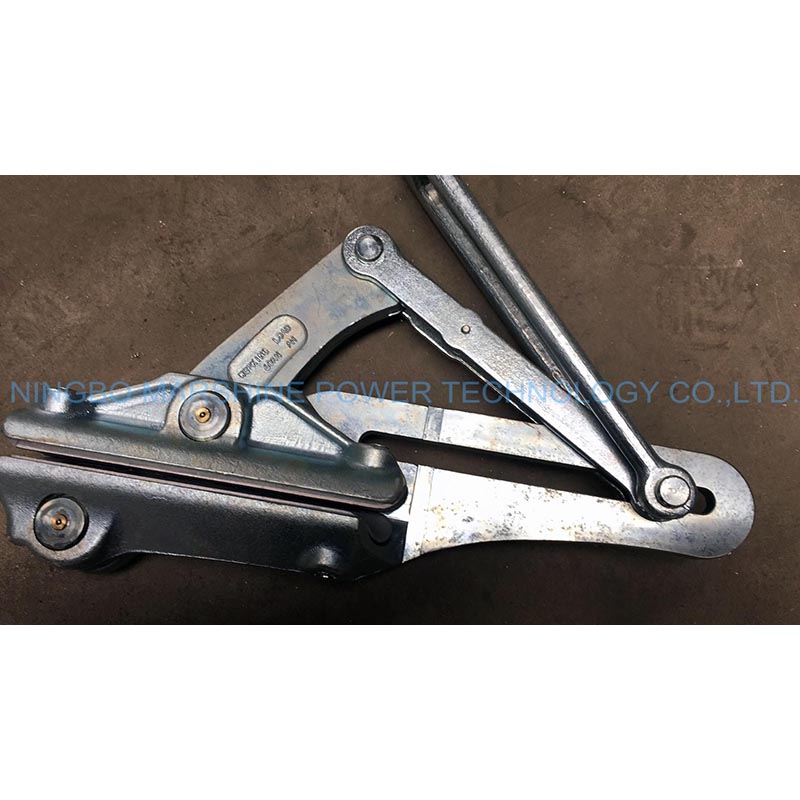

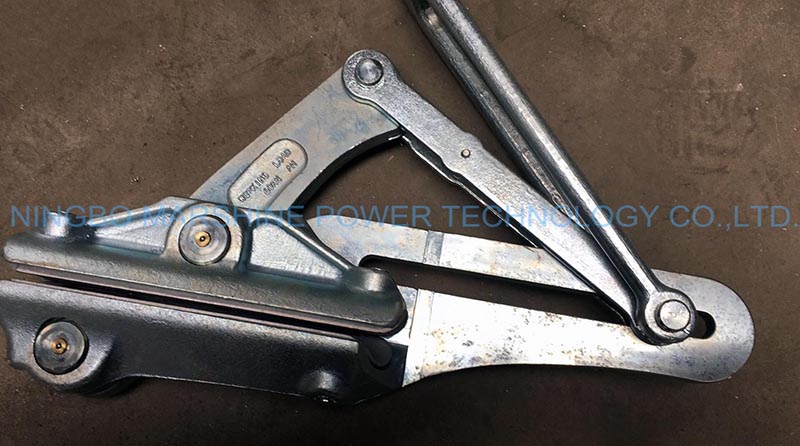

Forged Steel Frame SKG-60 Automatic Wire Gripper

Model:SKG-60

Our MARSHINE as a large scale cable installation tool supplier in China, owns 20 years ample experience to provide worldwide linemen and utility electricians with durable cable installation tools with competitive price. And this MARSHINE Forged Steel Frame SKG-60 Automatic Wire Gripper is one of our automatic clamp for wire cables, can handle wires maximum to 6 tons with automatic close function.Constructed from premium forged steel, the SKG-60 model combines exceptional mechanical strength with outstanding durability, making it suitable for demanding field conditions. With a rated load of 60 KN and a gripping range of 8 to 38 mm, the gripper accommodates a wide variety of cable diameters used in power transmission, distribution, and utility construction projects. As it was designed for professional line construction crews, the MARSHINE Forged Steel Frame SKG-60 Automatic Wire Gripper delivers dependable holding performance, quick installation, and enhanced operational safety during conductor tensioning and stringing applications. Product Parameter

Send Inquiry

Product Description

Constructed from premium forged steel, the SKG-60 model combines exceptional mechanical strength with outstanding durability, making it suitable for demanding field conditions. With a rated load of 60 KN and a gripping range of 8 to 38 mm, the gripper accommodates a wide variety of cable diameters used in power transmission, distribution, and utility construction projects. As it was designed for professional line construction crews, the MARSHINE Forged Steel Frame SKG-60 Automatic Wire Gripper delivers dependable holding performance, quick installation, and enhanced operational safety during conductor tensioning and stringing applications.

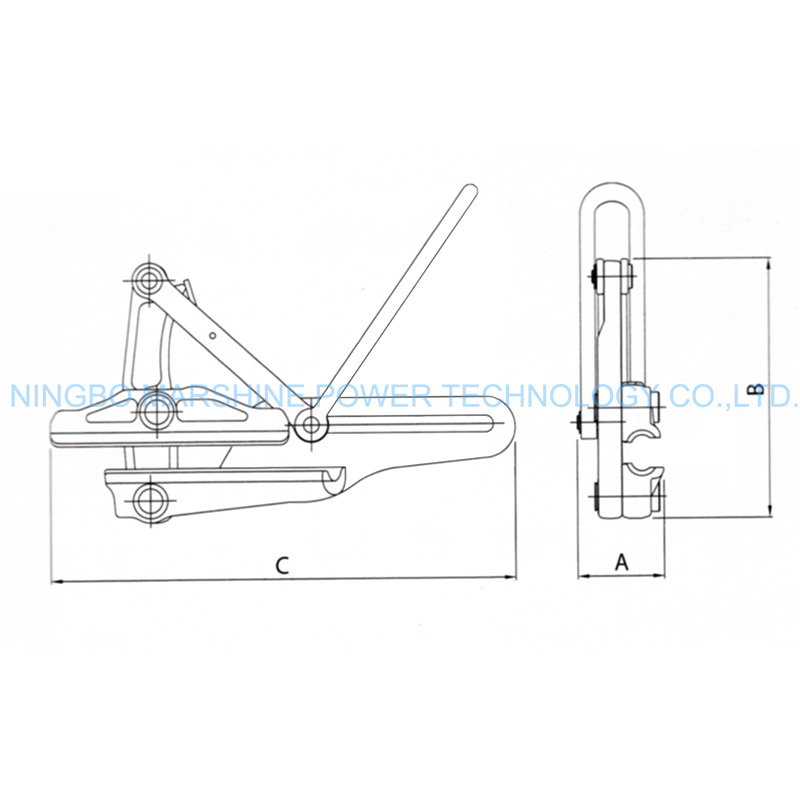

Product Parameter

Model	SKG-60
Rated Load	60 KN
Applicable Cable	8 to 38 mm
Maximum Gap	38 mm
Frame Material	Forged Steel
Weight	40 kg

Product Feature

High-Strength Forged Steel Frame

The gripper body is manufactured from premium forged steel, providing superior tensile strength, excellent impact resistance, and a long service life under heavy working loads.

Automatic Self-Locking Mechanism

The advanced gripping jaws automatically tighten as pulling force increases, ensuring a secure hold on the conductor while reducing the possibility of slippage during operation.

Heavy Duty Working Load

With a rated load capacity of 60 KN, the SKG-60 is designed to handle demanding cable pulling and conductor tensioning tasks in utility and infrastructure projects.

Wide Cable Compatibility

Suitable for conductors, steel wire ropes, and ground wires with diameters ranging from 8 mm to 38 mm, offering excellent versatility across various installation applications.

Large Jaw Opening

A maximum jaw gap of 38 mm enables fast cable loading and accommodates multiple conductor sizes without requiring additional adjustments.

Secure Cable Protection

The precision-machined gripping jaws of our MARSHINE Forged Steel Frame SKG-60 Automatic Wire Gripper can provide strong holding power while minimizing deformation, abrasion, and surface damage to the conductor during pulling operations.

Reliable Harsh Environments Performance

The rugged steel construction is designed to withstand continuous exposure to demanding outdoor conditions, making the gripper ideal for long-term field use.

Simple and Efficient Operation

The self-acting gripping mechanism allows operators to attach and release the tool quickly, reducing setup time and improving construction efficiency.
