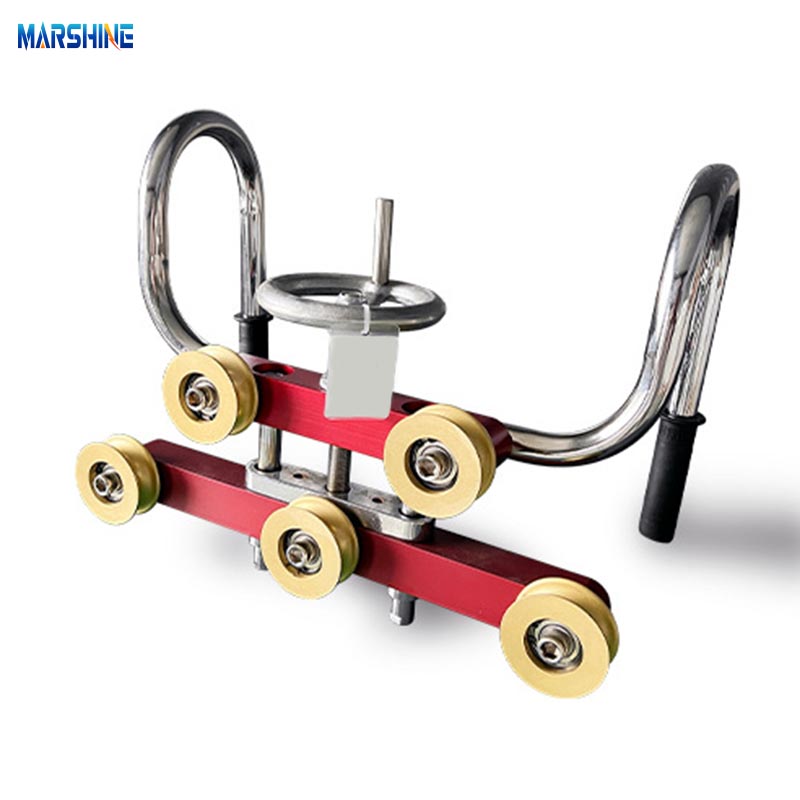

Crafted from the high-strength aluminum alloy as the frame, and equipped with the copper or stainless steel alloy roller to provide the durability, this MARSHINE Copper/Stainless Steel Alloy Five-Wheel Cable Straightener is a efficient tool with the better precision that can straighten and guide the electrical cables for the cable preparation. With its five-wheel design, this tool can ensures the excellent control of the cables and the even pressure distribution, so that to minimize the cable deformation while improving the installation efficiency.
Product Parameter
| Model | MAR-TWS-5 |
| Name | Five-Wheel Straightening and Bending Machine |
| Straightening Contact Sizes | 85, 110, 120, 150mm² |
| Maximum Straightening Angle | 40° |
| Handle Material | Rubber Protective Grip |
| Wheel Material | Steel/Copper, Chamfered Edges |
| Number of Wheels | 5 |
| Wheel Diameter | 69mm |
| Groove Width | 22mm |
| Wheel Spacing | 114mm |
| Axle Width | 72mm |
| Handle | 95mm |
| Overall Dimensions | ≤431*234*290mm |
| Weight | ≤6.8kg |
Product Feature
Five-wheel structure ensures the uniform straightening operation, suitable for the 85mm2 to 150mm2 conductors and cables in 40°angles.
High-strength aluminum alloy body is able to provide the outstanding strength and the rust resistance.

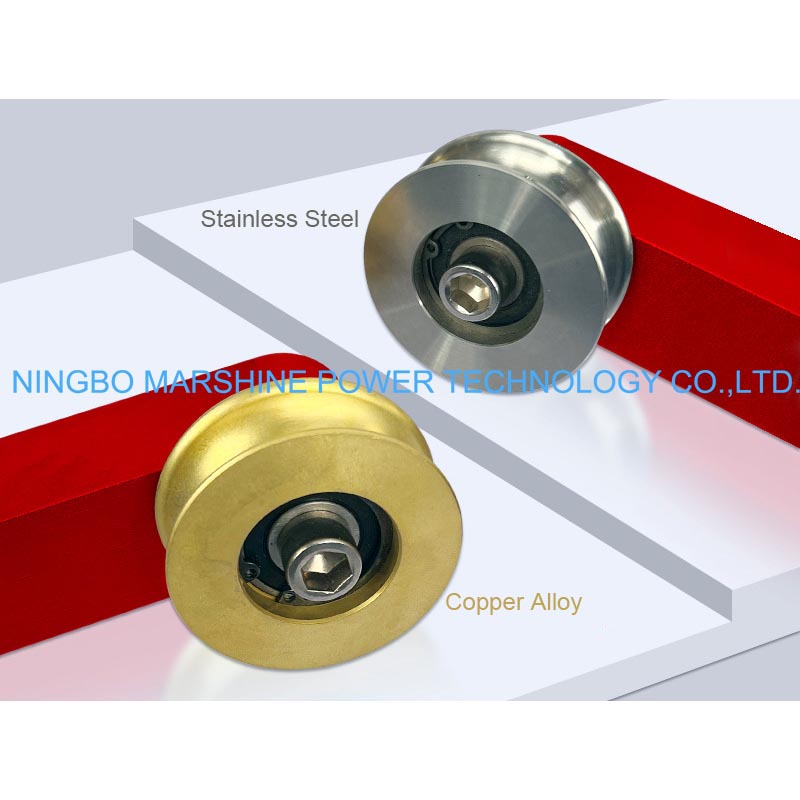

Optional copper or stainless steel alloy roller can offer the double times longer service life.
Well treated roller can reduce the friction while provide the added safety for workers.
Compact design and the light 6.8kg weight allows for the easy transport and efficient on-site use.
Product Application

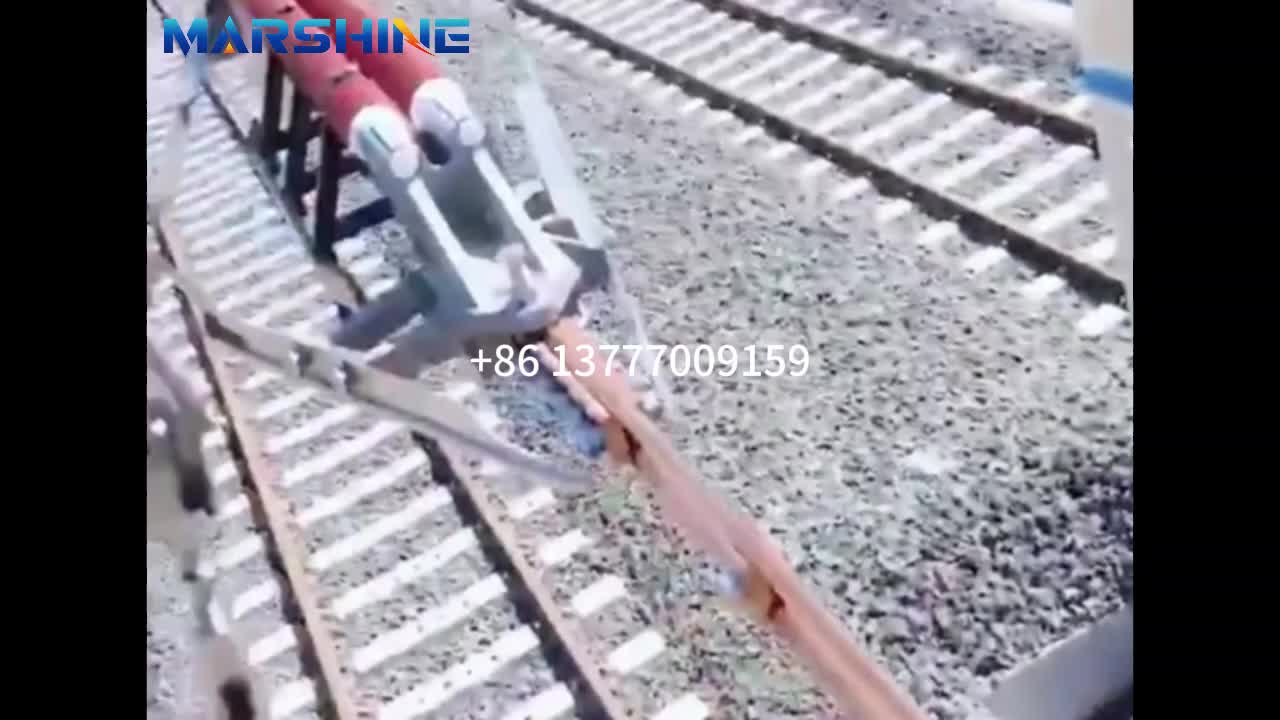

Our MARSHINE Copper/Stainless Steel Alloy Five-Wheel Cable Straightener is ideal for straightening the cables and the conductors before the installation in the power line constructions, or to be used to help the workers to manage and align the fiber optic and communication cables for the telecoms projects, and can be used in the workshops for correcting the cable bends or kinks during the electrical maintenance works as well. Further more, this tool is also suitable for the production lines that requires for the precise cable alignment.
Product Details

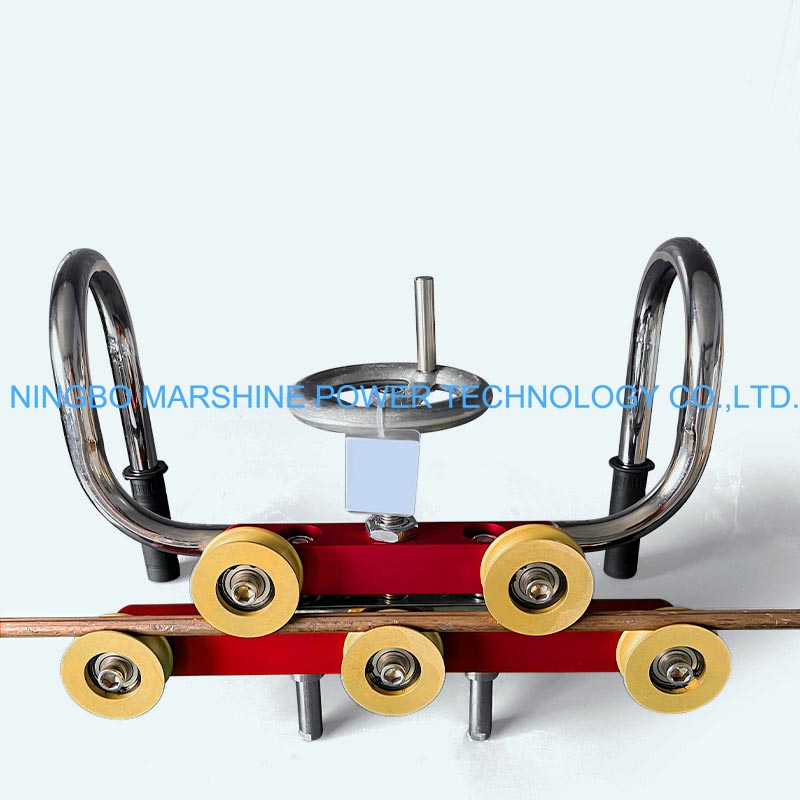

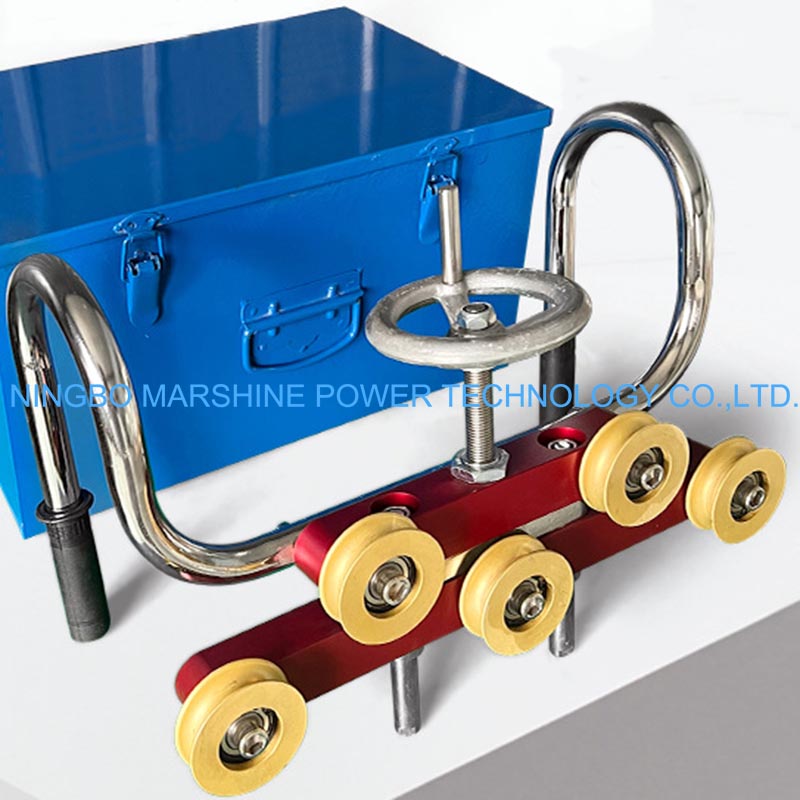

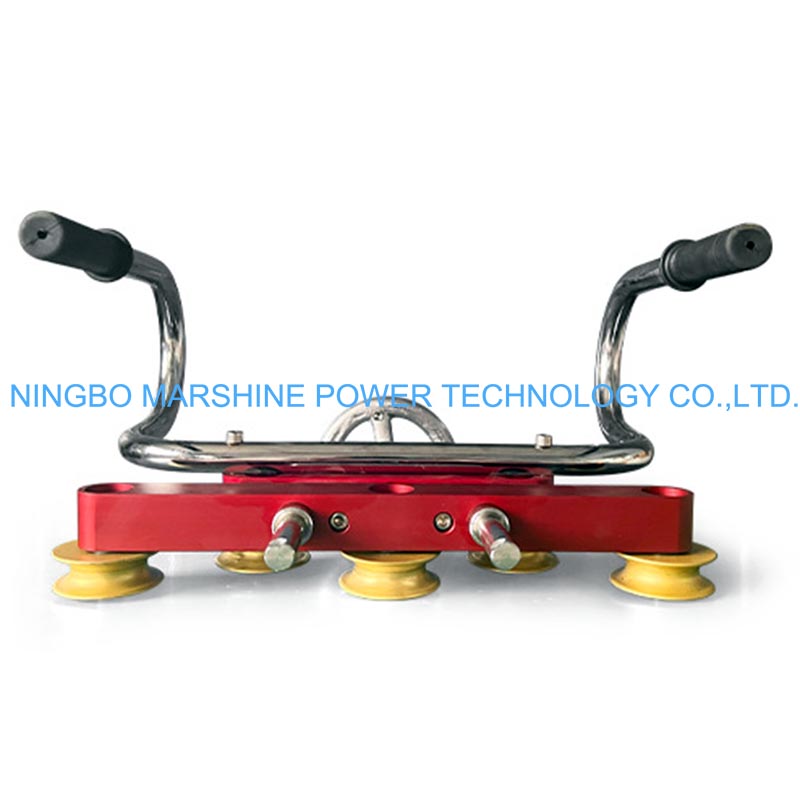

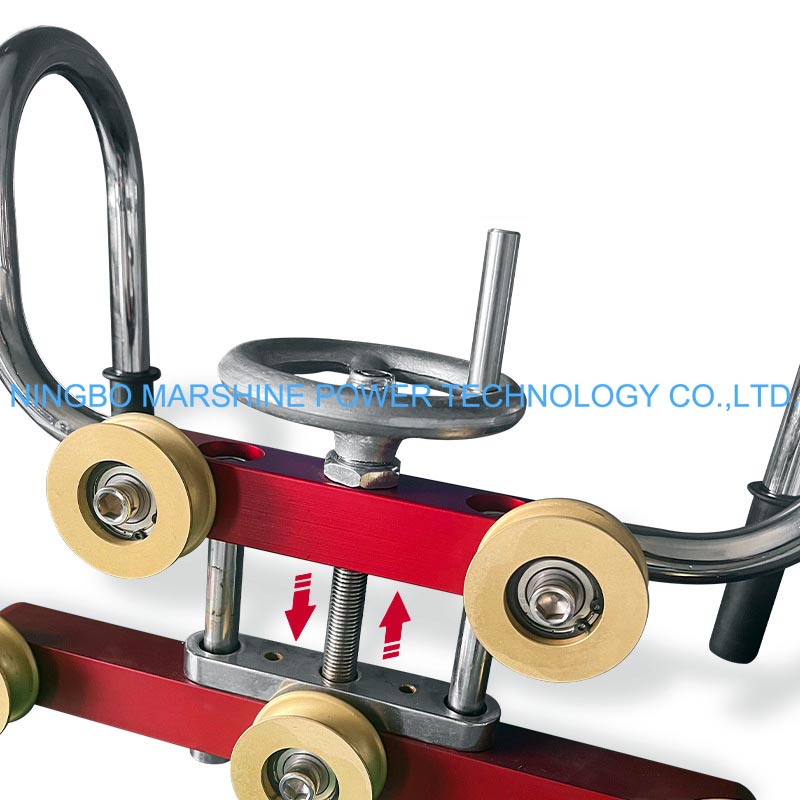

With its advanced alloy structure and the five-wheel design, this MARSHINE Copper/Stainless Steel Alloy Five-Wheel Cable Straightener can guarantee the smooth cable handling and the long-lasting performance.
Place Of Origin:Ningbo,China.
Warranty:1year.
Certification:ISO9001.
Lead Time:5-7days.
Payment Term:T/T.
Condition:New.
Brand:MARSHINE.
