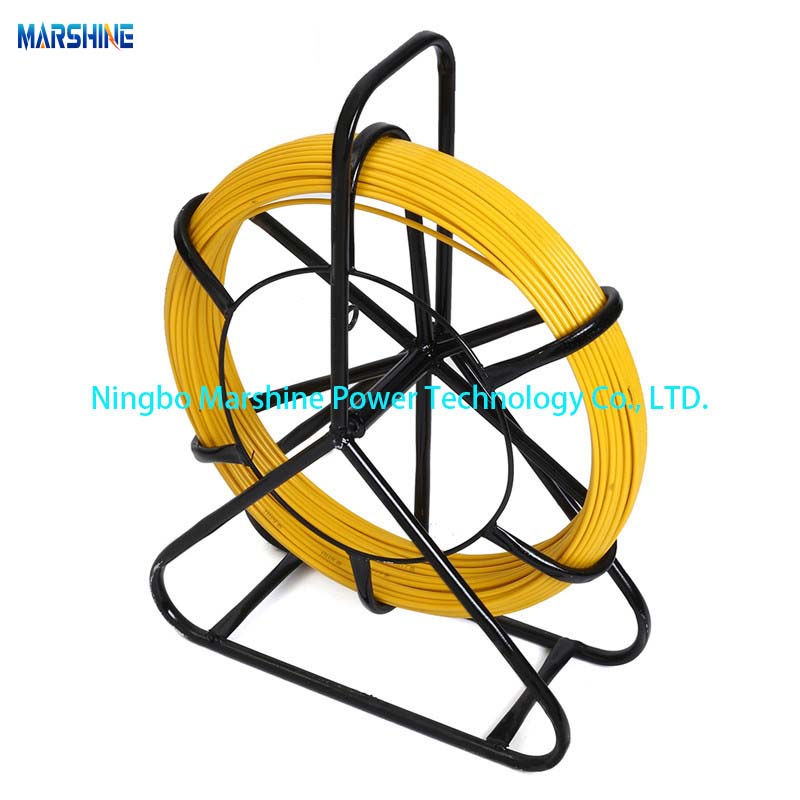

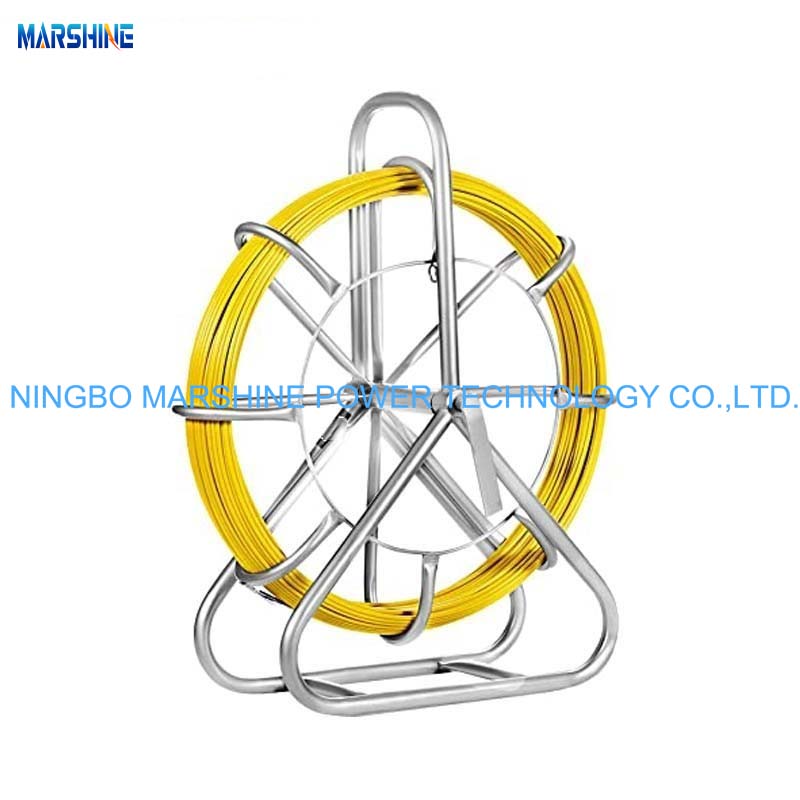

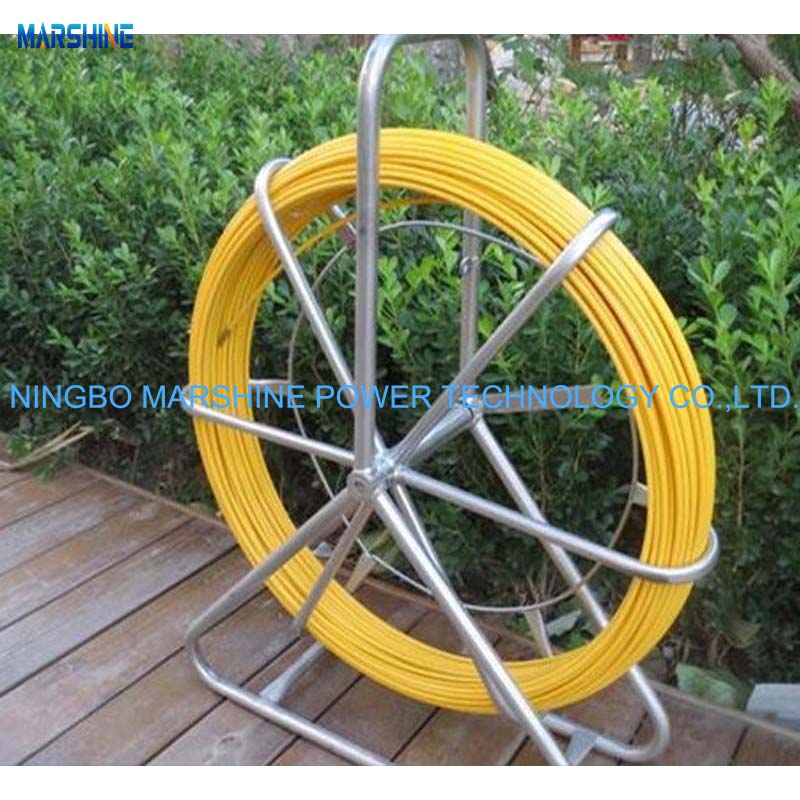

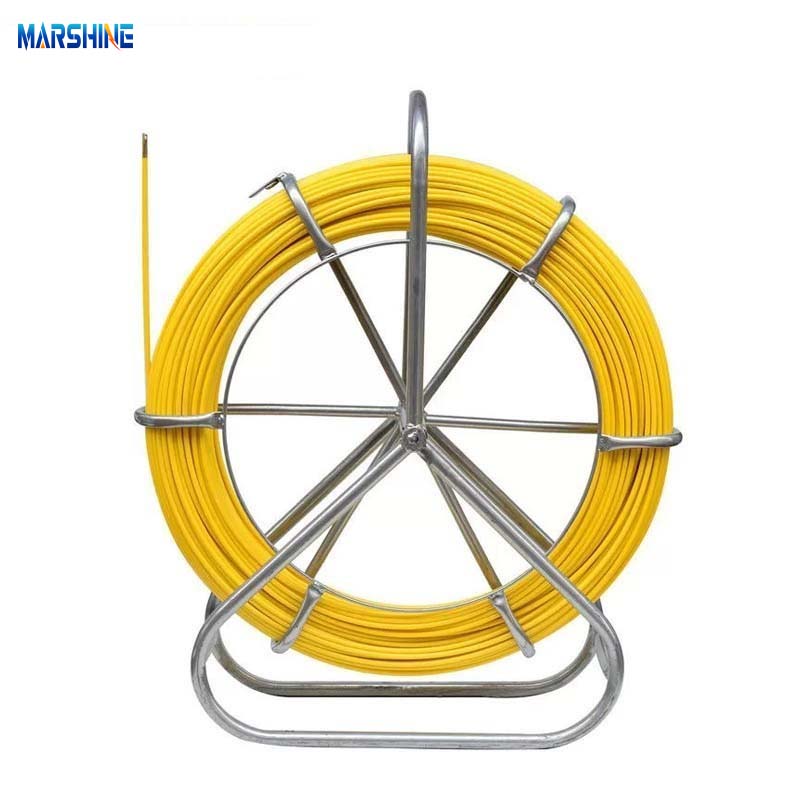

The MARSHINE Cable Electric Reel Fiberglass Rodder Puller redefines efficiency in cable installation and maintenance. Combining the high-strength fiberglass construction with the electric reel compatibility, this tool can ensures the seamless cable pulling operations through the conduits, ducts, and the underground pathways, so that to improve the construction efficiency.
Product Parameter
| Specification | Rod diameter (mm) | φ4*50 φ5*50 φ5*100 φ6*50 φ6*100 φ8*50 φ8*100 φ8*150 φ9*100 φ10*100 φ11*100 φ12*100 |
| Rod length (m) | 30m~500m | |
| Frame Spec.(mm) | 1300mm x 450mm x 1330mm | |
| 1200mm x 420mm x 1220mm | ||
| 980mm x 350mm x 1000mm | ||
| 680mm x 240mm x 700mm | ||
| 4200mm x 1800mm x 400mm | ||
| Materials | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
| Fiber glass rod outer | High density polyethylene coating | |
| Metal frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
| Physical properties | Fiber glass content | 75-80% |
| Density | >1.9gr/cm3 | |
| Working environment | -40℃ to +80℃ | |
| Minimum pulling strength | 4000N +/-5% | |
| Consistency of rod | 137gr/m | |
| Flexural modulus | >46.500Mpa | |
| Elongation at break | 2.5-3% | |
| Min bending radius | 388mm |
Product Feature
Lightweight yet durable, this MARSHINE Cable Electric Reel Fiberglass Rodder Puller features the non-conductive fiberglass core with the 1000V insulation rating, is able to ensures the safety of the operators in the live electrical environments. It is compatible with the electric winch machines for the automated cable pulling, and is able to reduce the manual effort and accelerate the project timelines by up to 50%. Its flexible tapered tips and the smooth-glide finish can effectively reduce the friction of cables, and the lightweight frame can ensures the easy handling.
Product Application
The MARSHINE Cable Electric Reel Fiberglass Rodder Puller can be used to pull the fiber-optic lines through the ducts and manholes, or for installing the high-voltage cables in the substations and the underground conduits, and can be applied to deploy the cables in the factories and the utility facilities. In addition, it is also suitable for the solar farms and the wind turbine arrays cable installation tasks.

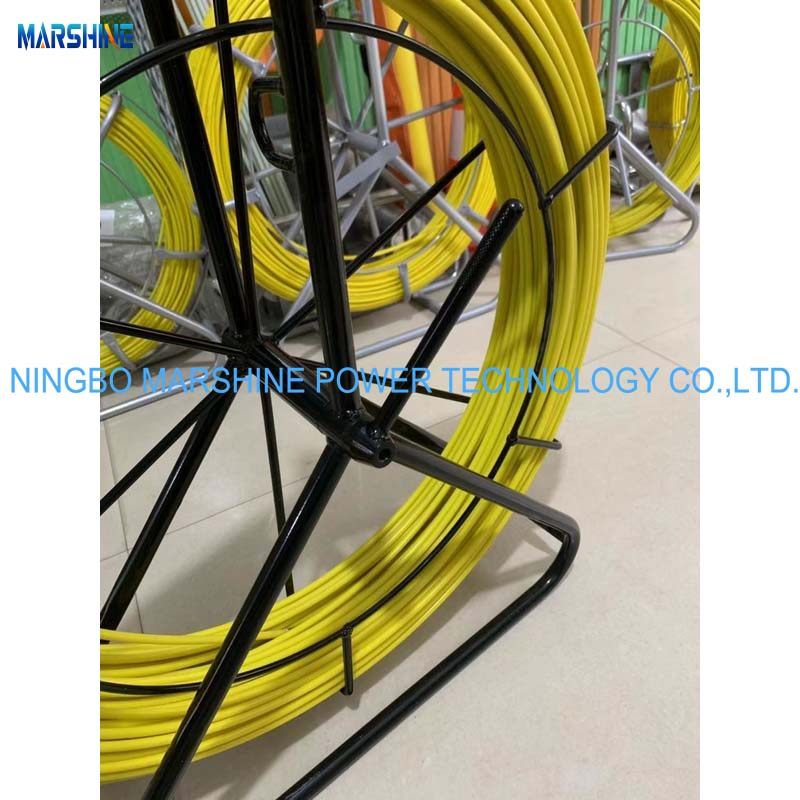

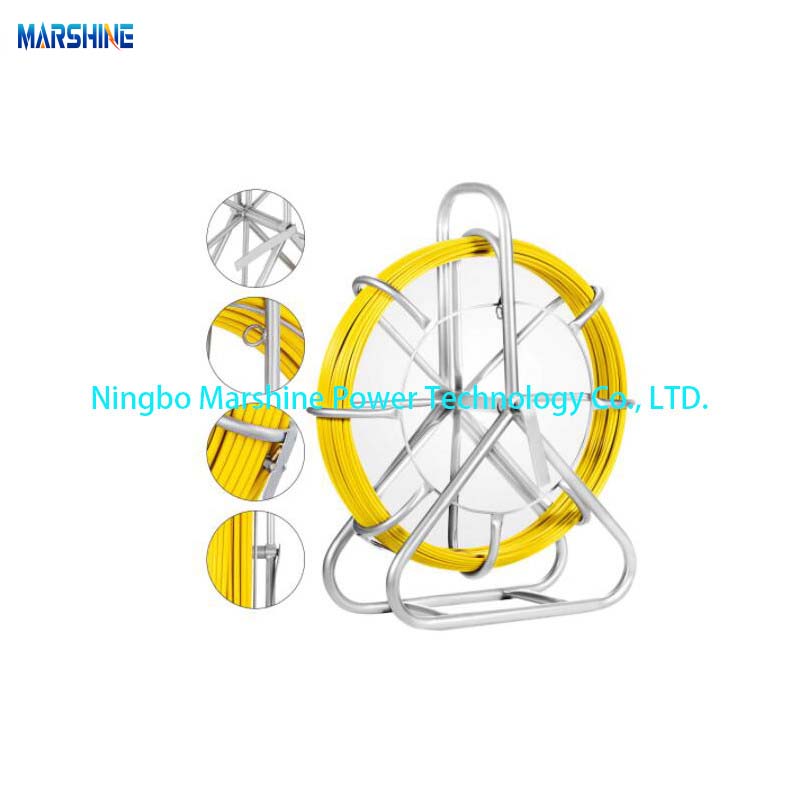

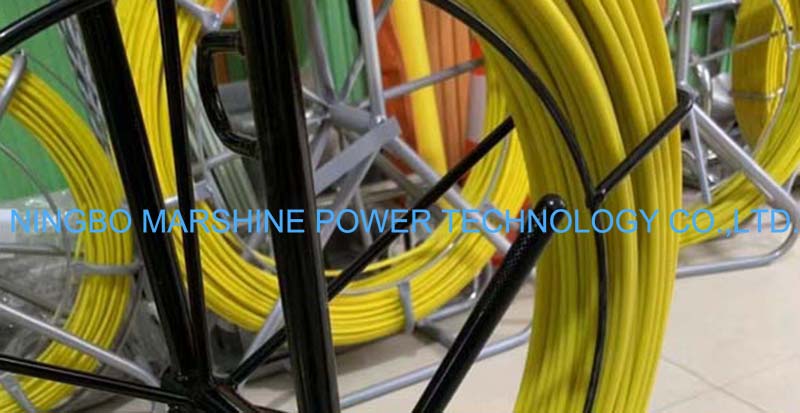

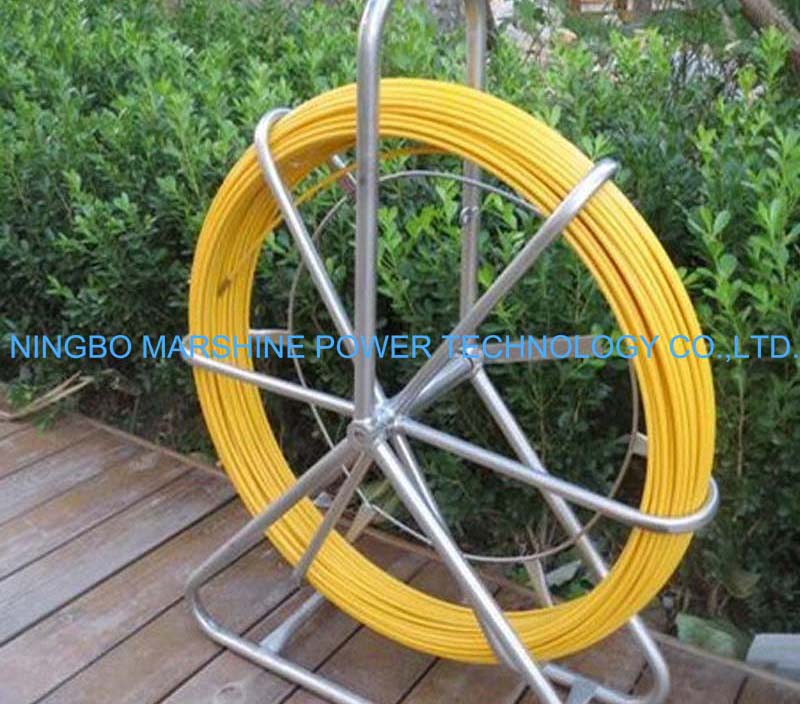

Product Details
As a outstanding efficient tool for underground cable installation tasks, the MARSHINE Cable Electric Reel Fiberglass Rodder Puller can be a good choice for the utility electricians and the linemen.
Place Of Origin: Zhejiang,China.
Material: Fiber Glass.
Feature: Durable, Fire/Flame Retardant.
Warranty: 1year.
Application Temperature: -30~80ºC.
Certification: CE, CCC, ISO.
Transport Package: Carton Or Wooden Case.
Payment Terms: T/T, L/C,Paypal.
