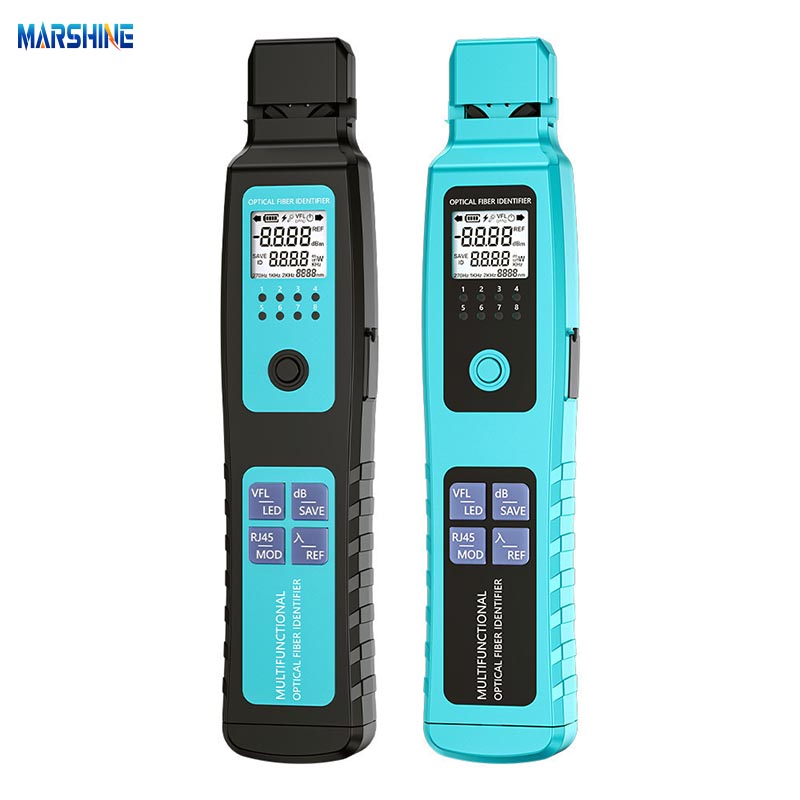

The MARSHINE 30mW Red Light Source Integrated Live Signal Identifier is a multi-function instrument for fiber optic engineer to help locate, test, and troubleshoot live optical-fiber cables. With powerful combination of bright red light source and Live Signal Identification, this All in One product allows you to trace fiber route to identify signal availability and detect breaks/faults in field with its during installation and maintenance. Small size and easy operation, a good choice for professional in telecom, data network, and optical infrastructure field.
| Model | MAR-A-40A | MAR-A-40D |
| Power Version | Battery version | Rechargeable version |
| Battery Type | 2 x AA batteries (1.5V) | 800mAh polymer battery (3.7V) |
| Wavelength Range | 800-1700nm | |
| Modulation Type | CW, 270Hz±5%, 1000Hz±5%, 2000Hz±5% | |
| Detector Type | Φ1mm, InGaAs 2 PCS | |

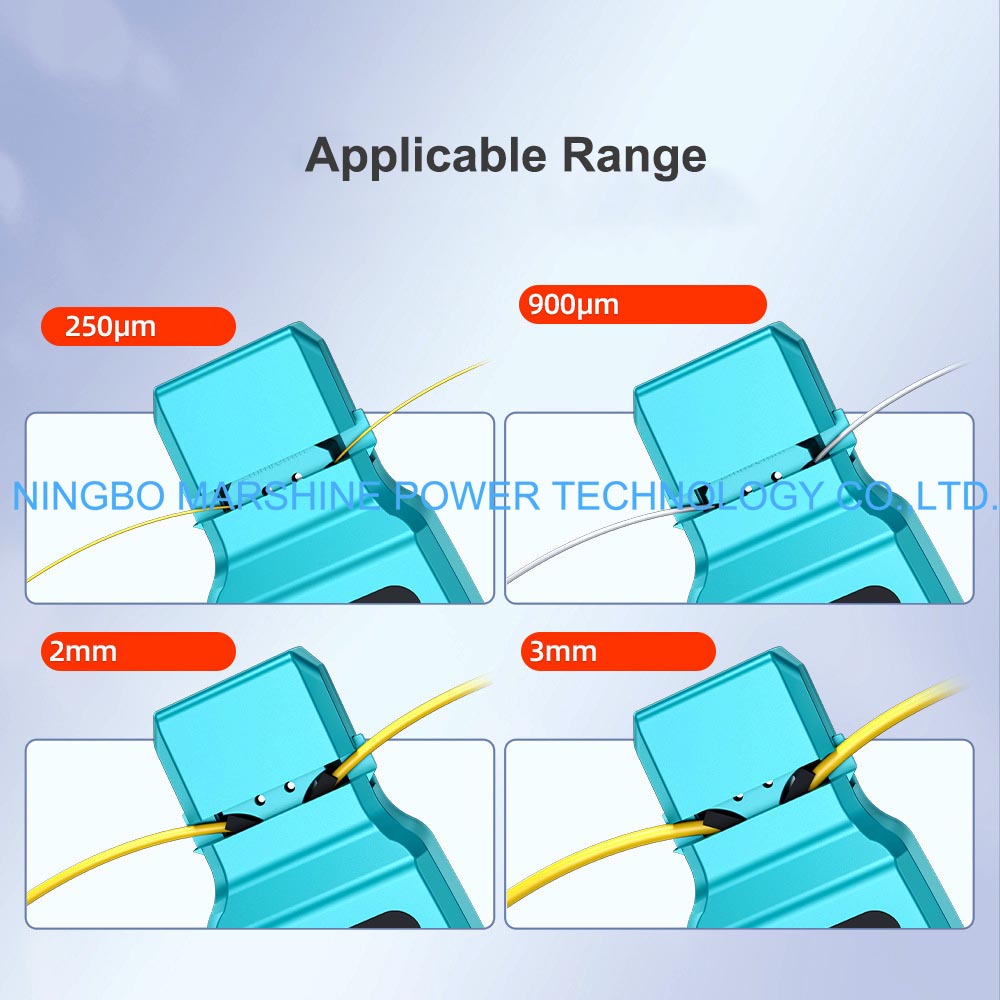

| Compatible Fiber Types | Universal Φ0.25 (bare fiber), Φ0.9, Φ2.0, Φ3.0 fiber patch cords | |
| Signal Direction | Indicated by left/right arrows on the display screen | |
| Optical Power Reading Range | -40dBm to +10dBm | |
| Optical Power Measurement Range | -70dBm to +10dBm (+0.2dB) | |
| Optical Power Measurement Wavelength | 850nm-1650nm | |
| Signal Frequency Range | 270Hz, 1000Hz, 2000Hz | |
| Red Light Test Wavelength | 650nm | |
| Red Light Output Power | 230mW | |
| Operating Temperature (℃) | -10 to +60℃ | |

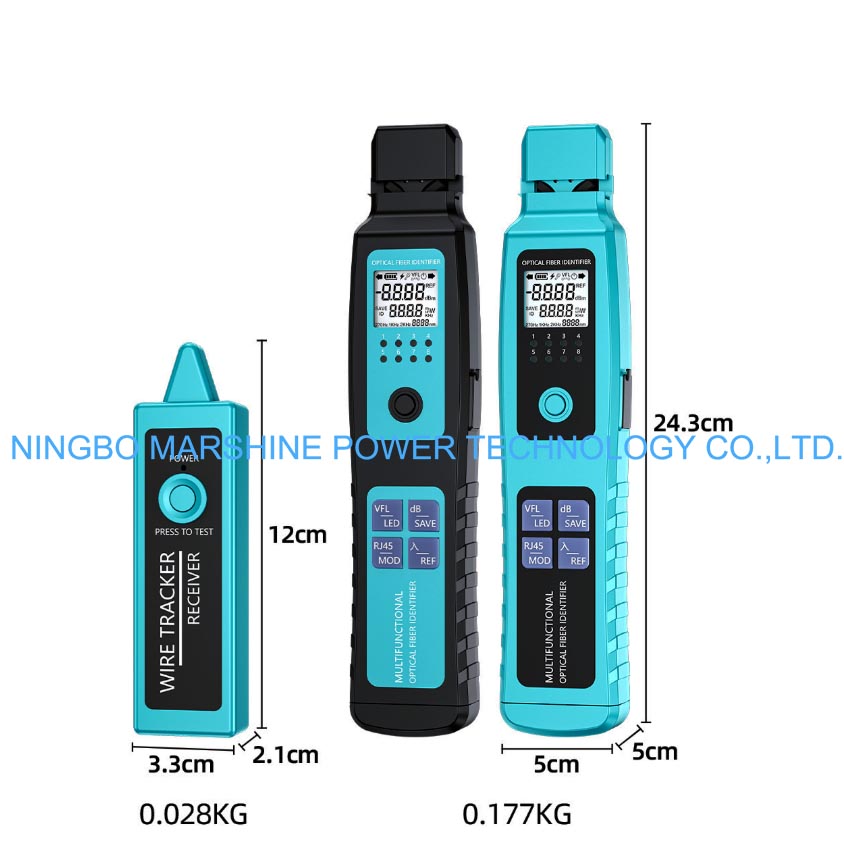

| Dimensions (MM) | 243*50*50mm | |
| Weight (G) | 177g | |

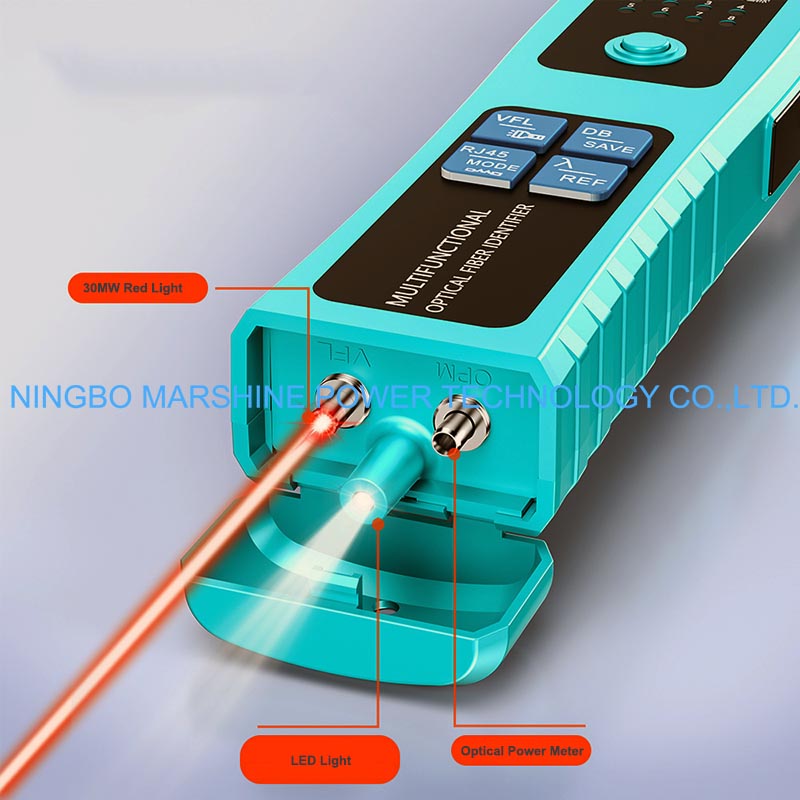

A Strong Red Light Source (30mW)
We provide a powerful 650nm red laser to ensure you can see your fiber runs and find breaks, bad connections, kinks, or cracks in your thinks longer distances with this light source for tracing. can often be seen at long distances.
Integrated Live Signal Identifier
This MARSHINE 30mW Red Light Source Integrated Live Signal Identifier can be used to detects live optical signals without the need to disconnect the cables enabling technicians to verify the presence of a signal prior to working on the live networks.
Portable yet Compact
Enjoy the new pen-style or handheld design that let’s you take your tool wherever your work takes you, Whether you are in the field service, on-site troubleshooting or under restricted working space.
Universal Connector Adaptability
This connector adapter can work with many common fiber connector types (SC, FC, ST) as standard adapter for various usage.
Dual-mode operation
Light source has continuous and pulsed modes for finding fiber faults in differing environments.
Rugged Design
Engineered from robust materials, they stand up to the abuse of field testing and still feel good in your hand.
Our MARSHINE 30mW Red Light Source Integrated Live Signal Identifier is well known and widely used in the following fields:
Monitor fiber runs and check for continuity in the field during FTTH, metro or enterprise network installation.
Finding live optical signals, faults and breakpoints on the line without disassembling the line.
Speedy renovation: easy to identify active fibers for moves, adds, and changes.
Identify cable issues rapidly, such as breaks, kinks or bad splices, shortening system down times.
Confirming end to end signal at presence or end to end signal absence prior to deployment sign off.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:50pcs.
