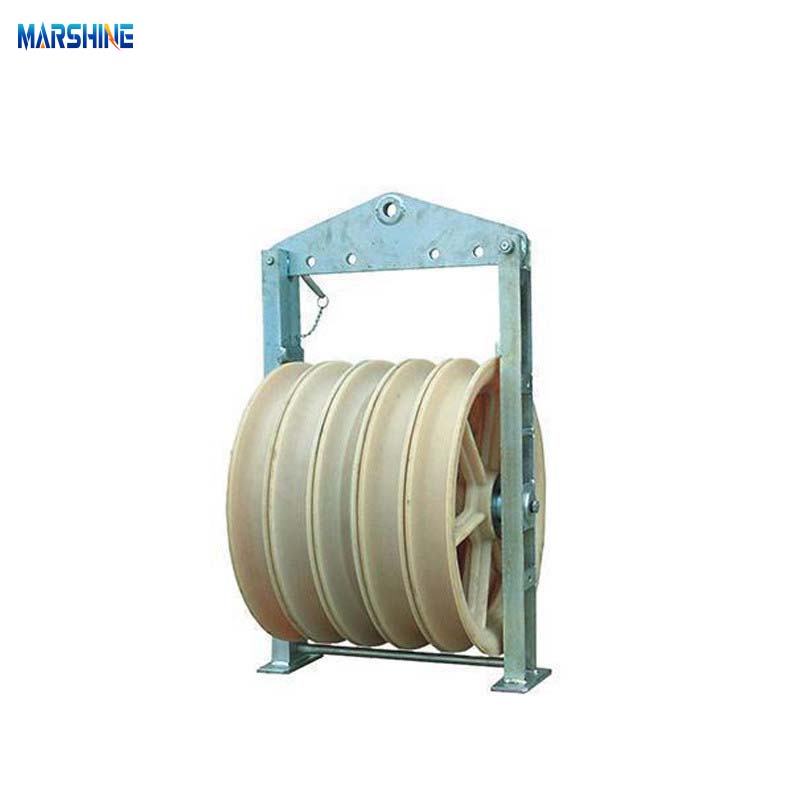

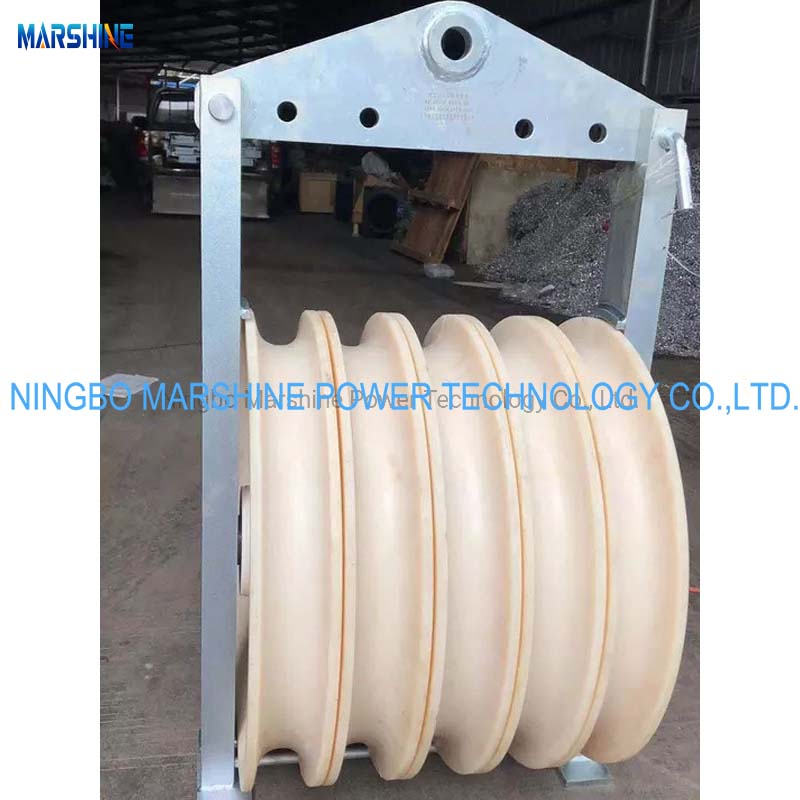

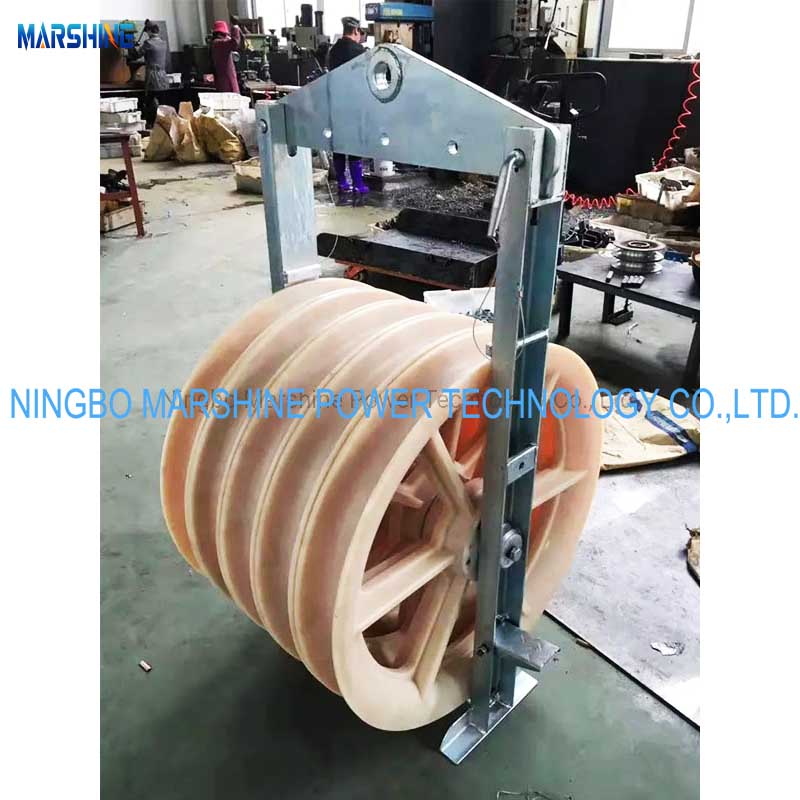

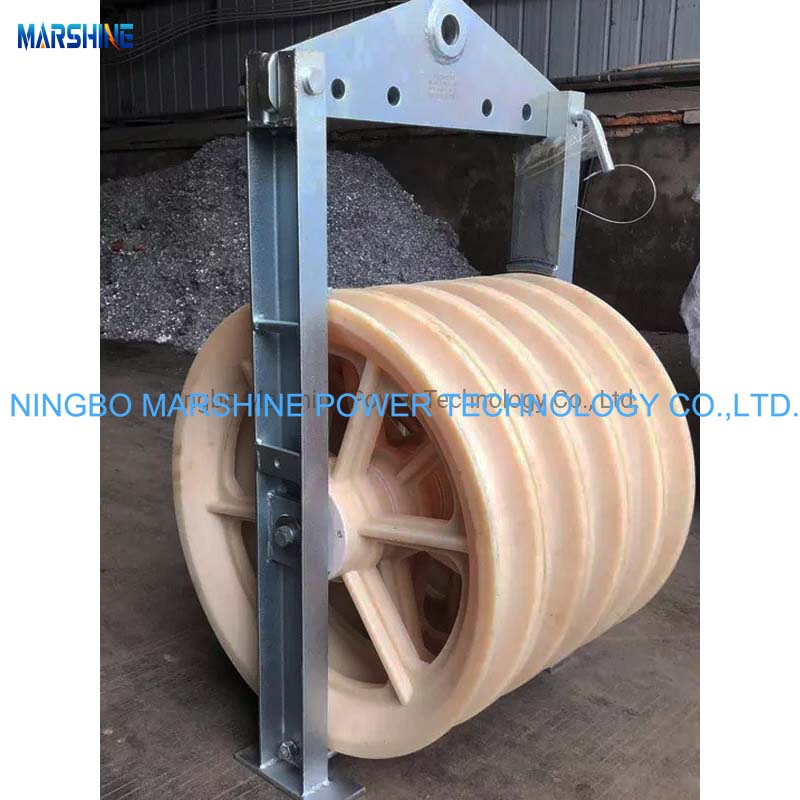

This MARSHINE Φ1040 Large Diameter Universal Stringing Block is designed for the smooth deployment of the heavy-duty cables, including the high voltage transmission lines, the submarine cables and the fiber optic networks. Its oversized 1040 mm pulley design is able to significantly reduce the friction and the bending stress on the cables, can ensures the optimal performance and its long-lasting service life. As a durable tool that ideal for the large-scale projects such as the transcontinental power grids, offshore wind farms and smart city telecommunications networks, this block can withstand the maximum 200KN loads while owns ability to maintain the precision and the safety.
Product Parameter
| Item number | Model | Sheave number | Rated load(KN) | Weight(kg) | Feature |
| 10165 | SHDN1040 | 1 | 50 | 62 | MC nylon sheave |
| 10166 | SHSQN1040 | 3 | 100 | 200 | Middle:MC nylon sheaveConductor: rubber lined MC nylon sheave |
| 10167 | SHWQN1040 | 5 | 200 | 330 |
Product Feature
The 1040 mm pulley design can minimize the cable bending radius and the surface friction, make our MARSHIN Φ1040 Large Diameter Universal Stringing Block critical for preserving the integrity of the high-tension or sensitive cables. With the anti-scratch proprietary polymer lining can protect the cables from the abrasion well under the harsh construction conditions. Combines the high-strength alloy steel, oil-paint plating, and the reinforced bearings, this block can offers the user with the outstanding durability, ensures its long service life. It supports up to 5-20 ton of tension, make it suitable for the high-voltage power line constructions.
Product Application
This MARSHINE Φ1040 Large Diameter Universal Stringing Block can be used to handle the high-voltage lines spanning thousands of kilometers, is able to ensures the minimal energy loss during the installation. It is also suitable for deploying the submarine power cables across the ocean floors, or installing the fiber-optic backbones for 5G networks in the dense urban environments, and stringing the route industrial-grade cables in the hard environments. In addition, it is also able to rapidly restore the power in earthquake or hurricane zones by using drone-assisted the installations.
Product Details
MARSHINE Φ1040 Large Diameter Universal Stringing Block is a high-efficiency stringing block for the aerial linemen and other high-altitude electric power construction teams.
Original Country:China.
Leading Time:12-14days.
Certifications:CE,ISO9001.
Warranty:1year.
