Vertical Adjustable Stand Pipe Roller Assembly

Model:HA-01

MARSHINE is a China-based company specializing in the manufacturing and trading of tools for underground power line installation. For twenty years, we have been dedicated to providing electricians and power line construction crews worldwide with reliable, durable tools for underground power line installation at highly competitive prices. The MARSHINE Vertical Adjustable Stand Pipe Roller Assembly is one of our high-efficiency pipe roller stand products specifically designed for underground conduit installation.

Send Inquiry

Product Description

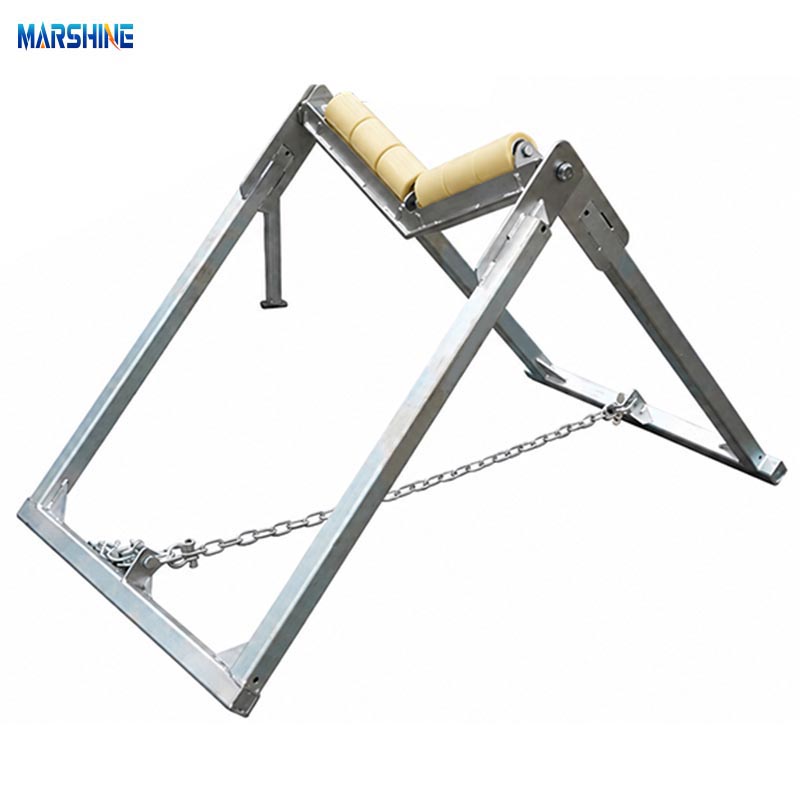

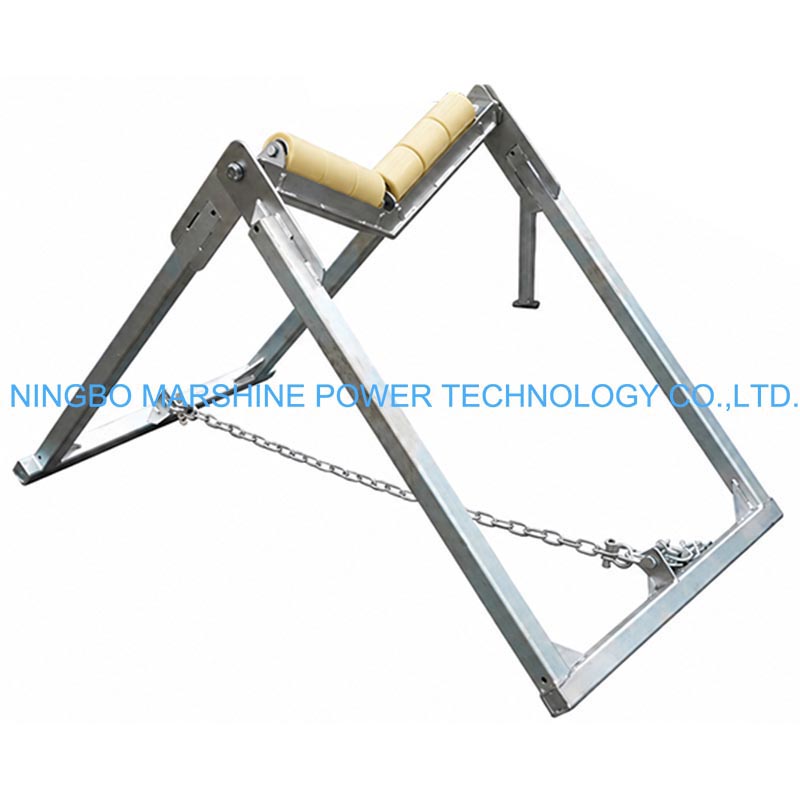

The MARSHINE HA-01 Vertical Adjustable Stand Pipe Roller Assembly is constructed from high-strength galvanized steel, offering exceptional durability and corrosion resistance for both indoor workshops and outdoor construction sites. It features an adjustable roller assembly that accommodates pipe diameters ranging from 50 mm to 1000 mm, with a working height adjustable between 200 mm and 1000 mm to meet diverse application needs. Additionally, the stand folds flat for easy transport and storage, making it an ideal choice for mobile construction teams and pipeline installation projects.

Product Parameter

Model	HA-01
Load Capacity	10 KN
Pipe Diameter Range	50-1000 mm
Vertical Adjust Range	200-1000 mm
Roller Diameter	Φ 68 mm roller
Roller Material	MC Nylon / Zinc Plated Steel/Aluminum (Optional)
Frame Material	Zinc Plated Steel
Folded Size	1415 * 1050 * 59 mm

Product Feature

Wide Height Adjustment Range

The vertical support system offers a working height adjustment range of 200 mm to 1000 mm, allowing operators to position the pipe at the optimal height for installation, welding, fusion, or inspection tasks.

Broad Pipe Diameter Compatibility

Designed to accommodate pipe diameters ranging from 50 mm to 1000 mm, this roller assembly is suitable for working with pipes made of HDPE, PE, PVC, steel, stainless steel, ductile iron, and other materials.

High Load-Bearing Capacity

The MARSHINE HA-01 vertically adjustable pipe support roller assembly features a rated load capacity of 10 kN, providing stable support during the handling and installation of medium-to-large pipe sections.

Multiple Roller Material Options

To suit various operating environments, the assembly offers a choice of roller materials:

MC Nylon Rollers: Lightweight with a low coefficient of friction; ideal for protecting the surface of finished pipes.

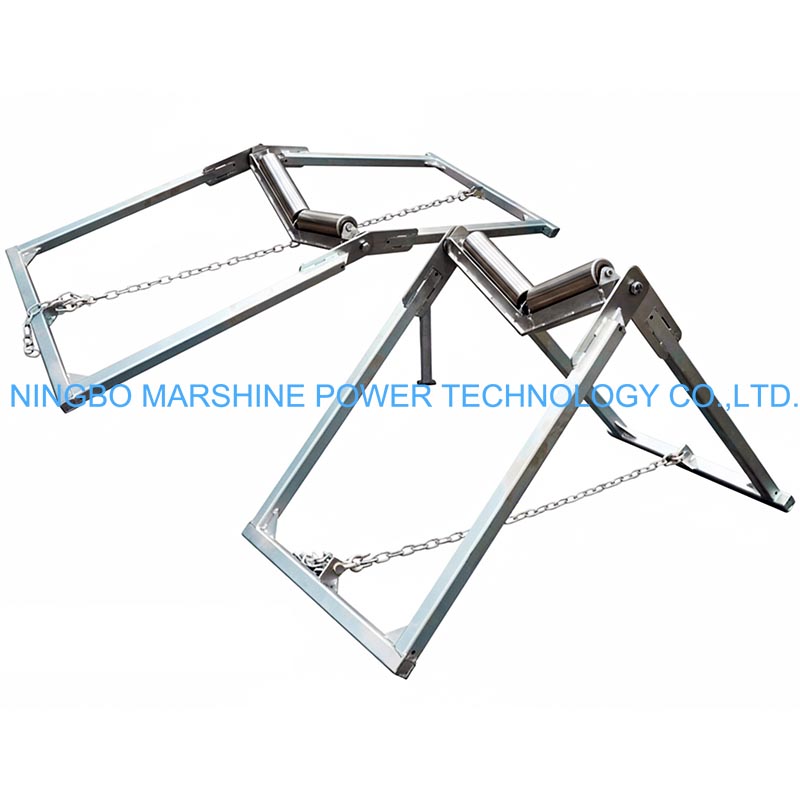

Galvanized Steel Rollers: Suitable for heavy-duty applications requiring superior wear resistance.

Aluminum Alloy Rollers: Combine corrosion resistance with the advantage of being lightweight.

Rugged Galvanized Steel Frame

The reinforced steel frame features a high-quality galvanized finish, offering excellent resistance to corrosion, moisture, and harsh outdoor conditions, ensuring a long service life.

Smooth Pipe Rotation

Equipped with precision Φ68 mm rollers, the assembly allows the pipe to rotate freely during welding, alignment, inspection, and installation, thereby minimizing friction and enhancing work efficiency.

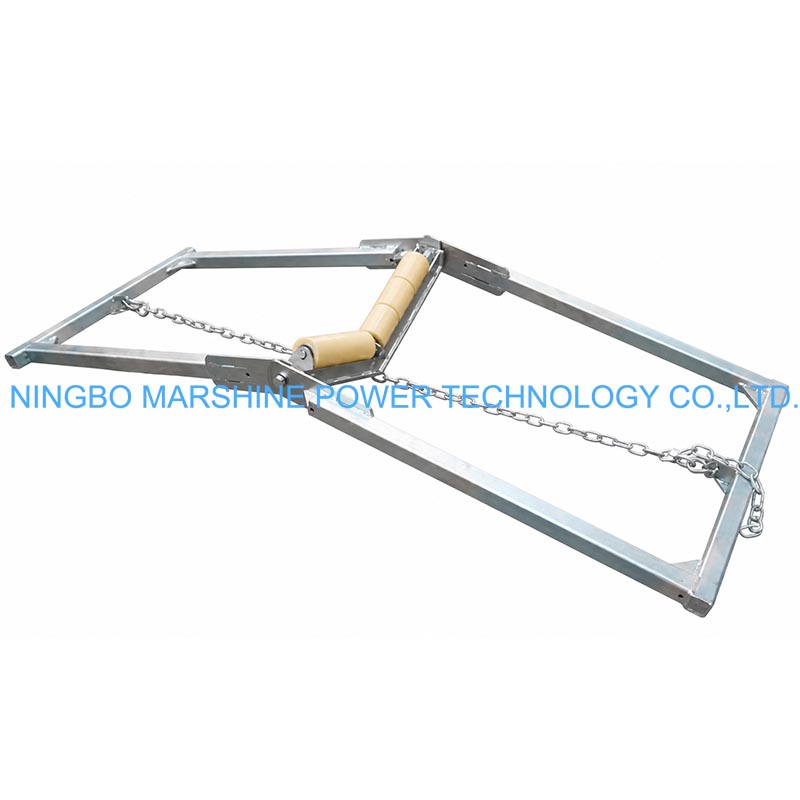

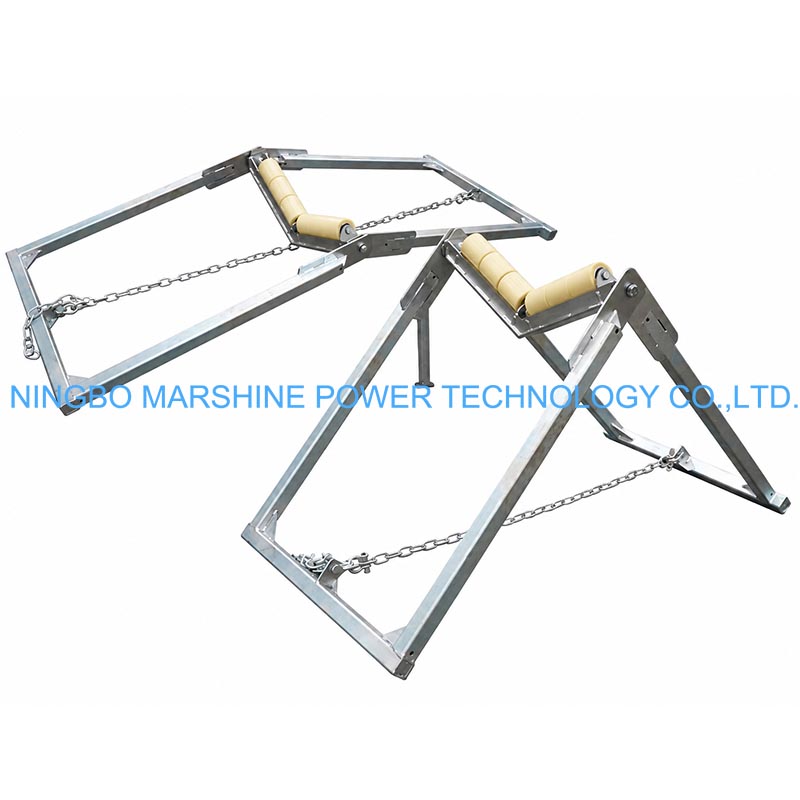

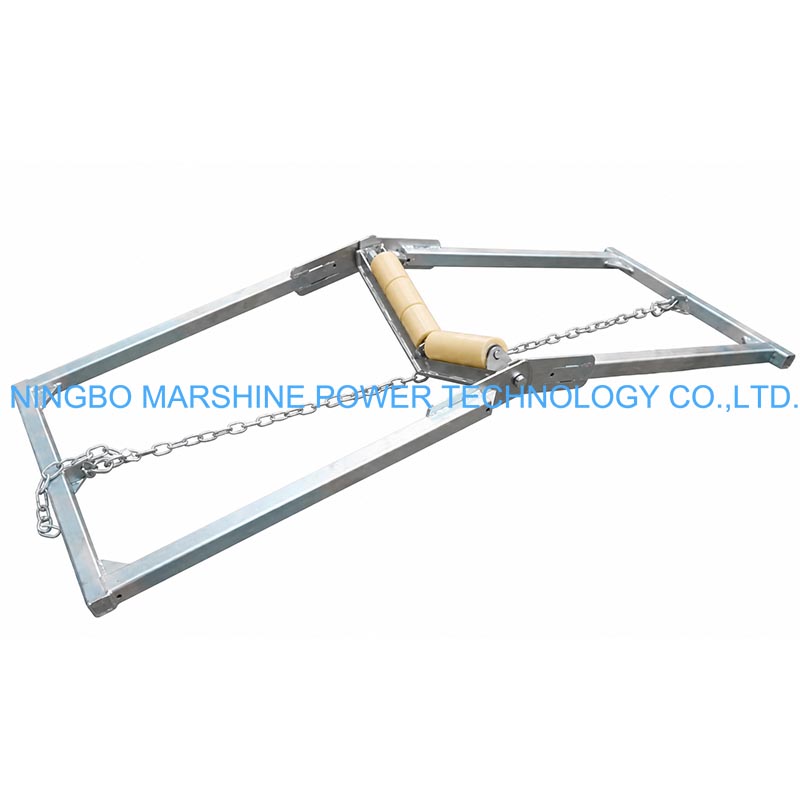

Collapsible Design

The entire assembly can be folded down to a compact size of 1415 × 1050 × 59 mm, facilitating easy transport, storage, and deployment during on-site operations.

Product Application

The MARSHINE vertically adjustable roller stand features adjustable height and compatibility with various pipe diameters, making it ideal for providing support during processes such as pipe alignment, welding, joining, anti-corrosion treatment, inspection, and transport. When multiple stands are arranged along the pipeline installation route, they also serve as an efficient conveying support system.
