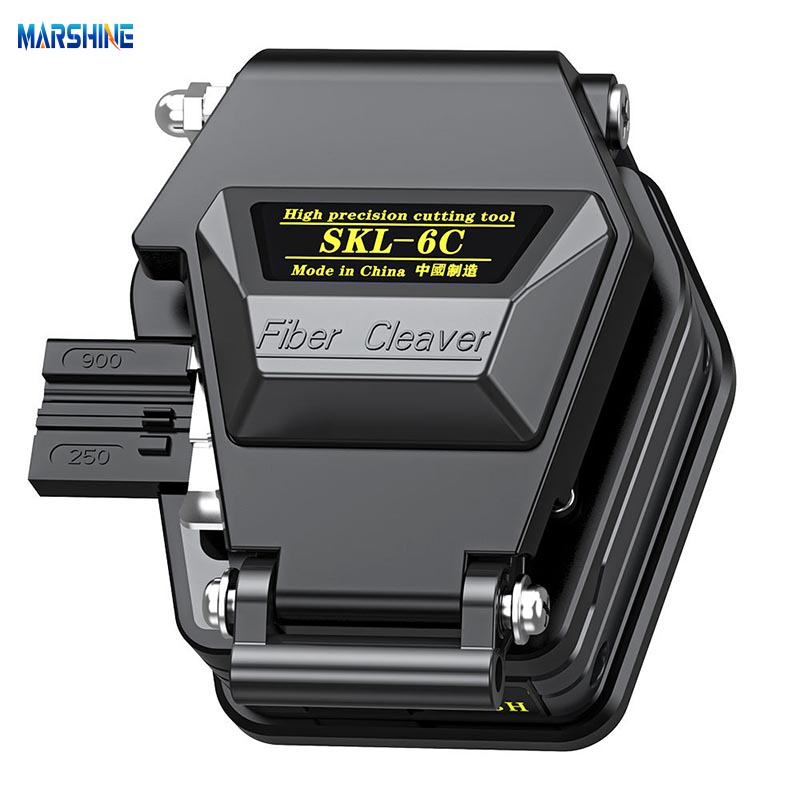

The MARSHINE Automatic One Step Fiber Optic Cleaver Automatic Fiber Cutter is the perfect partner for fast preparation of optical fiber ends before splicing or connector assembling. With its one-step automatic cleaving mechanism, this fiber cutter streamlines the usually intricate process of creating clean fiber breaks, ensuring that technicians can consistently produce high quality cleaves with minimal exertion. With its mini and rugged design, it's perfect for outdoor work, telecommunication, data communication and other optical fiber areas where high reliability and precision is required.
| Model | MAR-SKL-6C |
| Fiber Material | Quartz Fiber |
| Applicable Fiber Core Diameter | Φ0.25 & Φ0.9 MM |
| Universal Bare Fiber Core Diameter | 125μm |
| Cleaved Fiber Length | 9-16 MM |
| Cleaving Angle | <0.5° |
| Blade Lifespan | 50,000 cuts |
| Dimensions | 71*68*52 MM |
| Packing | 9.5*9.2*8.3 CM |
| Weight | 0.22 KG |
One-Step Automatic Cleave
The single action operation scores and cleaves (aka breaks) the fiber in one step, simplifying the process and saving time for splicers and installers.
Auto Blade Rotation
The blade automatically indexes or rotates after each cleave to extend blade life and maintain uniform performance for many cleaves.
Accurate cleaving angle
This MARSHINE One Step Fiber Optic Cleaver Automatic Fiber Cutter can provides very accurate cleave angles (generally below 0.5°on similar tools), which is important for good fusion splicing and low loss of signal.
Integrated Scrap Collection
Several one-step cleavers retain fiber shards within the tool, contributing to a cleaner work area and easier cleanup when using the tool repeatedly.
Broad Fiber Compatibility
Suitable for various fiber types and coating sizes from 125 µm cladding to larger buffers (e.g., 250 µm and 900 µm), ideal for telecom and data cables.
Compact yet Portable
Small, lightweight, and easy to carry to job sites, rooftops, closets, data centers, or any other place where you put fiber down.
The MARSHINE Automatic One Step One Step Fiber Optic Cleaver Automatic Fiber Cutter is suitable for the following fiber optic professional jobs:
Making clean, controlled cleaves to run your fibers through the fusion splicer.
Preparing the ends of fibers for connector in FTTH(fiber to the home), LAN/WAN or telecom applications.
To guarantee consistent fiber length and termination quality in high density networking.
Fast cleaving in the middle of network upgrades, repairs, or field services.
Good for backbone installations and drop fiber runs where the high precision preparation is required.
Brand:MARSHINE.
Condition:New.
Lead Time:15-20days.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
MOQ:36pcs.
