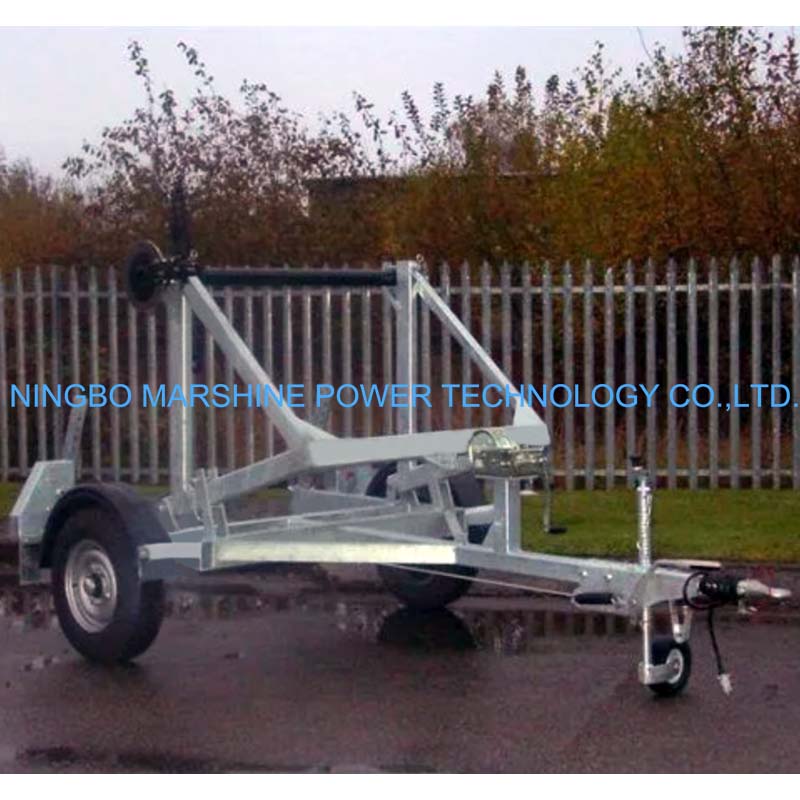

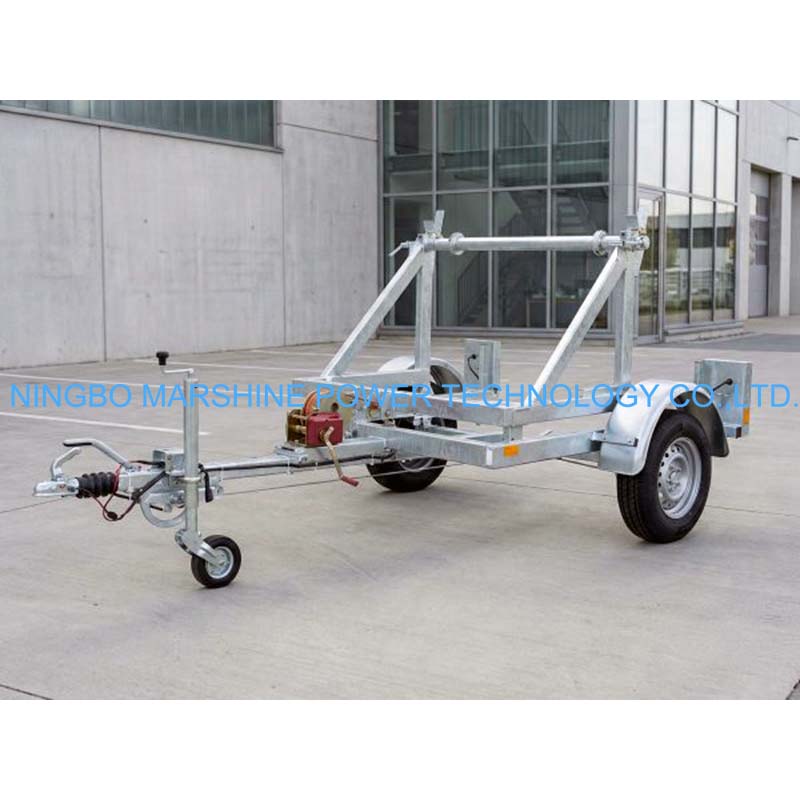

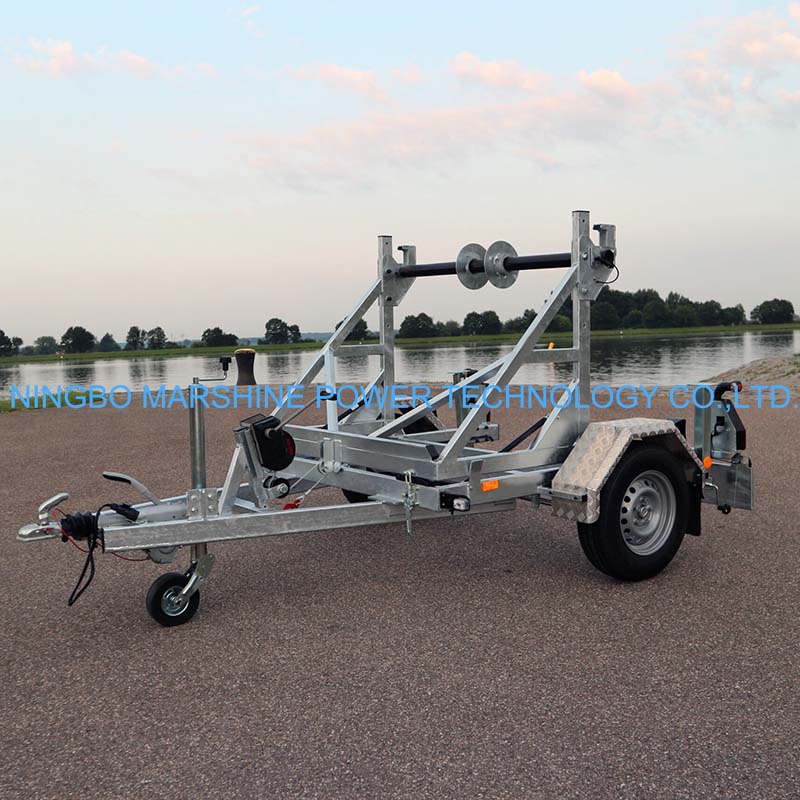

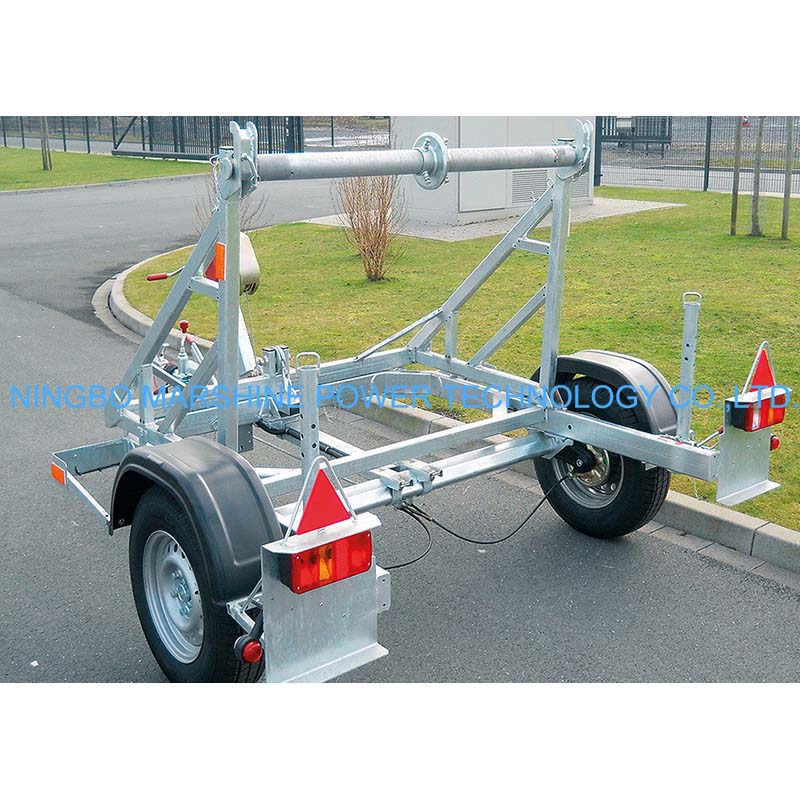

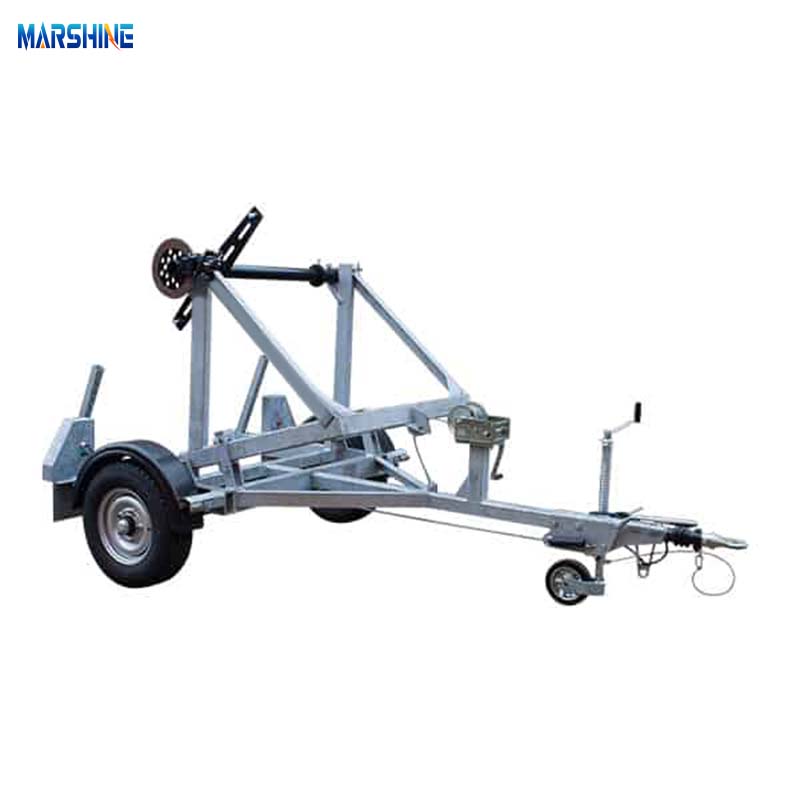

MWT-11 Tiling Cable Drum Trailer For ABC Cable

Model:MWT-11

As a major Chinese supplier of cable-laying equipment and tools, MARSHINE draws on 20 years of extensive experience to provide power construction professionals worldwide with rugged, durable cable-laying equipment at highly competitive prices. This MARSHINE hand-winch operated, tilt-type MWT-11 Tiling Cable Drum Trailer For ABC Cable is one of our high-efficiency handling solutions, specifically designed for cable payout operations at construction sites.

Send Inquiry

Product Description

The MARSHINE MWT-11 Tiling Cable Drum Trailer For ABC Cable is a lightweight piece of equipment designed for transporting and paying out cable drums, tailored for utility contractors, electrical installers, and telecommunications professionals. Featuring a manual winch-operated tilting loading system, it allows operators to safely load, transport, and pay out cable without the need for hydraulic equipment or external lifting machinery. Capable of handling cable drums weighing up to 11 kN, the trailer combines a high payload-to-weight ratio with a simple mechanical design, making it a reliable and cost-effective choice for daily cable installation tasks. Its heavy-duty drum spindle is supported by a full bearing system to ensure smooth rotation during payout, while a mechanical disc brake allows for precise control of the drum's rotation during operations.

Product Parameter

Model	MWT-11
Load Capacity	11KN
Max. Drum Diameter	1850 mm
Min. Drum Diameter	950 mm
Max. Drum Width	1000 mm
Cable Drum Shaft Diameter	70 mm
Cable Drum Shaft Brake	Mechanical Disc Brake
Tyres	195 R14LT
Hitch	40mm DIN eye / 50mm Ball
Dimension	358 x 207 x 176cm
Weight	450 kg

Product Feature

Manual Winch Tilt-Loading System

The integrated manual winch allows operators to safely and efficiently load and unload cable drums without the need for hydraulic lifting equipment, thereby reducing operating costs and simplifying on-site operations.

Light-Duty Load Capacity

Designed to carry cable drums weighing up to 1.1 tonnes, the MARSHINE manual winch trailer is suitable for a wide range of light-duty cable laying projects in the power, telecommunications, and industrial sectors.

This versatility ensures compatibility with the vast majority of standard cable drums used by utility contractors.

Heavy-Duty Bearing-Supported Drum Shaft

The 70mm diameter drum shaft is supported by precision bearings, ensuring smooth drum rotation and minimizing frictional resistance during payout—making it ideal for both overhead line and underground cable laying operations.

Mechanical Disc Braking System

An integrated mechanical disc brake allows operators to precisely control drum rotation during payout, helping to maintain constant cable tension and enhance safety on the job site.

Lightweight Mechanical Design

Eliminating the need for hydraulic cylinders, pumps, or hoses, the trailer features a streamlined design that reduces maintenance requirements and improves reliability in harsh field environments.

Robust and Durable Structural Design

A reinforced steel chassis provides exceptional structural strength, meeting the demands of transporting cable drums on both construction sites and public roads while ensuring stability during cable laying operations.

Product Application

Featuring a manual loading mechanism, this MARSHINE winch-operated tilting cable drum trailer is ideally suited for contractors seeking a reliable solution for cable operations—one that eliminates the need for hydraulic systems while ensuring safe drum loading, secure transport, and controlled cable payout.
