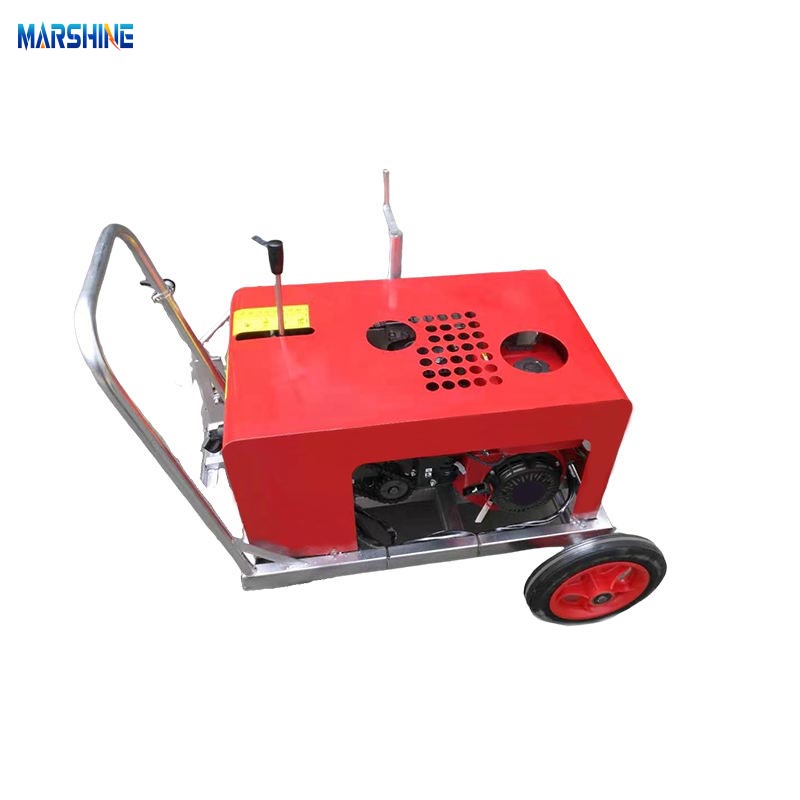

Light Weight Cable Conveying Machine Cable Feeder

Model:MAPC-4.3

As a Chinese supplier of cable conveying tools, our MARSHINE consistently provide our customers with the cost-effective products at the affordable prices. This MARSHINE Light Weight Cable Conveying Machine Cable Feeder is a portable yet lightweight cable conveyor machine that can helps the workers to handle the medium to small-duty cable conveying projects over the long distances, is able to reduce the labor consumption while effectively improving your team’s construction efficiency.

Send Inquiry

Product Description

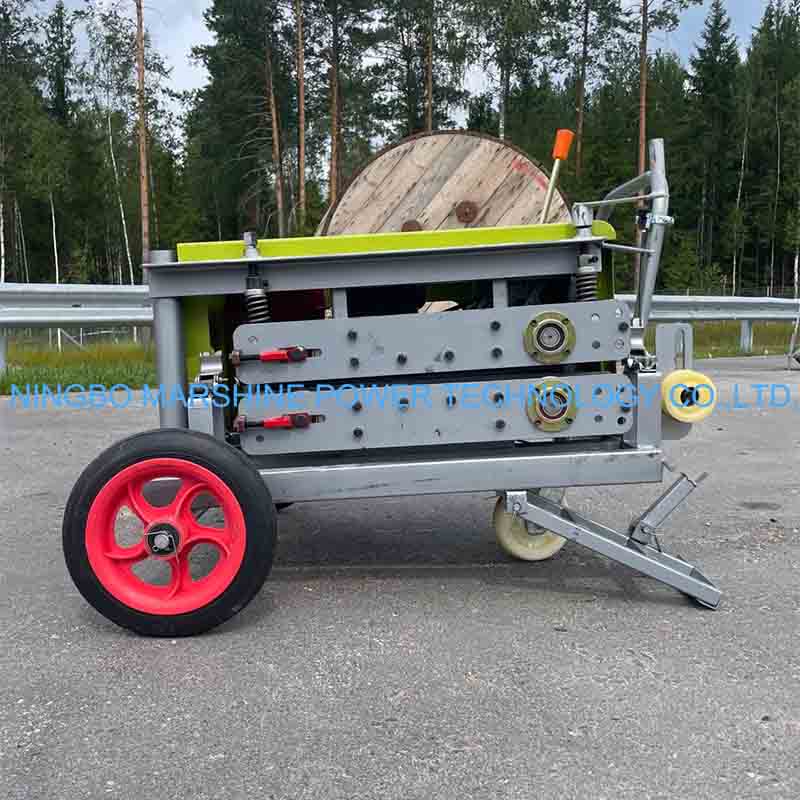

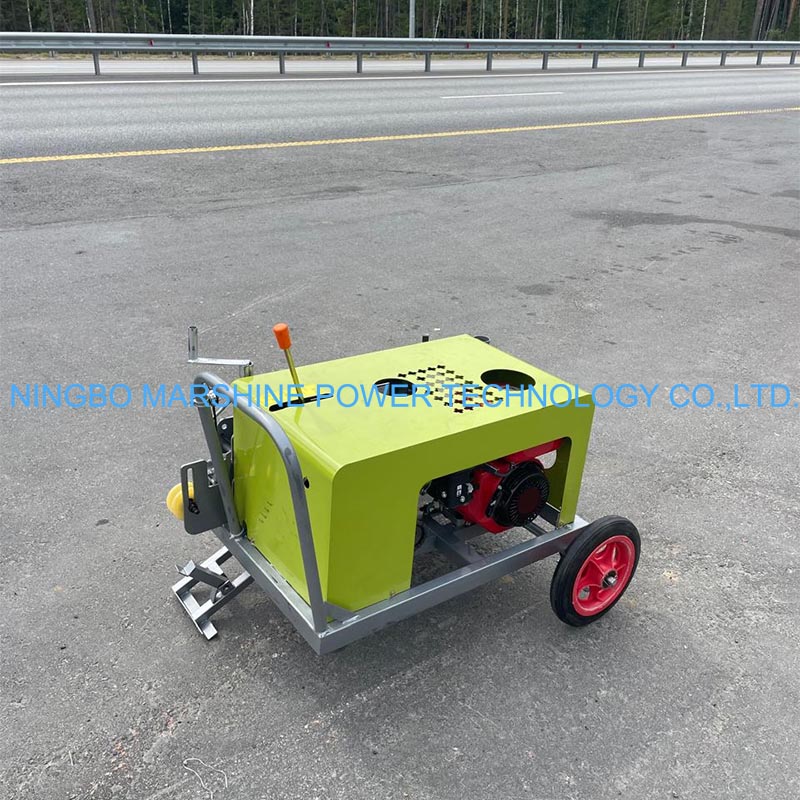

This MARSHINE Light Weight Cable Conveying Machine Cable Feeder consists of the three main components: the engine, gearbox, and the conveyor. Its jaws open and close to allows this machine to offer the users with the efficient cable retraction and the extension performance. Its traction mechanism is powered by an electric motor, which is able to drives the main shaft gear chain through the gearbox. The chain is able to engages the conveyor, and driving the conveyor belt for the linear motion. And the support rod is also included to support the cable's reaction force during the operations, so that to ensures the machine remains stationary during the cable transmission tasks.

Product Parameter

Name	MAPC-4.3
Pulling force	>300KG
Pulling speed	1m -1.6 m/s
Outlet opening size	5mm*45mm
Belt size	1000m*60mm
Engine	4L, (92#, 93#Gasoline)
Power	4.3KW
Dimension	806080cm
Weight	90kg
Wire bracket size	Out diameter:110cm* Inner Diameter:85cm (detachable)
Applicable cable	288 cores/72.6/435m² or less (optical cable/steel stranded wire/electric cable)

Product Feature

Designed to ensure its continuous and smooth cable feeding performance while reducing the manpower needs, this MARSHINE Light Weight Cable Conveying Machine Cable Feeder is light weight yet portable for workers to carry and reposition on the construction site with ease. With its durable constructions that made from the robust alloy steel and treated with oil-paint to protect its constructions, this machine is able to withstand the harsh construction environments for the regular field use. Due to its simple control system, it is easy to operate for the quick deployment on the construction site to deal with the cable pulling tasks. And with its pulling force that no less than 300kg, this machine is suitable for the operators to deal with the medium duty tasks.

Product Application

Our MARSHINE Light Weight Cable Conveying Machine Cable Feeder is a reliable cable pulling machine that perfect for the power cable and the communication cable laying tasks, and is able to be used in the indoor and the confined space cable deployment, or the long distance electrical installation projects. It is suitable for the field service, emergency repair works, or the utility, railway, and the municipal engineering works as well.

Product Details

The MARSHINE Light Weight Cable Conveying Machine Cable Feeder is a efficient machine that suitable for the utility electricians and the linemen who want to speed up their cable installation while ensuring the personal safety and the machine reliability.

Place Of Origin:Zhejiang,China.

Warranty:1year.

Leading Time:12-14days.

Certification:ISO.
