The MARSHINE HHYD-1532 Electric Powered Hydraulic Pipe Crimping Pliers is a outstanding crimping tools which was designed for the efficient, precise, and labor-saving crimping of the metal pipes and fittings. Powered by an electric hydraulic system, this pliers can delivers a strong and uniform pressure with the less user effort. Its compact design and easy operation can evidently improve your efficiency well.
Product Parameter
| Model | MAHHYD-1532 | 1.9T | |
| Stroke | 30mm | 120 times of tube crimping (taking DN20 tube crimping as an example) | |
| Tube crimping time | 5-8 seconds (once) | 12V/1.5Ah lithium battery | |
| Net weight | 2.45Kg (without battery and mold) | 10.45Kg (including product + packaging box) | |

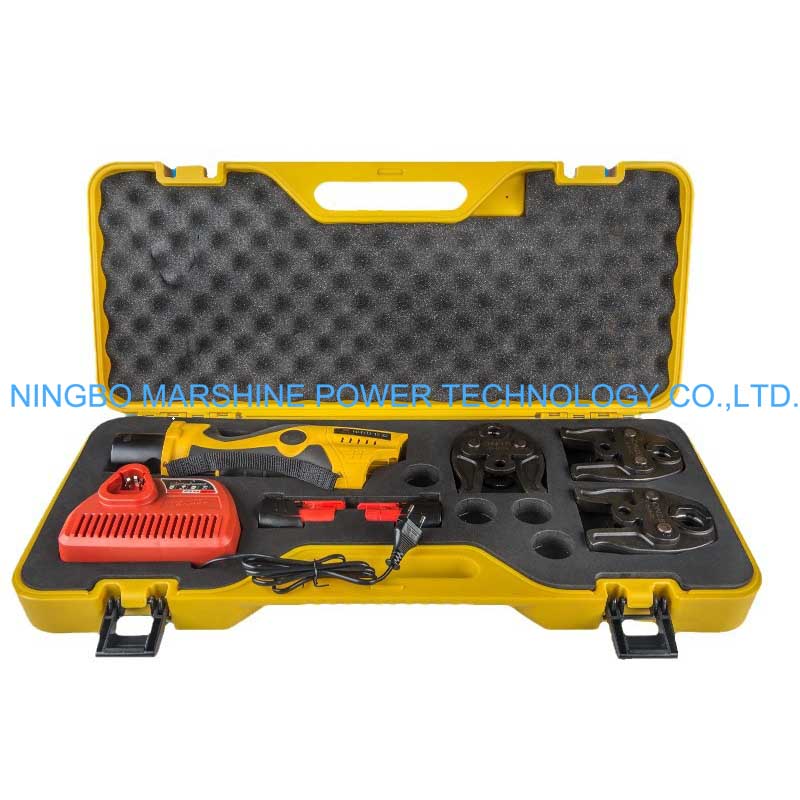

| Accessories | Two batteries, one charger | ||

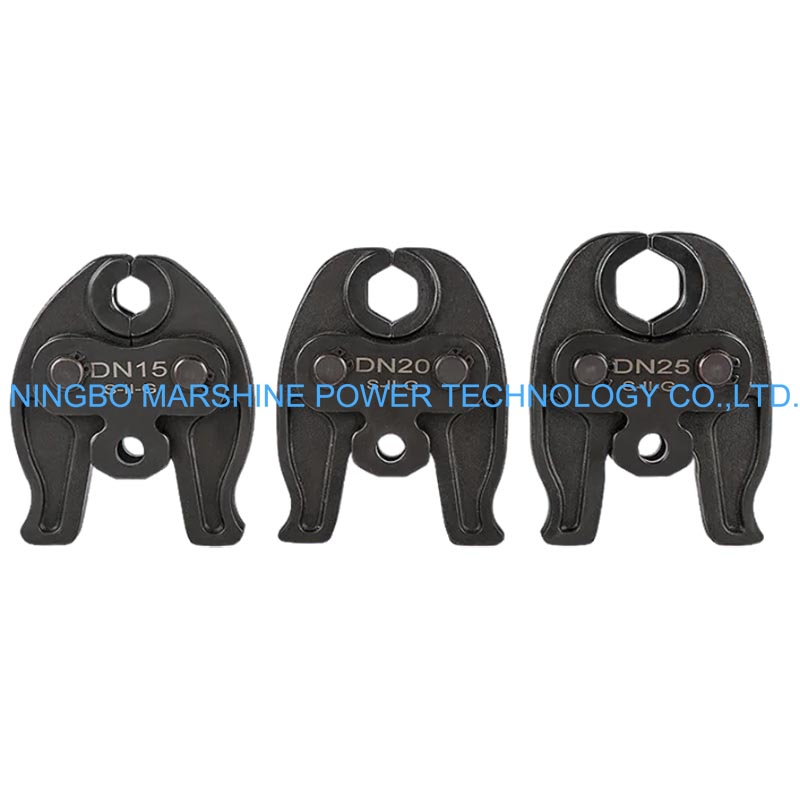

| Molds available | DN15, DN20, DN25, DN32 (molds need to be purchased separately, and specification of the molds please check the next table) | ||
| Other features |

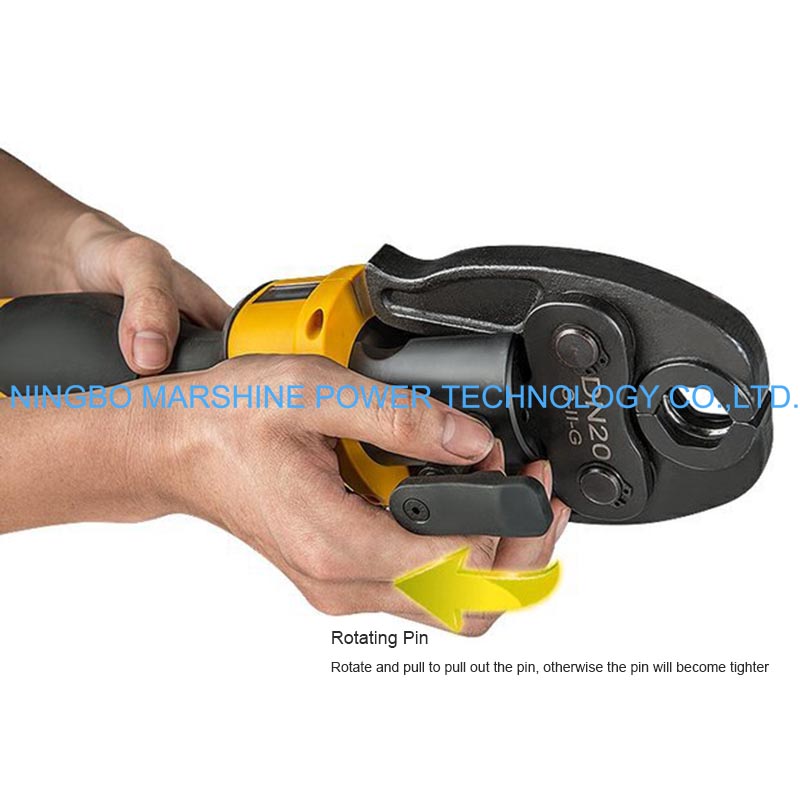

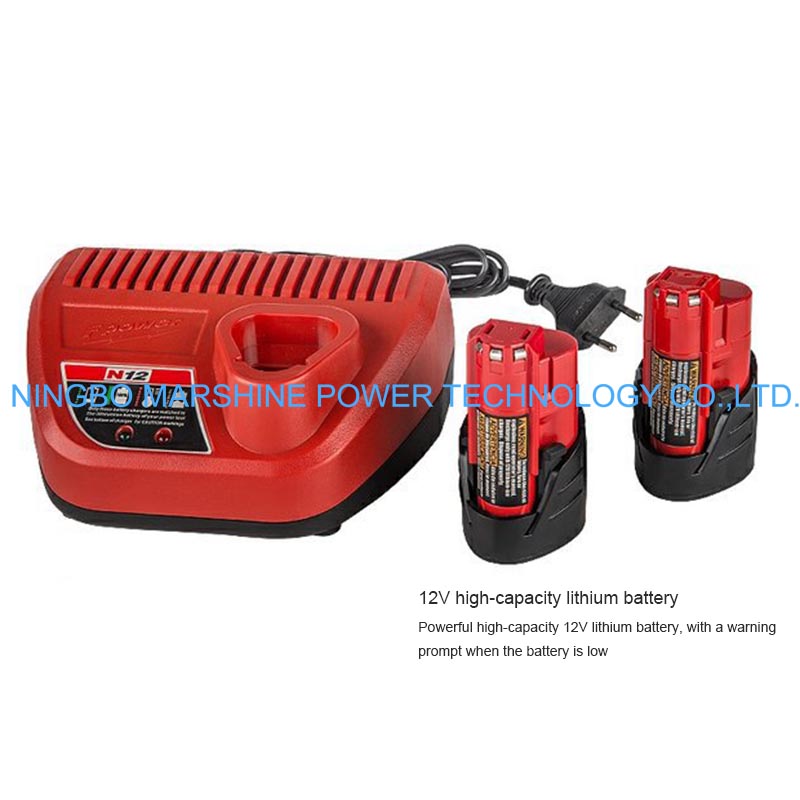

·Standard compression molds for stainless steel pipe fittings that meet the national standard GB/T19228;·Applicable to within 35mm Qualified crimping of metal pipes; ·Two-stage hydraulic system, fast advancement when no pressure, variable speed advancement after contact, greatly shortening the operation time; ·10, 000+ times of life, referring to international leading standards;Product features·Automatic reset, automatic pressure relief after pipe crimping, piston quickly returns to the starting position; ·When the pipe crimping goes wrong halfway, the piston can be returned to the starting position by manual reset button; ·LED LCD screen displays the use temperature, number of uses and other information;·Power safety function, the motor automatically stops; ·Powerful high-capacity 12V lithium battery, with a warning when the battery is low;·Smaller and lighter, ergonomic design |
||
| Nominal diameter DN | I series pipes (mm) | II series pipes (mm) | Pipe wall thickness (mm) |
| DN15 | 16 | 16 | 0.8 |
| DN20 | 20 | 22.2 | 1 |
| DN25 | 25.4 | 28.6 | 1 |
| DN32 | 32 | 34 | 1.2 |
| DN40 | 40 | 42.7 | 1.2 |
| DN50 | 50.8 | 48.6 | 1.2 |
Product Feature
Our MARSHINE HHYD-1532 Electric Powered Hydraulic Pipe Crimping Pliers can provides the consistent high-pressure output for the fast and accurate crimping. Allows for easy switching between the different crimping molds, can compatible with various pipe diameters and fitting types. Its mold is been made of low carbon alloy steel, can ensures its longevity and effectively resistance to wears.
Product Application
This MARSHINE HHYD-1532 Electric Powered Hydraulic Pipe Crimping Pliers is ideal for the electrical conduit and metal pipe crimping, and can also deal with the plumbing and pipe installation, HVAC and refrigeration system assembly, hydraulic and pneumatic pipeline projects, or the maintenance and repair tasks in industrial facilities.

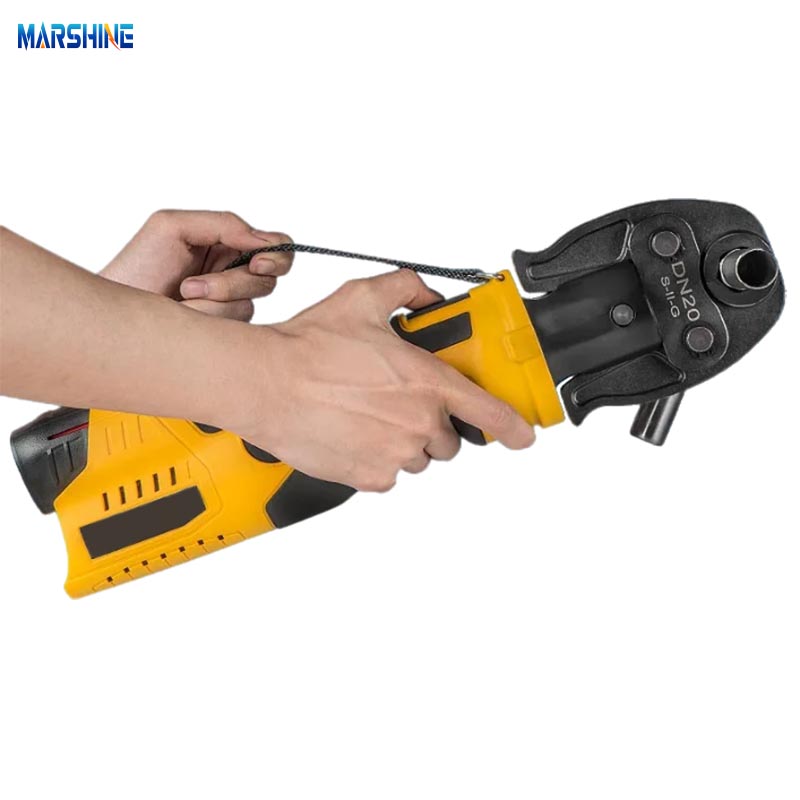

Product Details
The MARSHINE HHYD-1532 Electric Powered Hydraulic Pipe Crimping Pliers can offers the reliable crimping force for electricians and linemen to deal with the pipe fitting and installation tasks.
Place of Origin: Ningbo, China.
Leading Time: 14-20days(1-50sets).
Warranty:1year.
Certifications: ISO9001,CE.
