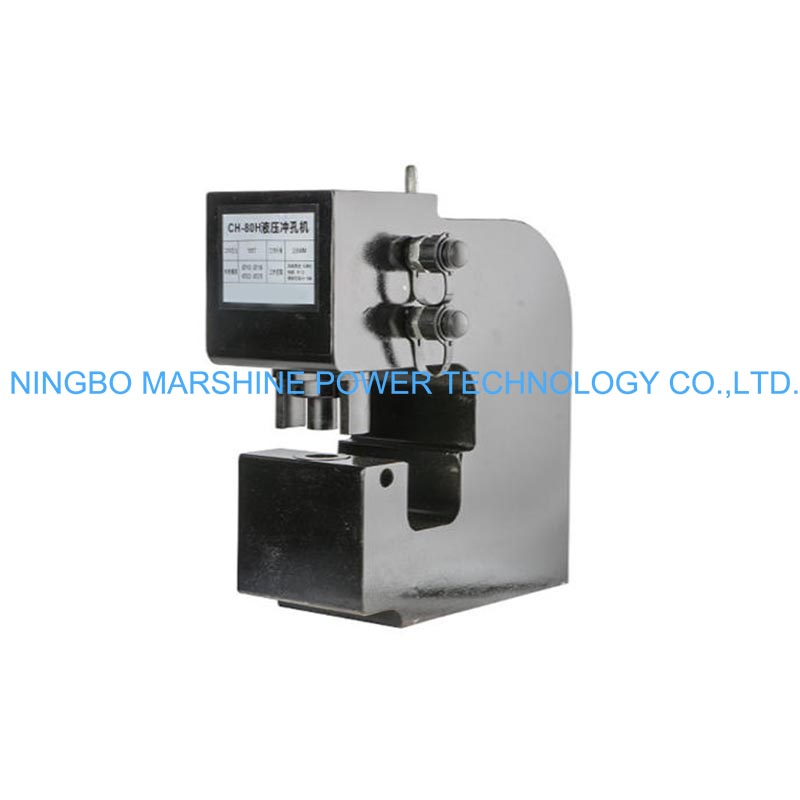

The Heavy Duty Hydraulic Punch delivers an output force of 50 ton, which can enable punch of the iron plates up to 16 mm thick and the copper or the aluminum busbar up to 20 mm thick.

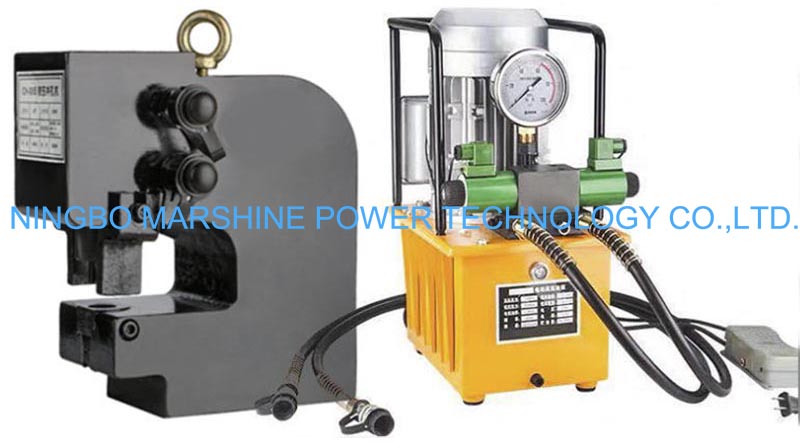

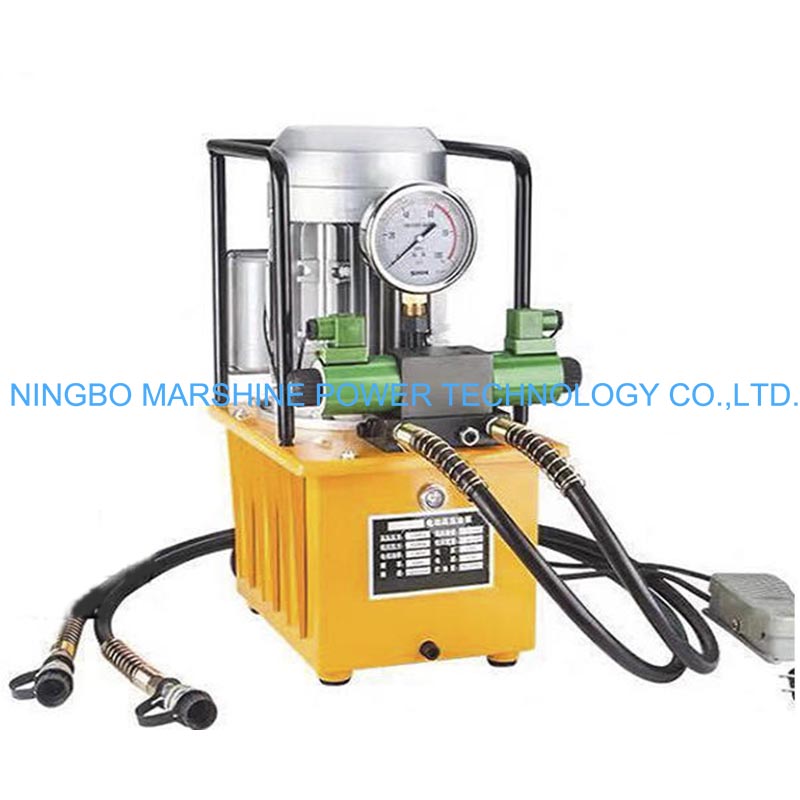

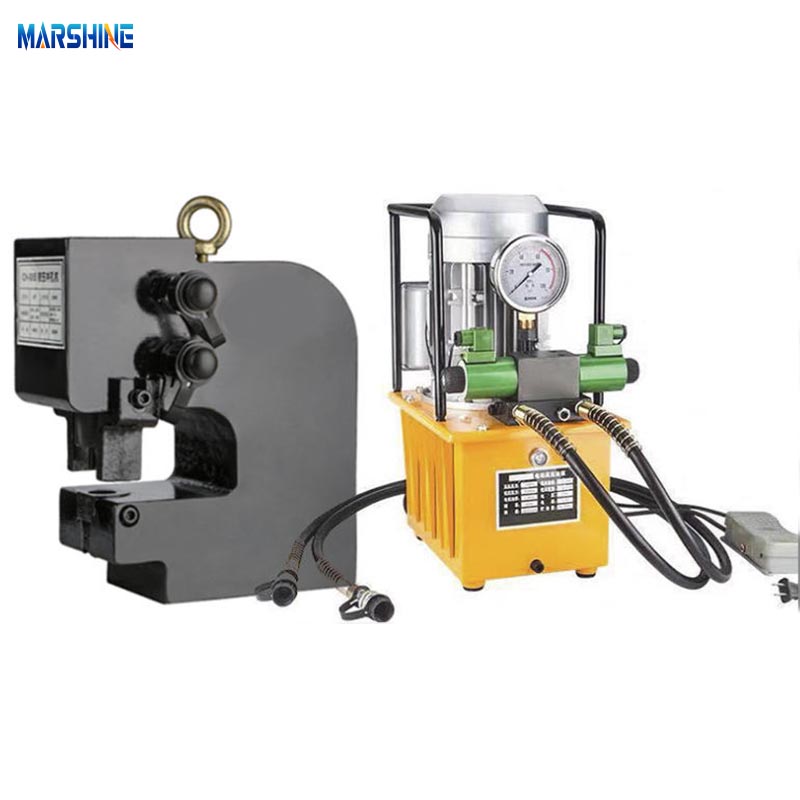

It’s designed with a throat depth of 85 mm, which can facilitate the access into structural profiles and the busbar stacks. The machine weighs approximately 82 kg, which make it portable enough for site deployment yet sturdy and durable enough for the industrial work. The MARSHINE Heavy Duty Hydraulic Punch With Electric Hydraulic Pump comes bundled with a 1.5 kW electric hydraulic pump that can supply the high-pressure oil flow needed for the punching operations.
Product Parameter
| Model | CH-80B |
| Working Pressure(T) | 50 |
| Dimension(mm) | 255*130*300 |
| Stroke(mm) | 25 |

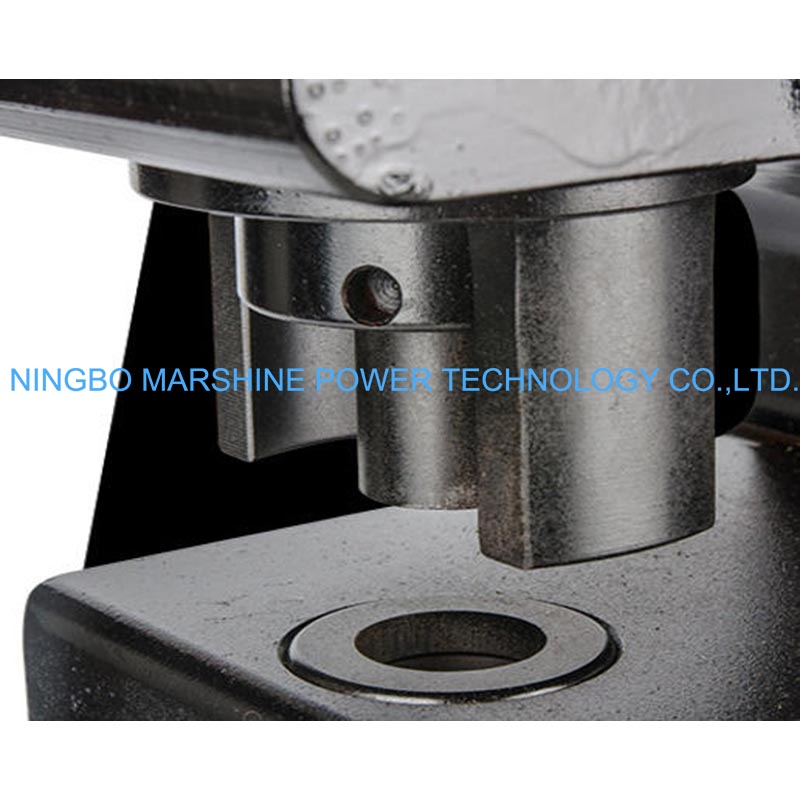

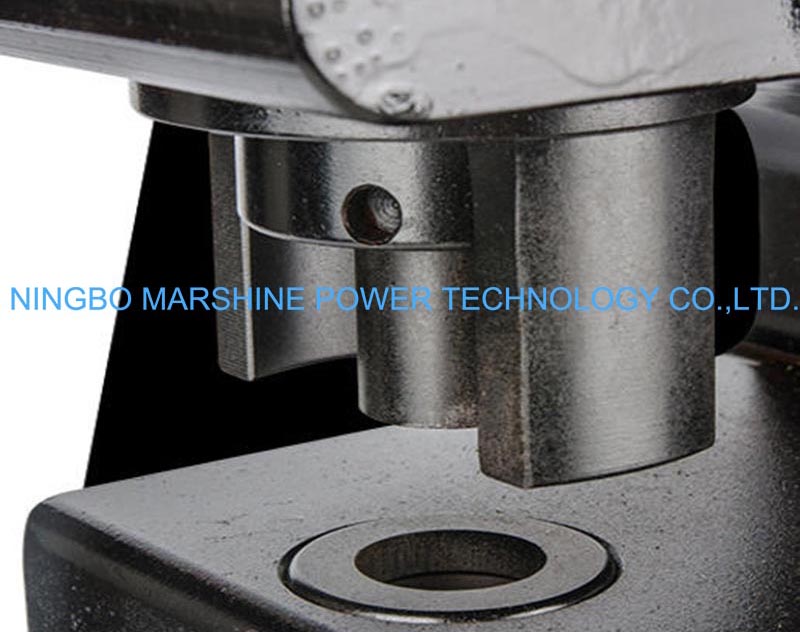

| Die Configuration(mm) | ф16, ф18, ф22, ф25 |
| Throat Depth(mm) | 85 |
| Pump Power(KW) | 1.5 |
| Pump Working Pressure(MPA) | 70 |
| Pump High - pressure Flow Rate(L/Min) | 1.7 |
| Pump Low - pressure Flow Rate(L/Min) | 7.9 |
| Pump Oil Storage Capacity(L) | 10 |
Product Feature
The MARSHINE Heavy Duty Hydraulic Punch With Electric Hydraulic Pump has 85 mm throat depth, which can allow it work on the profiles and the panels in somewhere with the limited space. This machine includes the standard die sizes with 16mm, 18mm, 22mm and 25mm for the common hole-punch requirements. And the hydraulic punch with the bundled 1.5 kW electric hydraulic pump, yet the system is ready to connect and operate without need to buy other pump. The hydraulic punch weights 82 kg that combining a good balance between the portability and the ruggedness for the field or the workshop use.
Product Application
The heavy duty hydraulic punch is ideal for the structural steel fabrication facilities working, especially suitable for machining H-beams or U-shaped channel steel that require through the holes for the bolts or the cable tray supports. In any scenario where the reliable punching of iron, the copper or aluminium with the minimal tool-change and the strong output force is required, the MARSHINE Heavy Duty Hydraulic Punch With Electric Hydraulic Pump becomes a key choice.
Product Details
The MARSHINE Heavy Duty Hydraulic Punch With Electric Hydraulic Pump is featured with double-acting hydraulic system that supports both punching and return strokes quickly and efficiently.
Place Of Origin:China.
Warranty: 1year.
Certification: ISO9001.
Lead Time: 10-12days.
Brand: MARSHINE.
Condition:New.
