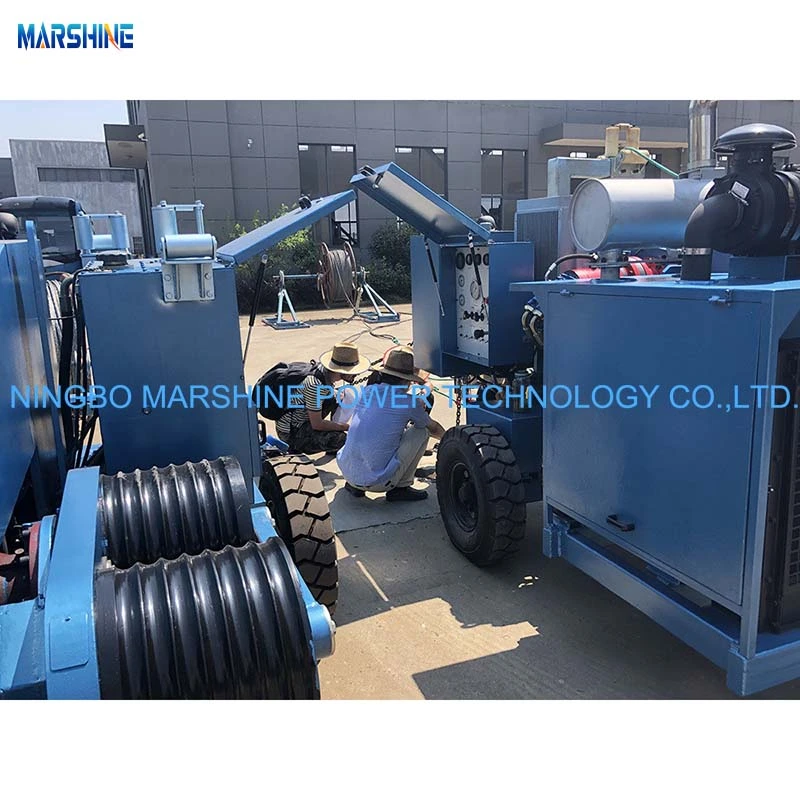

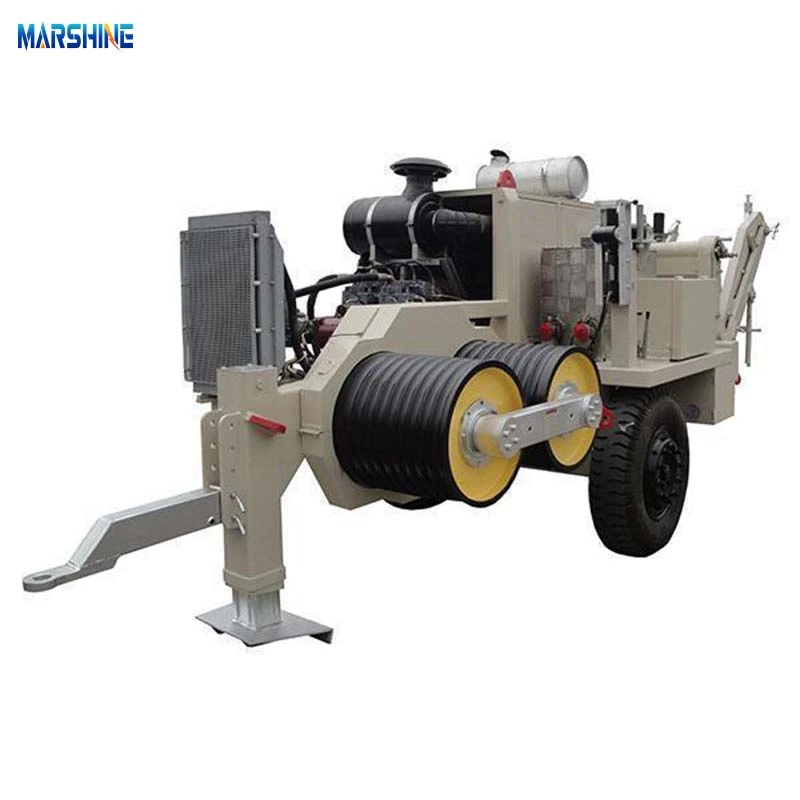

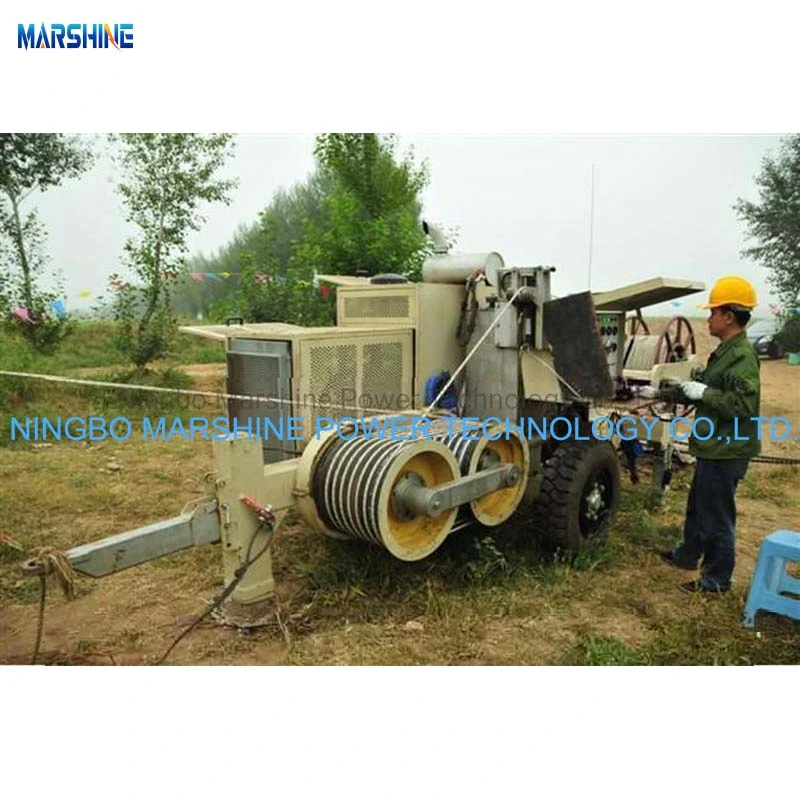

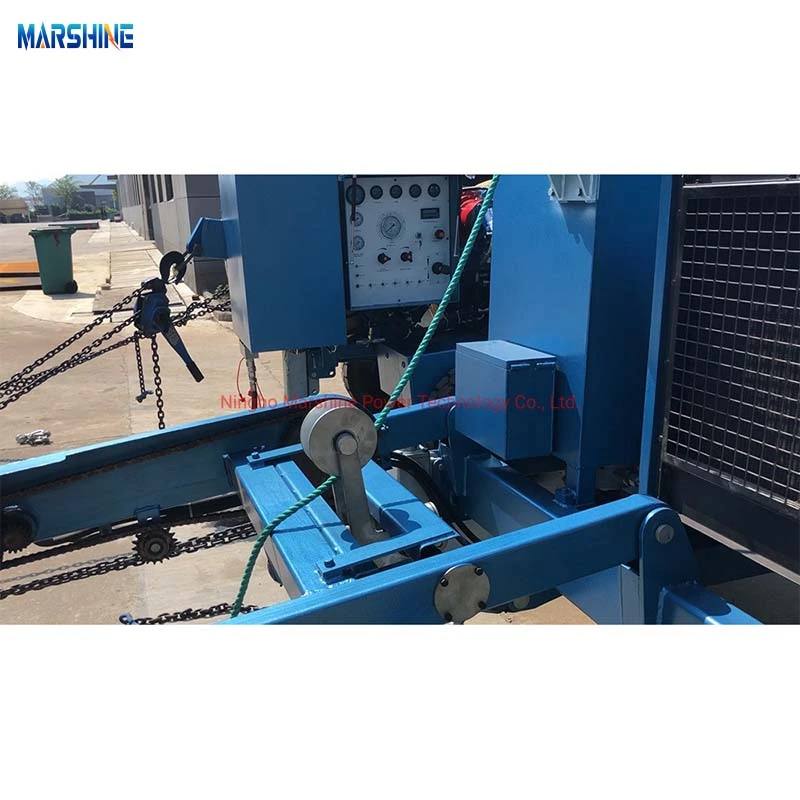

As a robust and advanced solution, our MARSHINE Cable Pulling Winch Machine 10T is designed to deliver unmatched pulling power and operational efficiency for professionals in the utility, telecommunications, renewable energy, and construction industries. Engineered to handle the most demanding cable installation and tensioning tasks with precision and reliability, this high-performance, heavy-duty winch machine offers a maximum pulling force of 18 tons. It is capable of managing large-diameter cables, bundle conductors, and other heavy-duty applications, thanks to its sturdy construction and cutting-edge functionality. The machine combines reliability with user-friendly features, making it an essential tool for professionals working in infrastructure and utility sectors.
| Model | SA-YQ180 |
| Item Number | 07051 |
| Maximum Pull Force(KN) | 180 |
| Continuous Pull Force(KN) | 150 |
| Maximum Speed(km/h) | 5 |
| Bull wheel bottom of groove diameter(mm) | Φ760 |
| Bull wheel grooves number | 10 |
| Maximum suitable steel rope diameter(mm) | Φ30 |
| Maximum through connector diameter(mm) | Φ75 |
| Engine power/speed(kw/rpm) | 223.5/2100 |
| Dimensions(mm) | 5780*2350*2820 |
| Weight(kg) | 8000 |
The MARSHINE Cable Pulling Winch Machine 10T combines innovation with reliability, offering the following standout features:
High-Power Motor: Our cable pulling winch equipped with a powerful motor that ensures smooth and continuous operation, even under extreme load conditions.

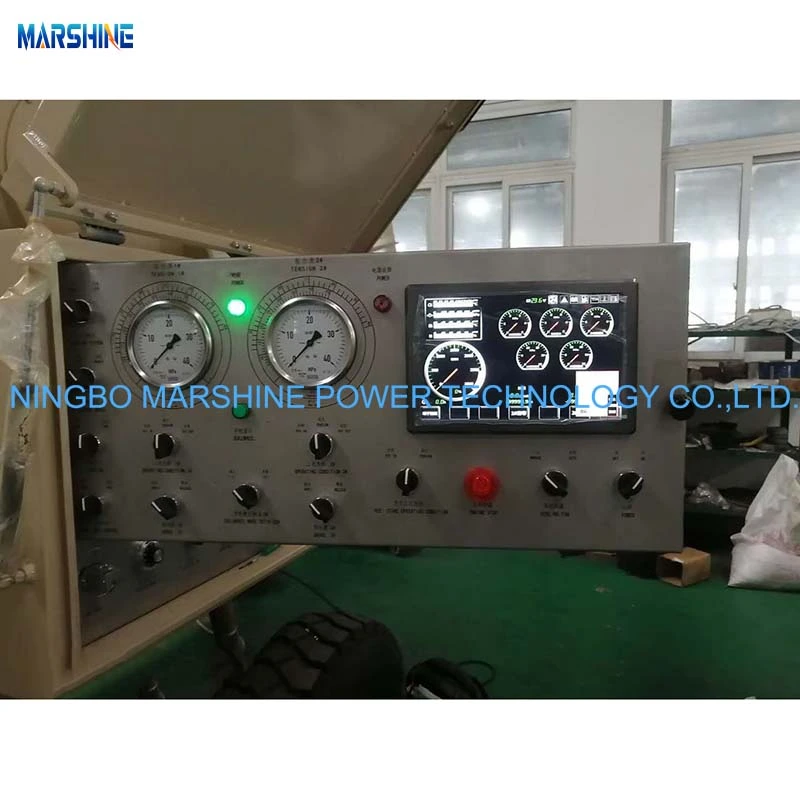

Adjustable Speed Control: This design allows users to regulate the pulling speed according to the specific requirements of the task, ensuring precise and controlled cable installation.
Heavy-Duty Frame: Constructed from high-strength steel and reinforced with anti-corrosion coatings, the machine is built to withstand harsh outdoor environments and repetitive use.
Automatic Tension Control: Monitors and adjusts the pulling tension in real-time, preventing cable damage and ensuring a consistent pull.
Multi-Purpose Design: Compatible with a wide range of cables, including single-core, three-core, and bundle conductors, making it versatile for various applications.
Ergonomic Design: Compact and portable design with easy-to-use controls, reducing operator fatigue and improving efficiency on-site.
The MARSHINE Cable Pulling Winch Machine 10T is widely used in various industries due to its versatility and reliability:
Power Transmission and Distribution: It is ideal for installing high-voltage power lines, bundle conductors, and overhead cables.
Telecommunications: Our MARSHINE cable pulling winch can be used for deploying fiber-optic cables, coaxial cables, and other communication lines.
Oil and Gas: Essential for laying power cables in harsh environments such as oil fields, gas pipelines, and offshore platforms.
Construction and Infrastructure: Applied in the installation of cables for lighting, security systems, and elevator wiring in large-scale construction projects.
Renewable Energy: Can be used in wind farms and solar power plants to connect turbines and panels to the grid.
As a tensile machine for cable stringing, our MARSHINE Cable Pulling Winch Machine 10T has the following characteristics:

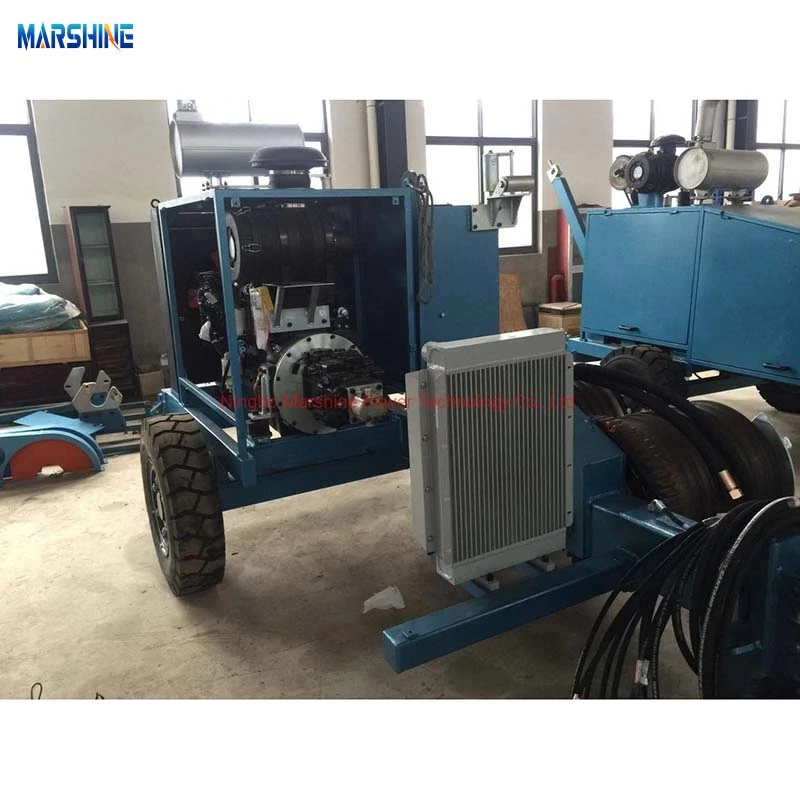

Engine: Cummins (USA) water cooled diesel engine;
Main variable pump and main motor: Rexroth (BOSCH);
Reducer: Rexroth (BOSCH);
Main hydraulic valve: Rexroth (BOSCH);
