5T Hydraulic Cable Pulling Winch Machine

MARSHINE is a company specializing in the development, design and manufacture of 5T hydraulic cable pulling winch machines with competitive price from China. We not only manufacture and supply international standard products, OEM and custom products, but also provide quality tracking and service monitoring. MARSHINE continues to promote the "integrity, development, and innovation" entrepreneurial spirit, for the prosperity and development of power industry.

Send Inquiry

Product Description

The MARSHINE 5T Hydraulic Cable Pulling Winch Machine is equipped with a spring-loaded hydraulic release coil, which ensures automatic start-up in the event of a sudden motor failure or hydraulic failure, thereby always maintaining safe operation.

In addition, our pulling winch machine also has an automatic overload protection function, which ensures safety during the process. Both the pulling speed and the pulling force can be adjusted conveniently, and users can monitor the pulling force through the line. In addition, users can flexibly preset the maximum pulling force for the wire rack line operation.

Finally, our puller has a wire rope automatic winding device, which simplifies the laying of the rope and facilitates the loading and unloading process.

Product Parameter

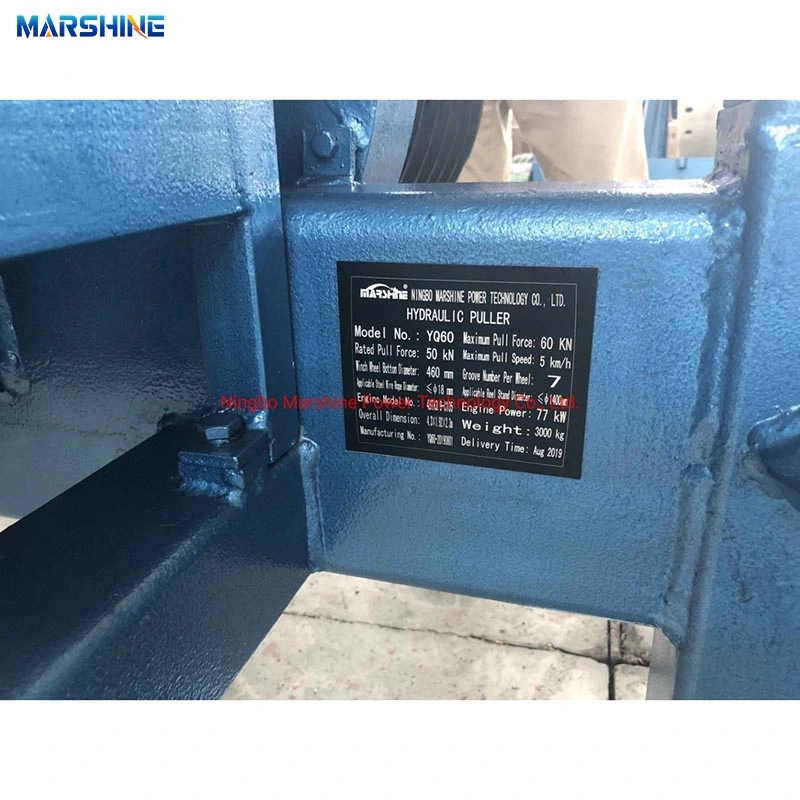

Model	SA-YQ60
Maximum pull force (kn)	60
Continuous pull force (kn)	50
Maximum speed(km/h)	5
Bull wheel bottom of groove diameter(mm)	Φ460
Bull wheel grooves number	7
Maximum suitable steel rope diameter(mm)	Φ18
Maximum through connector diameter(mm)	Φ60
Engine power/speed(kW/rpm)	77/2800
Dimensions(mm)	380021002300
Weight(kg)	3000

Product Feature

The MARSHINE hydraulic cable pulling winch machine with infinitely variable speed and pull force control, the pull in the rope can be read on the line pull gauge.

The max pull for conductor-stringing operation can preset, automatic overload protection system.

Spring applied - hydraulic release brake acts automatically in case of hydraulic failure ensure to safety.

Attached reel winder with automatically level wind, load and unload conveniently.

Product Application

Power Cable Installation: In the electrical sector, MARSHINE hydraulic cable pulling winch machines are essential for installing high-voltage power cables. They can handle the significant tension required to pull these heavy-duty cables through underground or overhead routes.

Control Cable Installation: For control and signal cables, the MARSHINE hydraulic cable pulling winch machine offers a reliable solution to ensure that the cables are pulled without excessive force, which could lead to damage.
