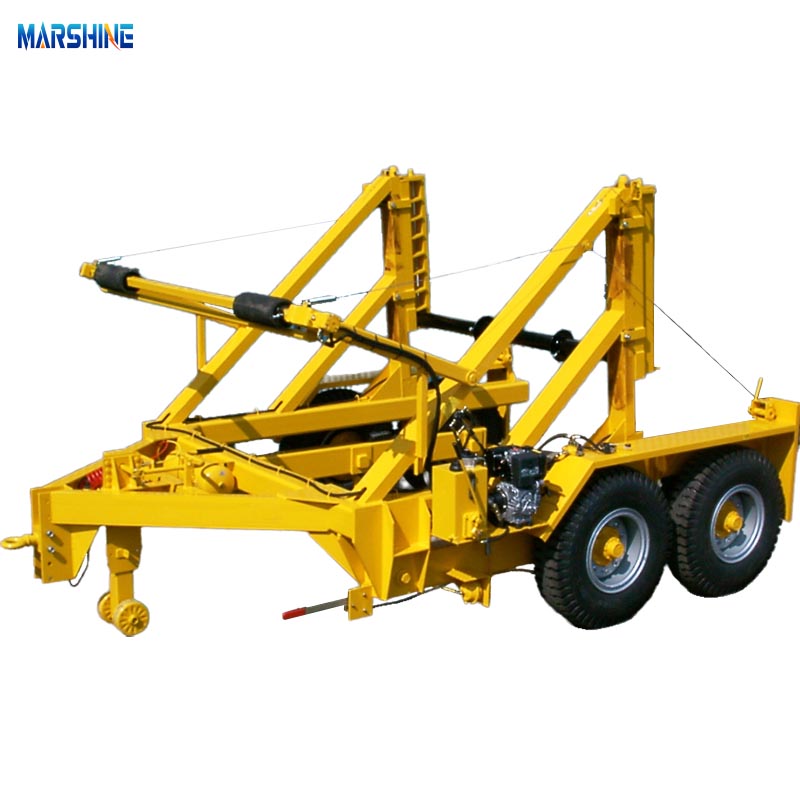

The MARSHINE Double Axle Hydraulic MAR-CD-480 Cable Drum Trailer is a high-capacity cable handling solution engineered for the safe transportation, lifting, and controlled deployment of heavy cable drums in power transmission, utility, and telecom construction projects. Designed with a durable double axle structure and an advanced hydraulic lifting system, this trailer delivers excellent stability, maneuverability, and operational efficiency in demanding field environments. Built for handling large cable reels during underground and overhead cable installation operations, the MARCD-480 provides reliable performance for utility contractors and infrastructure construction teams. Its rugged construction and air brake system ensure safe towing and smooth operation across rough terrain and construction sites.
| Model | MAR-CD-480 |
| Axle Type | Double Axle |
| Load Capacity | 18000 kg |
| Gross Weight | 22000 kg |
| Max. Applicable Drum width | 2400 mm |
| Applicable Drum Diameter | 2500-4600 mm |
| Spindle Diameter | 127 mm |
| Tow Eye/Coupling Height | 76/850 |
| Trailer Width | 3670 mm |
| Towing Speed | 20 km/h |
| Tires | 315/70Rx22.5 |
| Brake System | 2 Line Air |
Rugged Double Axle Construction
The strengthened double axle frame provides better load carrying capability, towing stability and more coefficient of friction to heavy cable drums.
Hydraulic Drum Hoisting System
Includes hydraulic lift and lower for more productive cable drum loading and unloading, reducing man hours at the job site.
18 Ton Payload Capacity
Built to carry cable drums of around 18,000 kg in payload capacity, so this MARSHINE Double Axle Hydraulic MAR-CD-480 Cable Drum Trailer can be used for the laying cable on a grand scale.
Wide Drum Compatibility
Compatible with cable drums with diameters from 2500 mm to 4600 mm and with a maximum drum width of 2400 mm, thus suitable for a variety reel sizes.
Robust 2 Line Air Brake System
The built-in 2 line air brake system provides safe towing and increased operations security in transport and field use.
Heavy-Duty Spindle Support
It has a spindle diameter of 127 mm providing a stable rotation of the drum and a reliable holding whilst unreeling cable.
The MARSHINE Double Axle Hydraulic MAR-CD-480 Cable Drum Trailer is widely used in:
Power transmission and distribution projects;
Underground cable installation;
High-voltage cable laying operations;
Telecommunication and fiber optic cable deployment;
Renewable energy infrastructure projects;
Utility maintenance and construction work;
Industrial cable transportation applications.
Brand:MARSHINE.
Condition:New.
Lead Time:2 Months.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
