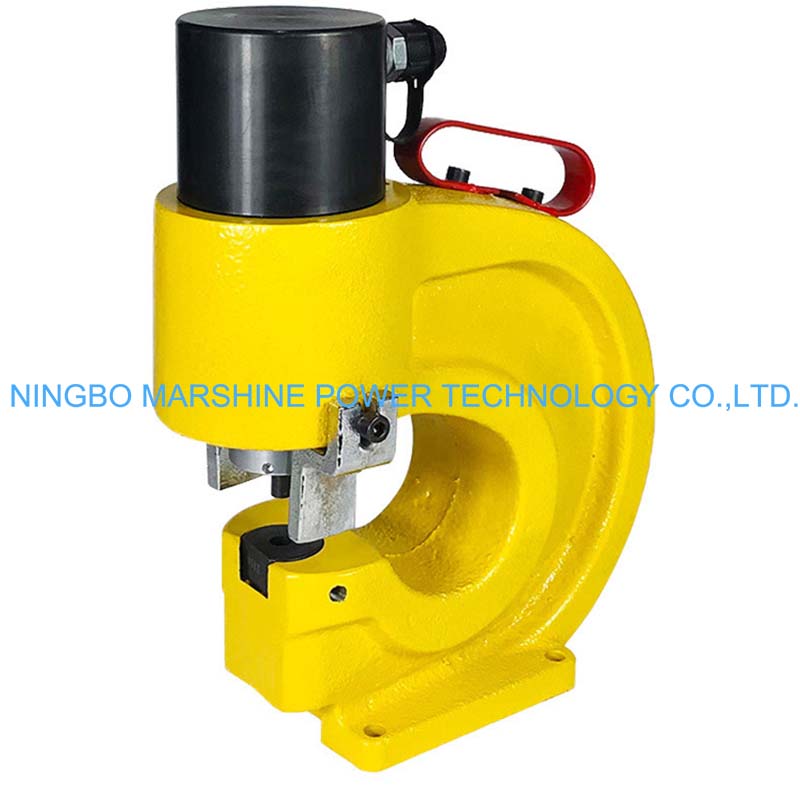

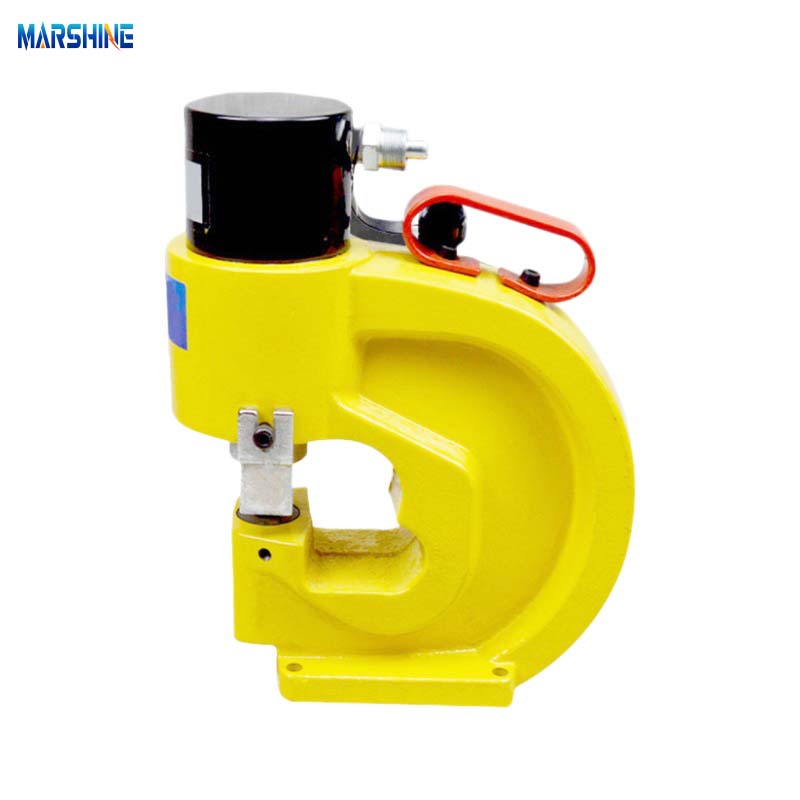

CH-60 Compact Split Type Hydraulic Punching Machine

Model:CH-60

Our MARSHINE was a electric power industry equipment and tools supplier that located in China, and have been offering the international customers with the competitively priced punching tools for more than a decade. This MARSHINE CH-60 Compact Split Type Hydraulic Punching Machine was a split type hydraulic powered punch tool with the compact design, can allow the operators for transporting on the construction site with ease. And due to its robust constructions, this device can ensure the last long durability.

Send Inquiry

Product Description

As a efficient hydraulic punch tool that designed to achieve the precision punching of the metal plates, copper/aluminum bus-bars, and the other conductive materials, this MARSHINE CH-60 Compact Split Type Hydraulic Punching Machine which features the split-type structure, with its compact, lightweight design, make it easy to operate in the confined spaces, and is highly suitable for the on-site electrical installation and maintenance tasks. With the outstanding punching performance offered by the hydraulic power, this machine can ensures the clean and accurate punching while significantly improving the work efficiency.

Product Parameter

Model	Aperture(mm)	Output (T)	Max Thickness(mm)		Throat Depth (mm)	Size(mm)	Weight (kg)
Model	Aperture(mm)	Output (T)	Iron sheet	Copper bus-bar	Throat Depth (mm)	Size(mm)	Weight (kg)
CH-60	10.5, 13.8, 17.5, 20.5	31	6mm	10mm	95	350×245x110	20
CH-60-1	10.5, 13.8, 17.5, 20.5	31	6mm	10mm	95	350×245x110	20
CH-70	10.5, 13.8, 17.5, 20.5	35	10mm	12mm	110	370X240X150	28
CH-70-1	10.5, 13.8, 17.5, 20.5	35	10mm	12mm	110	370X240X150	28

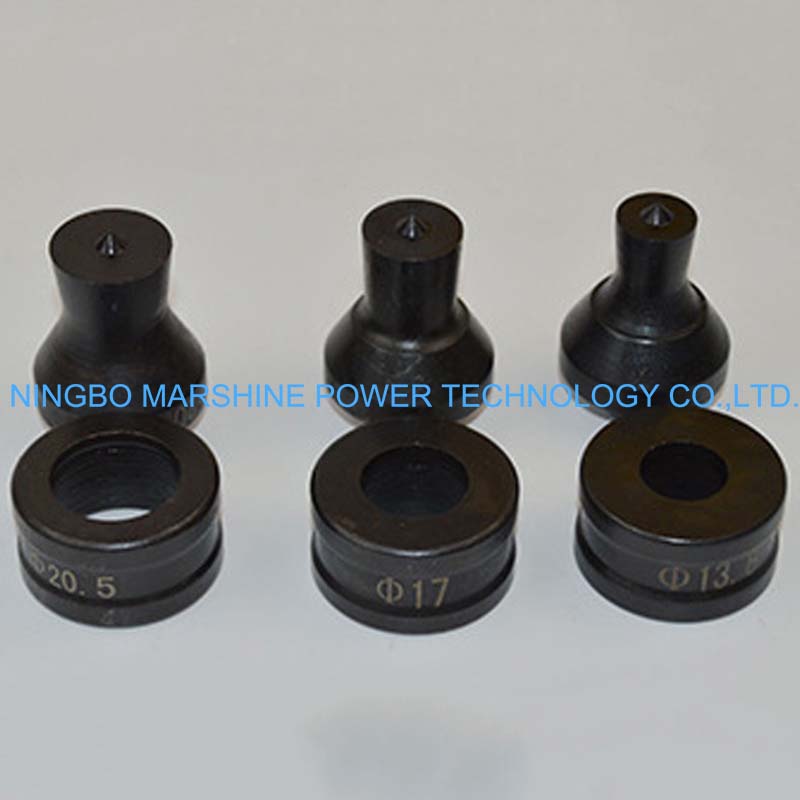

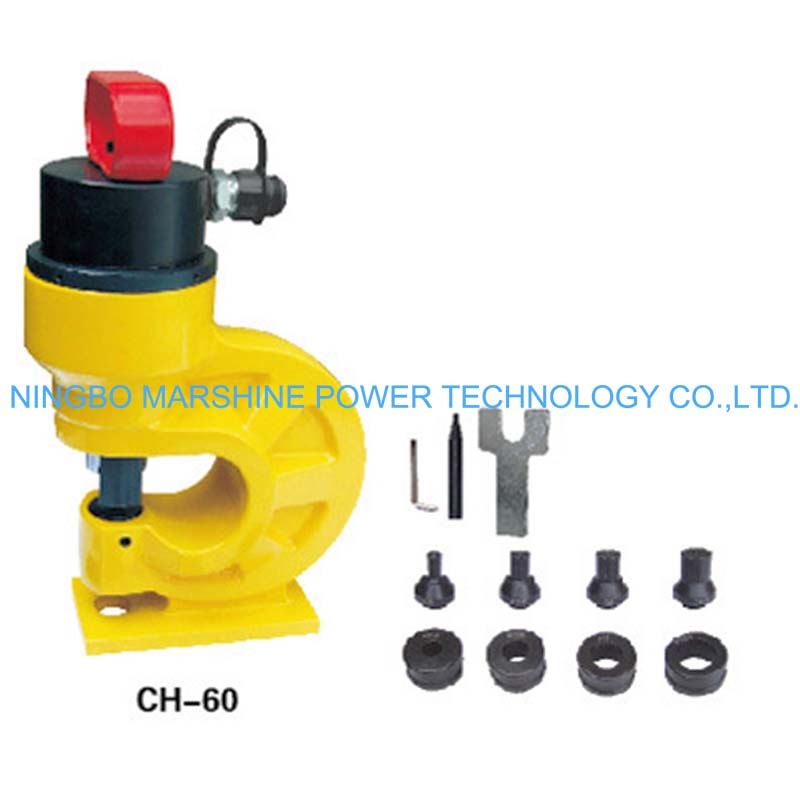

Standard die sizes (mm): 3/8"(10.5), 1/2"(13.8), 5/8*(17.5), 3/4"(20.5)×4Sets (need to cooperate with pump)

Product Feature

Been built from the durable alloy steel and treated with the oil-paint to ensure the longer service life, and with the high punching force to deliver the strong hydraulic power for the precise and smooth hole punching without the burrs, this MARSHINE CH-60 Compact Split Type Hydraulic Punching Machine with the compact split type design is small and lightweight enough for the operators to carry and operate it in the limited working spaces with ease. With the punching capacity up to 31tons, it is capable of punching the copper and aluminum bus-bars up to 10mm thick or the steel plates up to 6mm. Its fast punching cycle is able to reduce the labor efforts while increasing the productivity, and the interchangeable dies make it suitable for various of the hole diameters.

Product Application

This MARSHINE CH-60 Compact Split Type Hydraulic Punching Machine is ideal for the electrical bus-bar processing and panel installation operations, and can be applied on the power distribution and the transformer substation works, or for the on-site electrical construction and maintenance tasks and the industrial workshops or the utility engineering projects as well. In addition, this machine is also suitable for the metal sheet fabrication that requires for the precise hole punching.

Product Details

Being a reliable partner for the efficient and precise metal punching tasks, this MARSHINE CH-60 Compact Split Type Hydraulic Punching Machine can be a good choice for your team.

Place Of Origin:China.

Warranty:1year.

Certification:ISO9001.

Lead Time: 10-12days.

Brand:MARSHINE.

Condition:New.
