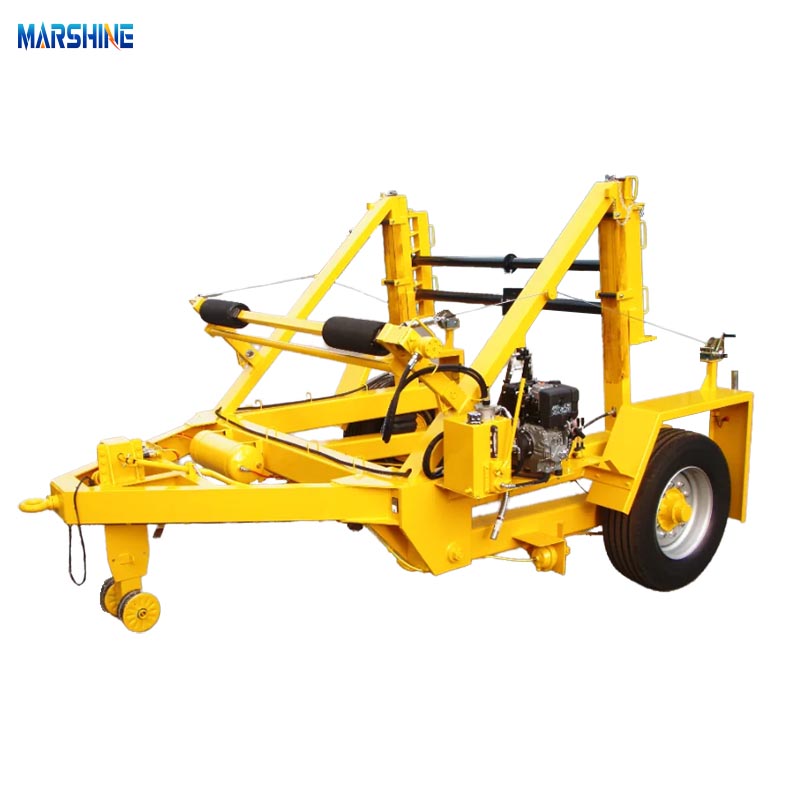

The MARSHINE Alloy Steel 10T Hydraulic MAR-CD-250 Cable Drum Trailer is a powerful cable handling equipment for the moving, lifting and controlled unreeling of large size cable drums in overhead power transmission and underground cable laying works. Made from high strength alloy steel, this trailer offers a unique combination of durability, stability, and efficient hydraulic operation for challenging field applications. Designed for off-road and construction site environments, the MARCD-250 provides safe and reliable handling of LV, MV, HV, and EHV cable drums. With a maximum payload capacity of 10 tons, the trailer is ideal for utility contractors, telecom projects, and power distribution installations requiring efficient cable deployment.
| Model | MAR-CD-250 |
| Axle Type | Single Axle |
| Load Capacity | 10000 kg |
| Gross Weight | 12400 kg |
| Max. Applicable Drum width | 2000 mm |
| Applicable Drum Diameter | 2200-3500 mm |
| Spindle Diameter | 89 mm |
| Tow Eye/Coupling Height | 76/650 |
| Trailer Width | 3200 mm |
| Towing Speed | 15 km/h |
| Tires | 315/70Rx22.5 |
| Brake System | 2 Line Air |
10 Tons Heavy Load Capacity
Designed for cable drums up to 10,000 kg, this MARSHINE Alloy Steel 10T Hydraulic MAR-CD-250 Cable Drum Trailer is applicable for large quantities of cables.
High-Strength Alloy Steel Structure
The alloy steel frame is reinforced for great structural rigidity and long life and for withstanding the loads and degree of severity on a construction site.
Hydraulic Lifting System
A hydraulic lift system is installed for easy loading and unloading of cable reels, which reduces the manual labor to a great extent and enhances work efficiency.
2 Line Air Brake System
The sophisticated 2 line system air brakes guarantee enhanced stopping power and transport safety, particularly when transporting heavy cable reels.
Wide Drum Compatibility
For cable drums with diameters from around 2200 mm to 3500 mm and widths up to 2000 mm.
Single Axle Heavy-Duty Design
The sturdy and stable single axle construction combined with good maneuvering capabilities provides not only excellent load bearing capability for pulling cable during transportation but also when pulling cable in the field.
Large Diameter Spindle Support
An 89 mm spindled diameter is designed to provide a comfortable hold while rotating heavy cable drums during rotation.
The MARSHINE Alloy Steel 10T Hydraulic MAR-CD-250 Cable Drum Trailer is widely used in:
Power transmission and distribution projects.
Underground cable installation.
Telecom cable laying operations.
Utility maintenance and infrastructure construction.
Renewable energy cable installation projects.
Industrial cable transportation and deployment.
Brand:MARSHINE.
Condition:New.
Lead Time:2Months.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
