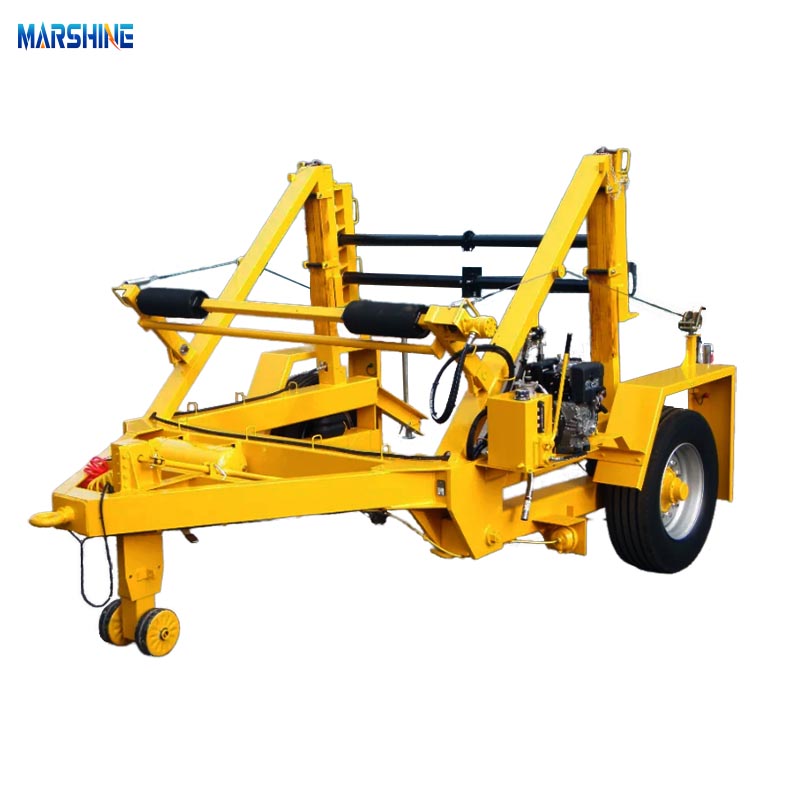

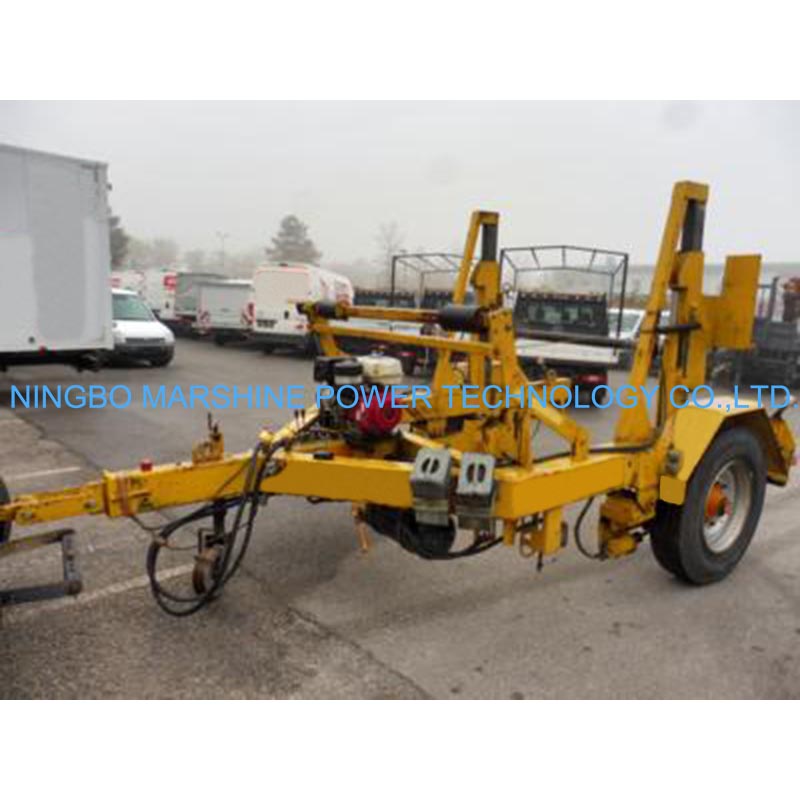

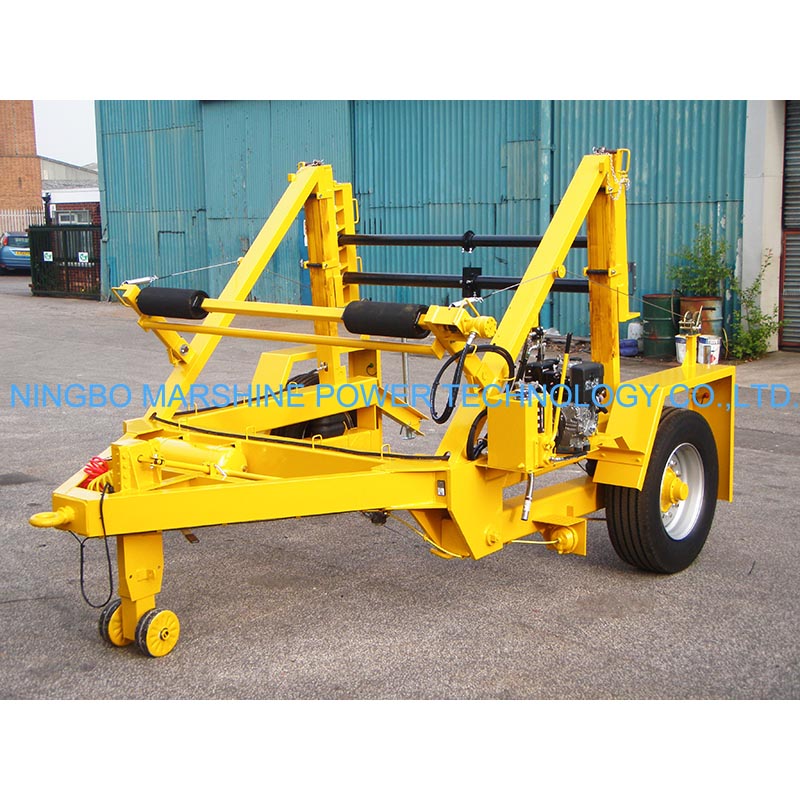

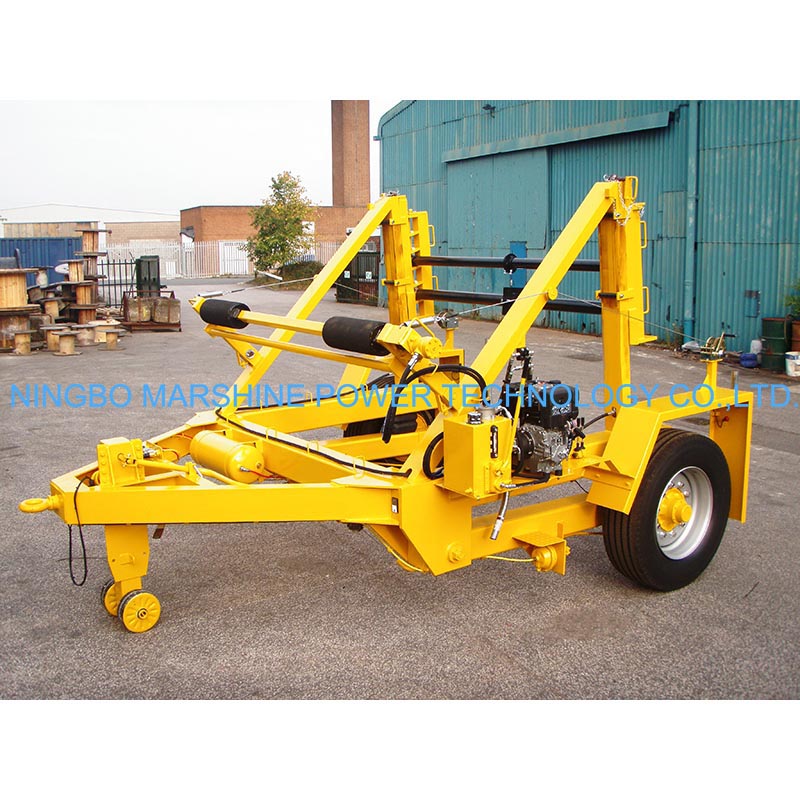

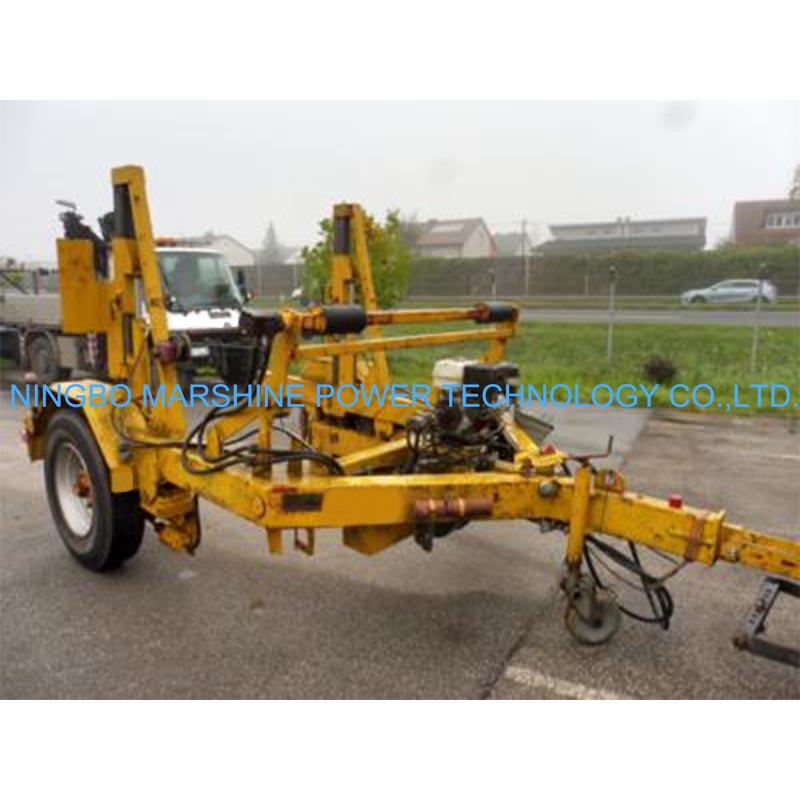

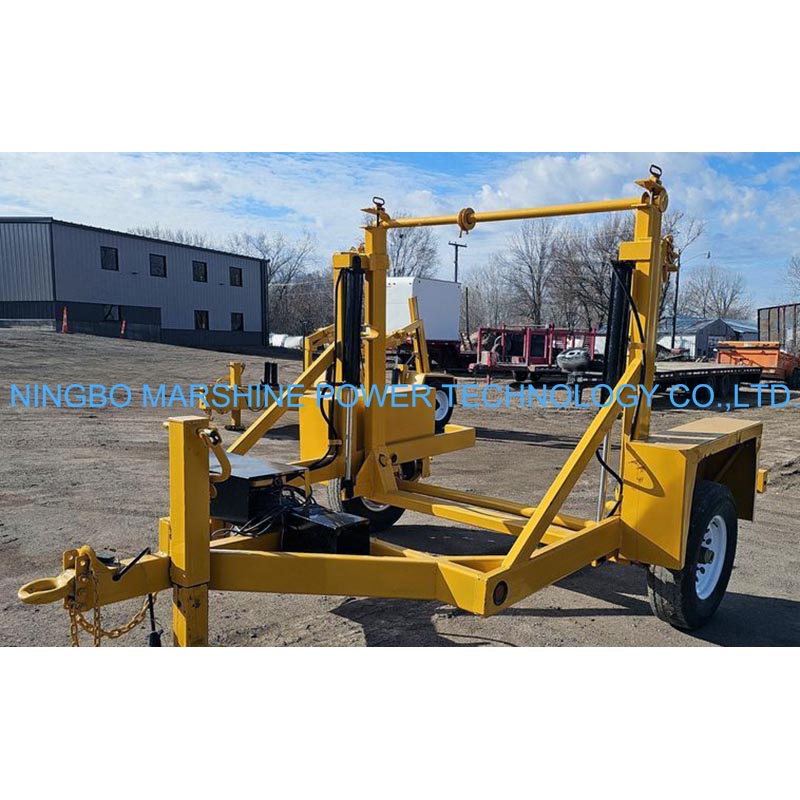

The MARSHINE 2 Line Air Hydraulic MAR-CD-210 Cable Drum Trailer is a heavy-duty, high capacity trailer for carrying, raising and laying large cable drums in severe conditions for utilities works. Like advanced models as the SEB CD210S series, this trailer utilizes a reinforced single-axle chassis together with a dual-line air hydraulic lift system, bringing you the best in stability, lift efficiency and operation safety. Built for the professional cable layer, it allows for Uninterrupted cable payout as well as safe and secure handling of cable reels both on road and off road.
| Model | MAR-CD-210 |
| Axle Type | Single Axle |
| Load Capacity | 8000 kg |
| Gross Weight | 10300 kg |
| Max. Applicable Drum width | 2000 mm |
| Applicable Drum Diameter | 2200-3500 mm |
| Spindle Diameter | 89 mm |
| Tow Eye/Coupling Height | 76/650 |
| Trailer Width | 3200 mm |
| Towing Speed | 25 km/h |
| Tires | 315/70Rx22.5 |
| Brake System | 2 Line Air |
2 Line Air Hydraulic Lifting System
For easy and fast lifting, the dual-line air hydraulic support mechanism is capable of efficient lifting, lowering and positioning of heavy cable drums with less effort from the operator.
Heavy-Duty Single Axle Construction
Ensures maximum stability and maneuverability when towing heavy cable reels.
High Payload Capacity
Adapted for handling of extra-large cable drums applicable for use in HV and EHV transmission cable projects.
Broader Range Of Drum Sizes
Used with Large range of cables drum diameter and widths so this MARSHINE 2 Line Air Hydraulic MAR-CD-210 Cable Drum Trailer could be used in many installation scenarios.
Mechanical Drum Locking System
Provides strong grip on cable drums during transport and during the cable deployment itself resulting in increased operational safety.
Built in Air Brake System Air Brakes
Sophisticated brake system enhances pull safety and ensures stable braking performance during heavy loading.
Heavy Duty Steel Chassis
Developed with steel, the chassis is engineered to withstand decay in all weather conditions and resist abrasive working environment for long service life.
Trailer-Sealed Design For Road Travel
Towing hitch, off-road tires and lighting system are included for easy transportation from site to site.
The MARSHINE 2 Line Air Hydraulic MAR-CD-210 Cable Drum Trailer can be used for:
HV/EHV cable drums transportation and laying out for high voltage and extra high voltage cable laying projects.
Long distance cable laying, underground and overhead.
To help lay large capacity communication cables reels.
From substations to wind farms, solar plants and heavy industrial establishments.
For a stable, predictable system and a safe change out in heavy cable work.
Cables for railways, airports, tunnels, and city utility systems.
Brand:MARSHINE.
Condition:New.
Lead Time:2Months.
Warranty:1 year.
Certification:ISO9001.
Place Of Origin:Ningbo,Zhejiang.
Payment Term:T/T.
